Seco Carbide Milling Inserts QTY10 ANSI SNHQ1204508TR4-M07 02526627

Seco
Carbide Milling Inserts box of 10


MSRP: $545

• Insert Style: SNHQ Insert Size: 12
• Insert Material: Solid Carbide Insert Shape: Square
• Manufacturer Grade: F40M Corner Radius (Decimal Inch): 0.0315
• Number Of Cutting Edges: 4 Thickness (Decimal Inch - 4 Decimals): 0.1772
• Coating/Finish: TiN; TiAlN Relief Angle: 0.000
• Insert Size Code: 1204508 Material Grade: Fine Grain
• Width (Inch): 1/2 Inscribed Circle (Decimal Inch): 0.5000
• Inscribed Circle (Inch): 1/2 Thickness Range (Decimal Inch): 0.1750 to 0.1850
• Corner Radius (Inch): 1/32 Inscribed Circle Range (Decimal Inch): 0.5000 to 0.5100
• Length Range (Decimal Inch): 0.0000 to 0.3200 Insert Hand: Right Hand
• Maximum Depth of Cut (Decimal Inch): 0.1634 Series: SNHQ-12
• Coating Process: PVD Cutting Edge Effective Length (Decimal Inch): 0.1772
• Rake: Negative Primary Workpiece Material: Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code: P; S; K Secondary Workpiece Material: Non-Ferrous Metal; Cast Iron
• Secondary Workpiece Material Code: K; N Ansi Code: SNHQ1204508TR4-M07
• Iso Code: SNHQ1204508TR4-M07 Standards: ISO
• Rake Angle: 20.000 Cutting Edge Style: T-Land
• Manufacturers Catalog Number: SNHQ1204508TR4-M07 Cutter Series Compatibility: 335.19-12
• Chip Breaker: M07 UNSPSC Code: 23291601
• Material Application: Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel Shape: Square
• Insert Holding Method: Screw Coating Classification: PVD
• Single or Double Sided Insert: Single Included Angle Degree: 90
• Width (Decimal Inch - 4 Decimals): 0.5000 Width (mm - 2 Decimals): 4.15
• Multi-Use Tool: Yes Length (Decimal Inch - 4 Decimals): 0.1772

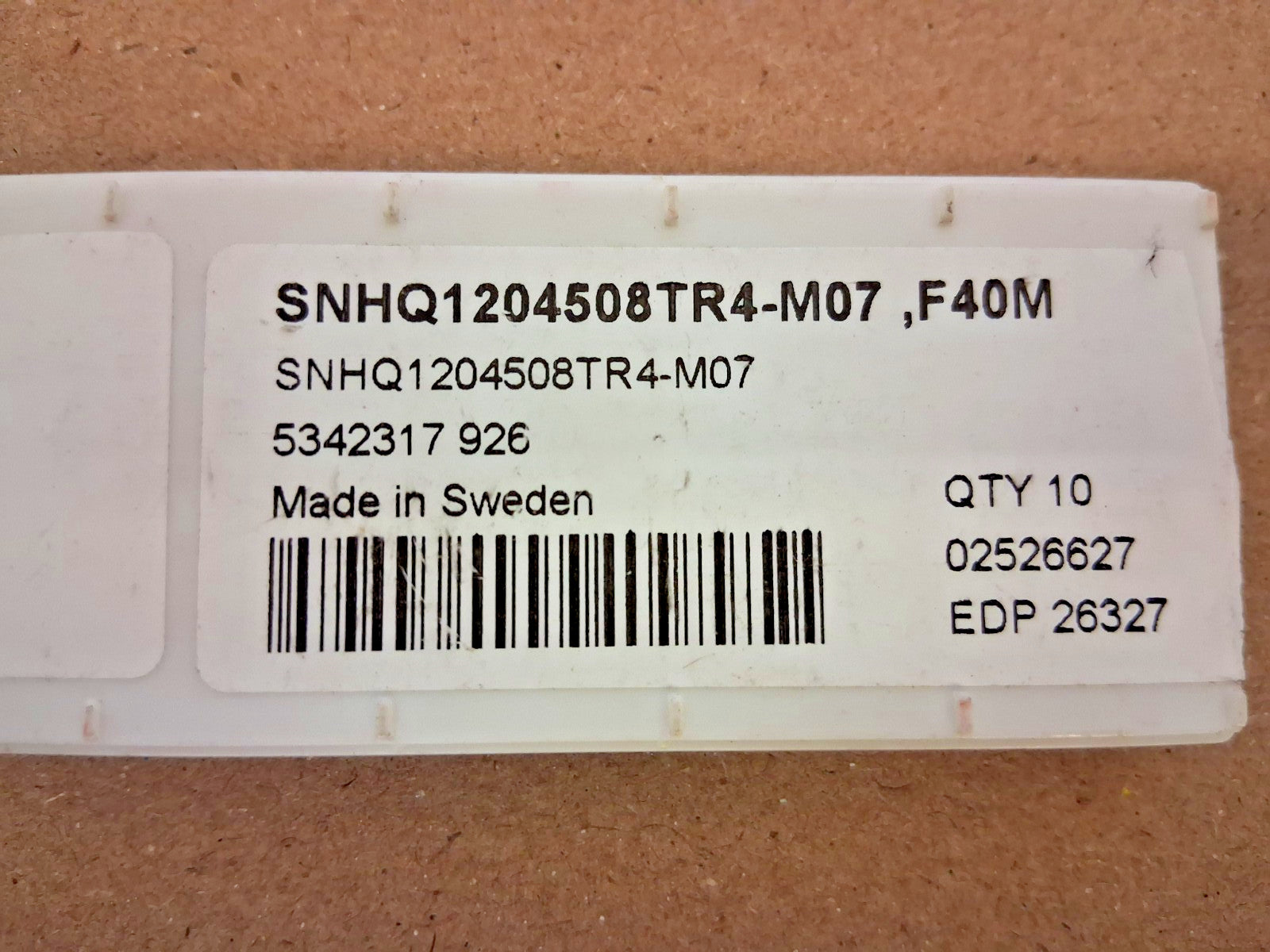

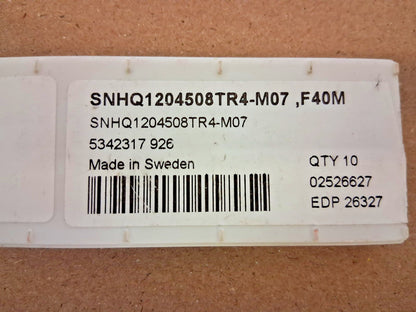

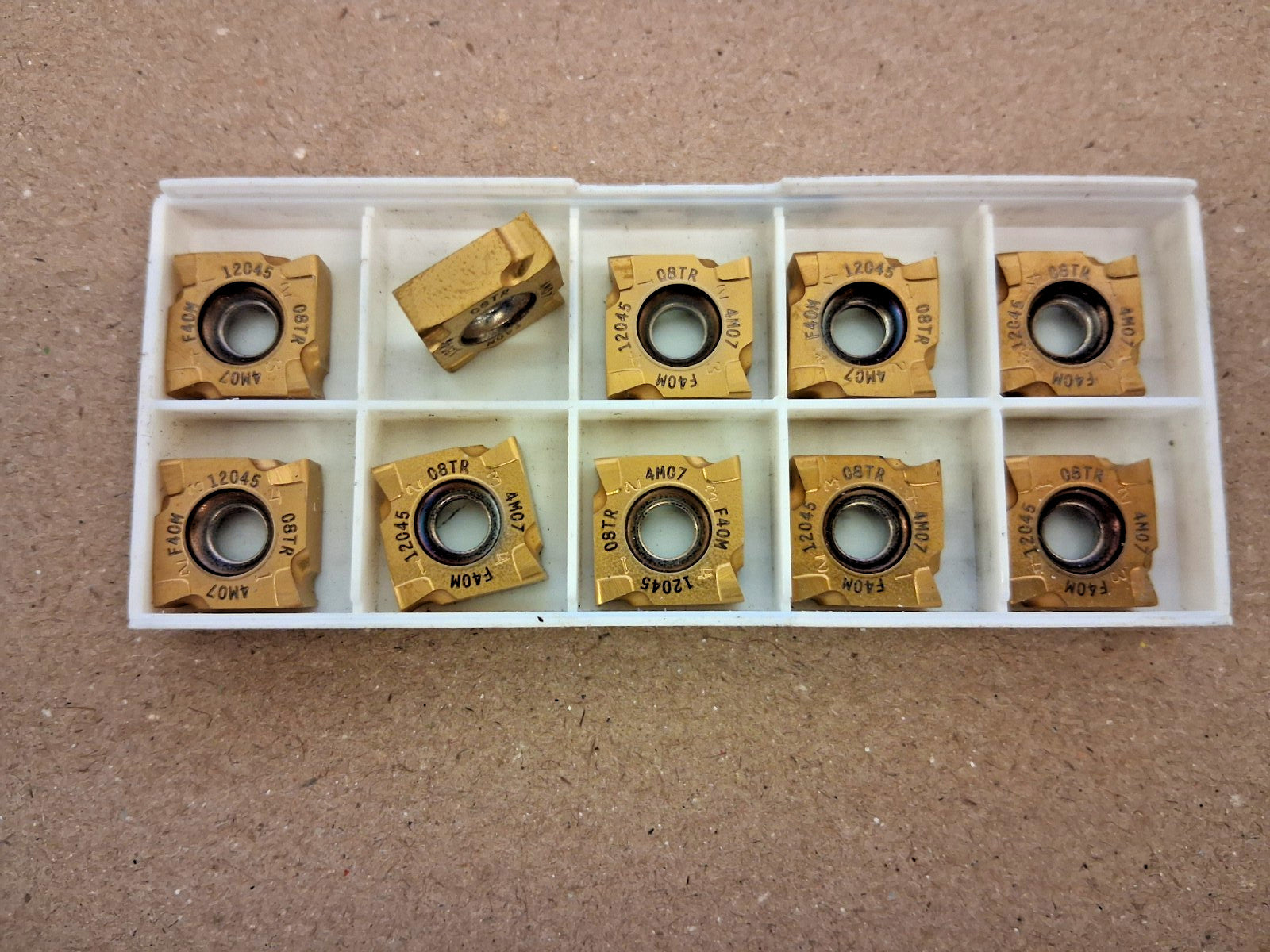

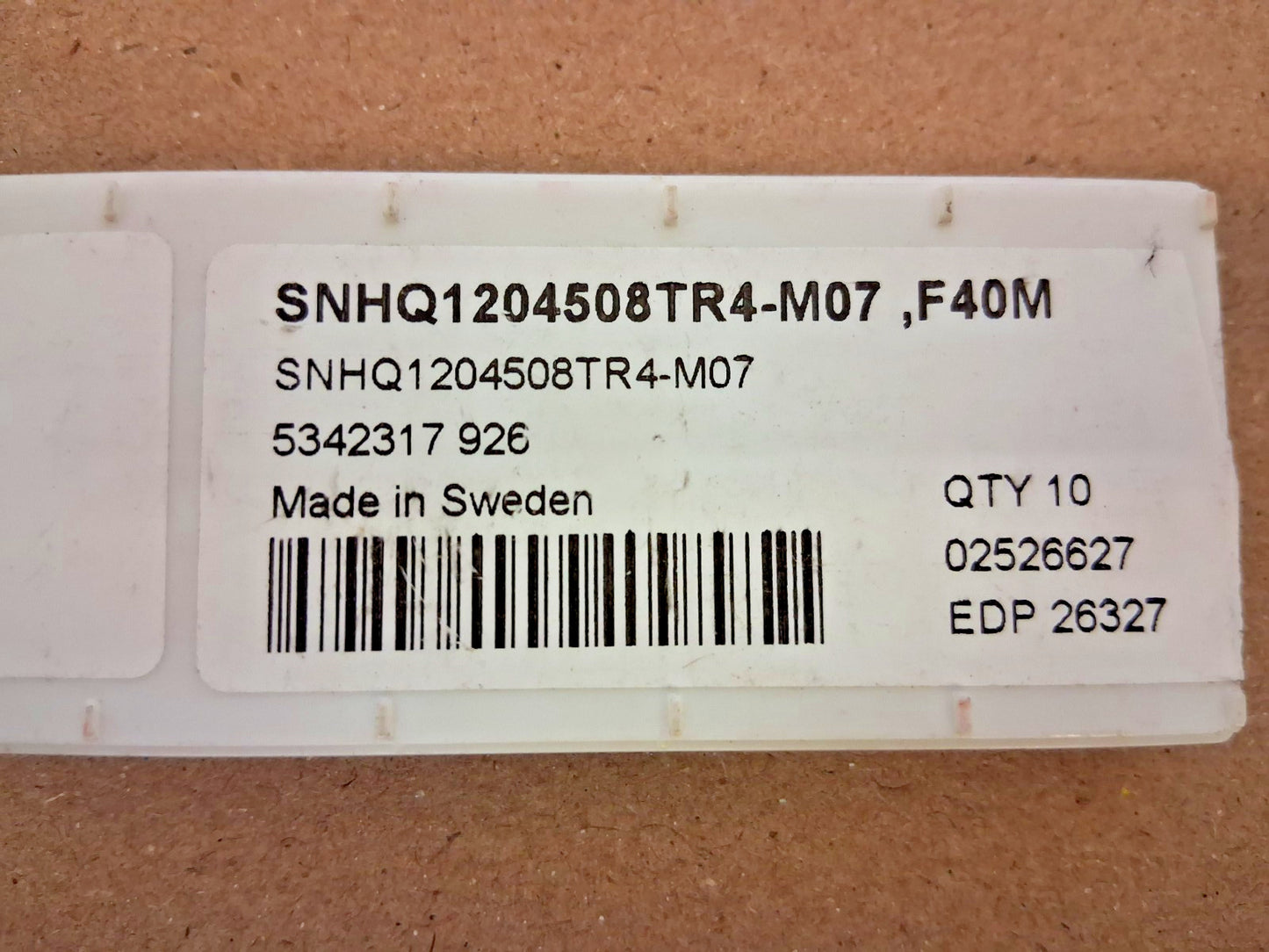

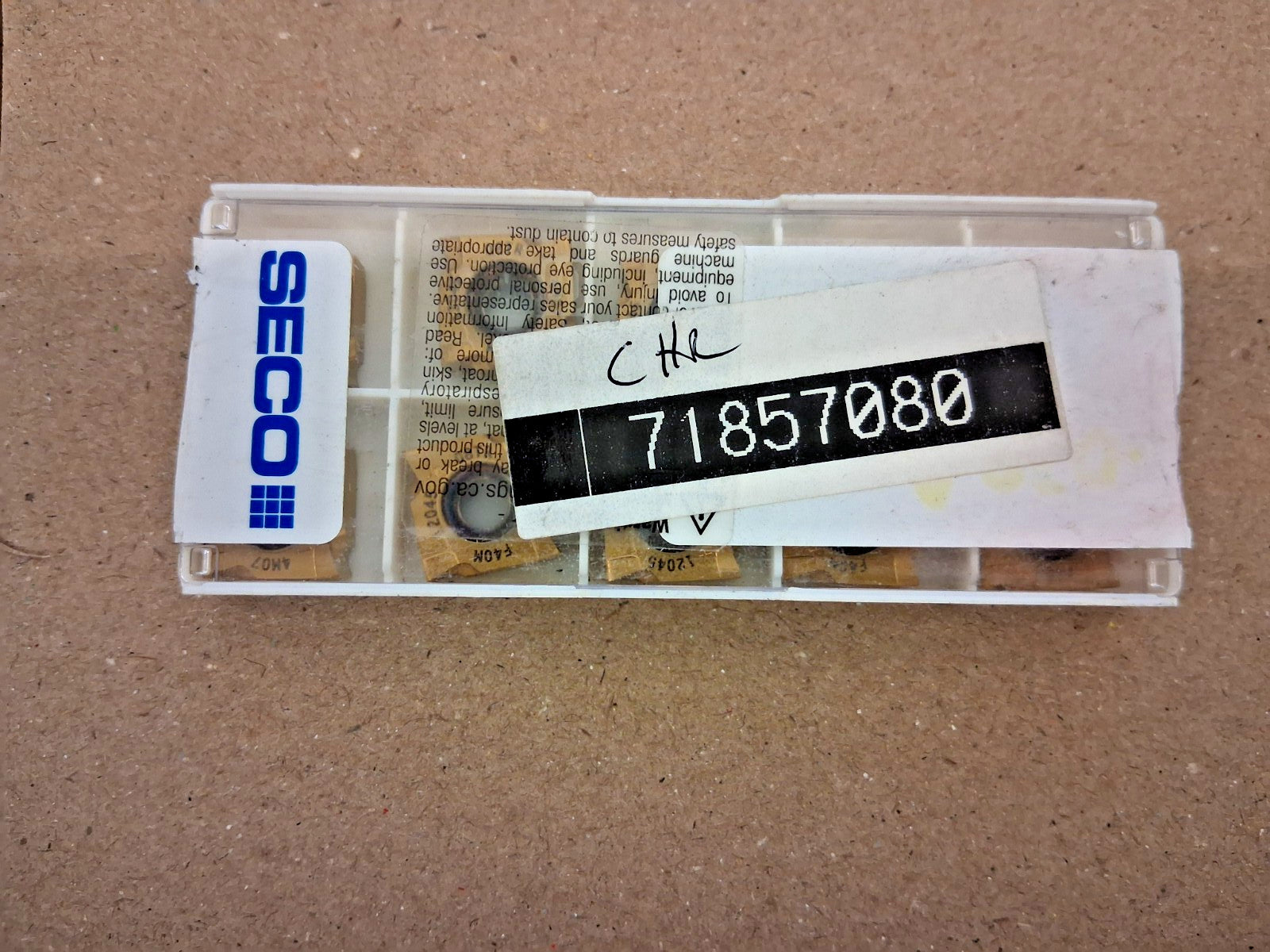

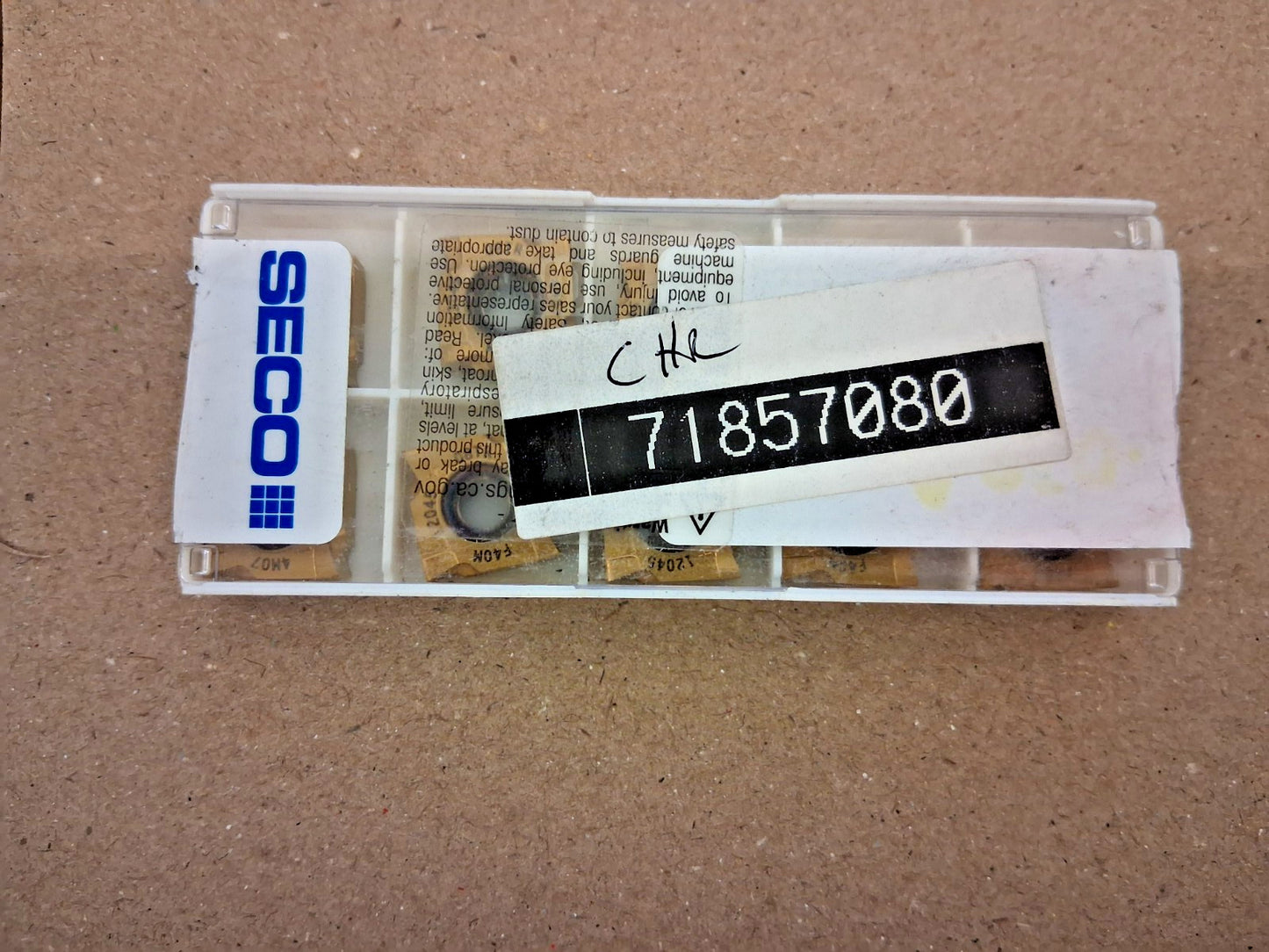

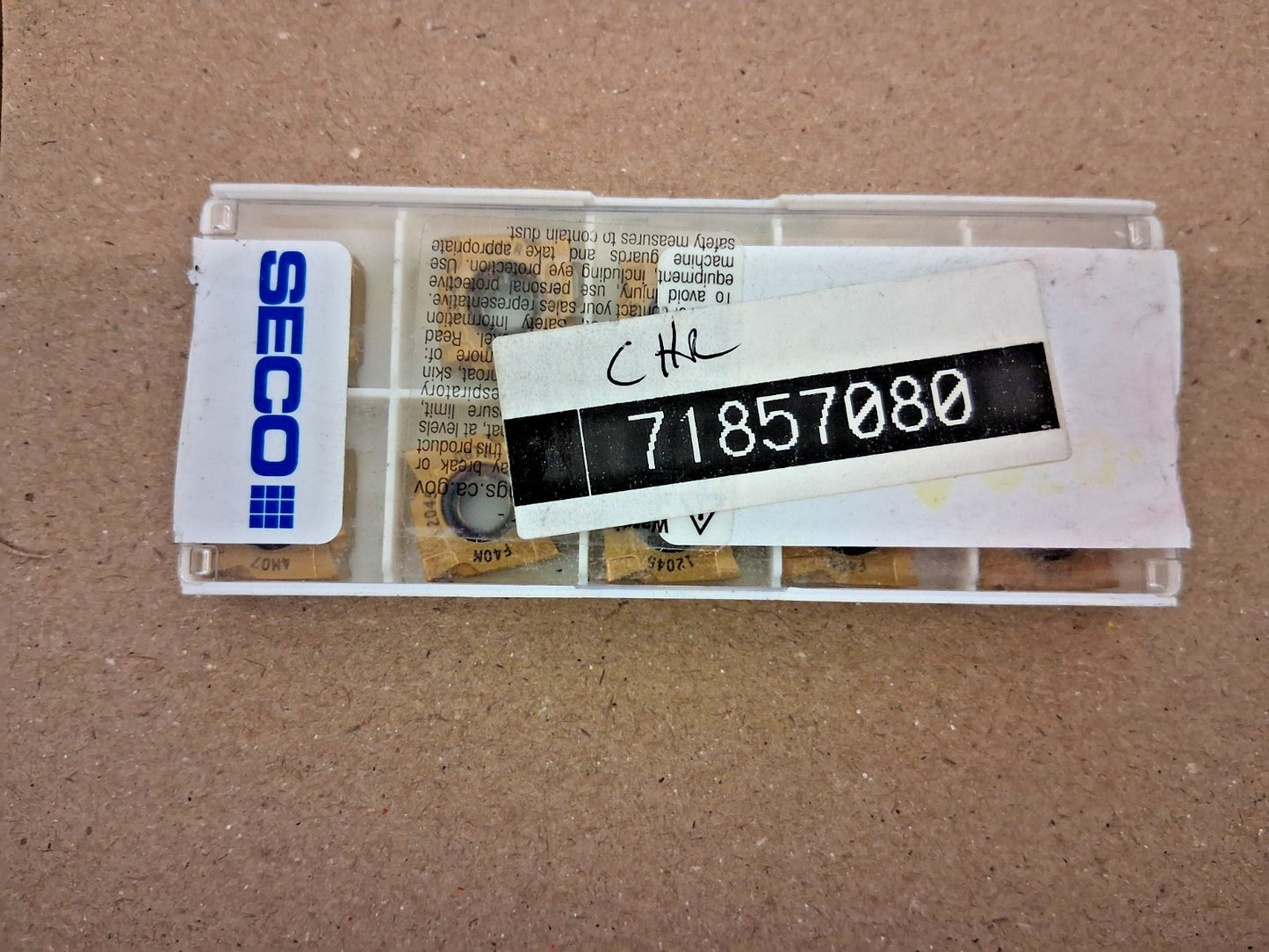

(New in the box. Taken out for inspection and photos.

Outside packaging may be slightly damaged, scuffed or dirty.

Items inside are fine. Comes with instructions. NO warranty is included).

Please review photos, comes as shown.
