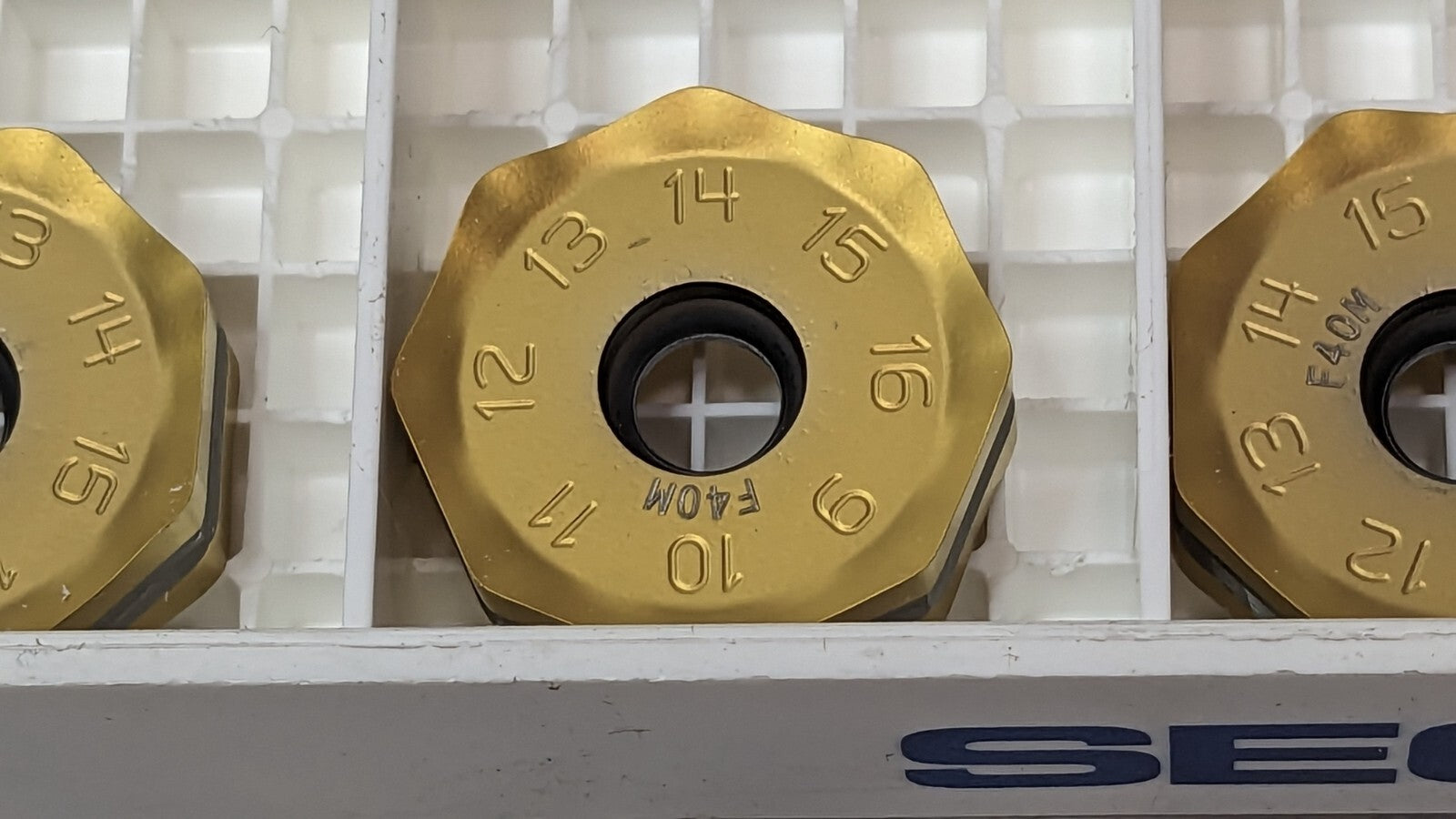

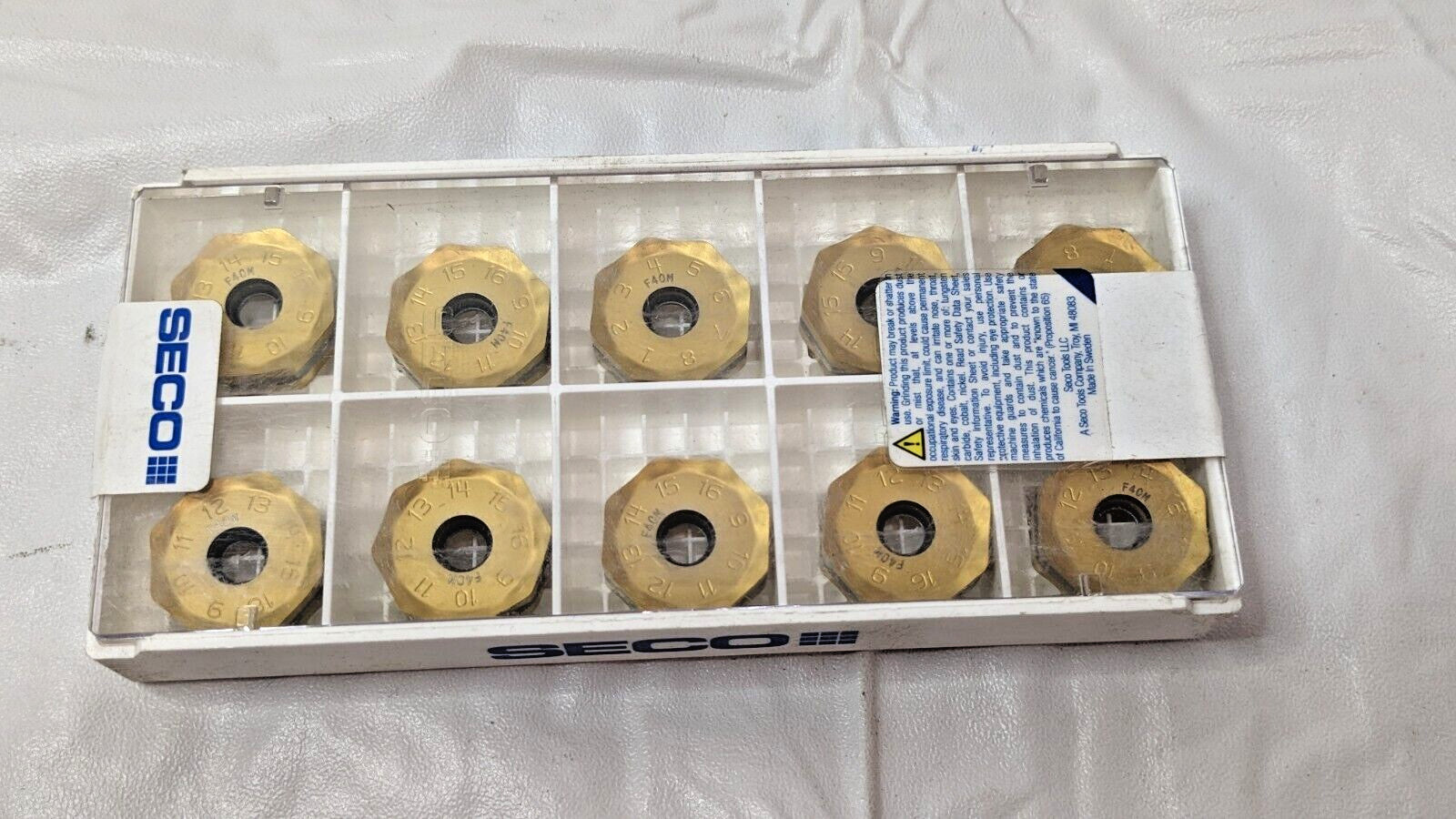

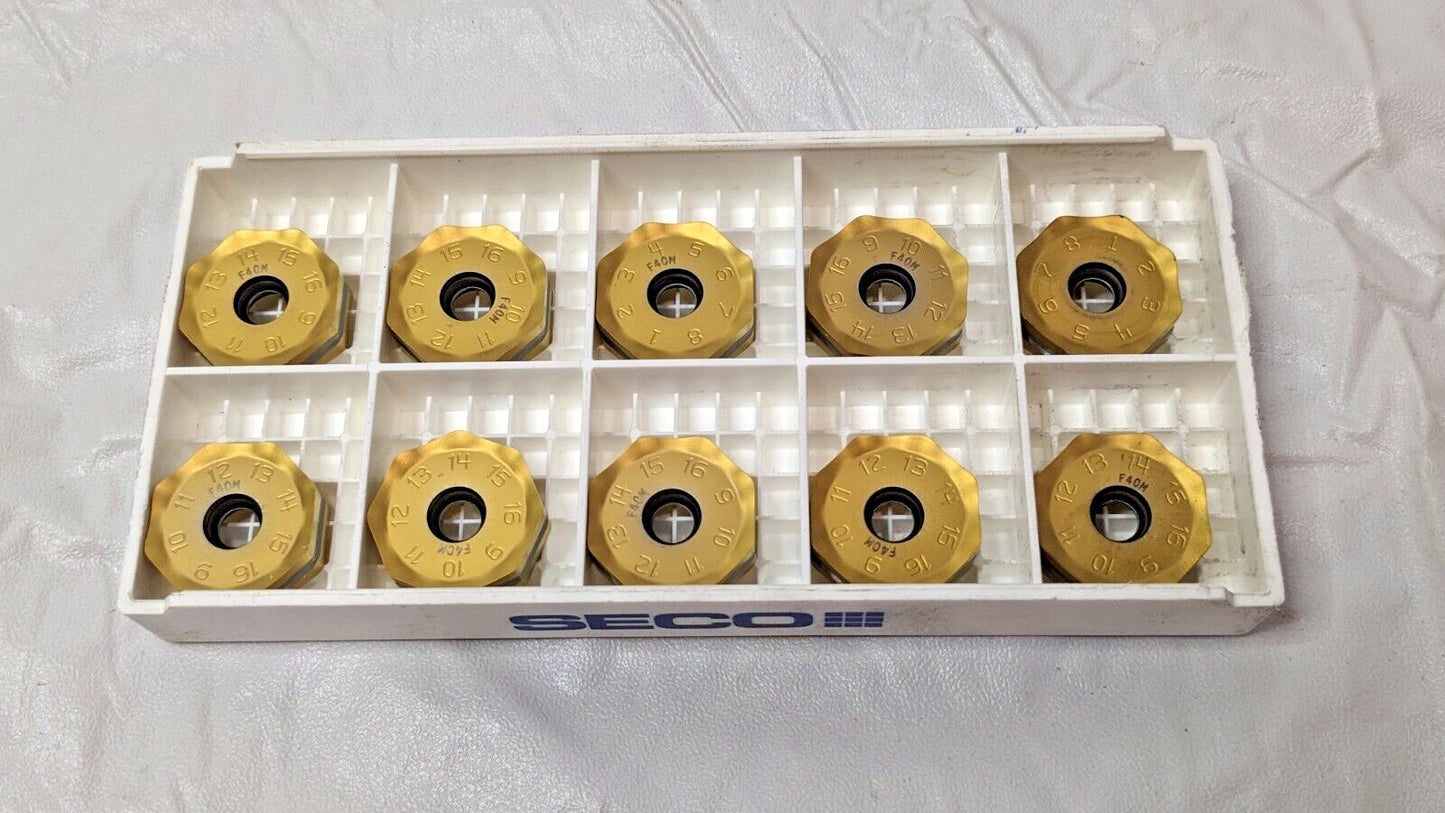

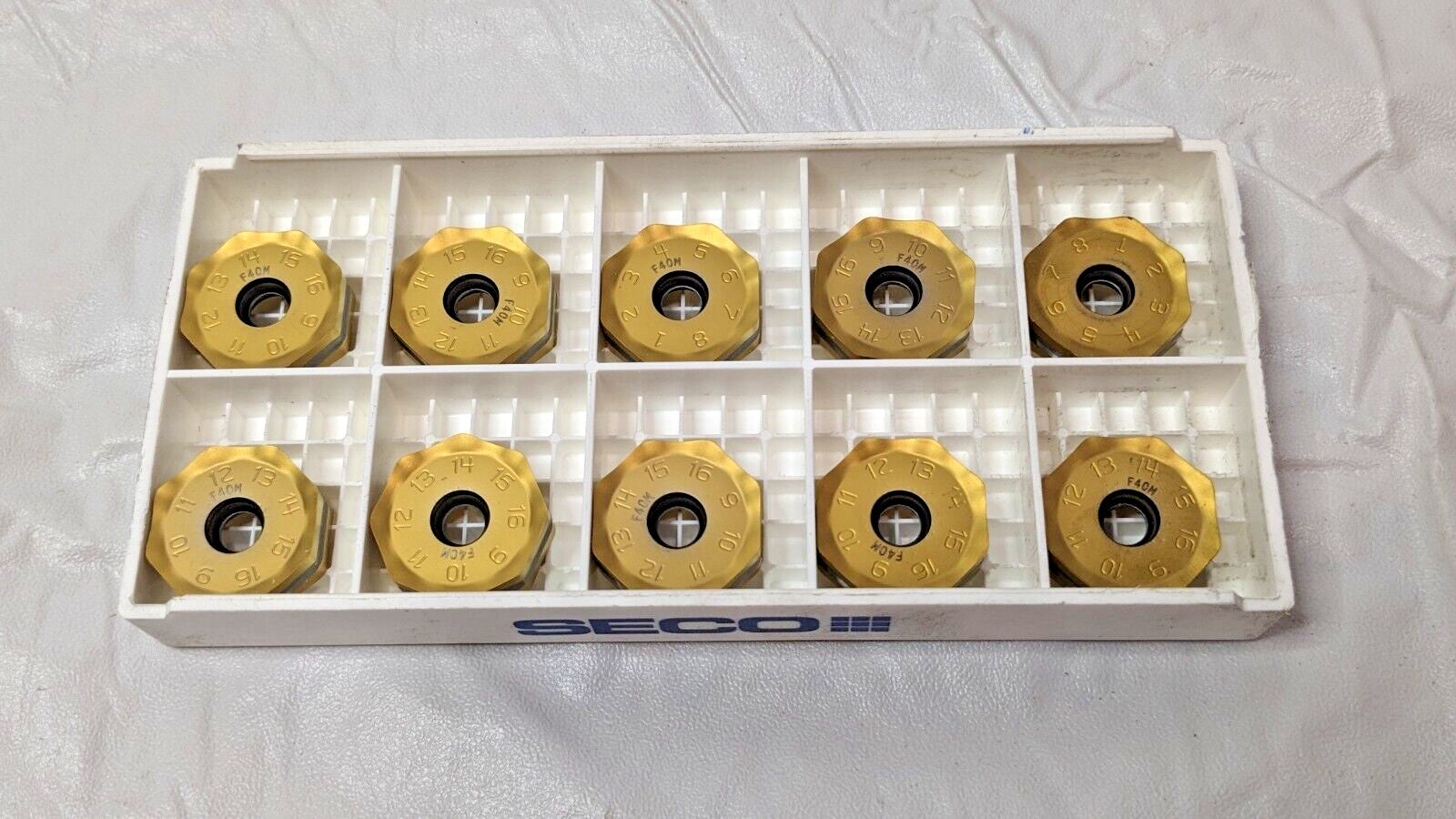

Seco Carbide Milling Inserts ONMU090520ANTN-ME12 F40M QTY 10 02747746

Seco
Carbide Milling Inserts

MSRP: $445

• Insert Style ONMU
• Insert Size 09
• Insert Material Solid Carbide
• Insert Shape Octagon
• Manufacturer Grade F40M
• Corner Radius (Decimal Inch) 0.0787
• Number Of Cutting Edges 16
• Thickness (Decimal Inch - 4 Decimals) 0.2677
• Coating/Finish TiN; TiAlN
• Relief Angle 0.00
• Insert Size Code 090520
• Material Grade Fine Grain
• Inscribed Circle (Decimal Inch) 0.8661
• Thickness Range (Decimal Inch) 0.2500 to 0.3500
• Inscribed Circle Range (Decimal Inch) 0.7000 to 1.0000
• Length Range (Decimal Inch) 0.7000 to 0.9000
• Insert Hand Neutral
• Maximum Depth of Cut (Decimal Inch) 0.2874
• Series ONMU-09
• Coating Process PVD
• Hole Diameter (Decimal Inch) 0.2205
• Cutting Edge Effective Length (Decimal Inch) 0.2874
• Rake Negative
• Primary Workpiece Material Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; K
• Secondary Workpiece Material Non-Ferrous Metal; Cast Iron
• Secondary Workpiece Material Code K; N
• Ansi Code ONMU090520ANTN-ME12
• Iso Code ONMU090520ANTN-ME12
• Standards ISO
• Rake Angle 20
• Cutting Edge Style T-Land
• Manufacturers Catalog Number ONMU090520ANTN-ME12
• Cutter Series Compatibility R220.48-09; L220.48-09
• Chip Breaker ME12
• UNSPSC Code 23291601
• Material Application Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Shape Octagon
• Insert Holding Method Screw
• Coating Classification PVD
• Single or Double Sided Insert Double
• Included Angle Degree 135
• Width (Decimal Inch - 4 Decimals) 0.8661
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.8661

Please review photos, comes as shown.
