Seco Carbide Milling Inserts LOEX120712TR-T4-M12 MP3501 QTY 10 10198843

Seco
1 Pack of 10 Carbide Milling Inserts

MSRP: $450

• Insert Style LOEX
• Insert Size 12
• Insert Material Carbide
• Insert Shape Rectangle
• Manufacturer Grade MP3501
• Corner Radius (Decimal Inch) 0.0472
• Number Of Cutting Edges 4
• Thickness (Decimal Inch - 4 Decimals) 0.4012
• Coating/Finish TiCN; Chrome; Al2O3
• Relief Angle 0.000
• Insert Size Code 120712
• Material Grade K40; K20; K30; P30; P40; P20
• Inscribed Circle (Decimal Inch) 0.2953
• Thickness Range (Decimal Inch) 0.3500 to 0.5000
• Corner Radius (Inch) 3/64
• Inscribed Circle Range (Decimal Inch) 0.2500 to 0.3000
• Length Range (Decimal Inch) 0.5000 to 0.6000
• Insert Hand Right Hand
• Maximum Depth of Cut (Decimal Inch) 0.4724
• Series LOEX
• Coating Process Duratomic
• Cutting Edge Effective Length (Decimal Inch) 0.4724
• Rake Negative
• Primary Workpiece Material Code P
• Secondary Workpiece Material Stainless Steel; Cast Iron; Superalloys & Titanium
• Secondary Workpiece Material Code S; K; M
• Ansi Code LOEX120712TR-T4-M12
• Iso Code LOEX120712TR-T4-M12
• Standards ISO; ANSI
• Rake Angle 35.000
• Cutting Edge Style T-Land
• Manufacturers Catalog Number 10198843
• Cutter Series Compatibility R217/220.94-12
• Chip Breaker M12
• Cutting Direction Right Hand
• UNSPSC Code 23291601
• Material Application Steel
• Insert Holding Method Screw
• Coating Classification Duratomic
• Single or Double Sided Insert Double
• Included Angle Degree 90
• Width (Decimal Inch - 4 Decimals) 0.2953
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.5591

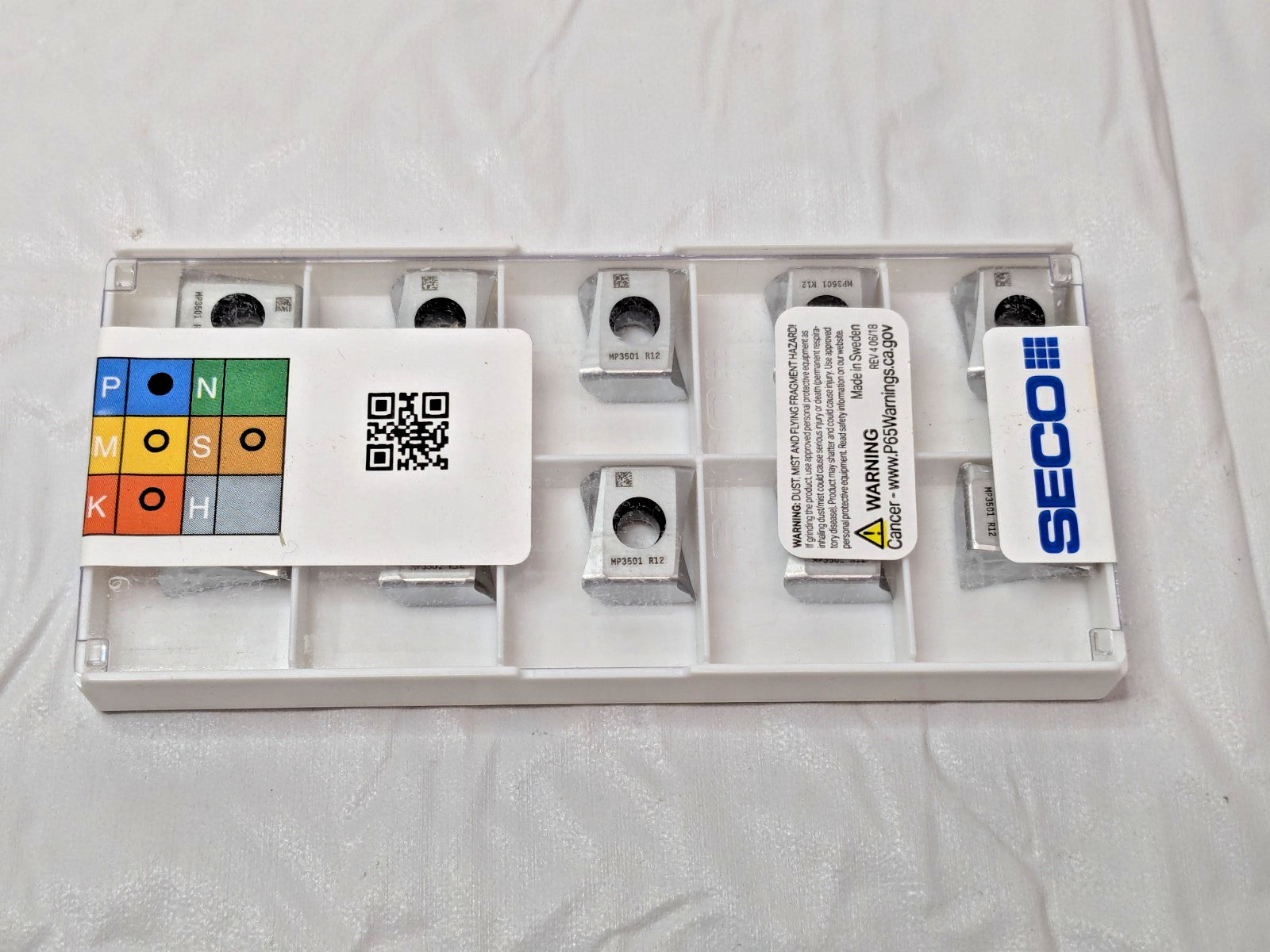

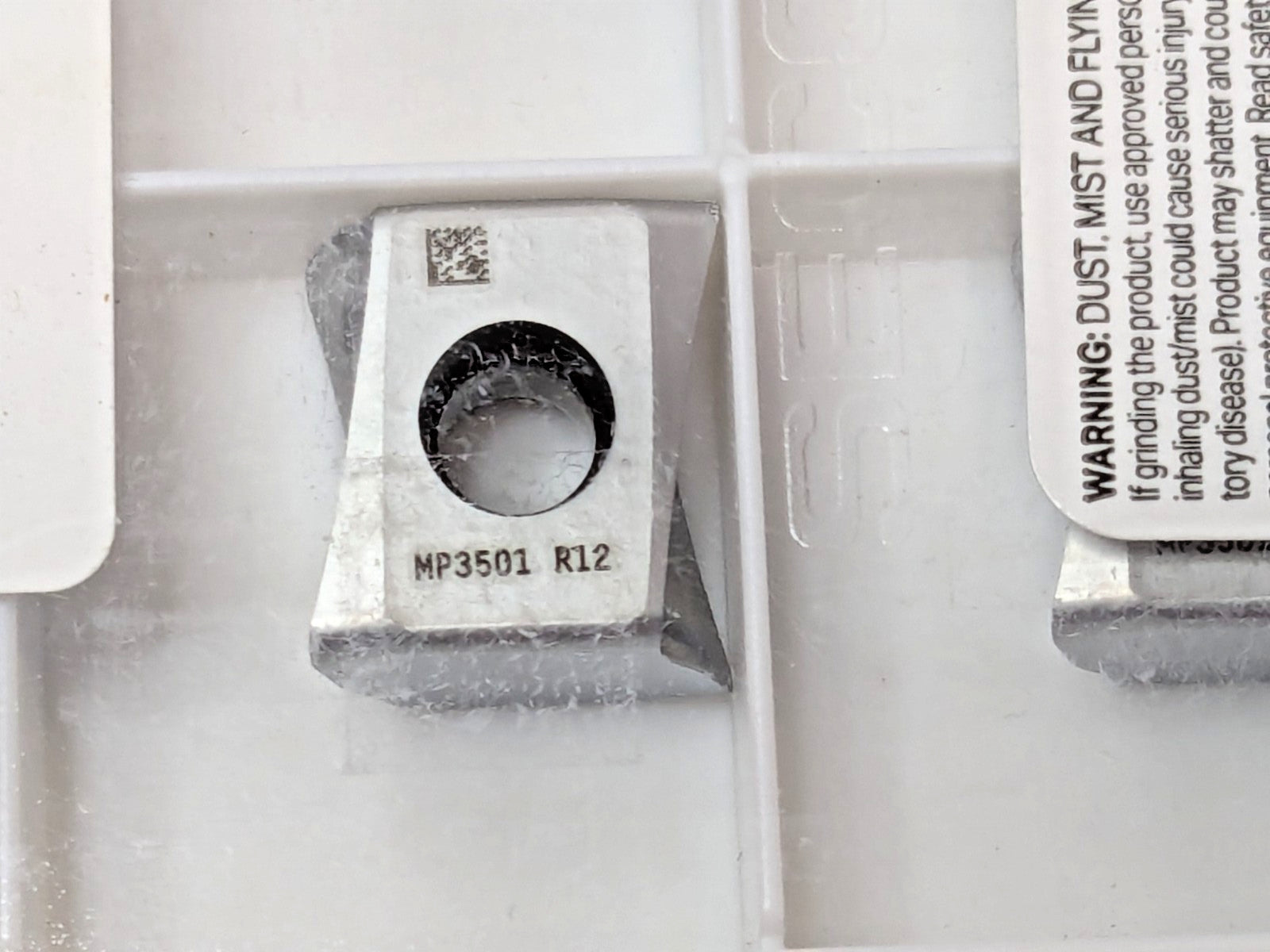

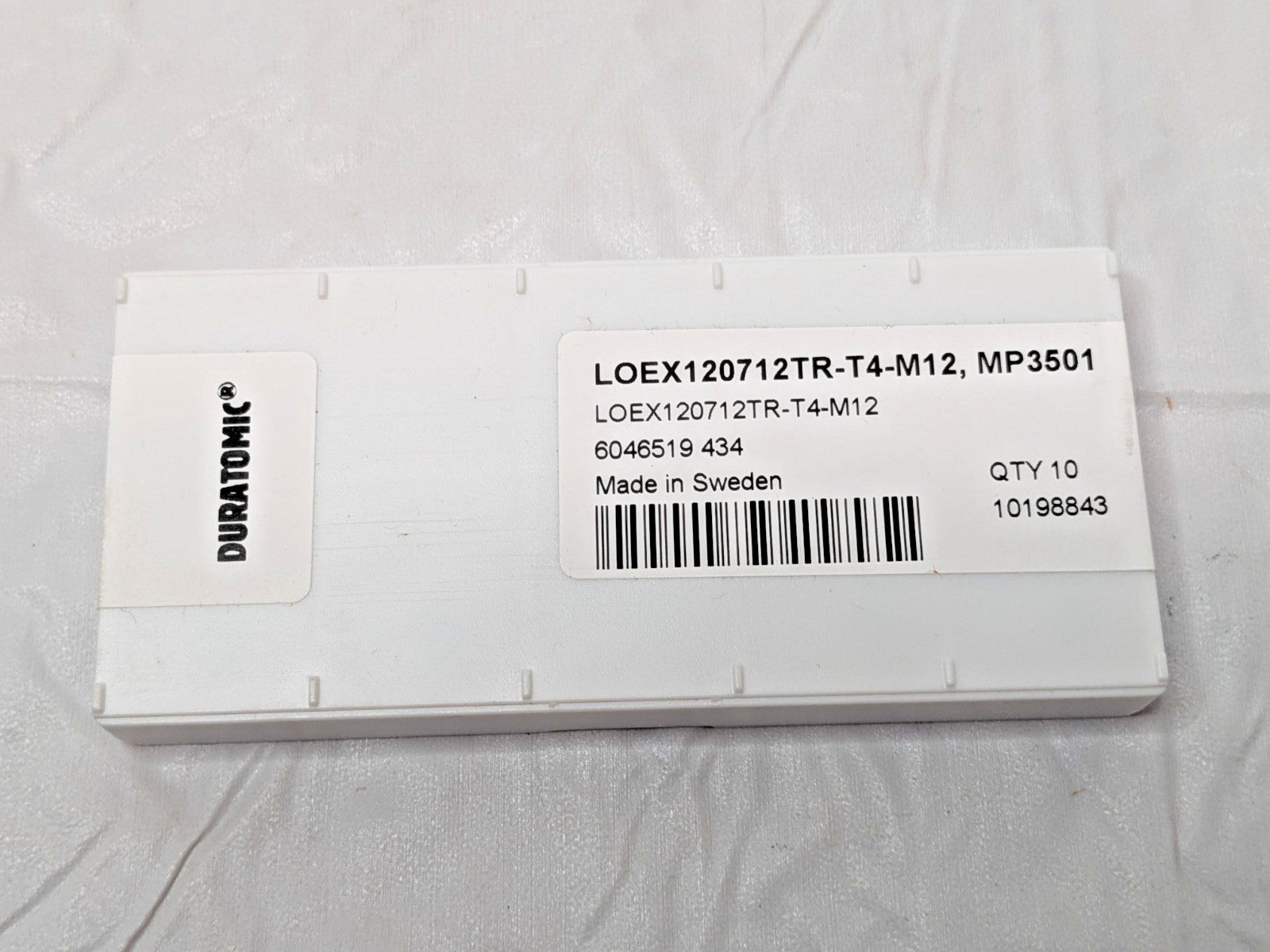

Please review photos, comes as shown.
