Seco Carbide Corner Radius End Mill 4FL ALTIN3/4" X 3/4" X 3/4" X 3" 03083776

Seco
Carbide Corner Radius End Mill

MSRP: $290

• Mill Diameter (Inch) 3/4
• Mill Diameter (Decimal Inch) 0.7500
• Number Of Flutes 4
• Length of Cut (Inch) 3/4
• Single Or Double End Single
• End Mill Material Solid Carbide
• Chipbreaker No
• Coating/Finish AlTiN
• Overall Length (Inch) 3
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.1200
• Variable Index No
• Helix Angle 40
• Cutting Direction Right Hand
• Coolant Through No
• Pitch Normal
• Overall Length (Decimal Inch) 3.0000
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 0.7500
• Length Type Stub
• Flute Type Spiral
• Extended Reach No
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing & Finishing
• Shank Diameter (Decimal Inch) 0.7500
• Shank Diameter (Inch) 3/4
• Corner Radius Tolerance +0.02500 to -0.02500 mm; ±0.00100 in
• Mill Diameter Tolerance -0.0020/0.0000 in
• Shank Diameter Tolerance -0.0001/-0.0004 in
• Overall Length Tolerance -0.0600/0.0600 in
• Primary Workpiece Material Hard Material; Stainless Steel; Superalloys & Titanium
• Primary Workpiece Material Code S; H; M
• UNSPSC Code 27112803
• Material Grade Micrograin
• Series STR440.2
• TIR Maximum (Decimal Inch) 0.0005
• Material Application Hard Material; Stainless Steel; Superalloys & Titanium
• Coating Classification PVD
• For Use With. Toolholders
• Helix Style High

*Open package for inspection & photos only*

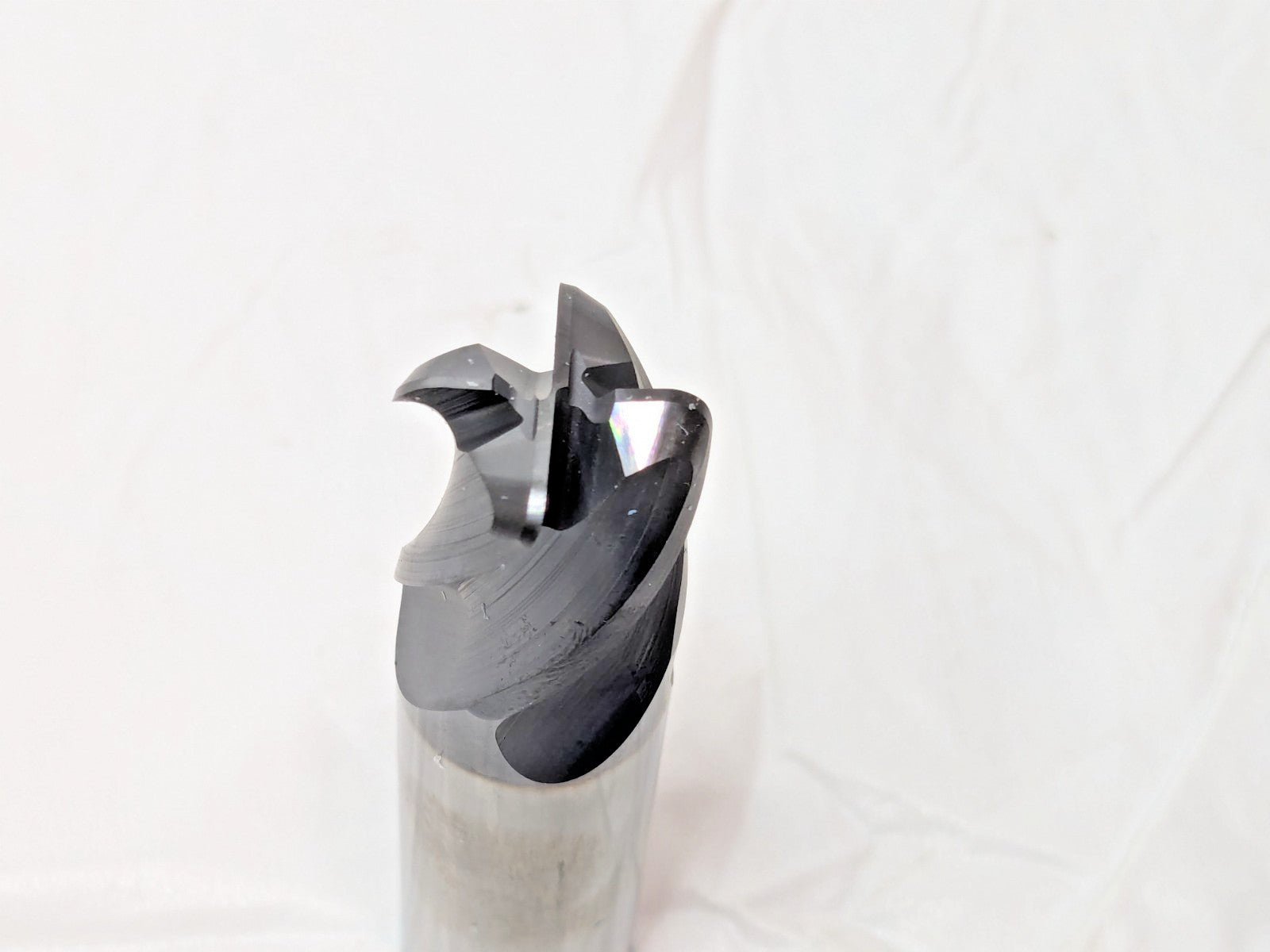

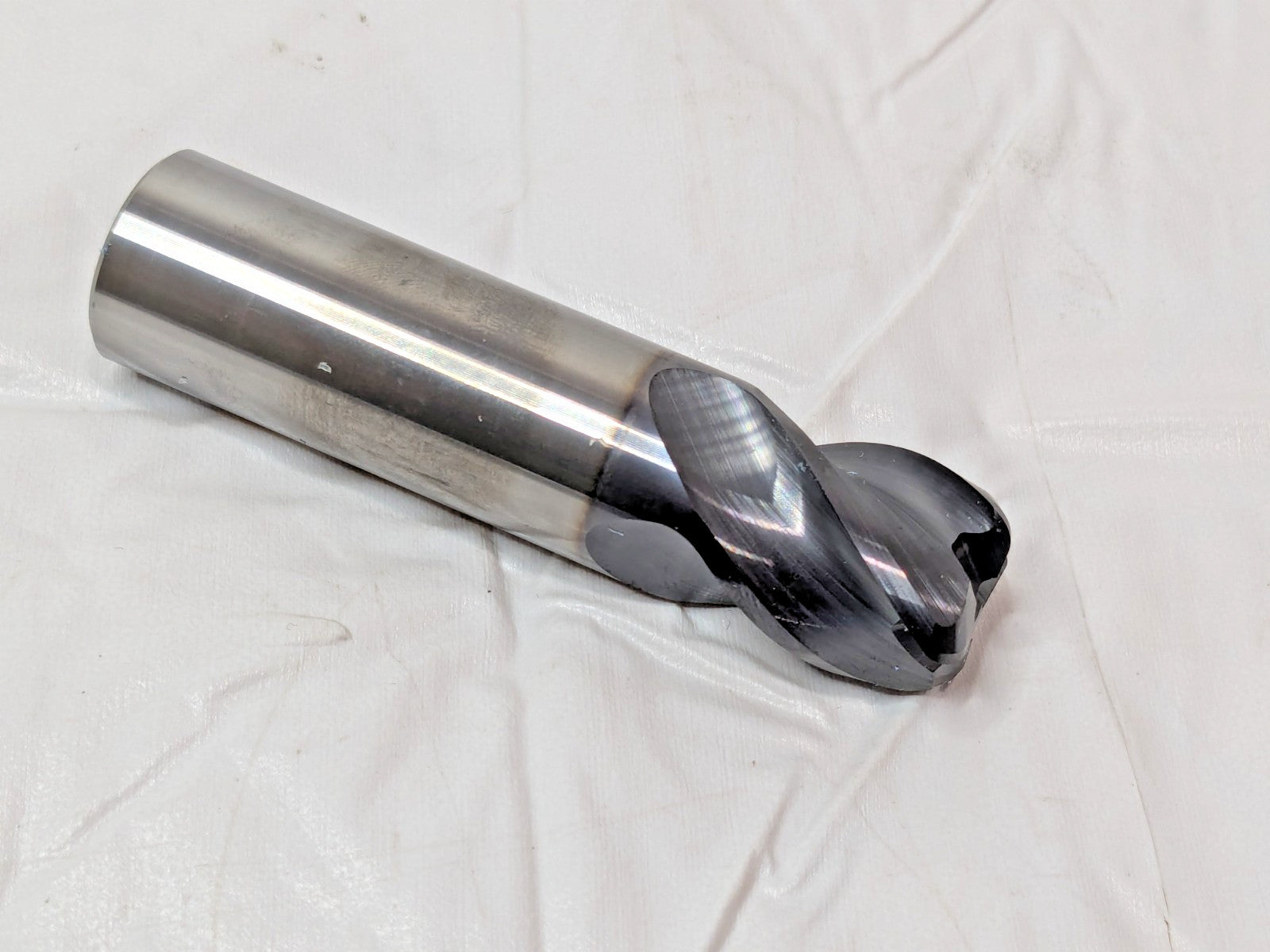

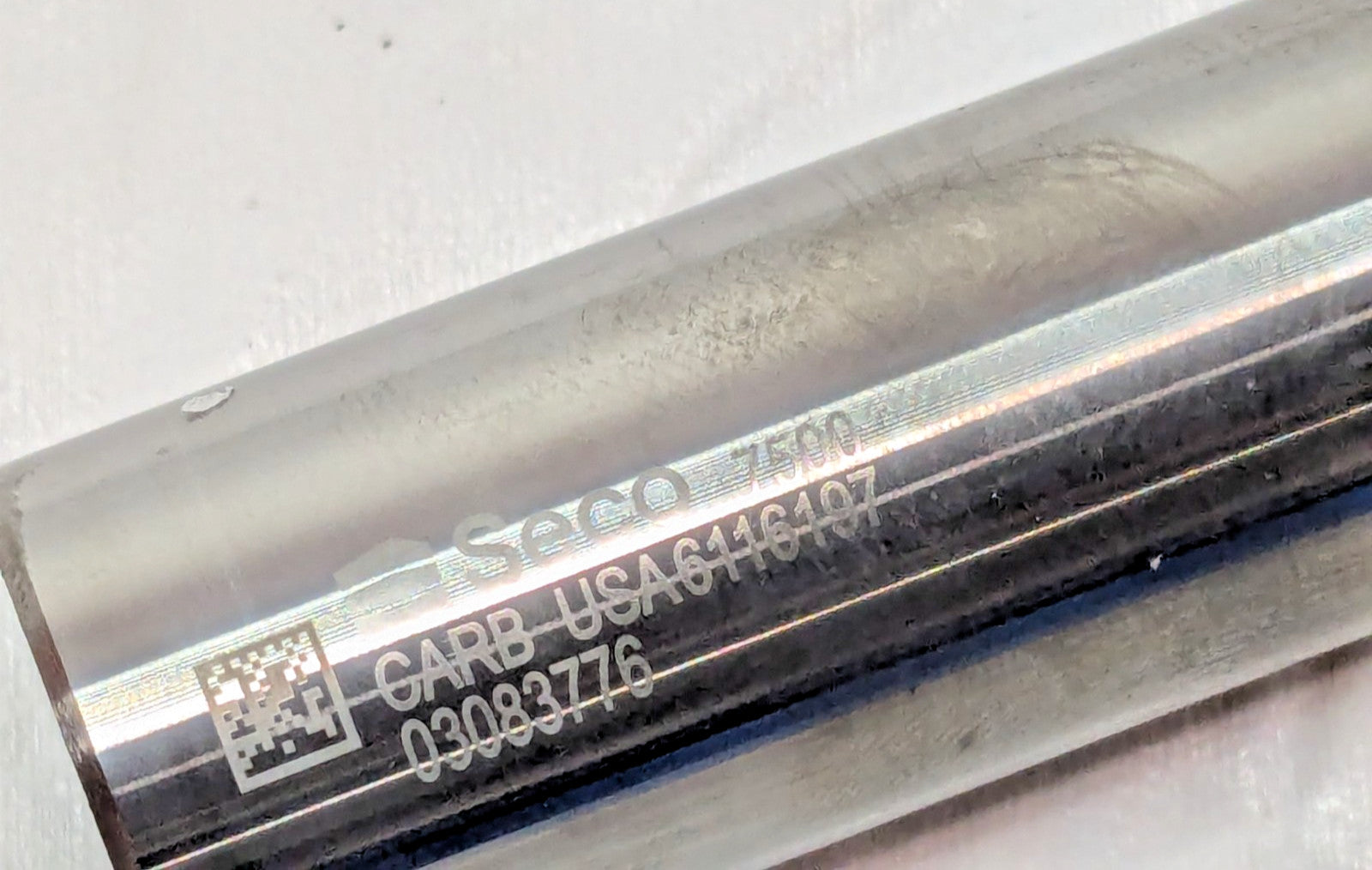

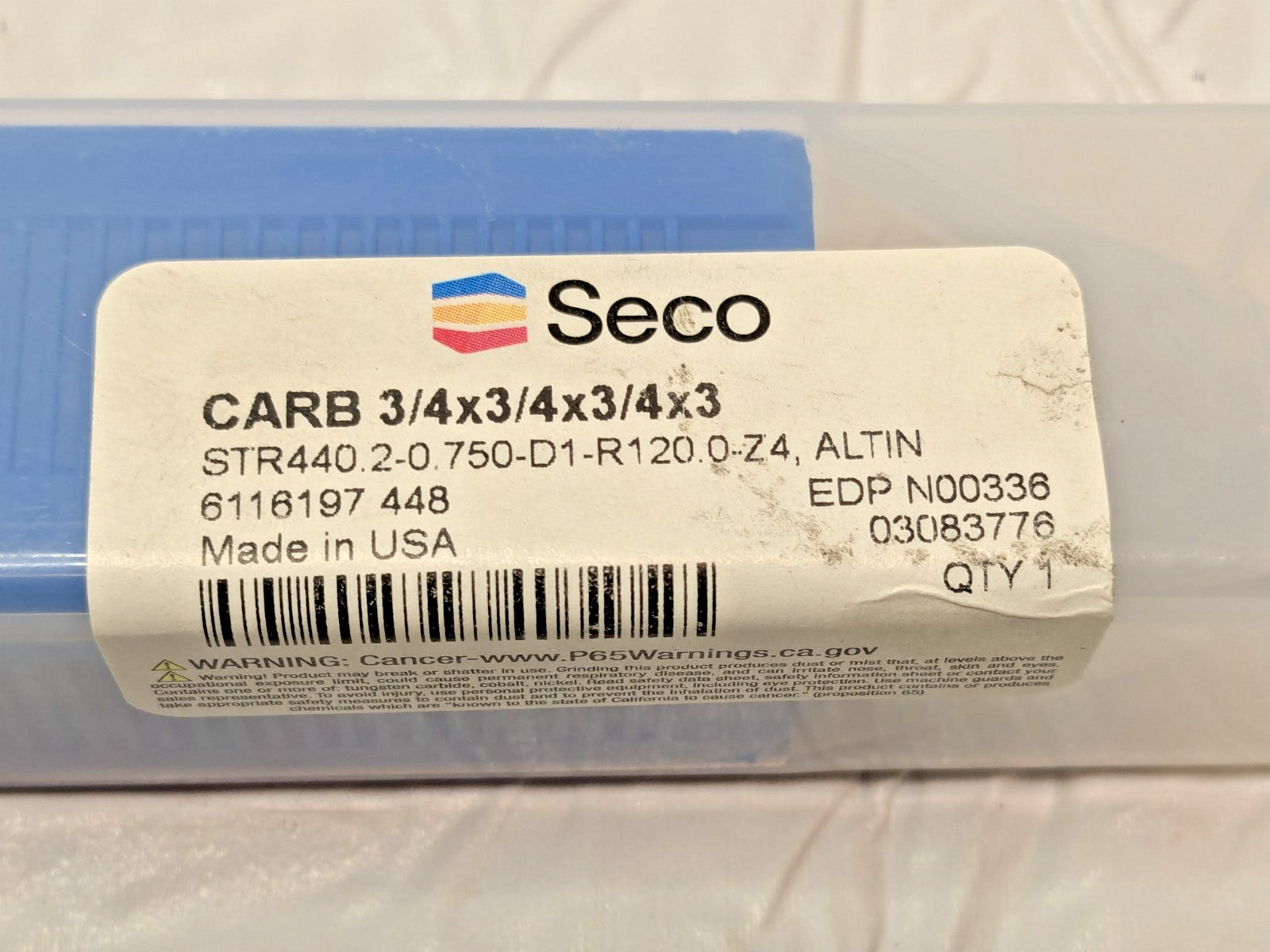

Please review photos, comes as shown.
