Seco Carbide Corner Radius End Mill 20mm Dia 4FL 554200R050Z4.0-SIRON-A 0267956

Seco
Carbide Corner Radius End Mill

MSRP: $490

• Mill Diameter (Decimal Inch) 0.7874
• Mill Diameter (mm) 20.00
• Number Of Flutes 4
• Length of Cut (mm) 42.00
• Single Or Double End Single
• End Mill Material Solid Carbide
• Chipbreaker No
• Coating/Finish SIRON-A
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0197
• Variable Index No
• Variable Helix No
• Cutting Direction Right Hand
• Corner Radius (mm) 0.50
• Overall Length (mm) 100.00
• Coolant Through No
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 1.6535
• Length Type Standard
• Flute Type Spiral
• Extended Reach No
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing
• Shank Diameter (mm) 20.00
• Corner Radius Tolerance +0.02000 to -0.02000 mm
• Mill Diameter Tolerance -0.04/-0.06 mm
• Shank Diameter Tolerance h5
• Primary Workpiece Material Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; High Temperature Alloy; Steel
• UNSPSC Code 27112803
• Primary Workpiece Material Code P; S; H; K; M; N
• Series JS554
• TIR Maximum (mm) 0.01
• Material Application Hard Material; Non-Ferrous Metal; High-Temperature Alloy; Stainless Steel; Cast Iron; Steel
• Helix Style High
• Manufacturers Catalog Number EM 554200R050Z4.0-SIRON-A

*Open package for inspection & photos only*

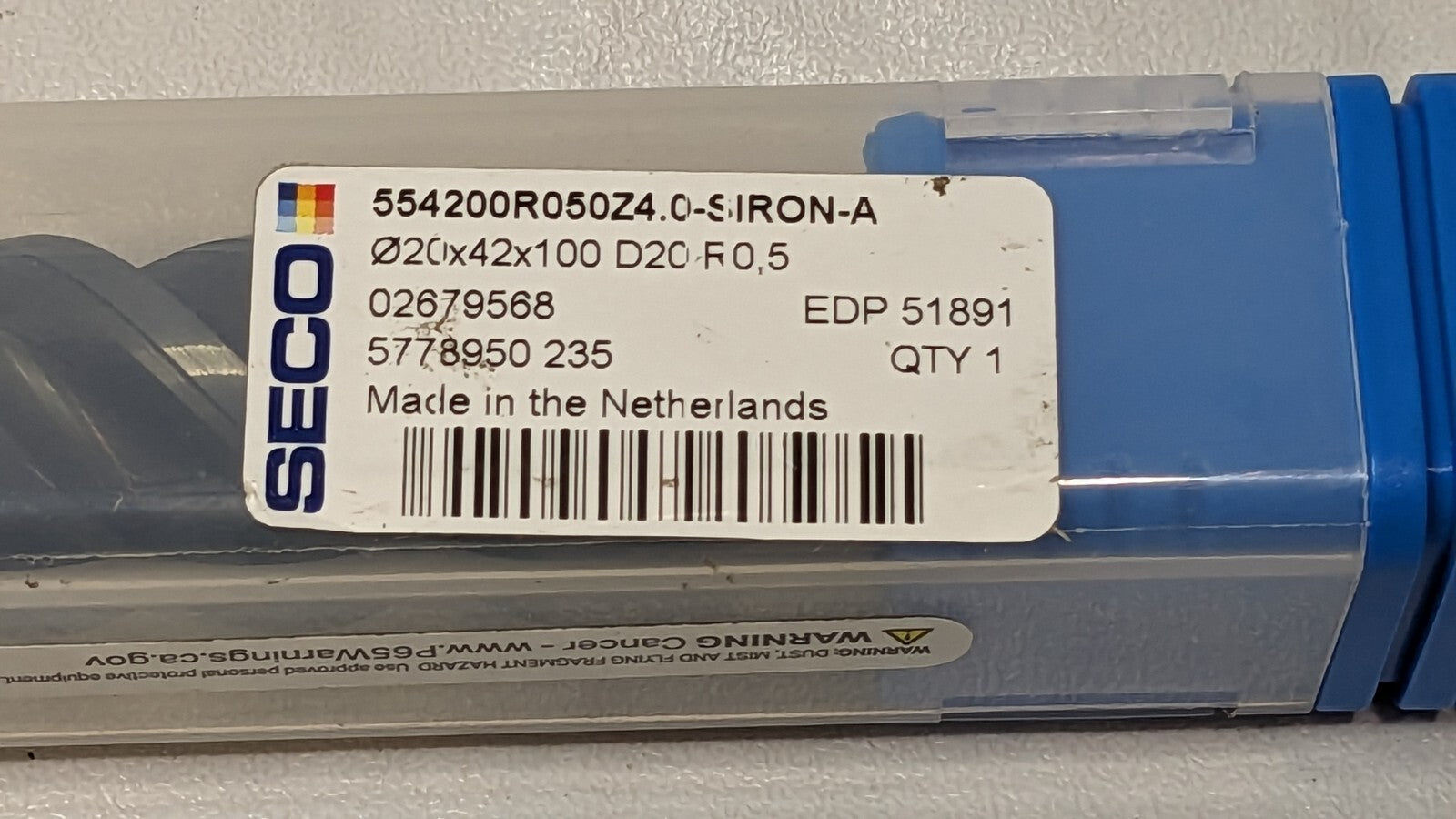

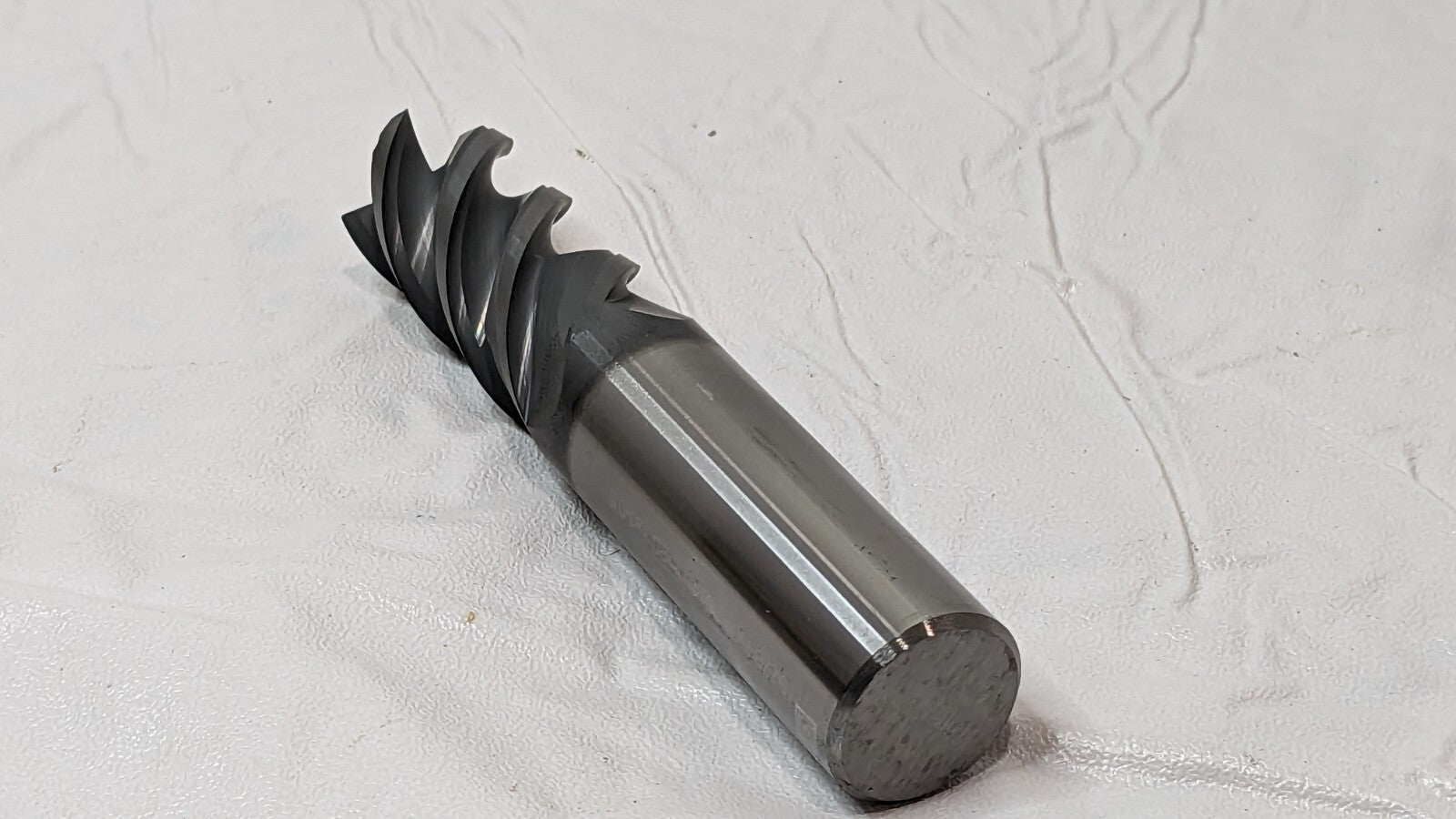

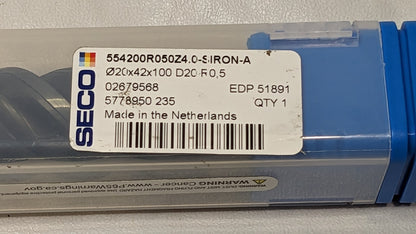

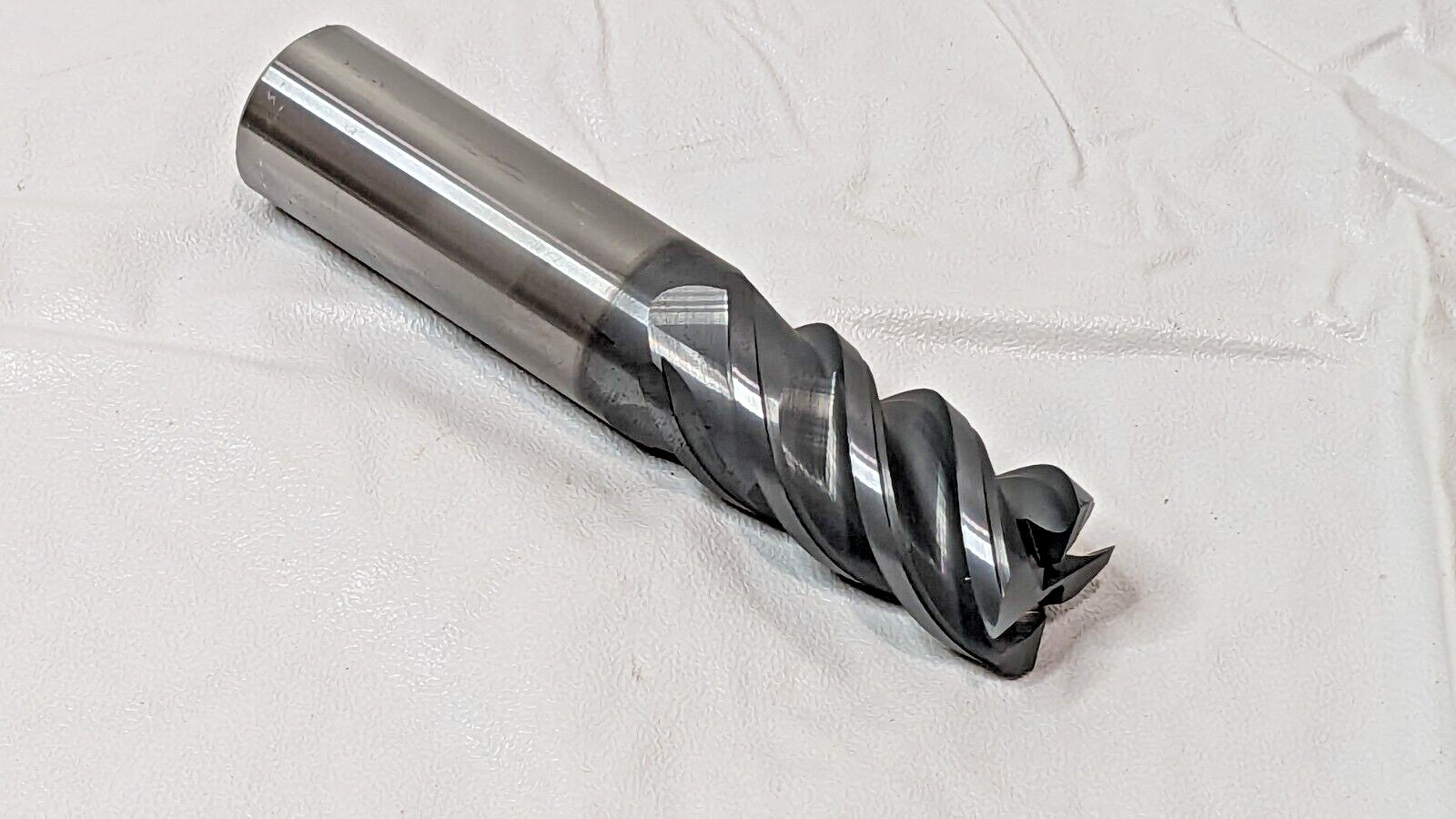

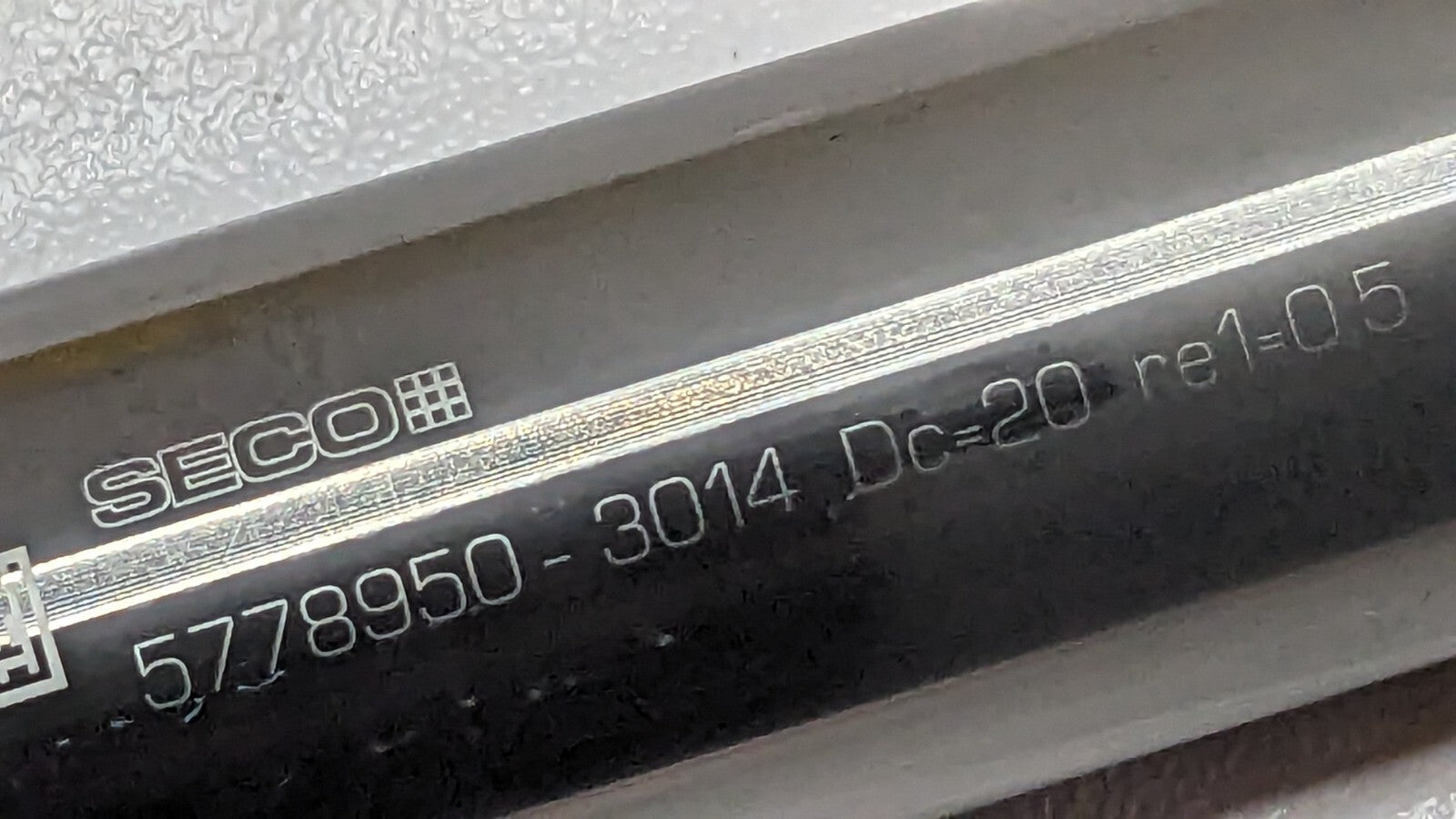

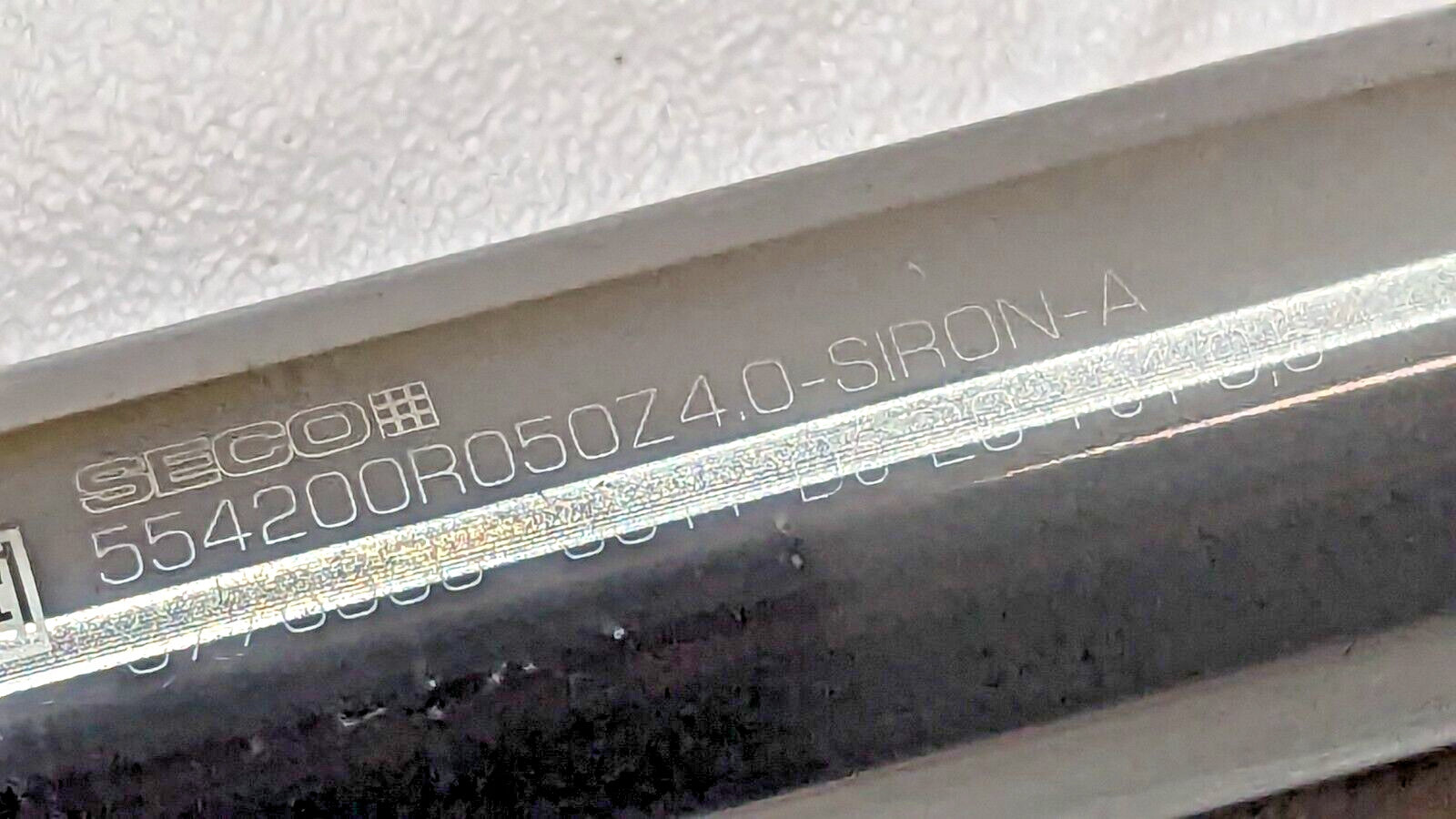

Please review photos, comes as shown.
