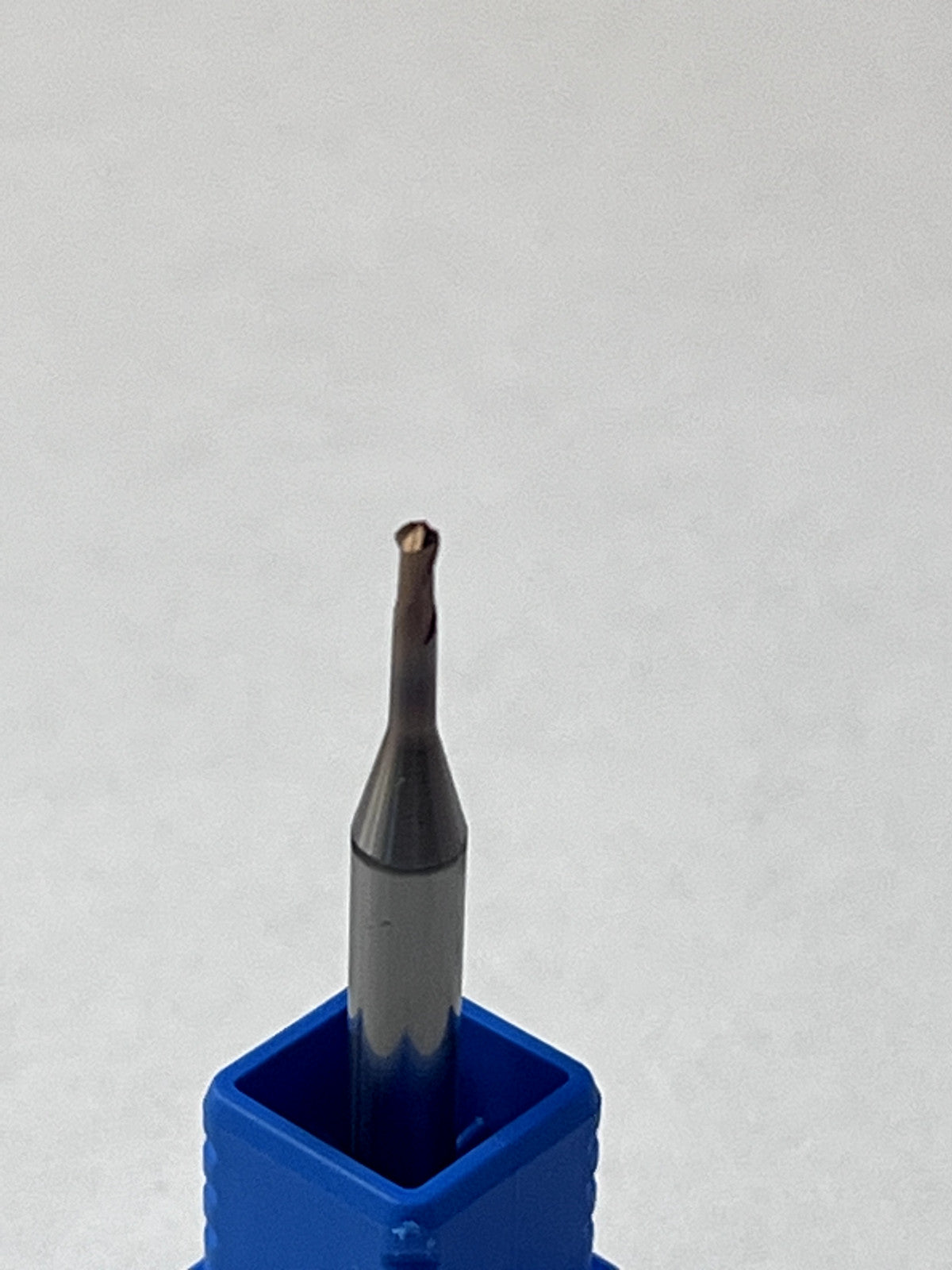

SECO Ball End Mill: 0.0591″ Dia, 2 Flute Solid Carbide 03205012
SECO Ball End Mill: 0.0591″ Dia, 2 Flute Solid Carbide 03205012
Regular price
$32.04 USD
Regular price
$60.00 USD
Sale price
$32.04 USD
Shipping calculated at checkout.
BRAND seco
Item
MSRP: $ 70.00
- specs
Mill Diameter (Decimal Inch) 0.0591
Mill Diameter (mm) 1.50 mm
Number Of Flutes 2
End Mill Material Solid Carbide
Length of Cut (mm) 1.50 mm
Coating/Finish HXT
Extended Reach Yes
Variable Helix No
Variable Index No
Helix Angle 28
Overall Length (mm) 40.00 mm
Chipbreaker No
Undercutting No
Length Of Cut Range (Decimal Inch) 0.0500 to 0.1000
Length Type Extended
Helix Style Medium
Material Removal Type Roughing & Finishing
Shank Diameter (mm) 4.00 mm
Neck Diameter (mm) 1.45
Nose Radius (mm) 0.75
Neck Length (Inch) 6
Neck Length (Decimal Inch) 0.2362
Neck Length (mm) 6.00
Reach Length (mm) 7.50
Mill Diameter Tolerance +0.00/-0.01 mm
Shank Diameter Tolerance h5
Maximum Helix Angle 28 °
Minimum Helix Angle 28 °
Primary Workpiece Material Hard Material
Primary Workpiece Material Code H
Material Grade Micrograin
Flute Direction Right Hand
Cutting Direction Right Hand
Series JMB112
Flute Type Helical
UNSPSC Code 27112803
TIR Maximum (mm) 0.01
Centercutting Yes
Coating Classification PVD
Single Or Double End Single
Shank Type Straight-Cylindrical
Pitch Coarse
Coolant Through No

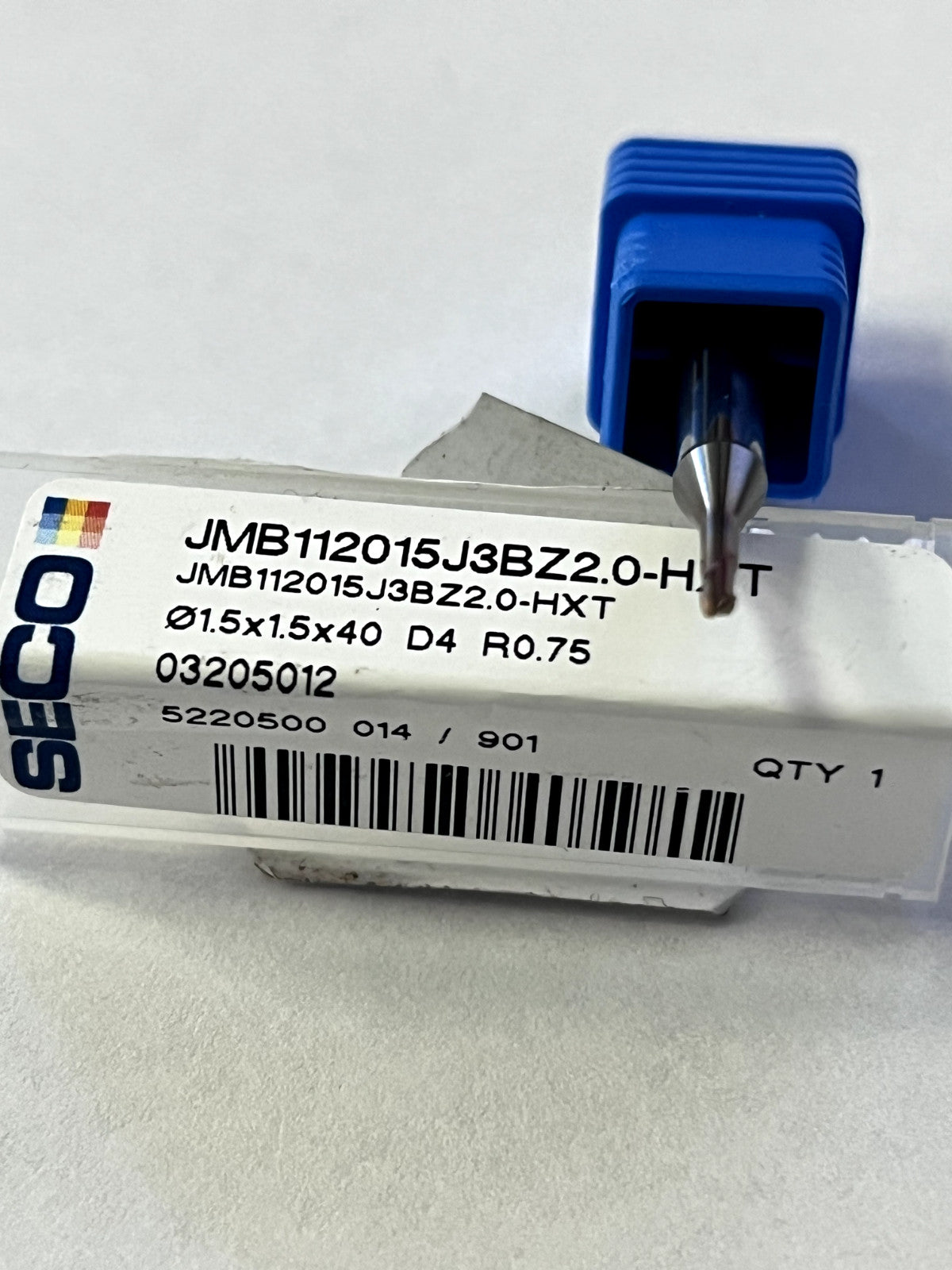

Manufacturers Catalog Number JMB112015J3BZ2.0-HXT
System Of Measurement Metric
(Description).
Please review photos, comes as shown.
