Seco Indexable Slotting Cutter 1" Cutting Width, 10" Cutter Dia 02788036
Seco Indexable Slotting Cutter 1" Cutting Width, 10" Cutter Dia 02788036
Regular price
$1,588.65 USD
Regular price
$3,500.00 USD
Sale price
$1,588.65 USD
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND Seco
Item
MSRP: $3500.00
- specs
| Connection Type: Arbor | Cutting Width (Inch): 1 |
| Maximum Depth of Cut (Decimal Inch): 3.4290 | Hole Diameter (Inch): 2 |
| Hole Diameter (Decimal Inch): 2.0000 | Cutter Diameter (Decimal Inch): 10.0000 |
| Cutter Diameter (Inch): 10 | Cutting Direction: Neutral |
| Insert Holding Method: Screw | Number Of Cutter Inserts: 9 |
| Compatible Insert Style: XNHQ; LNHQ | Compatible Insert Size Code: 1407.. |
| Tooth Type: Staggered | Rake: Negative (Axial); Negative (Radial) |
| Series: 335.25 | Toolholder Style: 335.25 |
| Hub Diameter (Decimal Inch): 3.0000 | Hub Diameter (Inch): 3 |
| Keyway Width (Inch): 1/2 | Keyway Width (Decimal Inch): 0.5000 |
| Maximum RPM: 3500 | Tool Application: Disc Milling |
| Tool Performance: General Purpose | Minimum Cutting Width (Decimal Inch): 1.0000 |
| Maximum Cutting Width (Decimal Inch): 1.0000 | Radius: No |
| Lead Angle: 90 | UNSPSC Code: 23241629 |
| Cutter Body Width (Decimal Inch): 1.0000 | Manufacturers Catalog Number: 335.25-10.00-1.000-9N |
| Number Of Teeth: 18 | Coolant Through: No |
| Complete Insert Compatibility: LNHQ1407..; XNHQ1407.. | Country of Origin: France |
(Description).

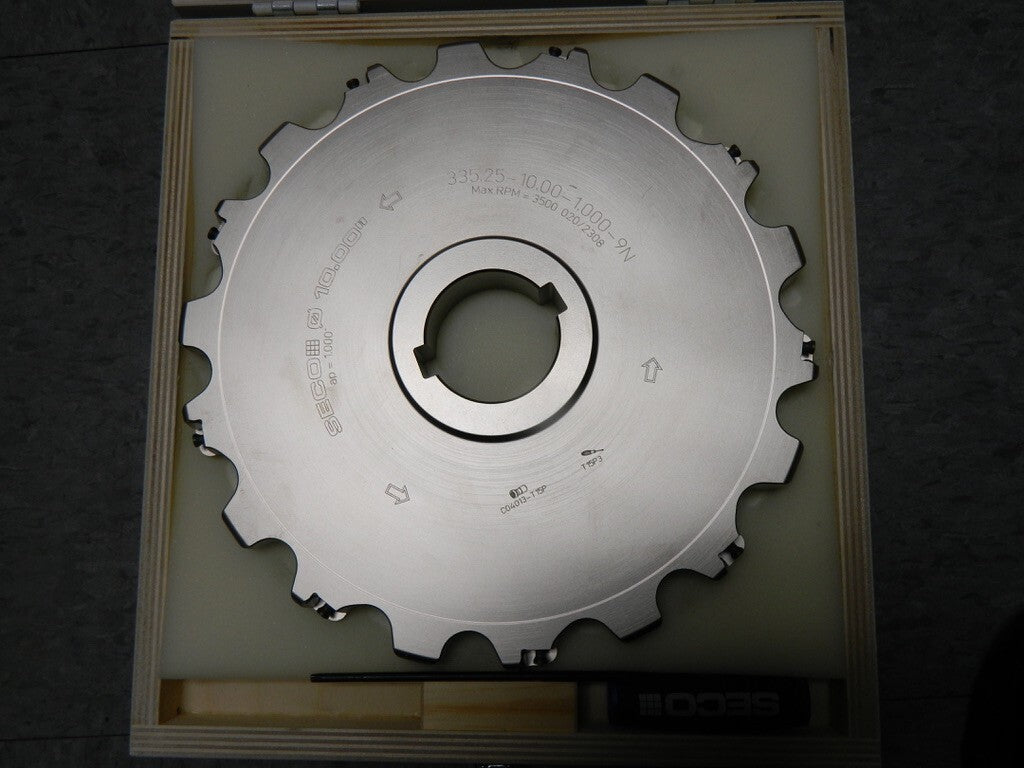

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
