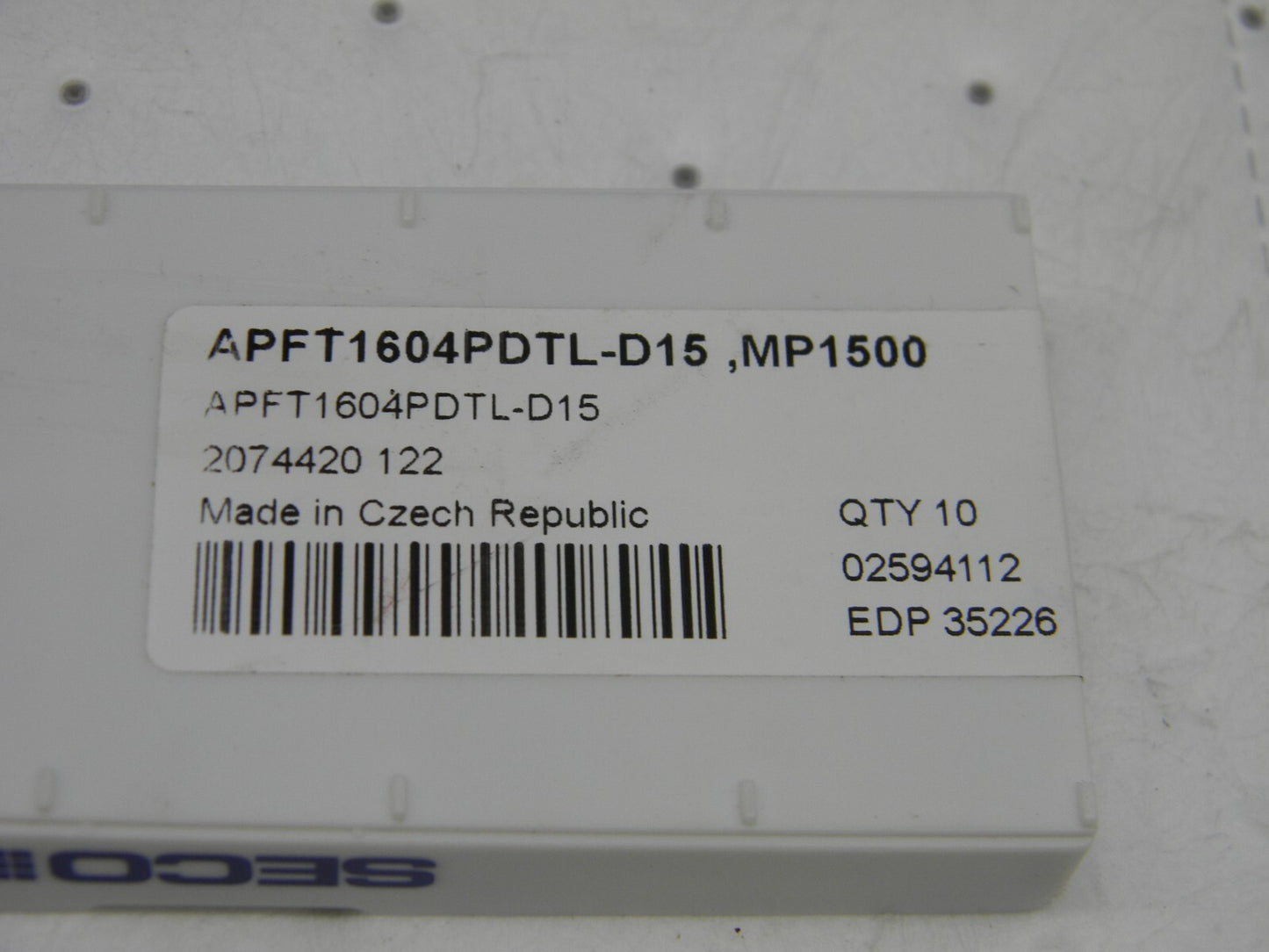

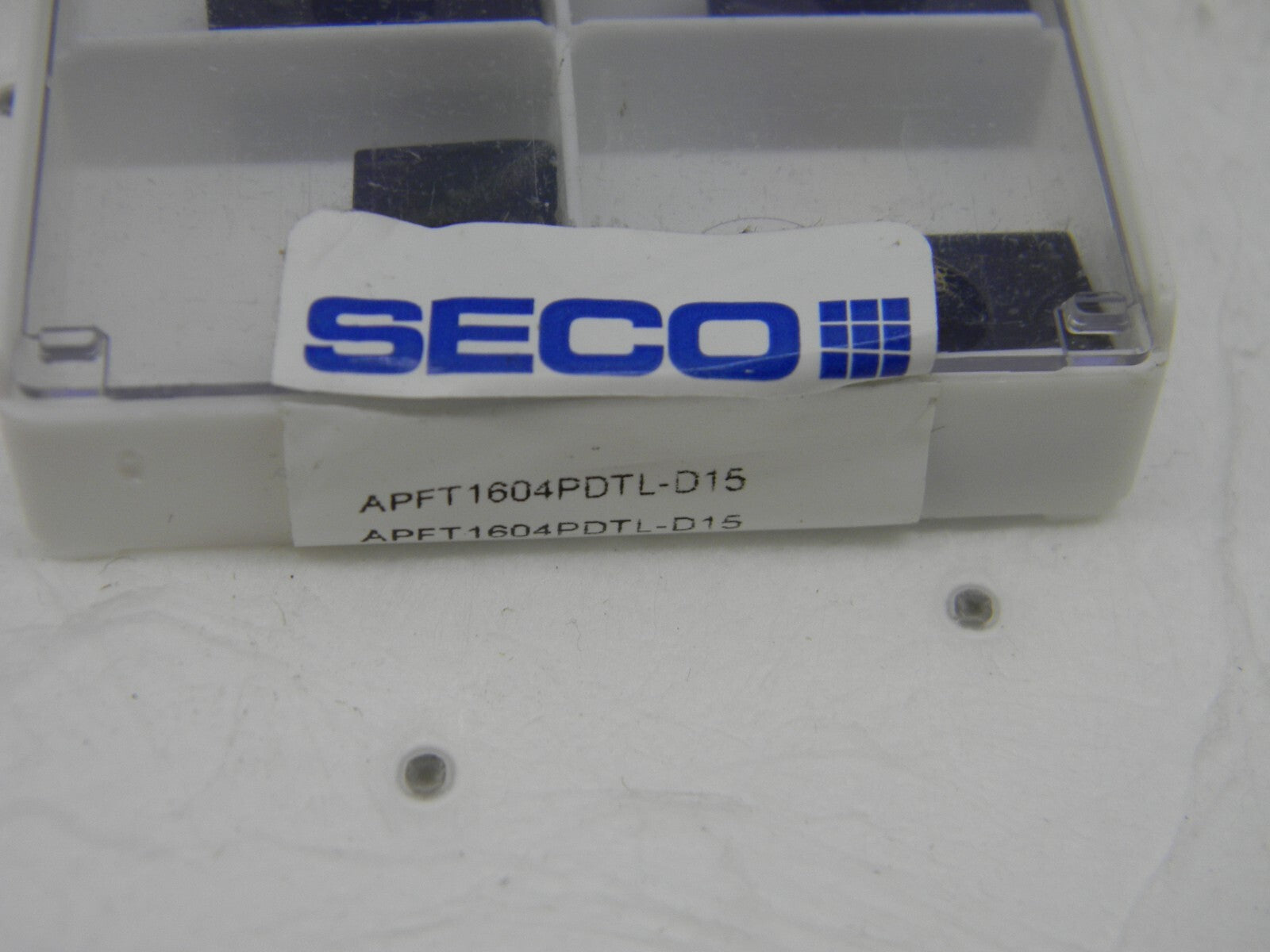

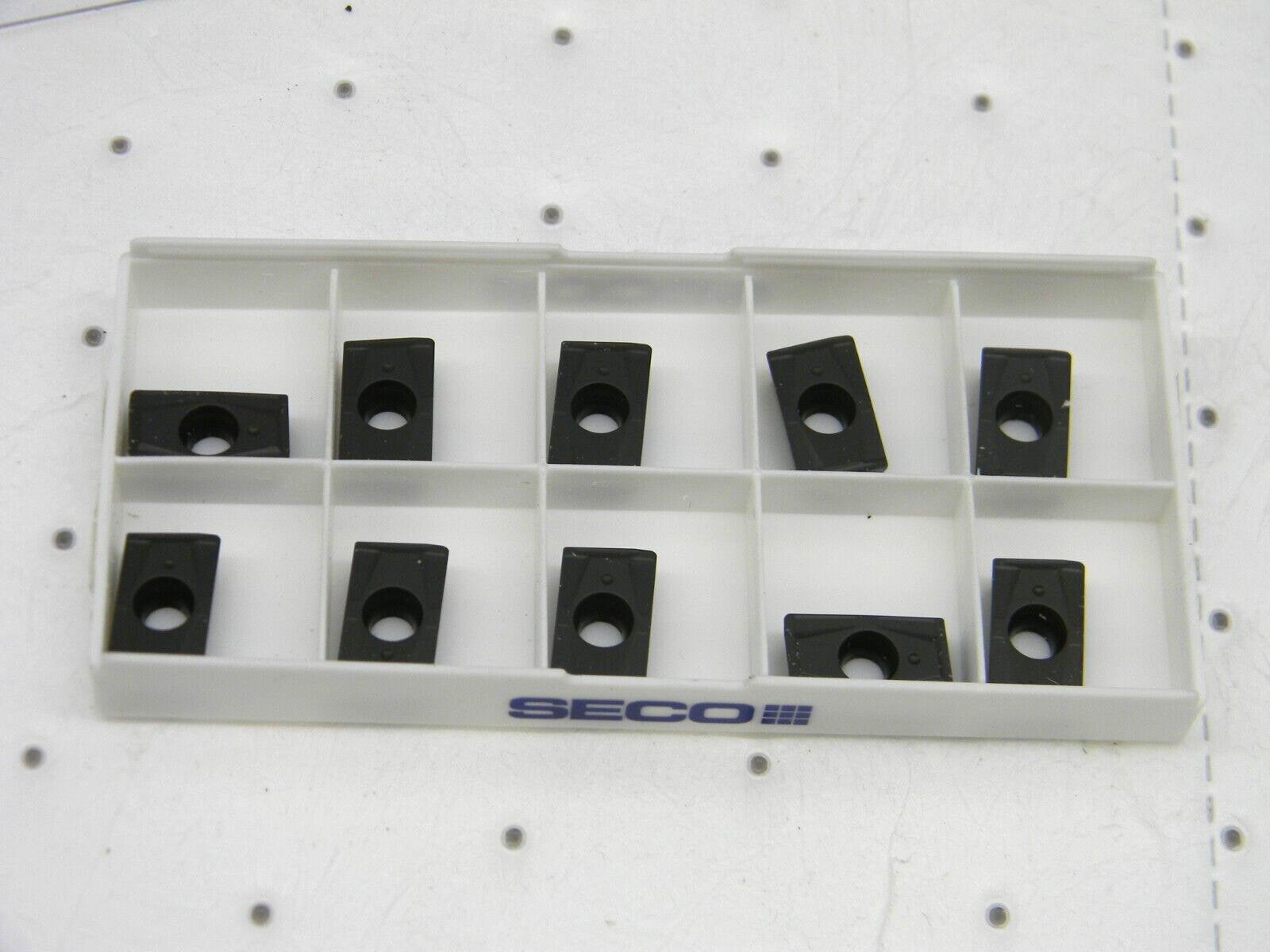

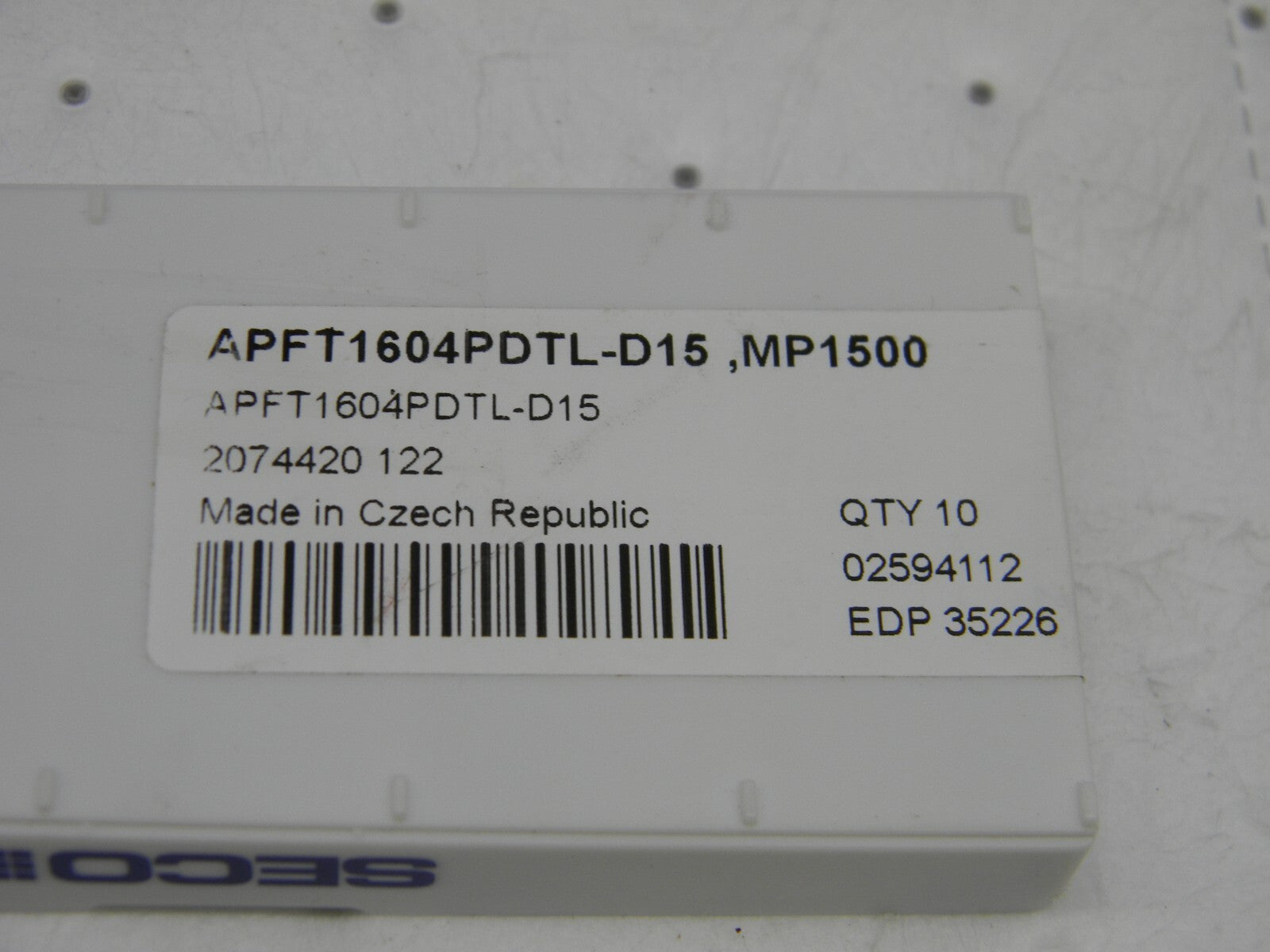

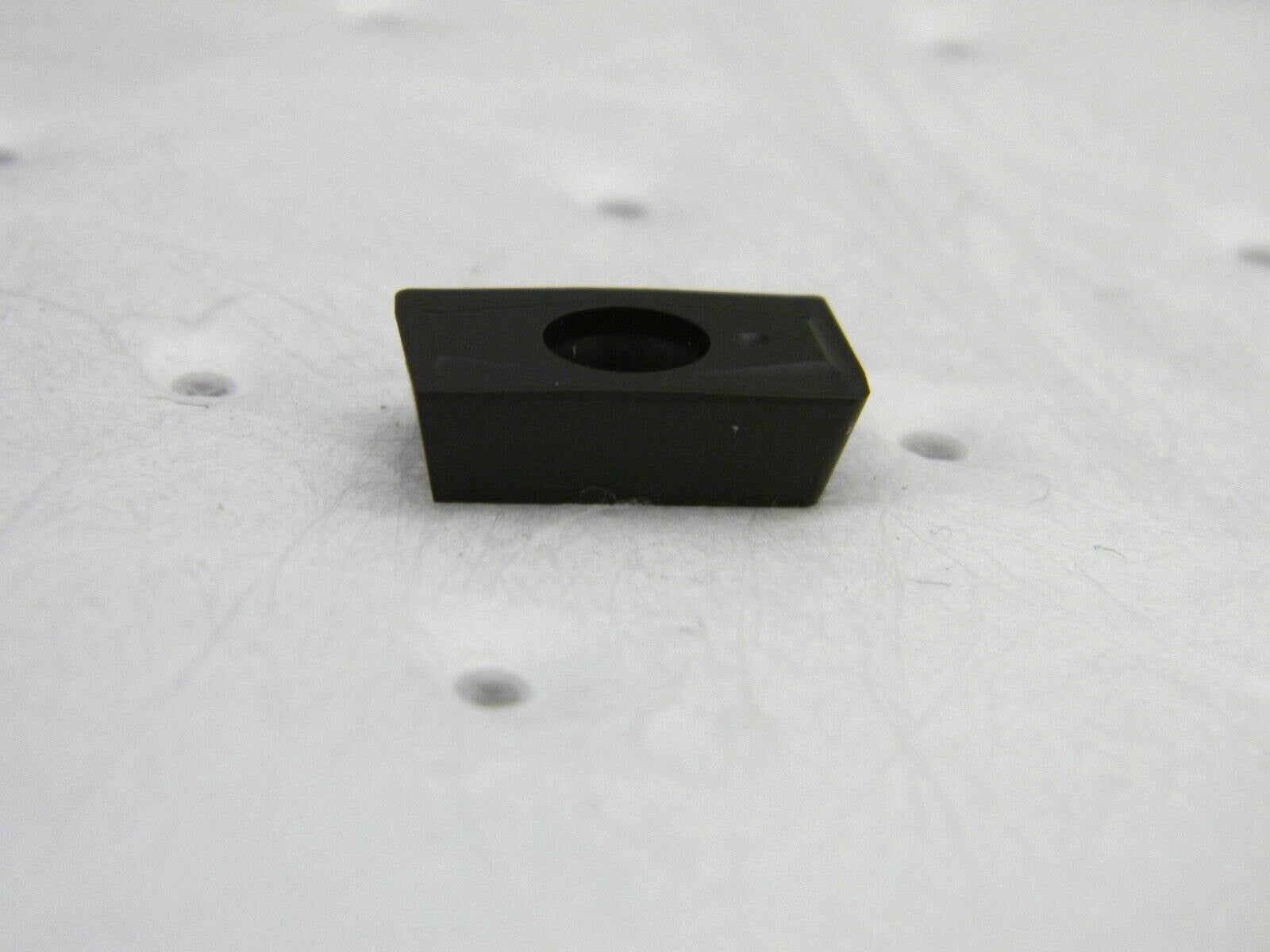

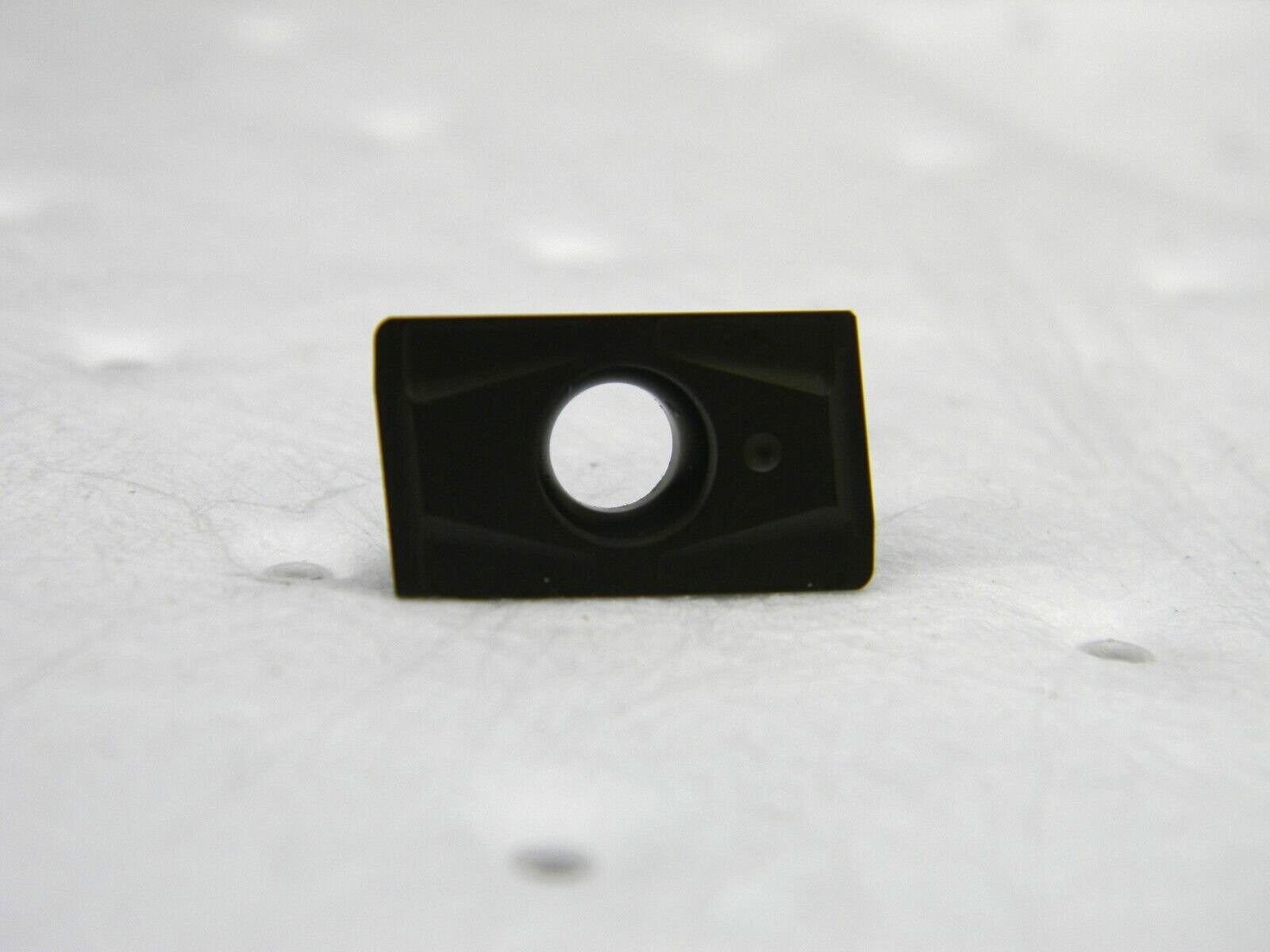

SECO APFT 1604PDTL-D15 Carbide Milling Inserts QTY 10 02594112

SECO
APFT 1604PDTL-D15 Carbide Milling Inserts QTY 10

MSRP: $270

• Insert Size 1604
• Insert Size Code APFT16
• Insert Material Carbide
• Manufacturer's Grade MP1500
• Coated Coated
• Coating TiCN/Al2O3
• Width (Decimal Inch) 0.3750
• Length (Decimal Inch) 0.6690
• Manufacturer Grade MP1500
• Thickness (Decimal Inch) 0.1870
• Thickness Range (Decimal Inch) 0.1850 - 0.2000
• Chipbreaker D15
• Length Range (Decimal Inch) 0.6500 - 0.7000
• Coating Process CVD
• Number Of Cutting Edges 2
• Insert Shape Parallelogram
• Primary Workpiece Material Code H; P
• Iso Code APFT1604PDTL-D15
• Standards ISO
• Corner Radius (Decimal Inch) 0.0310
• Primary Workpiece Material Universal
• Relief Angle 11.0?
• Rake Angle 8
• Rake Positive
• Included Angle 85
• ISO Number APFT1604PDTL-D15
• Style Parallelogram
• Material Carbide
• Insert Style APFT
• Shape Parallelogram

Please review photos, comes as shown.
