Seco 9mm 140° Point Right Hand Cut Spiral Flute Screw Machine Drill Bit 18928
Seco 9mm 140° Point Right Hand Cut Spiral Flute Screw Machine Drill Bit 18928
Regular price
$28.30 USD
Regular price
$60.00 USD
Sale price
$28.30 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Seco
MSRP: $60.00
Model: 18928
Description:
Drill Bit Size (Decimal Inch) : 0.3543
Drill Bit Size (mm) : 9.00
Drill Point Angle: 140
Drill Bit Material: Solid Carbide
Drill Bit Finish/Coating: Multilayer TiAlN
Flute Type: Spiral
Cutting Direction: Right Hand
Shank Type: Straight
Flute Length (mm): 47.00
Flute Length (Decimal Inch): 1.8504 --
Overall Length (mm): 89.00
Overall Length (Decimal Inch): 3.5039 --
Flute Length x Diameter Ratio: 3xD
Shank Diameter (mm): 10.00
Shank Diameter (Decimal Inch): 0.3937 --
Specification Designation: DIN --
Maximum Drilling Depth (mm): 29.00
Maximum Drilling Depth (Decimal Inch): 1.1417 --
Spiral Type: Regular Spiral
Shank Length (mm): 40.00
Shank Length (Decimal Inch): 1.5748 --
Threaded Shank: No
Number of Flutes: 2 --
Web Configuration: Tapered --
Drill Bit Diameter Tolerance (mm): +0.006 to +0.021 --
Specification Number: DIN 6537A --
Web Thinning: Web-Thinned --
Series/List: SD203

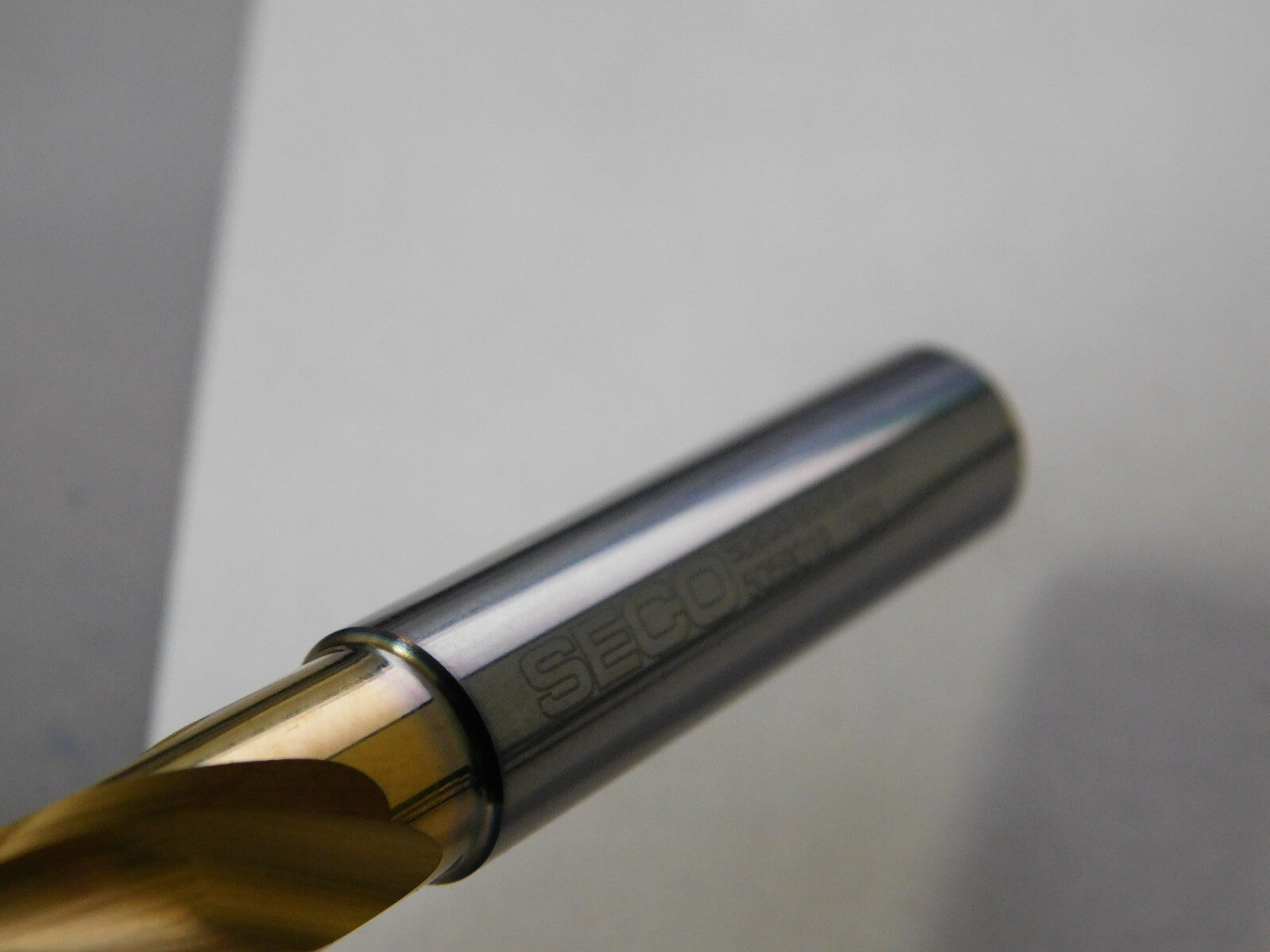

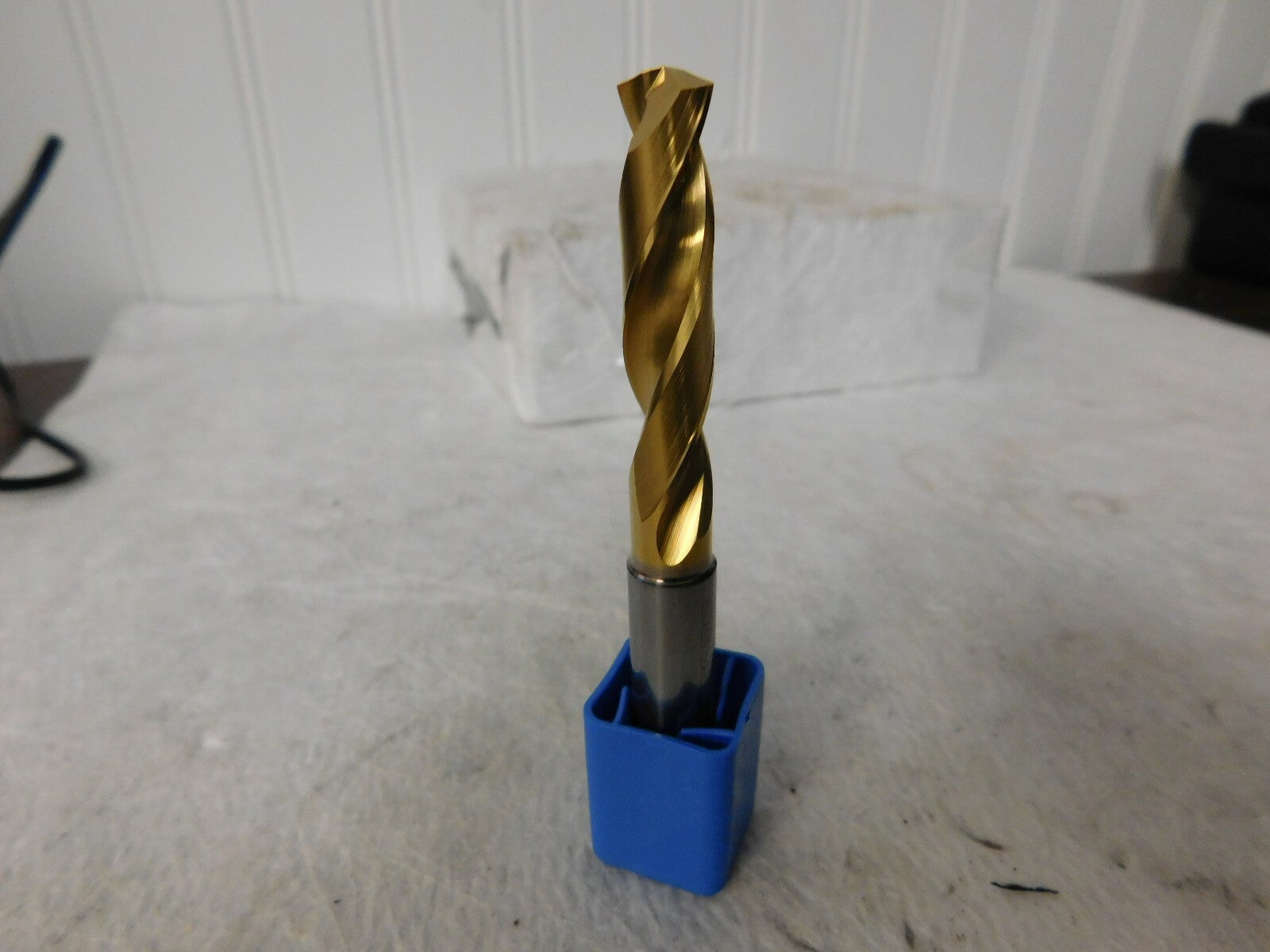

This listing is for One Drill Bit that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
