SECO 5mm Diam 3 Flute Solid Carbide 0.2mm Corner Radius End Mill 00022005
SECO 5mm Diam 3 Flute Solid Carbide 0.2mm Corner Radius End Mill 00022005
Regular price
$53.40 USD
Regular price
$100.00 USD
Sale price
$53.40 USD
Shipping calculated at checkout.
SECO
5mm Diam 3 Flute Solid Carbide 0.2mm Corner Radius End Mill 00022005
MSRP: $100
- Mill Diameter (mm) 0.1969in; 5.0mm
- Mill Diameter (Inch) 0.1969in; 5.0mm
- Mill Diameter (Decimal Inch) 0.1969; 0.1969in; 5.0mm
- End Type Corner Radius
- Radius 0.008in; 0.2mm
- Corner Radius (mm) 0.200
- Corner Radius (Decimal Inch) 0.008in; 0.2mm; 0.0079
- Mill Diameter 0.1969in; 5.0mm
- Number of Flutes 3
- Length Of Cut 0.2362in; 6.0mm
- Material Solid Carbide
- End Mill Material Solid Carbide
- Finish/Coating MEGA
- Shank Diameter (mm) 6.00
- Overall Length (mm) 65.0mm
- Overall Length (Inch) 65.0mm
- Centercutting Yes
- Flute Type Spiral
- Cutting Direction Right Hand
- Helix Angle 40.00
- Shank Diameter 6.0mm
- Neck Diameter 0.181in; 4.6mm
- Reach Length 0.8661in; 22.0mm
- Overall Length 65.0mm
- Maximum Helix Angle 40?
- Corner Radius Tolerance +0.05/-0.05 mm
- Mill Diameter Tolerance -0.02/-0.04 mm
- Shank Diameter Tolerance h5
- Through Coolant No
- Primary Workpiece Material Code K; M; N; P; S
- Maximum Tir 0.0004in; 0.0100mm
- Reach Length (mm) 0.8661in; 22.0mm
- Reach Length (Decimal Inch) 0.8661in; 22.0mm
- Neck Diameter (mm) 0.181in; 4.6mm
- Neck Diameter (Decimal Inch) 0.181in; 4.6mm
- Series JH910
- Single or Double End Single
- Length Type Long
- Flute Direction Right Hand
- Mill Diameter Tolerance (mm) -0.02/-0.04
- Mill Diameter Tolerance (Decimal Inch) -0.02/-0.04 mm
- Corner Radius Tolerance (mm) +0.05/-0.05
- Corner Radius Tolerance (Decimal Inch) +0.05/-0.05 mm
- Shank Diameter Tolerance (mm) h5
- Extended Reach Yes
- Additional Information No
- Shank Type Cylindrical
- Series/List JH910

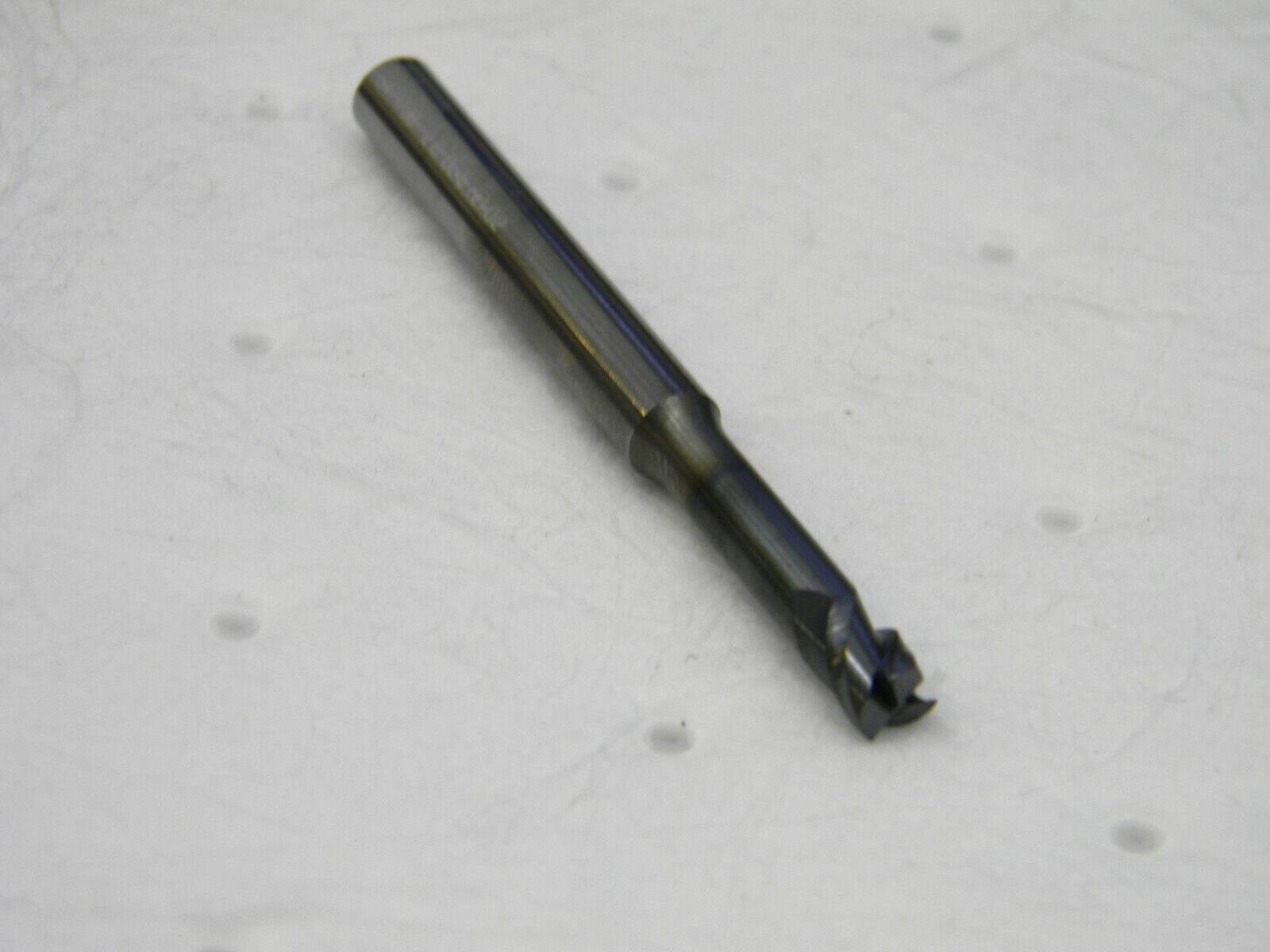

This SECO end mill is a high-quality tool designed for precision machining in metalworking. Its 5mm diameter and 3 flutes make it a versatile choice for various applications. The corner radius end mill has a length of 65.00mm and a length of cut of 6.00mm, with a shank diameter of 6mm. This unit is manufactured in the Netherlands and is categorized under roughing and router end mills, end mills, metalworking supplies, and CNC, metalworking, and manufacturing. Its brand name is SECO, and it is sold as a unit type. The end mill type is a corner radius end mill, and it is suitable for use in various industries.

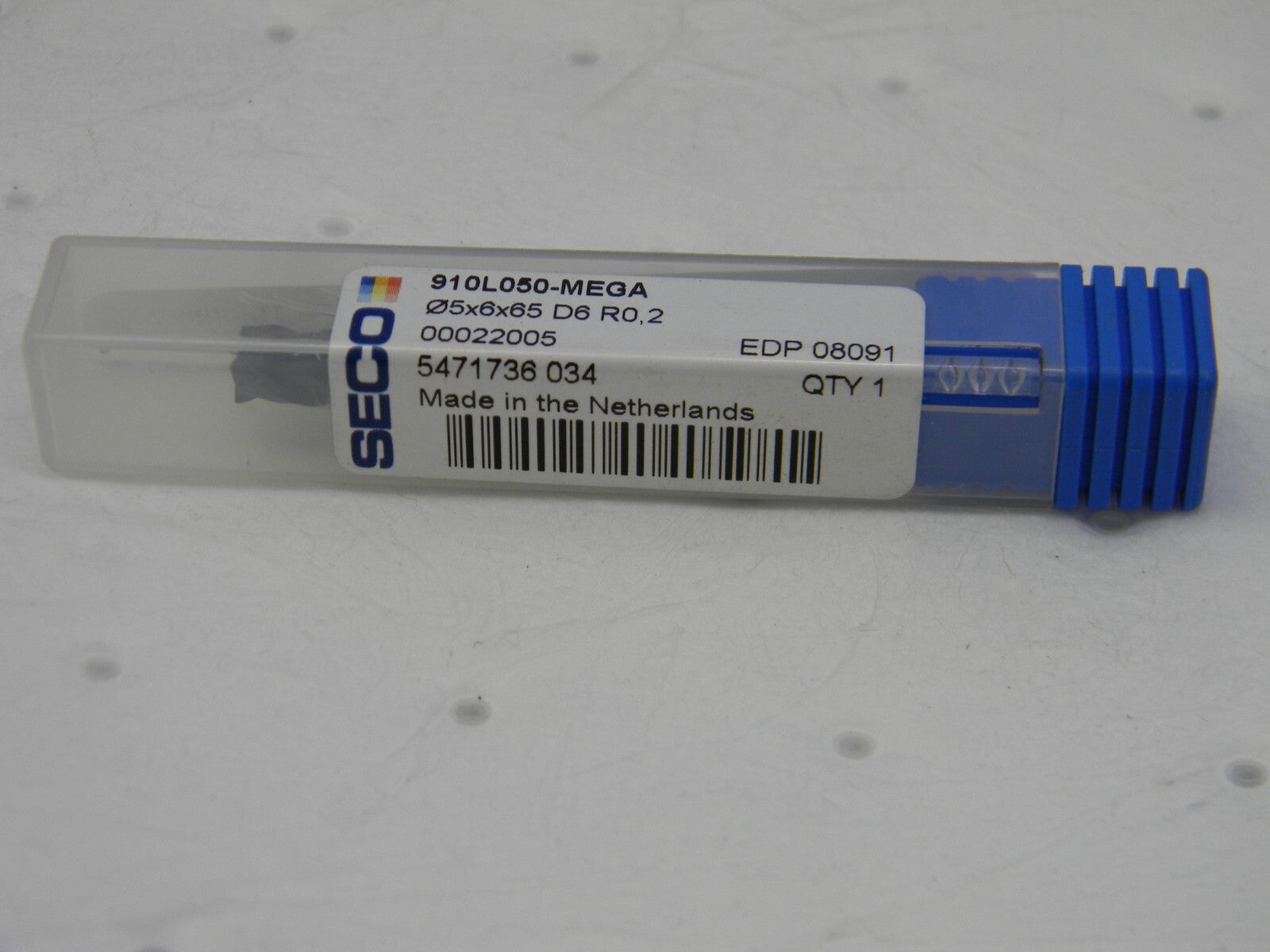

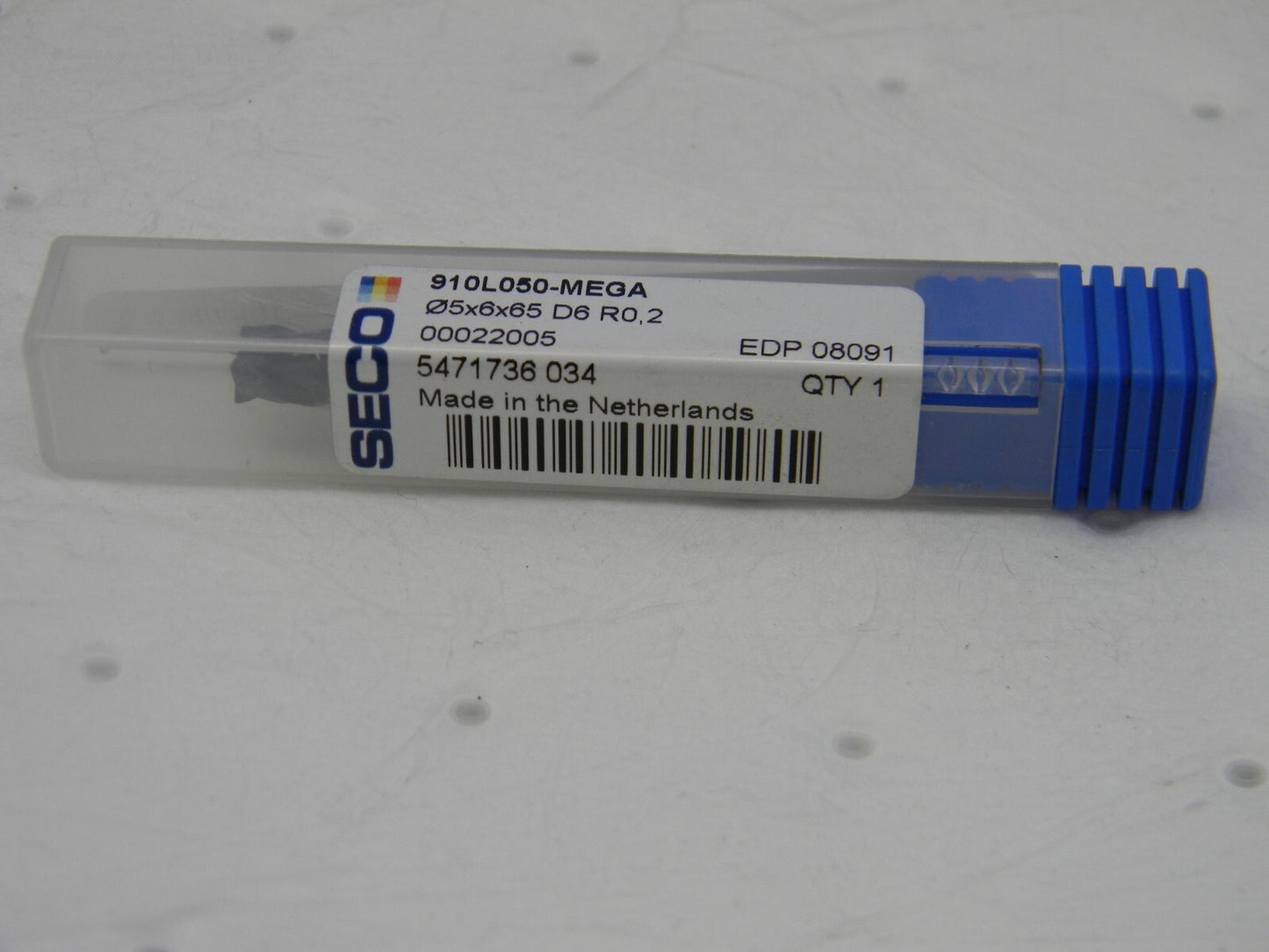

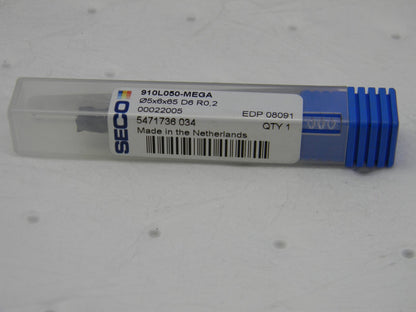

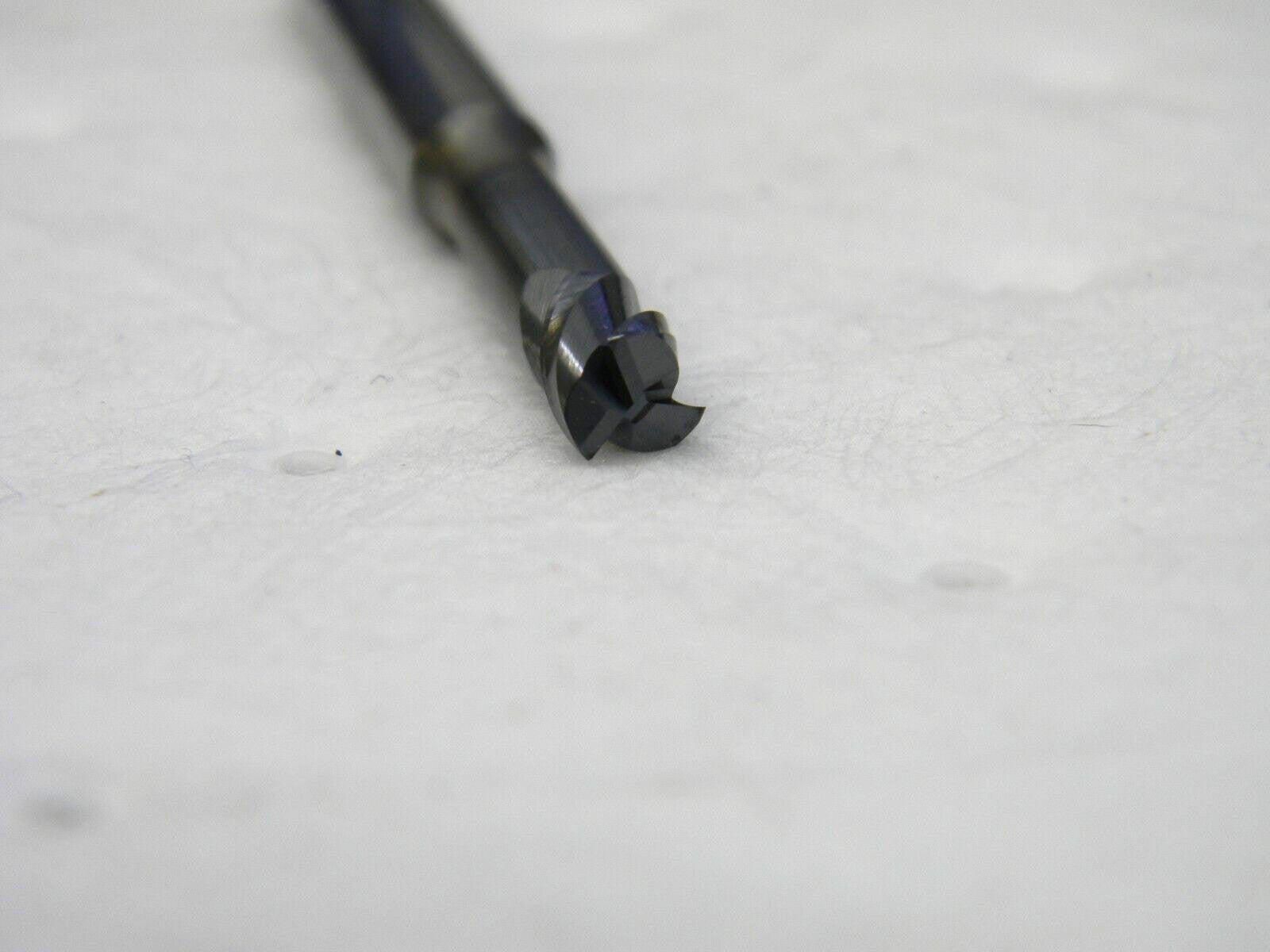

Please review photos, comes as shown.
