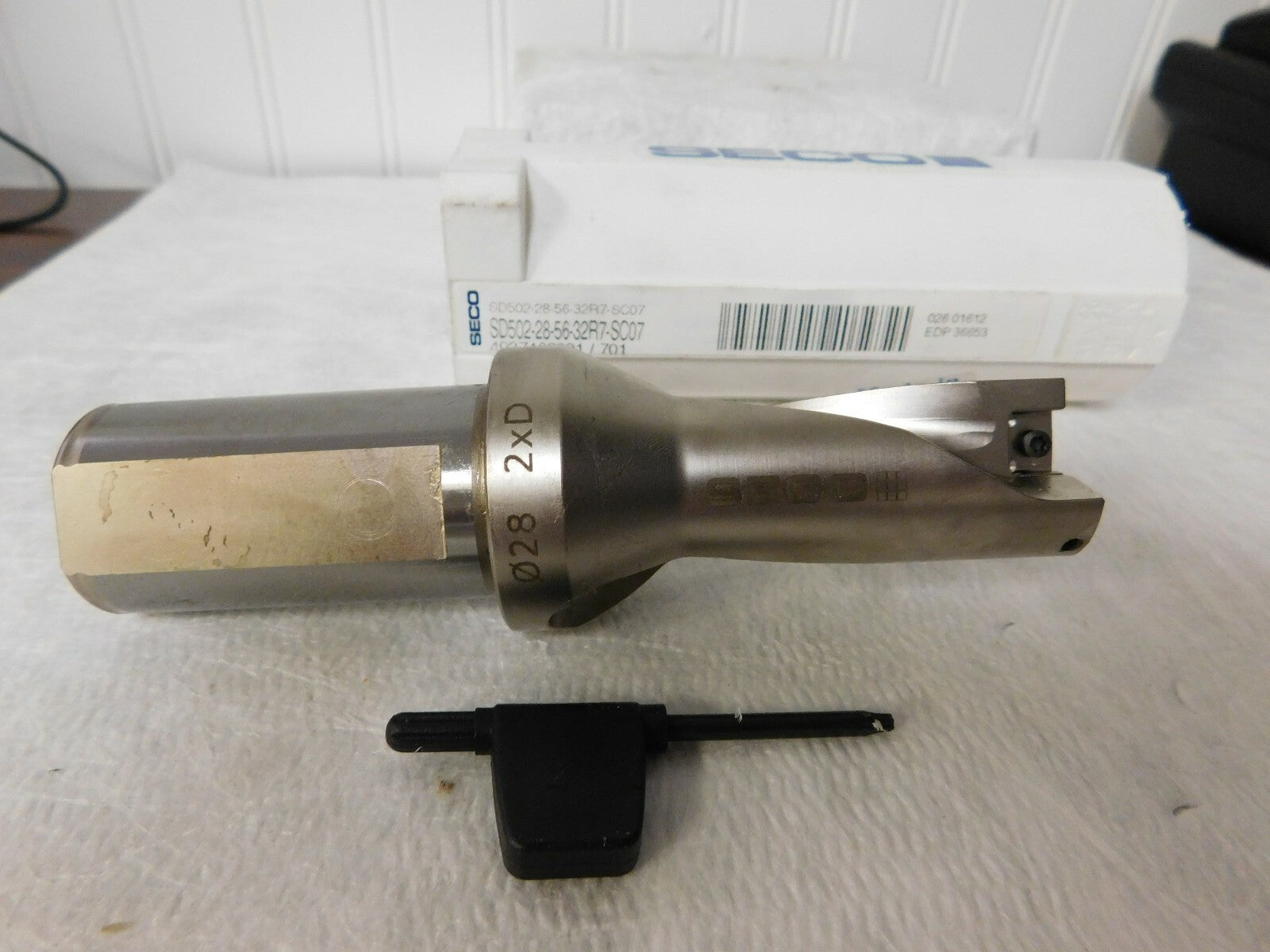

Seco 56mm Max Drill Depth 2x, 1.102" Diam Indexable Insert Drill 36653
Seco 56mm Max Drill Depth 2x, 1.102" Diam Indexable Insert Drill 36653
Regular price
$198.11 USD
Regular price
$420.00 USD
Sale price
$198.11 USD
Shipping calculated at checkout.
Seco
MSRP: $420.00
Model: 36653
Description:
Drill Style: SD502
Drill Diameter (Decimal Inch) : 1.1020
Maximum Drill Depth (mm) : 56.00
Maximum Drill Depth (Decimal Inch) : 2.2047 --
Shank Type: Straight
Shank Diameter (mm) : 32.00
Shank Diameter (Decimal Inch) : 1.2598 --
Cutting Direction: Right Hand
Through Coolant: Through Coolant
Drill Depth by Diameter Ratio: 2xD
Number of Drill Inserts: 2
Maximum Drill Diameter (mm): 28.49
Overall Length/Projection (mm): 146.00
Overall Length/Projection (Decimal Inch): 5.7480 --
Insert Compatibility (Outside or Peripheral): SCGX 070308..
Insert Compatibility: SPGX 0903-C1..
Flute Length (mm): 61.00
Flute Length (Decimal Inch): 2.4016 --
Body Length (Decimal Inch): 3.3858 --
Body Length (mm): 86.00
Shank Length (mm): 60.00
Shank Length (Decimal Inch): 2.3622 --
Collar Diameter (mm): 42.00 42.00
Collar Diameter (Decimal Inch): 1.6535 --
Series: PerfoMAX
Radial Adjustment (-mm): 0.30
This listing is for One Indexable Insert Drill that is in the picture as well as described. Please ask any questions prior to buying!
