SECO 50mm Cut Diam 22mm Arbor Hole Diam Square-Shoulder Face Mill 02623182

SECO

 50mm Cut Diam 22mm Arbor Hole Diam Square-Shoulder Face Mill 02623182
MSRP: $600

• Maximum Cutting Diameter (Decimal Inch) 1.9685
• Maximum Cutting Diameter (mm) 50.00
• Maximum Depth of Cut (mm) 7.50
• Maximum Depth of Cut (Decimal Inch) 0.2955
• Arbor Hole Diameter (mm) 22.00
• Arbor Hole Diameter (Inch) 22
• Arbor Hole Diameter (Decimal Inch) 22.0000
• Compatible Insert Size Code XNEX 0806
• Maximum Ramping Angle 0.00
• Cutter Style R220.96
• Cutting Direction Right Hand
• Insert Holding Method Screw
• Lead Angle 0/90
• Rake Negative
• Series Square 6
• Overall Height (Mm - 5 Decimals) 40.00
• Keyway Width (mm) 10.40
• Keyway Width (Decimal Inch) 10.4000
• Hub Diameter (mm) 47.00
• Pitch Type Close
• Maximum RPM 10600
• Tool Application Milling
• Coolant Through Yes
• Number Of Cutter Inserts 5
• Number Of Flutes 5

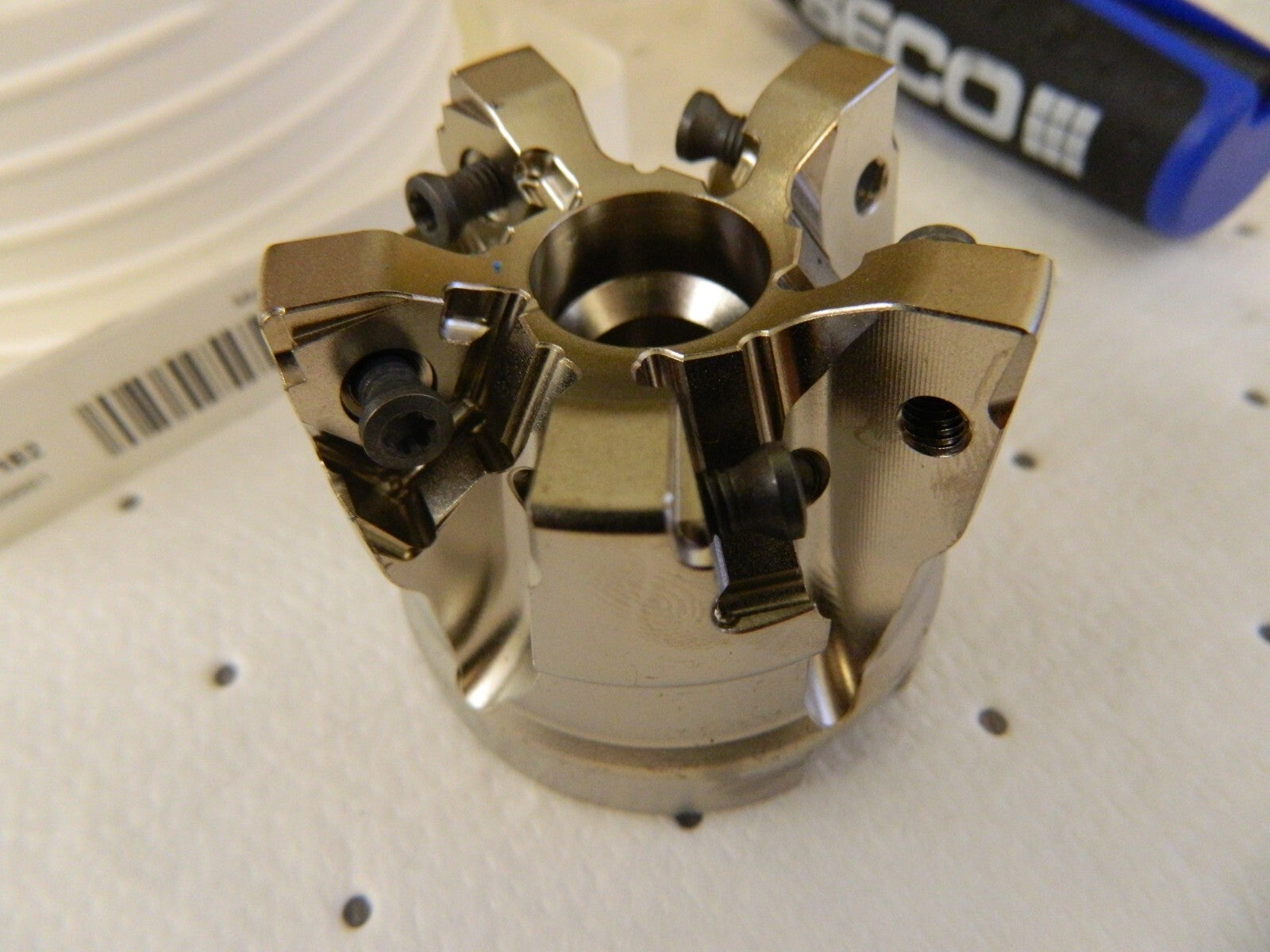

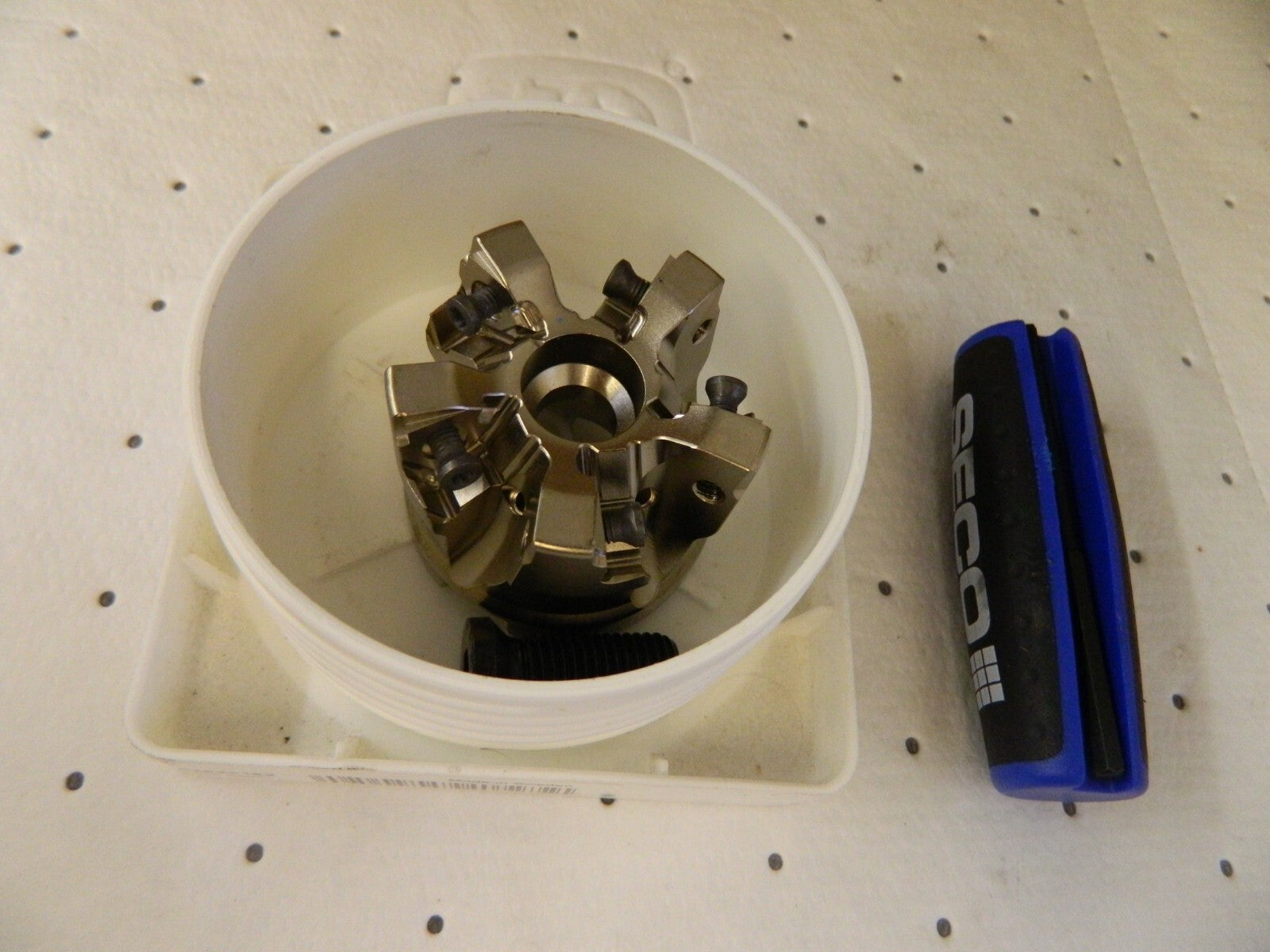

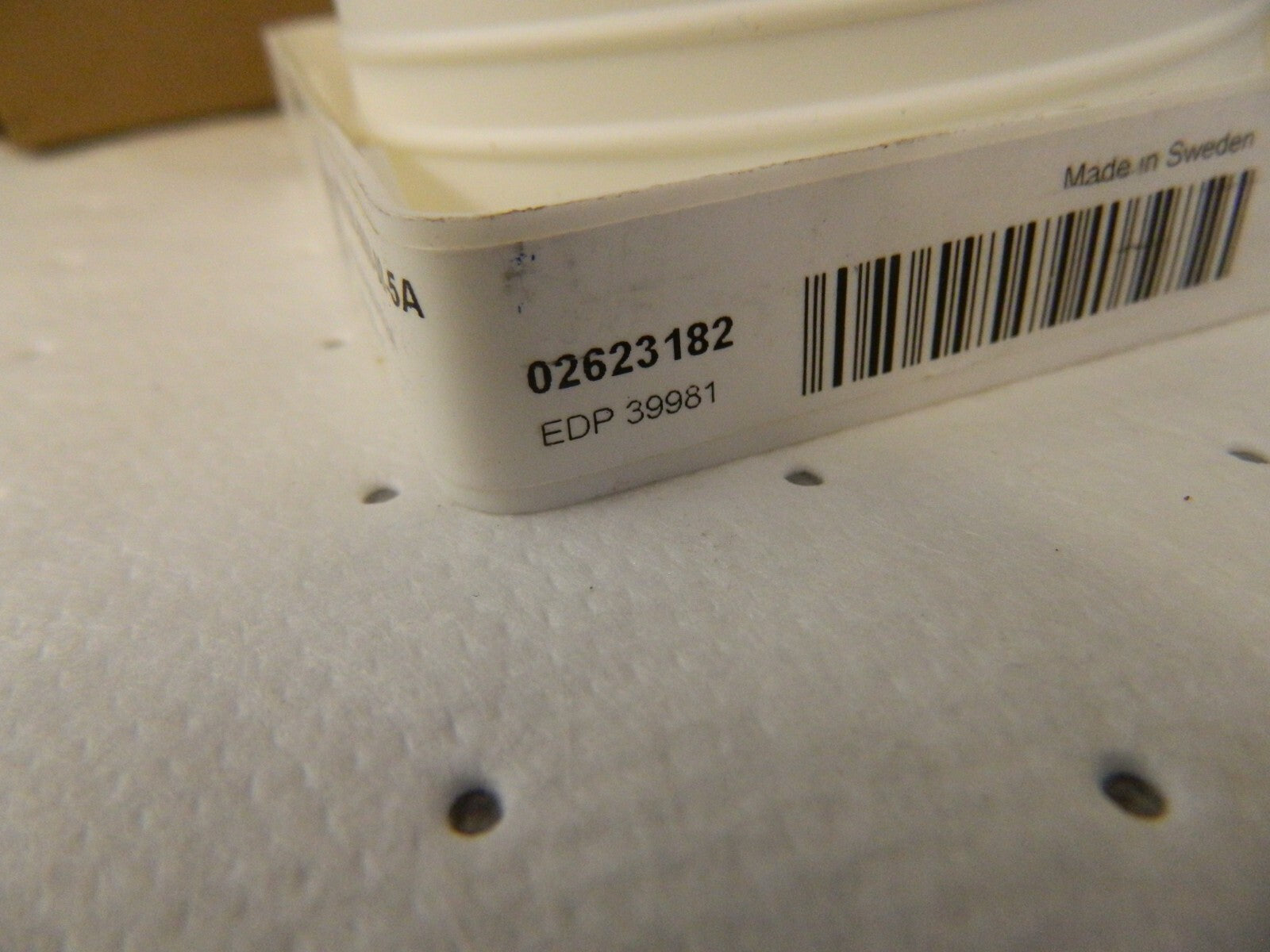

 Please review photos, comes as shown.
