Seco 4mm Diam 2 Flute 0.3mm Corner Radius End Mill 32964
Seco 4mm Diam 2 Flute 0.3mm Corner Radius End Mill 32964
Regular price
$29.37 USD
Regular price
$60.00 USD
Sale price
$29.37 USD
Shipping calculated at checkout.
MSRP: 60.00
Model:
Description:
Mill Diameter (mm) : 4.00
Mill Diameter (Decimal Inch) : 0.1575
End Type: Corner Radius
Corner Radius (mm) : 0.300
Corner Radius (Decimal Inch) : 0.0118
Number of Flutes: 2
Material: Solid Carbide
Finish/Coating: TiAlN
Length of Cut (mm) : 4.00
Length of Cut (Decimal Inch) : 0.1575
Shank Diameter (mm) : 6.00
Overall Length (mm) : 80.00
Flute Type: Spiral
Cutting Direction: Right Hand
Helix Angle: 28.00
Single or Double End: Single
Length Type: Extra Long
Centercutting: Yes
Flute Direction: Right Hand
Mill Diameter Tolerance (mm): -0.005/-0.015 --
Corner Radius Tolerance (mm): +0.01/-0.01 --
Extended Reach: No
TIR Maximum (mm): 0.01

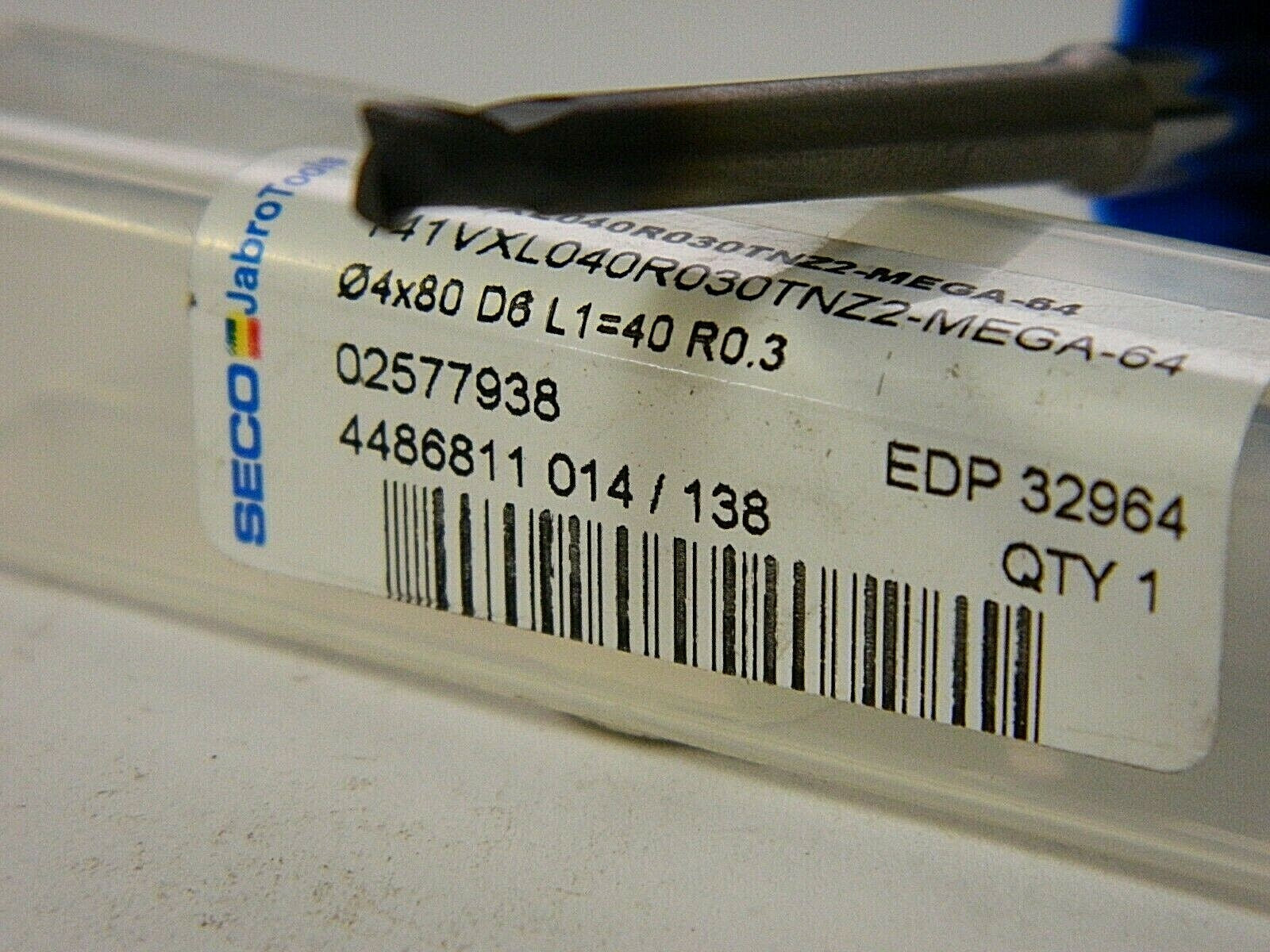

This listing is for One that is in the picture as well as described. Please ask any questions prior to buying!
