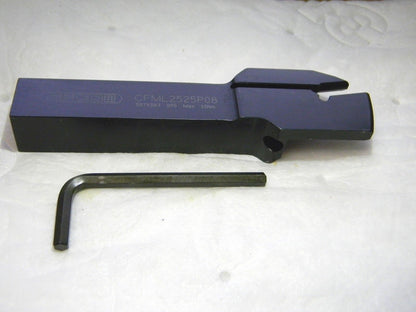

Seco 40mm External Left Hand Indexable Grooving Toolholder CFML2525P08 23574
Seco 40mm External Left Hand Indexable Grooving Toolholder CFML2525P08 23574
Regular price
$58.74 USD
Regular price
$120.00 USD
Sale price
$58.74 USD
Shipping calculated at checkout.
Couldn't load pickup availability
SECO
MSRP: $120.00
Model: 23574
Description:
Internal or External External
Toolholder Type NonFace Grooving
Hand of Holder Left Hand
Maximum Depth of Cut (Decimal Inch) 1.5748
Maximum Depth of Cut (mm) 40.00
Minimum Groove Width (Decimal Inch) 0.3150
Minimum Groove Width (mm) 8.00
Overall Length (mm) 170.00
Overall Length (Decimal Inch) 6.6929
Toolholder Style CFM
Insert Compatibility LC.. 3008..
Shank Height (mm) 25.00
Shank Height (Decimal Inch) 0.9843
Shank Width/Diameter (mm) 25.00
Shank Width/Diameter (Decimal Inch) 0.9843
Series Multi-Directional Turning (MDT)
Through Coolant Non Coolant Through
Multi-Use Tool No
Insert Holding Method Clamp
Insert Seat Size 8
Back of Bar to Cutting Edge (mm) 28.00
Back of Bar to Cutting Edge (Decimal Inch) 1.1024
Head Length (mm) 74.00
Head Length (Decimal Inch) 2.9134
Toolholder Material Steel
Complete Insert Compatibility LCGF 300804-0800-GG; LCGF 300804-0800-GS; LCGF 3008M0-0800-RP; LCGF 3008M0-1000-RP; LCMF 300804-0800-FT; LCMF 300808-0800-FT; LCMF 300808-1000-FT; LCMF 300812-0800-FT; LCMF 300812-1000-FT; LCMF 3008M0-0800-MP; LCMF 3008M0-1000-MP; LCMR 300808-0800-FT

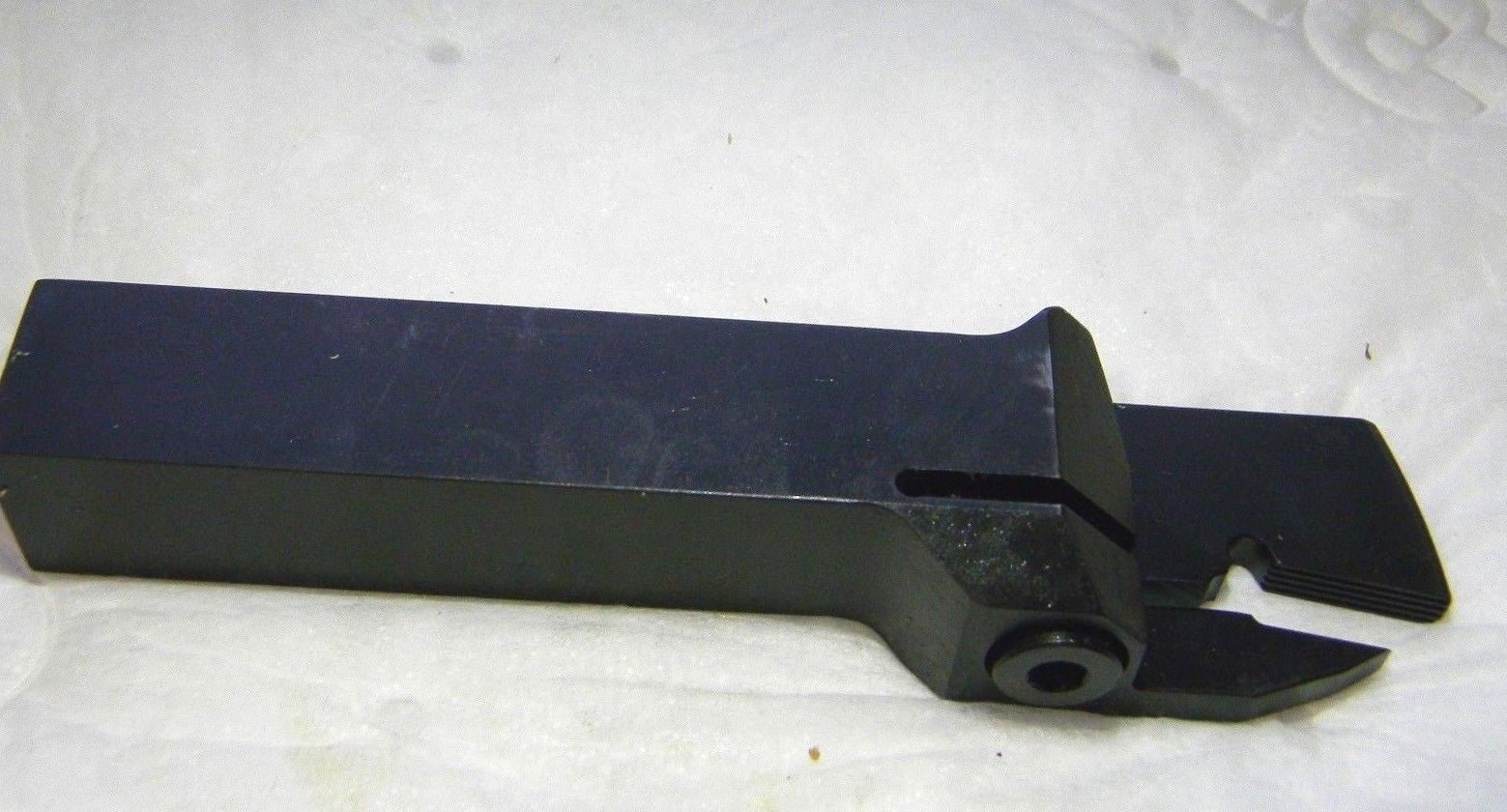

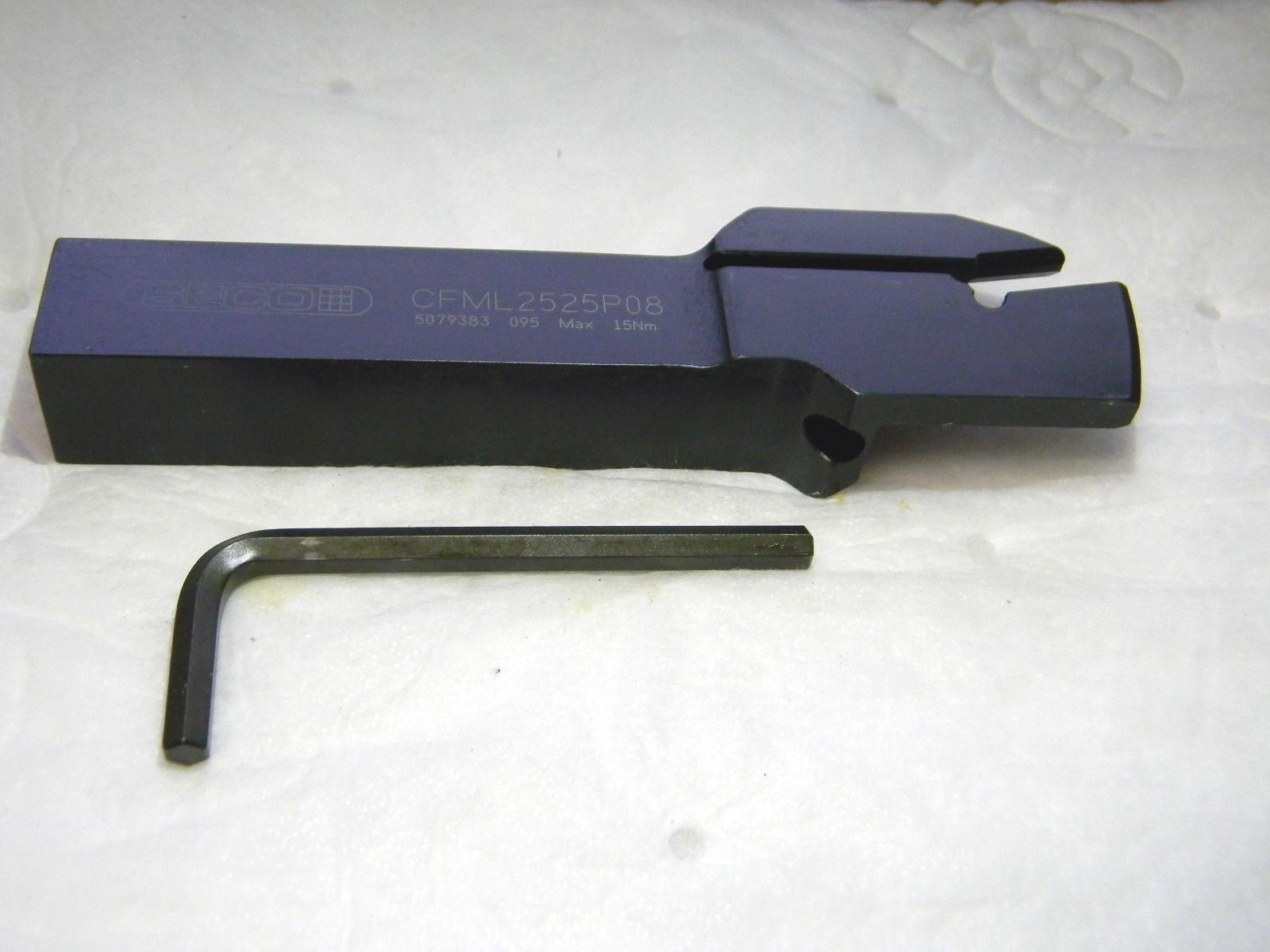

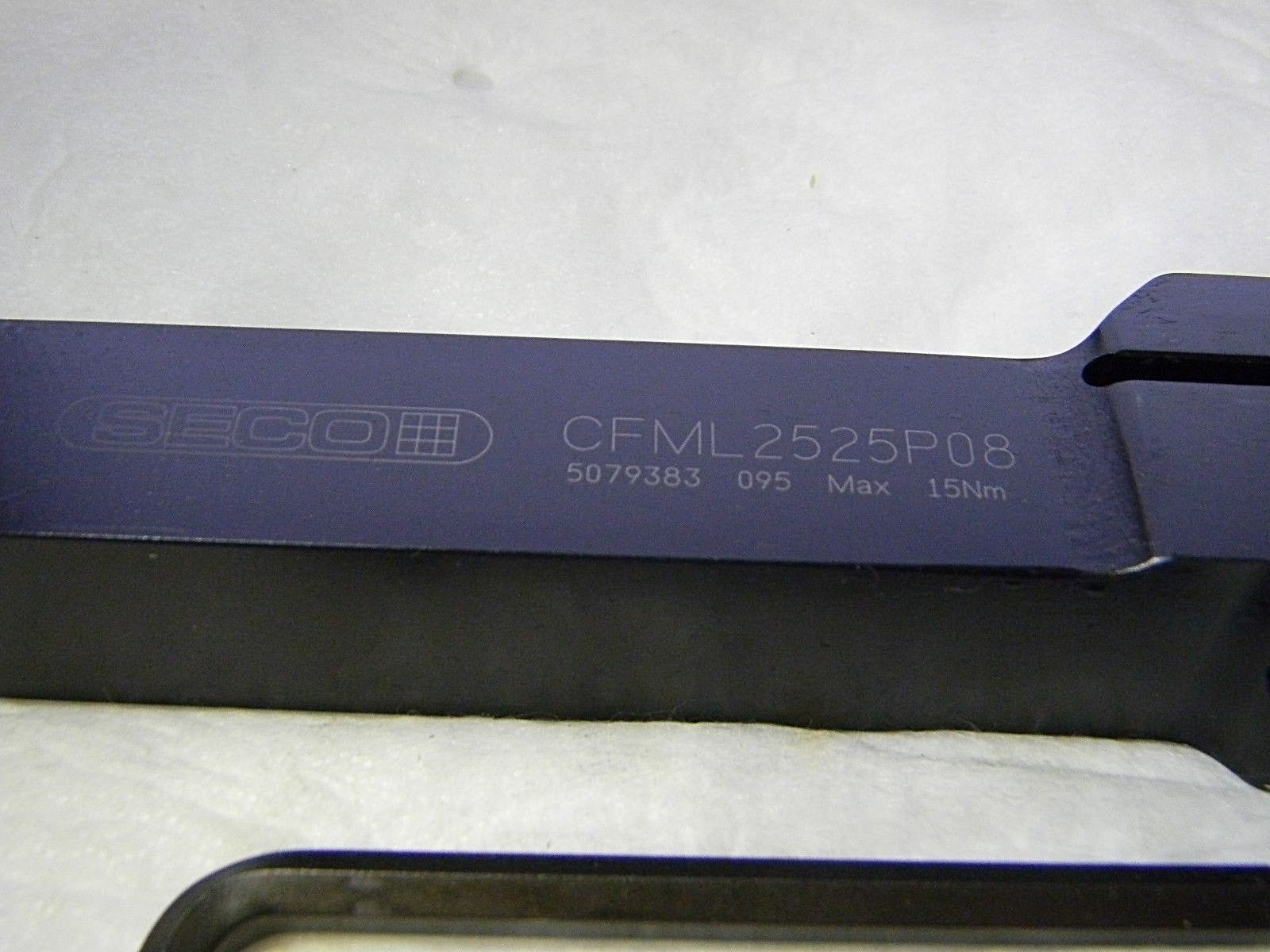

This listing is for One Toolholder that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
