SECO 3.15" Cut Diam 43° Indexable Chamfer & Angle Face Mill 00086840

SECO 3.15" Cut Diam 43° Indexable Chamfer & Angle Face Mill 00086840

MSRP: $1000

• Minimum Cutting Diameter (Decimal Inch) 3.1500
• Maximum Cutting Diameter (Decimal Inch) 3.6200
• Maximum Depth of Cut (Decimal Inch) 0.1380
• Arbor Hole Diameter (Decimal Inch) 1.0000
• Arbor Hole Diameter (Inch) 1
• Compatible Insert Size Code OF 05T305
• Cutter Style R220.43
• Cutting Direction Right Hand
• Insert Holding Method Screw
• Rake Positive
• Series R220.43
• Hub Diameter (Decimal Inch) 2.4410
• Keyway Width (mm) 9.70
• Keyway Width (Decimal Inch) 0.3800
• Overall Height (Inch) 2
• Overall Height (Decimal Inch) 2.0000
• Maximum Body Diameter (Decimal Inch) 3.5000
• Pitch Type Normal
• Maximum RPM 9400
• Tool Application Facing
• Number Of Cutter Inserts 6
• Coolant Through No
• Number Of Flutes 6
• UNSPSC Code 23291600

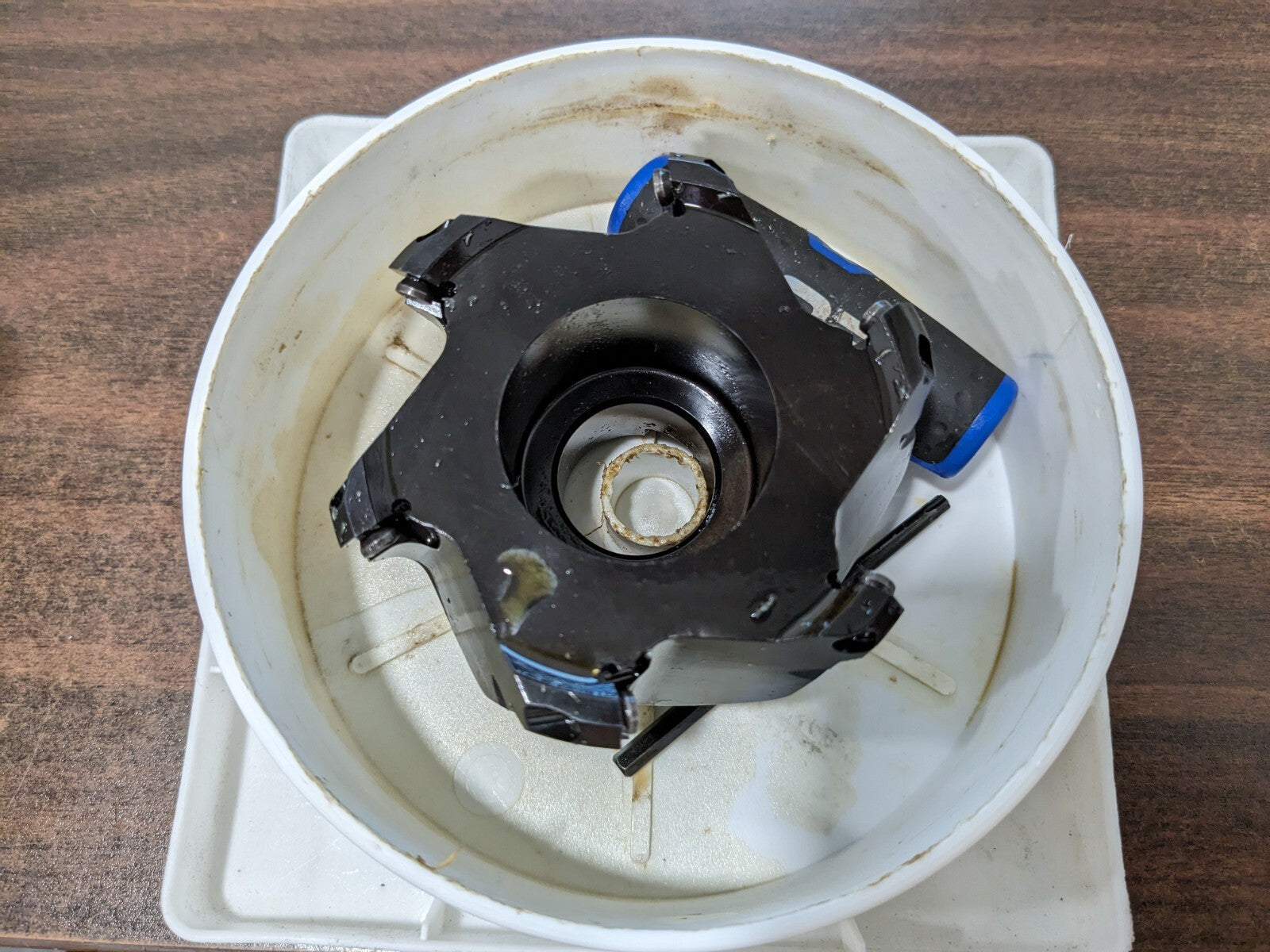

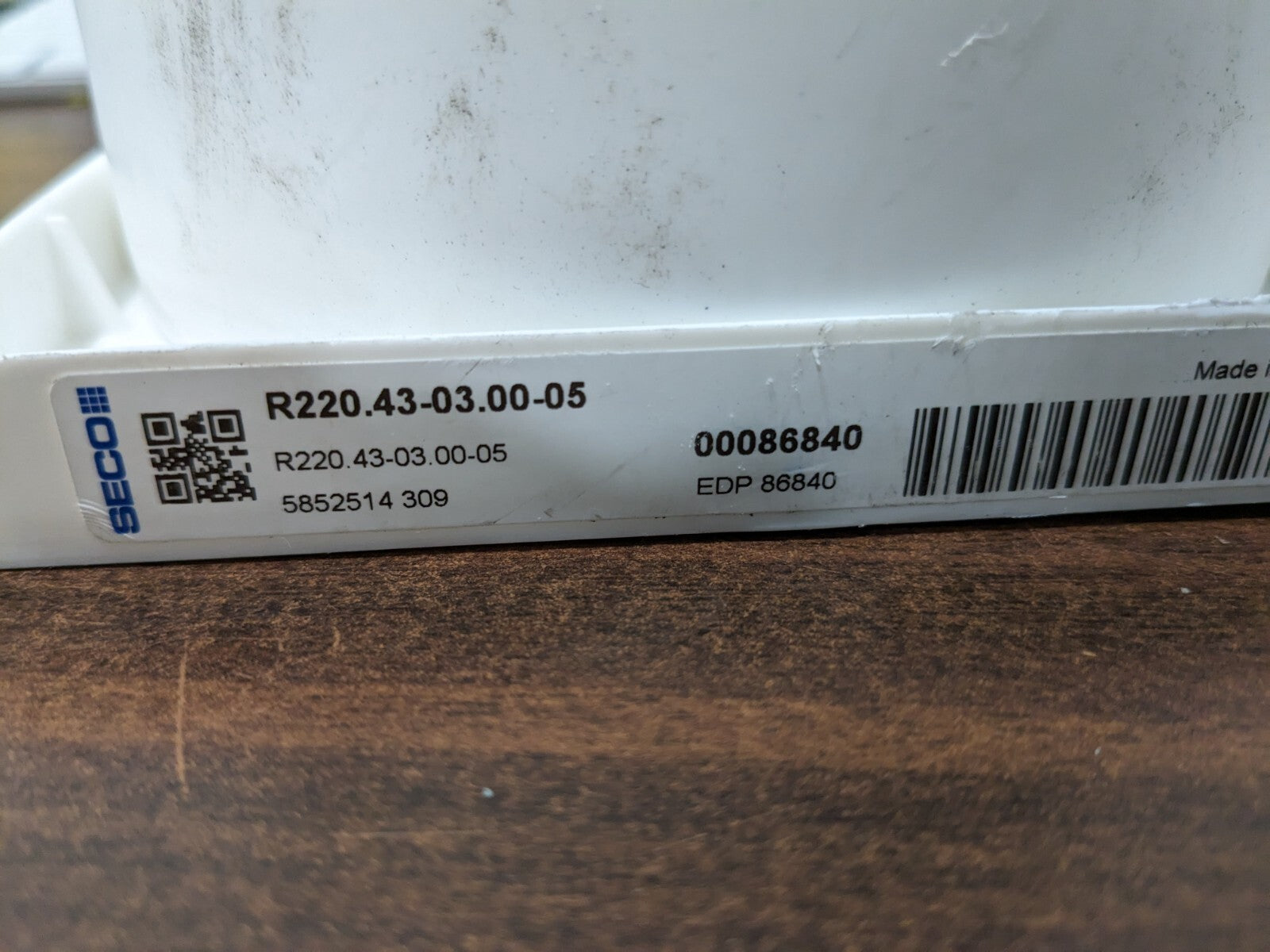

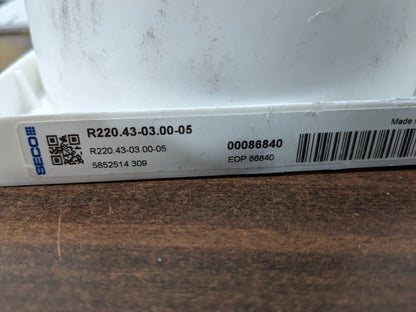

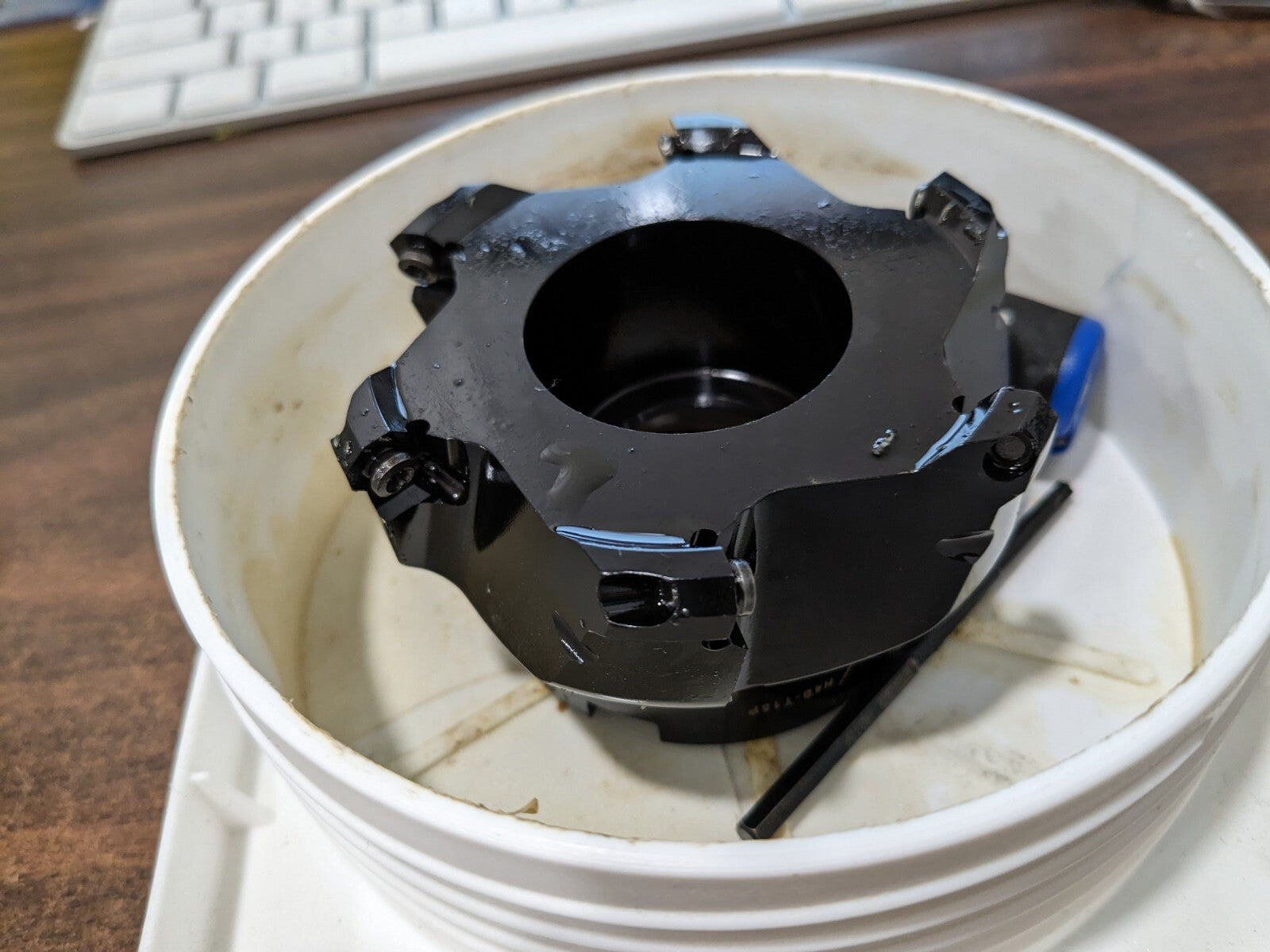

 Please review photos, comes as shown.
