SECO 2pk of Ball End Mills: 0.80 mm Dia 2 Fl Solid Carbide 03204987

SECO 2pk of Ball End Mills: 0.80 mm Dia 2 Fl Solid Carbide 03204987

MSRP: $100

• Mill Diameter (Decimal Inch) 0.0315
• Mill Diameter (mm) 0.80
• Number Of Flutes 2
• End Mill Material Solid Carbide
• Length of Cut (mm) 0.80
• Coating/Finish HXT
• Extended Reach Yes
• Variable Helix No
• Variable Index No
• Helix Angle 28
• Overall Length (mm) 40.00
• Chipbreaker No
• Undercutting No
• Length Of Cut Range (Decimal Inch) 0.0000 - 0.0500
• Length Type Extended
• Helix Style Medium
• Material Removal Type Roughing & Finishing
• Shank Diameter (mm) 4.00
• Neck Diameter (mm) 0.76
• Nose Radius (mm) 0.40
• Neck Length (Decimal Inch) 0.1260
• Neck Length (mm) 3.20
• Reach Length (mm) 4.00
• Mill Diameter Tolerance +0.00/-0.01 mm
• Shank Diameter Tolerance h5
• Maximum Helix Angle 28
• Minimum Helix Angle 28
• Primary Workpiece Material Hard Material
• Primary Workpiece Material Code H
• Material Grade Micrograin
• Flute Direction Right Hand
• Cutting Direction Right Hand
• Series JMB112
• Flute Type Spiral
• UNSPSC Code 27112803
• TIR Maximum (mm) 0.01
• Centercutting Yes
• Coating Classification PVD
• Single Or Double End Single
• Shank Type Straight-Cylindrical
• Pitch Coarse
• Coolant Through No
• Manufacturers Catalog Number JMB112008J3BZ2.0-HXT
• System Of Measurement Metric

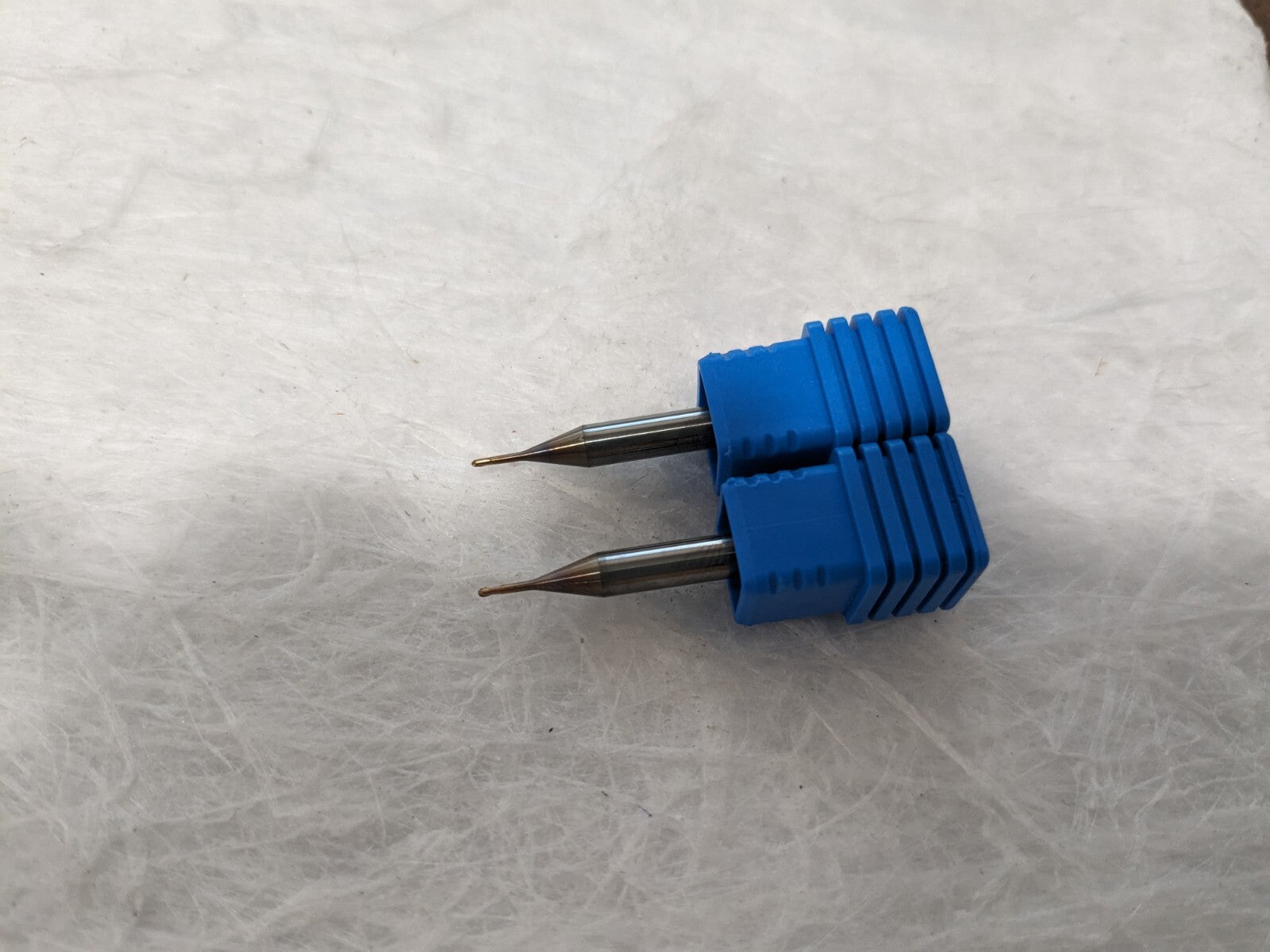

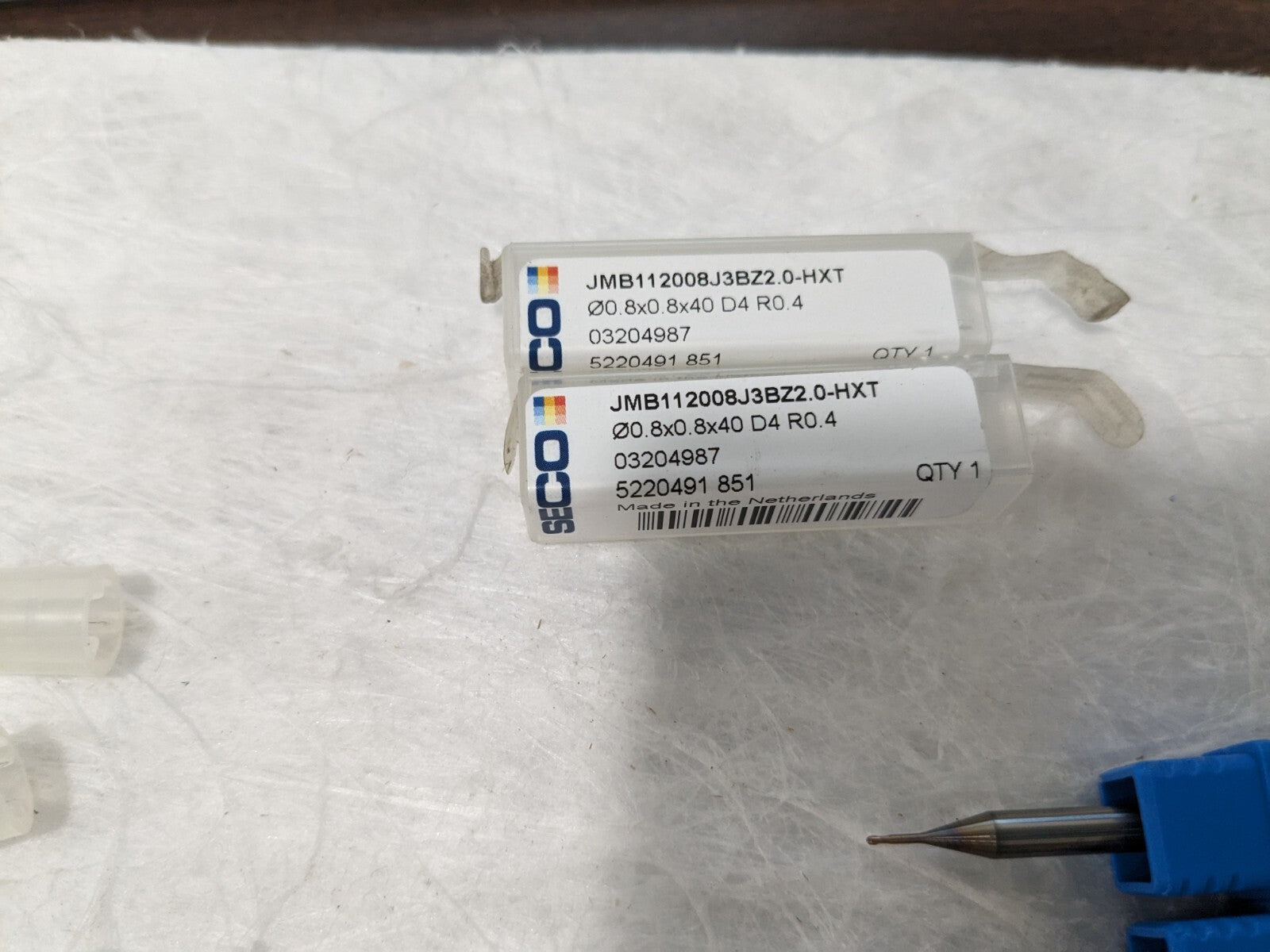

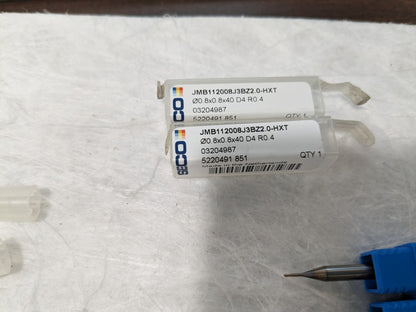

 Please review photos, comes as shown.
