SECO 2pc Turning Inserts: CCGW32.52S-00820-L1-B, PCBN 02649609

SECO 2pc Turning Inserts: CCGW32.52S-00820-L1-B, PCBN 02649609

MSRP: $170

•

• ANSI Insert Code CCGW32.52
• ISO Insert Code CCGW09T308
• Relief Angle 7
• Insert Style CCGW
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0315
• Included Angle 80
• Manufacturer Grade CBN200
• Coating/Finish Bright/Uncoated
• Wiper Edge No
• Insert Hand Neutral
• Insert Thickness (Inch) 5/32
• Insert Thickness (Decimal Inch) 0.1563
• Series CCGW-Flat Top
• Inscribed Circle (Decimal Inch) 0.3750
• Inscribed Circle (Inch) 3/8
• Insert Material PCBN
• Insert Shape C - Diamond (Rhombic) 80-Deg
• Chip Breaker Operation Flat Top
• Grade Characteristics Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance Positive
• Number Of Cutting Edges 2
• Insert Shape Code C
• Hole Diameter (Decimal Inch) 0.1772
• Maximum Depth of Cut (Decimal Inch) 0.0400
• Insert Holding Method Screw
• Width (Inch) 3/8
• Clearance Code C
• Tolerance Code G
• Coating Process PCBN
• Length Range (Decimal Inch) 0.3000 - 0.4000
• Rake Positive
• Insert Length (Decimal Inch) 0.3819
• Primary Workpiece Material Cast Iron
• Primary Workpiece Material Code S; K
• Secondary Workpiece Material Hard Material; Superalloys & Titanium
• Secondary Workpiece Material Code S; H
• Iso Code CCGW09T308S-02020-L1-B
• Standards ISO; ANSI
• Manufacturers Catalog Number 02649609
• Material Grade K20; K10
• Single or Multi Tipped Multi Tipped
• Proprietary Coating Designation Uncoated
• Lead Angle 80
• Coating Classification Uncoated
• Chip Breaker Flat Top
• Rake Angle 0
• Cutting Edge Style Honed; Chamfered
• Industry Standard Number CCGW32.52S-00820-L1-B
• Width (Decimal Inch - 4 Decimals) 0.3750
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Boring
• Tip Length (Decimal Inch) 0.0940
• ANSI Size Code 32.52
• ISO Size Code 09T308
• UNSPSC Code 23242105
• Insert Size Code 32.52
• Country of Origin Sweden

(Description).

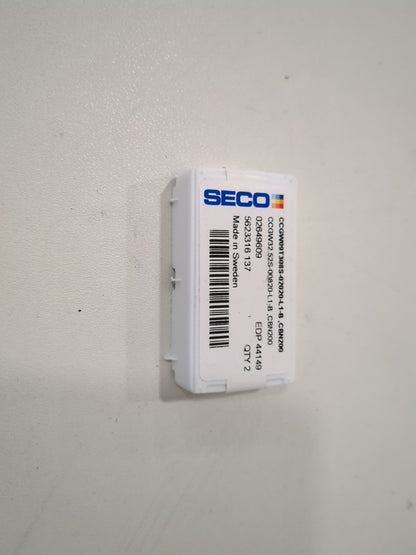

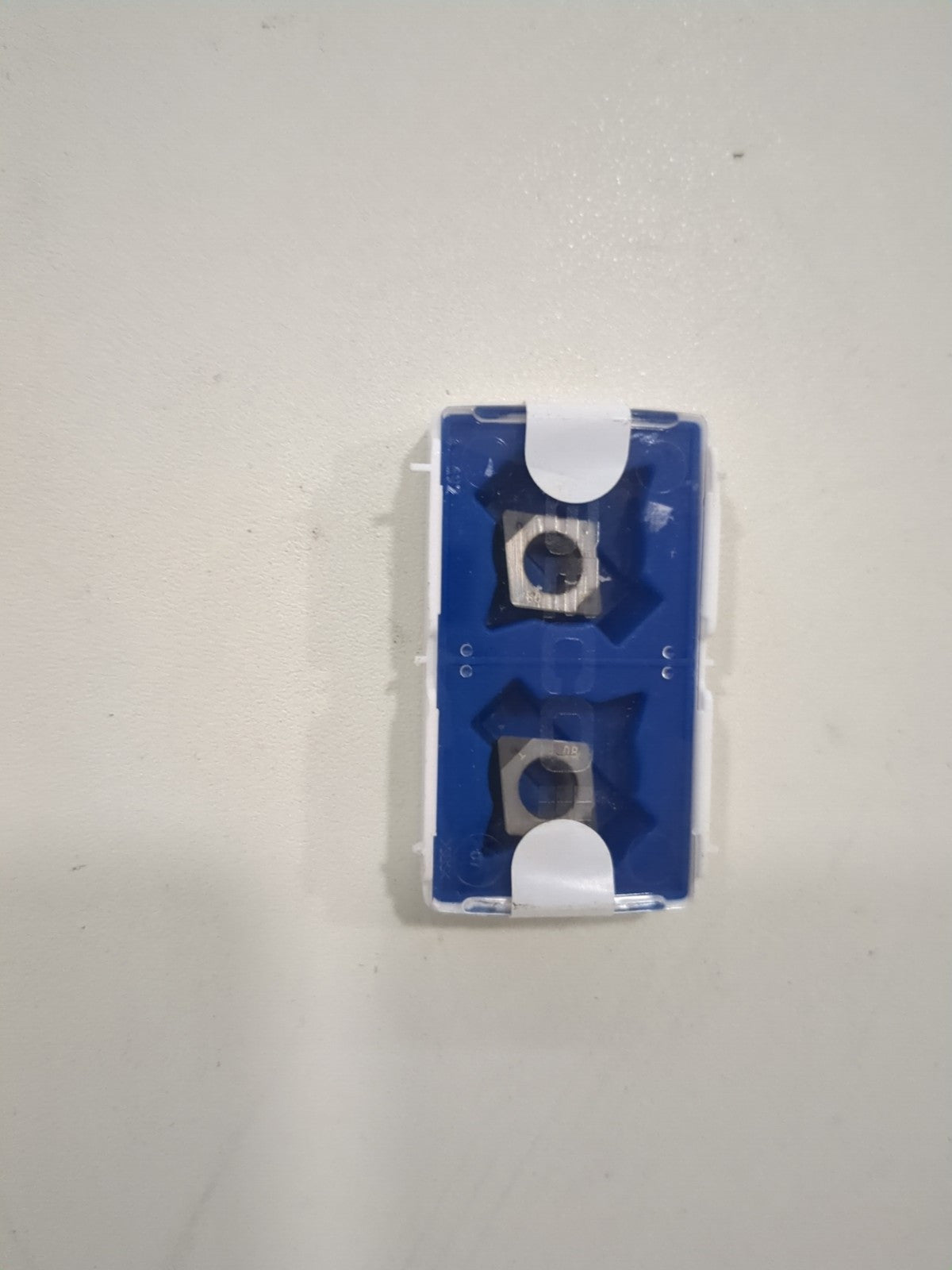

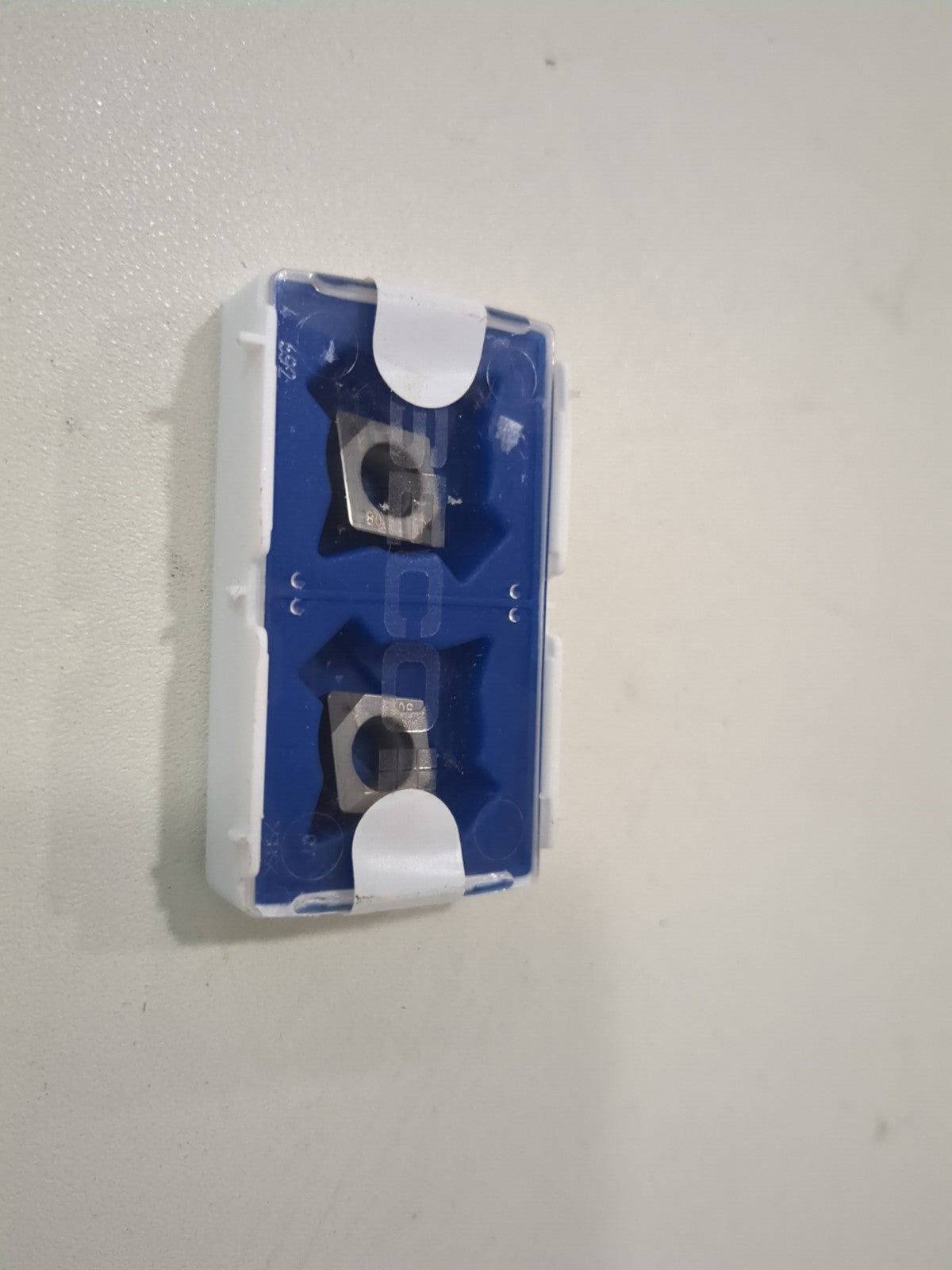

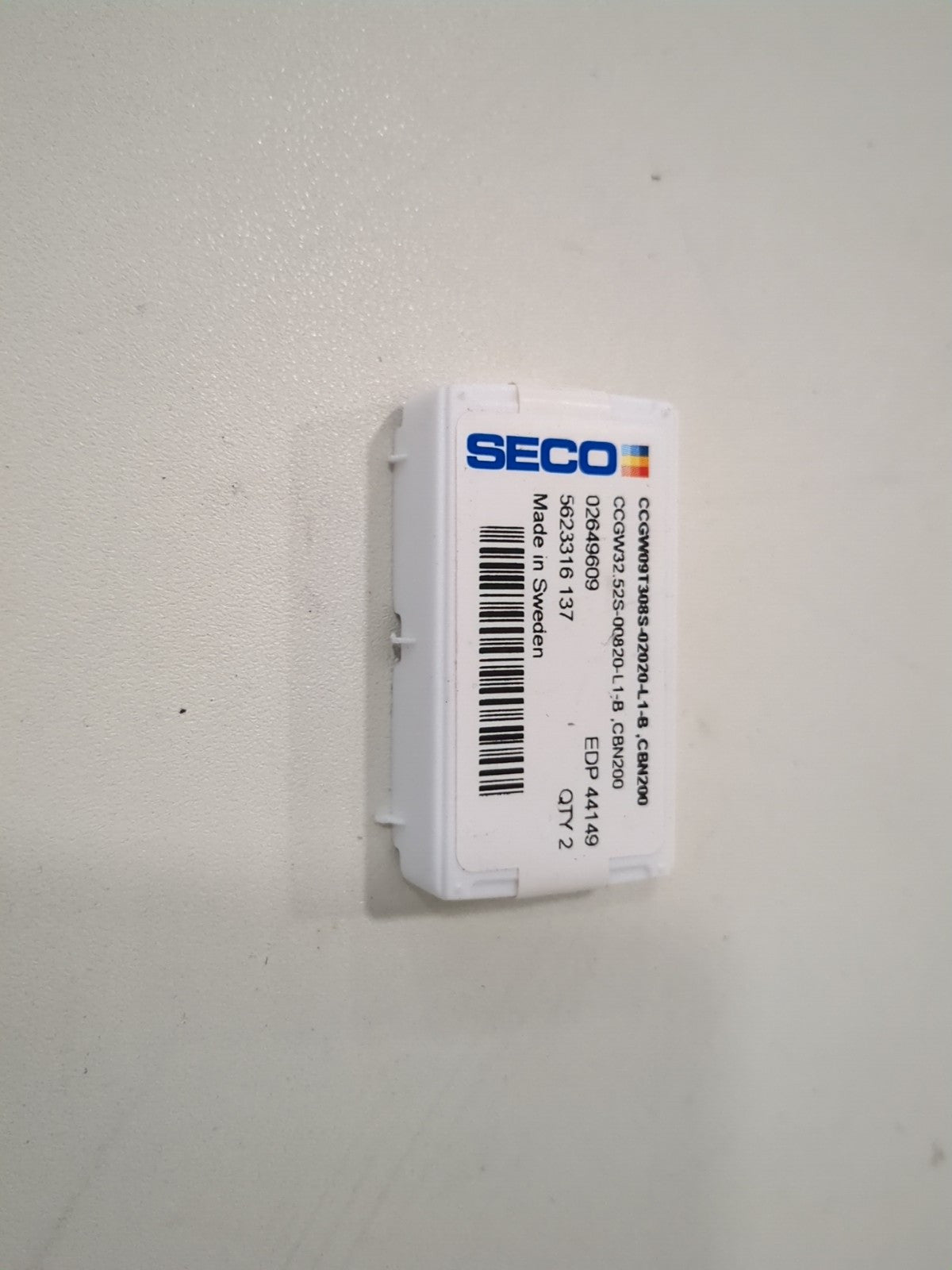

Please review photos, comes as shown.
