Seco 2" Cut Diam Indexable Square-Shoulder Face Mill 02694975
Seco 2" Cut Diam Indexable Square-Shoulder Face Mill 02694975
Regular price
$348.88 USD
Regular price
$700.00 USD
Sale price
$348.88 USD
Shipping calculated at checkout.
BRAND Seco
Item
MSRP: $ 700.00
- specs
(Inch) 2
Maximum Cutting Diameter (Decimal Inch) 2.0000
Maximum Depth of Cut (Decimal Inch) 0.6690
Arbor Hole Diameter (Inch) 3/4
Arbor Hole Diameter (Decimal Inch) 0.7500
Compatible Insert Size Code XO X1806
Cutter Style R220.69
Cutting Direction Right Hand
Insert Holding Method Screw; Clamp
Lead Angle 0/90
Rake Positive (Axial); Negative (Radial)
Series Power Turbo
Maximum Ramping Angle 3.00
Overall Height (Decimal Inch) 1.5750
Keyway Width (mm) 8.20
Hub Diameter (mm) 47.00
Pitch Type Medium
Tool Application Helical Interpolation; Ramping; Slotting
UNSPSC Code 27112803
Coolant Through Yes
Number Of Cutter Inserts 4
Number Of Flutes 4
(Description).

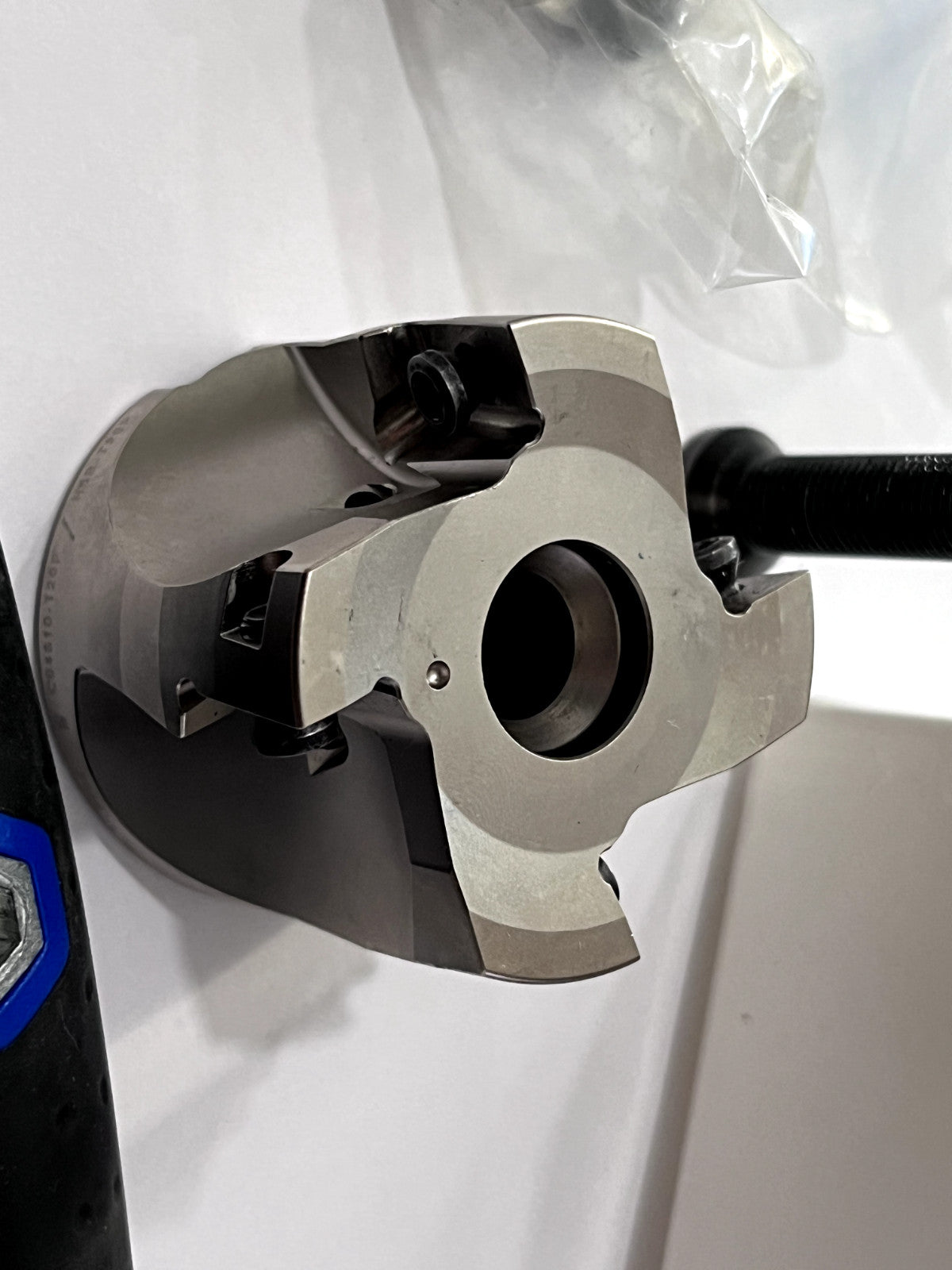

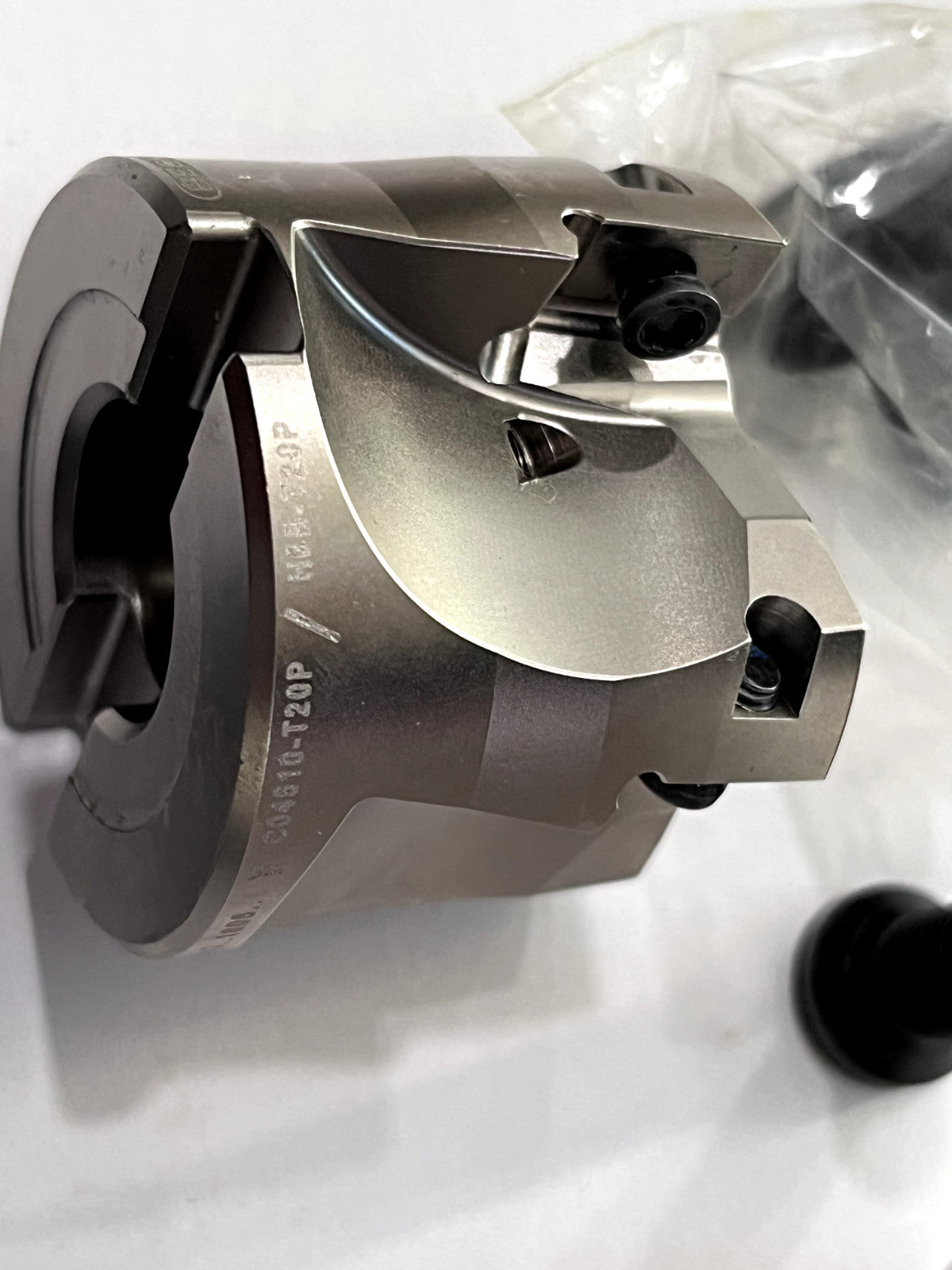

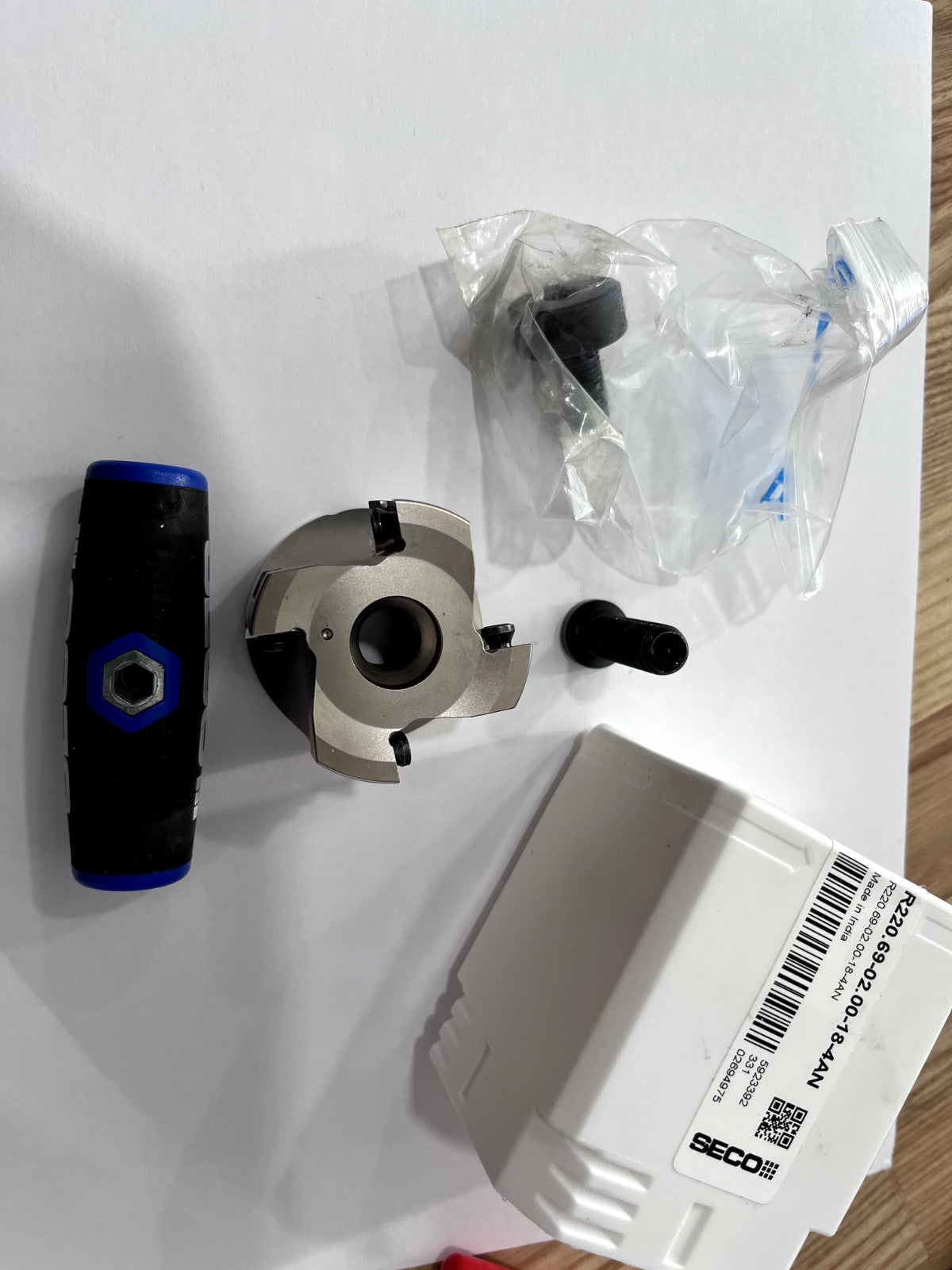

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
