Seco 16ER External Right Hand 12 UNJ Laydown Threading Insert QTY 2 02456747
Seco 16ER External Right Hand 12 UNJ Laydown Threading Insert QTY 2 02456747
Regular price
$28.30 USD
Regular price
$60.00 USD
Sale price
$28.30 USD
Shipping calculated at checkout.
Seco
MSRP: $60.00
Model: 02456747
Description:
Material Carbide
Insert Style 16 ER
Insert Hand Right Hand
Thread Type External
Thread Standard UNJ
Material Grade Micrograin
Manufacturer's Grade CP200
External Threads Per Inch 12
Threads Per Inch 12
Inscribed Circle (Inch) 3/8
Inscribed Circle (Decimal Inch) 0.3750
Inscribed Circle (mm) 9.53
Inscribed Circle (Inch) 3/8
Inscribed Circle (Decimal Inch) 0.3750
Thickness (Decimal Inch) 0.1366
Thickness (mm) 3.47
Included Angle of Threading Tip 60
Coating Process PVD
Corner Radius (Decimal Inch) 0.013
Corner Radius (mm) 0.34
Corner Radius (Decimal Inch) 0.0130
Number of Teeth Per Side 3

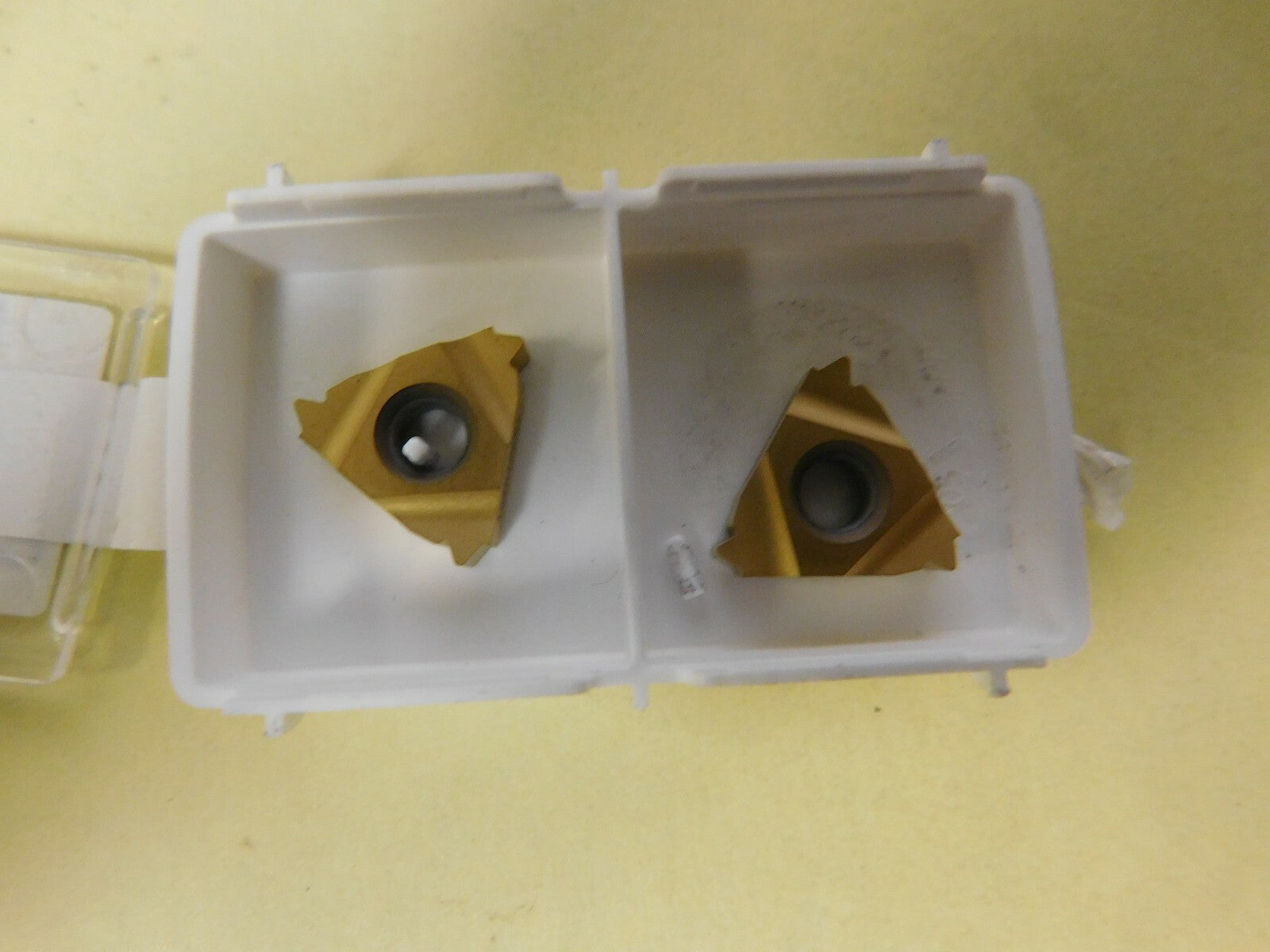

This listing is for One Pack of 2 inserts that is in the picture as well as described. Please ask any questions prior to buying!
