SECO 10pc Milling Inserts solid carbide ANSI LNKT060540PPTL-M06 02501765

SECO 10pc Milling Inserts solid carbide ANSI LNKT060540PPTL-M06 02501765

MSRP: $280

• Insert Style LNKT
• Insert Size 06
• Insert Material Solid Carbide
• Insert Shape Rectangle
• Manufacturer Grade F40M
• Corner Radius (Decimal Inch) 0.1575
• Number Of Cutting Edges 1
• Thickness (Decimal Inch - 4 Decimals) 0.1969
• Coating/Finish TiN; TiAlN
• Relief Angle 0.00
• Insert Size Code 060540
• Material Grade Fine Grain
• Inscribed Circle (Decimal Inch) 0.2362
• Thickness Range (Decimal Inch) 0.1850 to 0.2000
• Inscribed Circle Range (Decimal Inch) 0.0000 to 0.2500
• Length Range (Decimal Inch) 0.3200 to 0.4000
• Insert Hand Left Hand
• Maximum Depth of Cut (Decimal Inch) 0.2362
• Series LNKT-06
• Coating Process PVD
• Cutting Edge Effective Length (Decimal Inch) 0.2362
• Rake Negative
• Primary Workpiece Material Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; K
• Secondary Workpiece Material Non-Ferrous Metal; Cast Iron
• Secondary Workpiece Material Code K; N
• Ansi Code LNKT060540PPTL-M06
• Iso Code LNKT060540PPTL-M06
• Standards ISO
• Rake Angle 15
• Cutting Edge Style T-Land
• Manufacturers Catalog Number LNKT060540PPTL-M06
• Cutter Series Compatibility R335.18
• Chip Breaker M06
• UNSPSC Code 23291601
• Material Application Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Shape Rectangle
• Insert Holding Method Screw
• Coating Classification PVD
• Single or Double Sided Insert Double
• Included Angle Degree 90
• Width (Decimal Inch - 4 Decimals) 0.2362
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.3937
• Country of Origin Sweden
• Ordered as Part # 02501765

(Description).

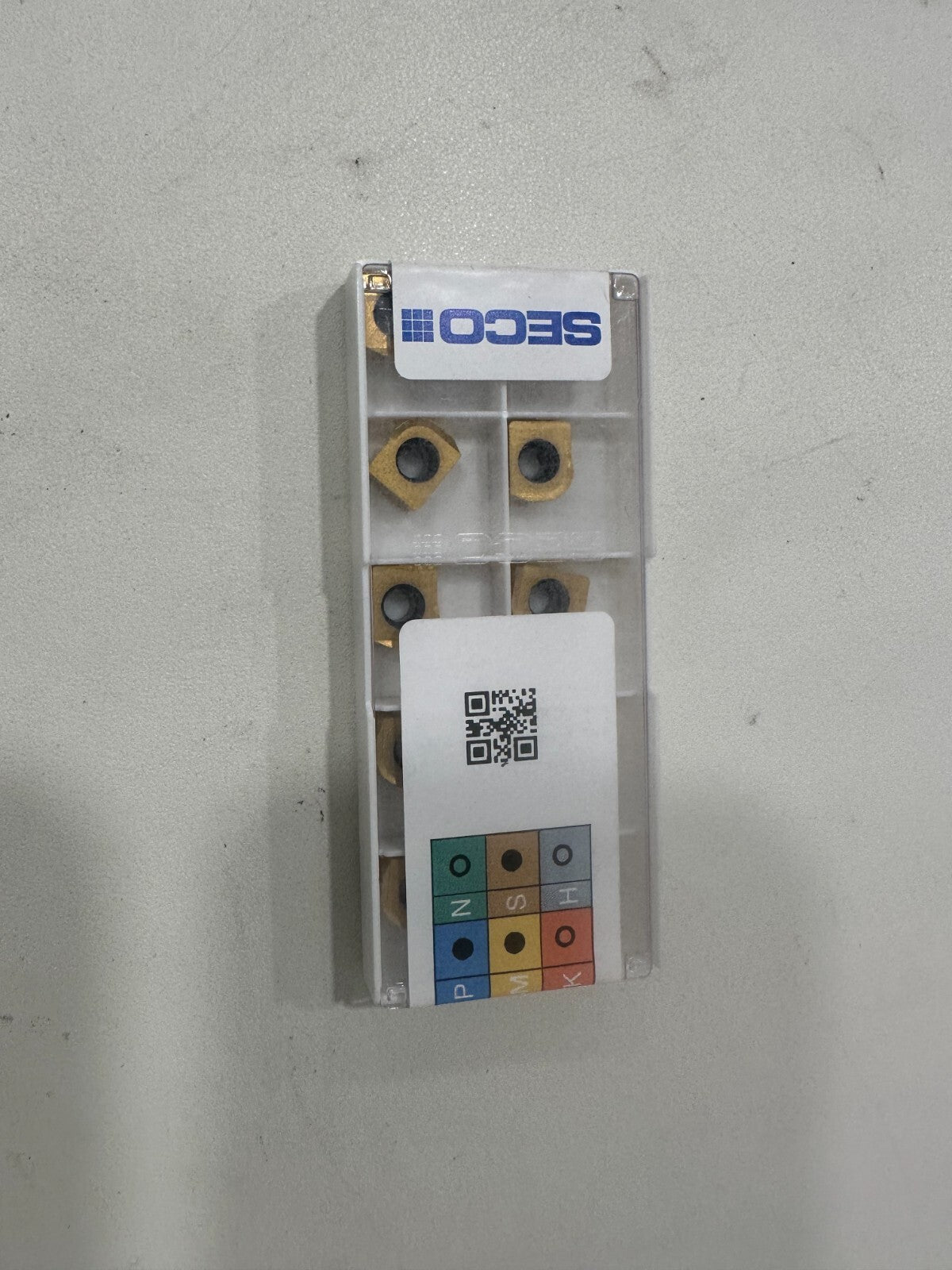

Please review photos, comes as shown.
