Seco 1.97" Cut Diam 40° Indexable Chamfer & Angle Face Mill 02810096

BRAND Seco
Item

MSRP: $1000.00

• specs

• Minimum Cutting Diameter (Decimal Inch): 1.9700	Maximum Cutting Diameter (Decimal Inch): 2.3000
  Maximum Depth of Cut (Decimal Inch): 0.1180	Arbor Hole Diameter (Decimal Inch): 0.7500
  Arbor Hole Diameter (Inch): 3/4	Compatible Insert Size Code: ON.U05
  Cutter Style: R220.48	Cutting Direction: Right Hand
  Insert Holding Method: Screw	Rake: Negative
  Rake Angle: -8	Series: Double Octo 05
  Hub Diameter (Decimal Inch): 1.8500	Keyway Width (mm): 8.20
  Keyway Width (Decimal Inch): 0.3200	Overall Height (Decimal Inch): 1.5750
  Maximum Body Diameter (Decimal Inch): 2.3000	Pitch Type: Normal
  Maximum RPM: 14400	Tool Application: Facing
  Counterbore Diameter (Decimal Inch): 0.3200	Complete Insert Compatibility: ONMU 05; ONEU 05
  Toolholder Material: Steel	Manufacturers Catalog Number: R220.48-02.00-05-05SA
  Number Of Cutter Inserts: 5	Coolant Through: Yes
  Number Of Flutes: 5	UNSPSC Code: 23291600
  Country of Origin: India

(Description).

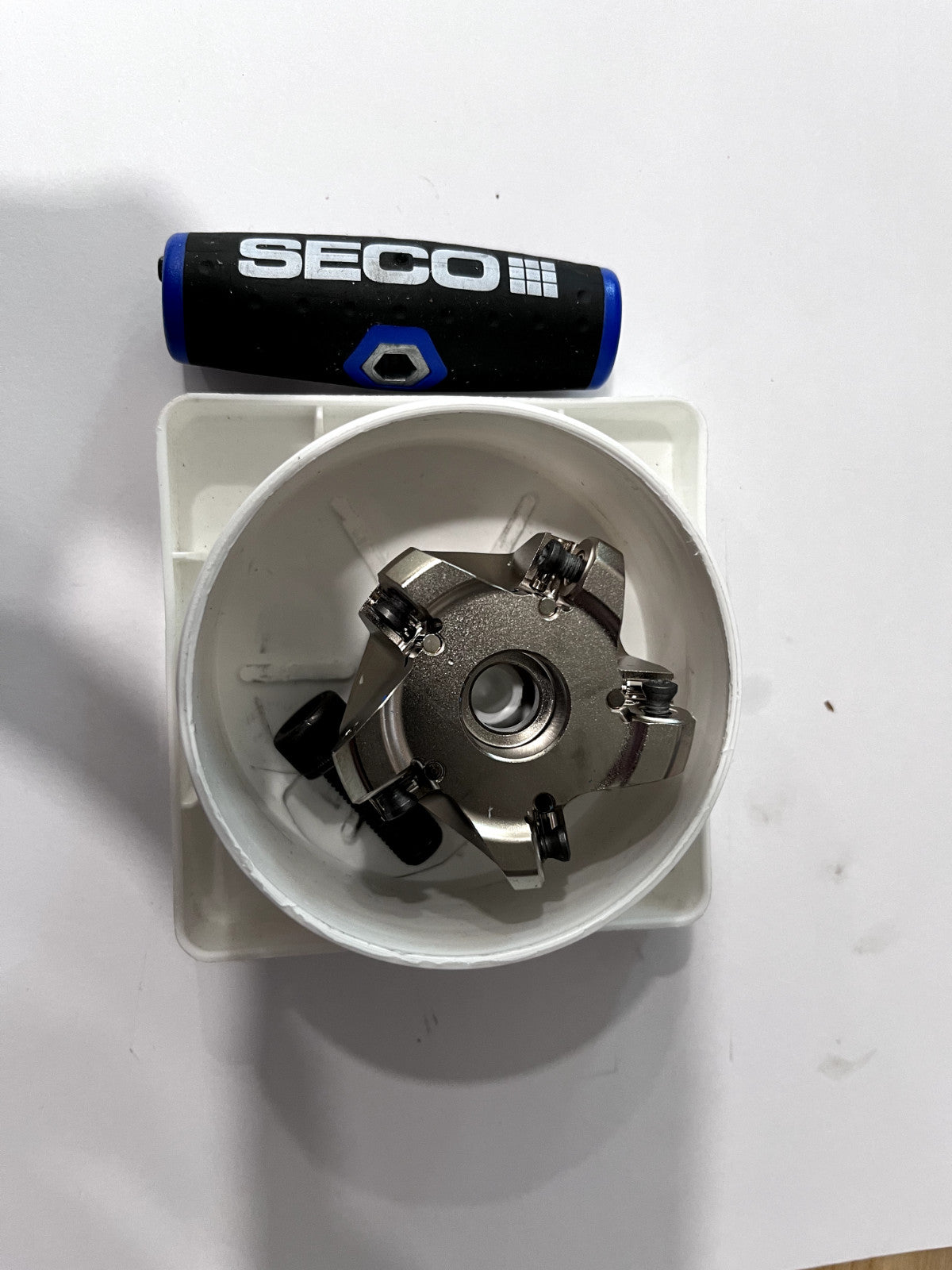

Please review photos, comes as shown.
