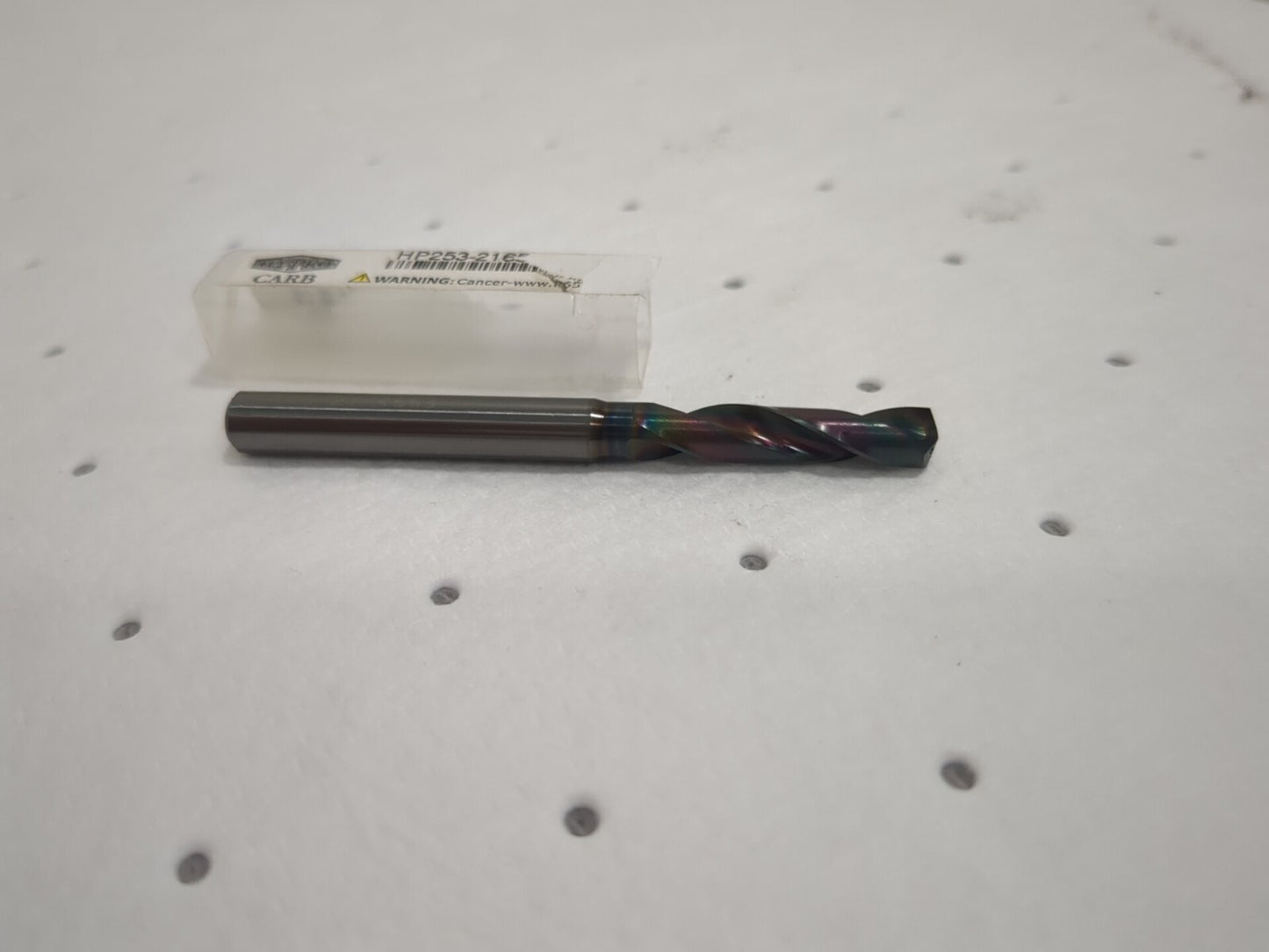

Screw Machine Length Drill Bit: 5.50 mm Dia, 140 deg Point Carbide HP253-2165

Screw Machine Length Drill Bit: 5.50 mm Dia, 140 deg Point Carbide HP253-2165

MSRP: $50

• Drill Bit Size (mm) 5.50
• Drill Bit Size (Decimal Inch) 0.2165
• Tool Material Solid Carbide
• Cutting Direction Right Hand
• Coating/Finish Multi-layer
• Number Of Flutes 2
• Spiral Type Regular
• Flute Type Regular Spiral
• Drill Point Angle 140
• Coolant Through Yes
• Primary Workpiece Material Cast Iron; Steel
• Point Type R-Thinned
• Shank Type Straight
• Shank Diameter (Decimal Inch) 0.2362
• Overall Length (mm) 66.00
• Overall Length (Decimal Inch) 2.5984
• Shank Diameter (mm) 6.00
• Series HP253
• Web Thinning R-Thinned
• Web Configuration Tapered
• Proprietary Coating/Finish EgiAs
• Drill Length Type Screw Machine
• Flute By Diameter Ratio 3xD
• Tool Performance High Performance
• Drill Bit Diameter Tolerance +0.004 to +0.016 mm
• Flute Length (mm) 28.00
• Drill Bit Size Range (Decimal Inch) 0.2000 to 0.2500
• Drill Bit Size Range (mm) 5.00 - 6.50
• UNSPSC Code 23241635

This screw machine length drill bit has a diameter of 5.50 mm and a point angle of 140 degrees, making it a suitable choice for metalworking applications. The bit is made of carbide and has a HP253-2165 model number. Its unit type is a unit and it was manufactured in an unknown country/region. This drill bit is perfect for those looking for a reliable and high-quality option for their metalworking projects.

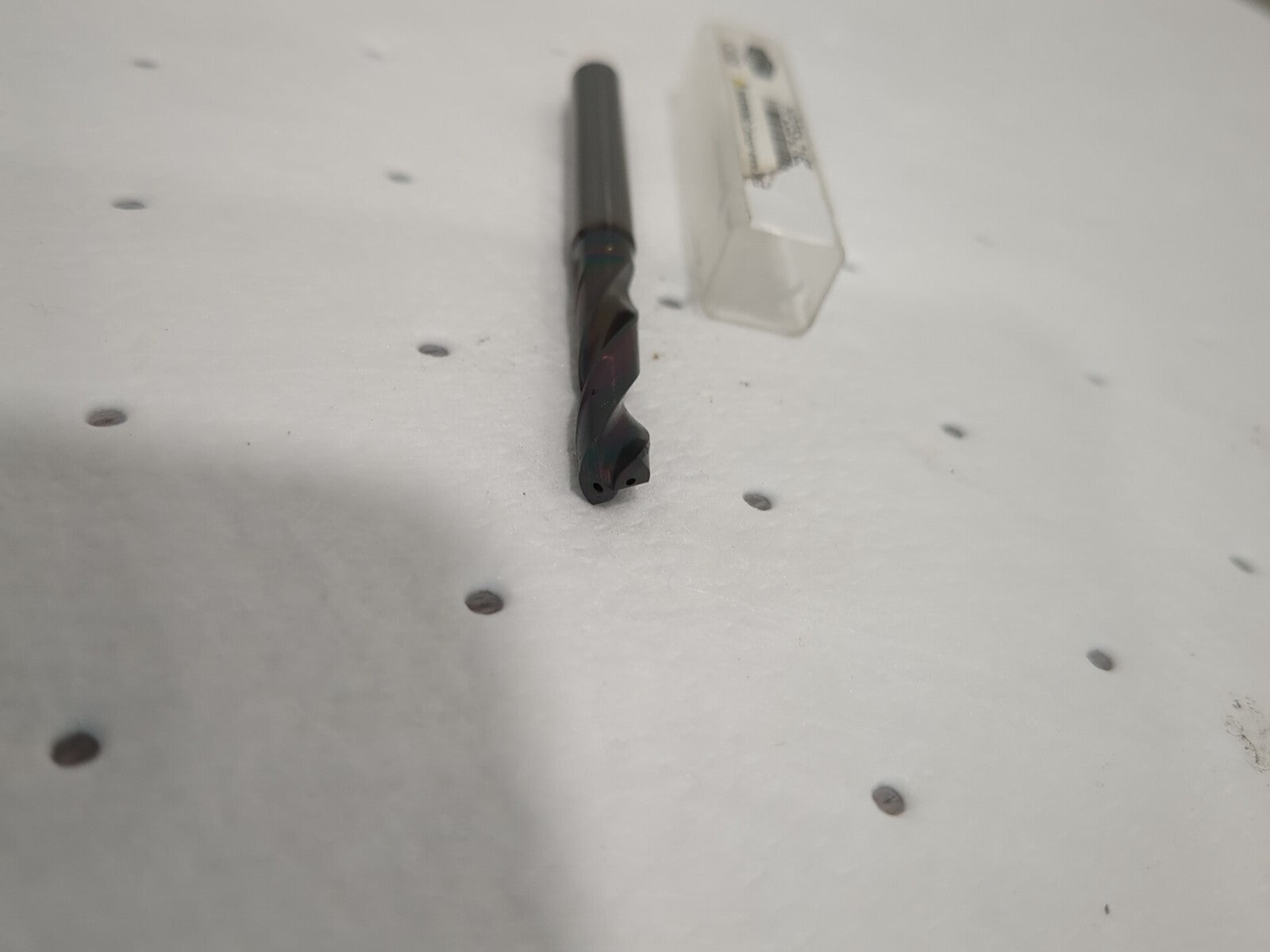

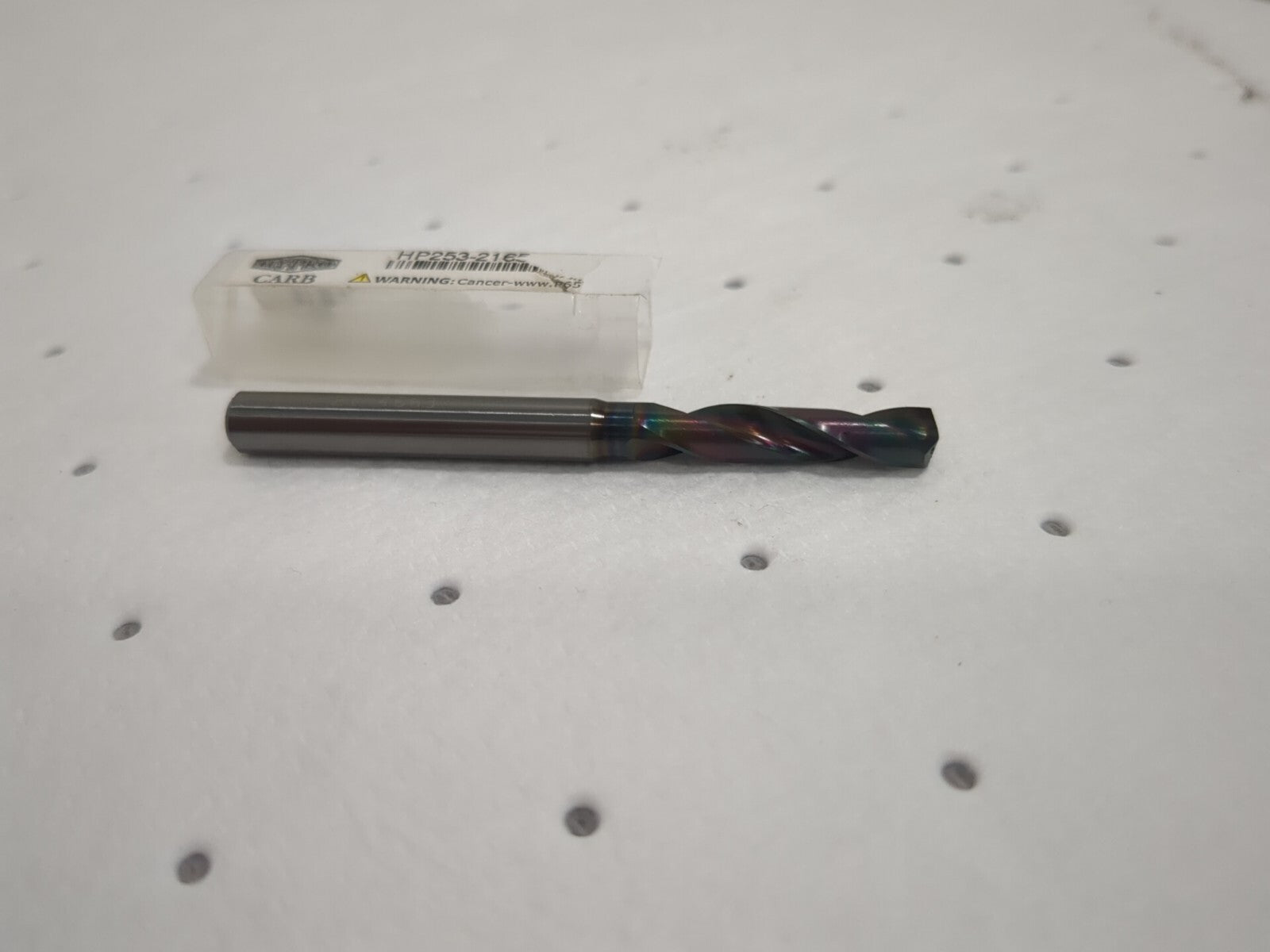

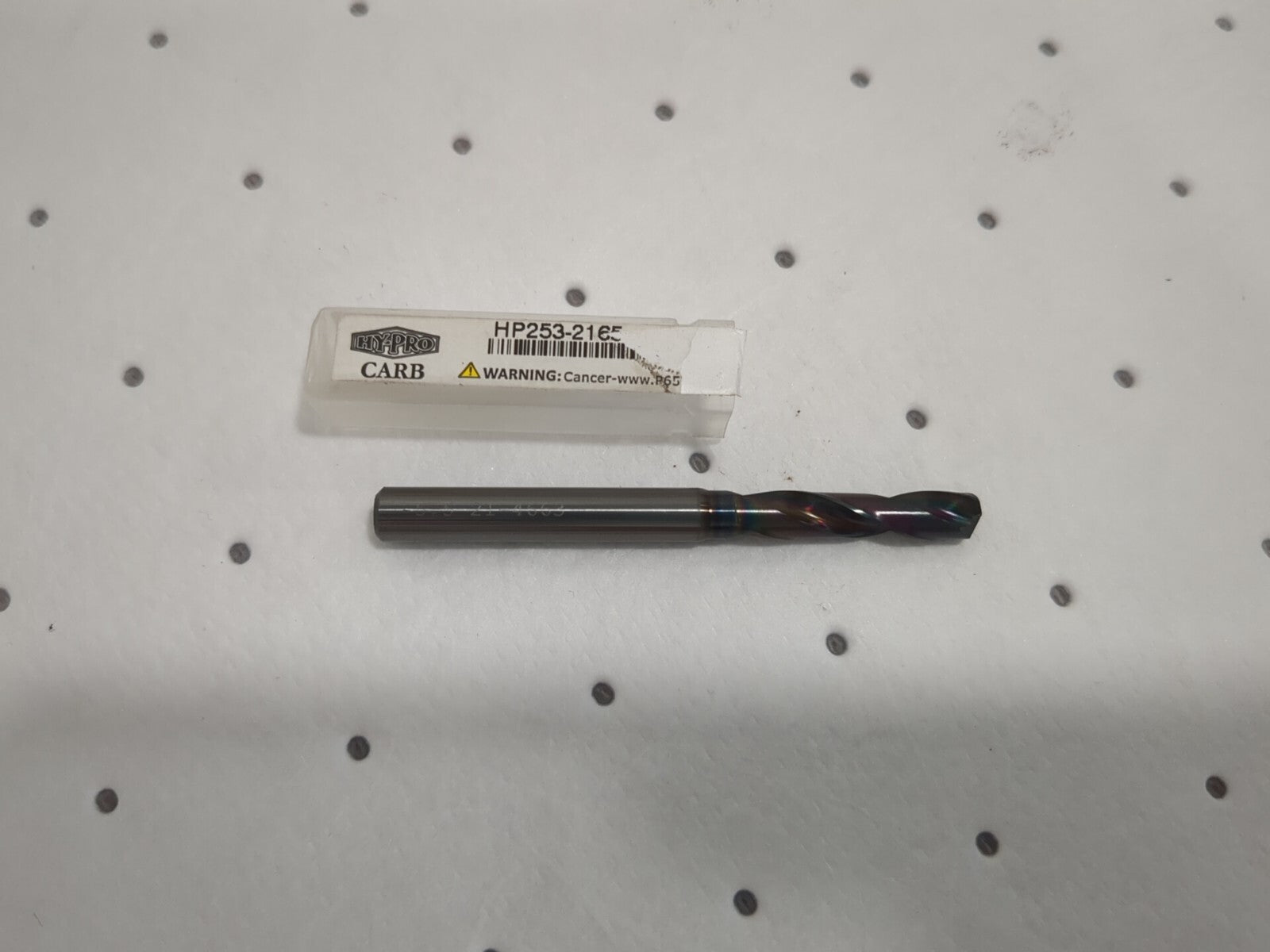

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
