Type Double Acting
Bore Size (Inch) 1-1/2
Bore Size (Decimal Inch) 1.50
Rod Diameter (Decimal Inch) 0.437
Stroke Length (Inch) 10
Mounting Style Front Nose Mount
Port Size 1/8
Port Type NPTF
Length (Decimal Inch) 14.690
Material Stainless Steel
Seal Material Buna-N
Maximum Working Pressure (psi) 250
Rod Thread Size 7/16-20
Style Male

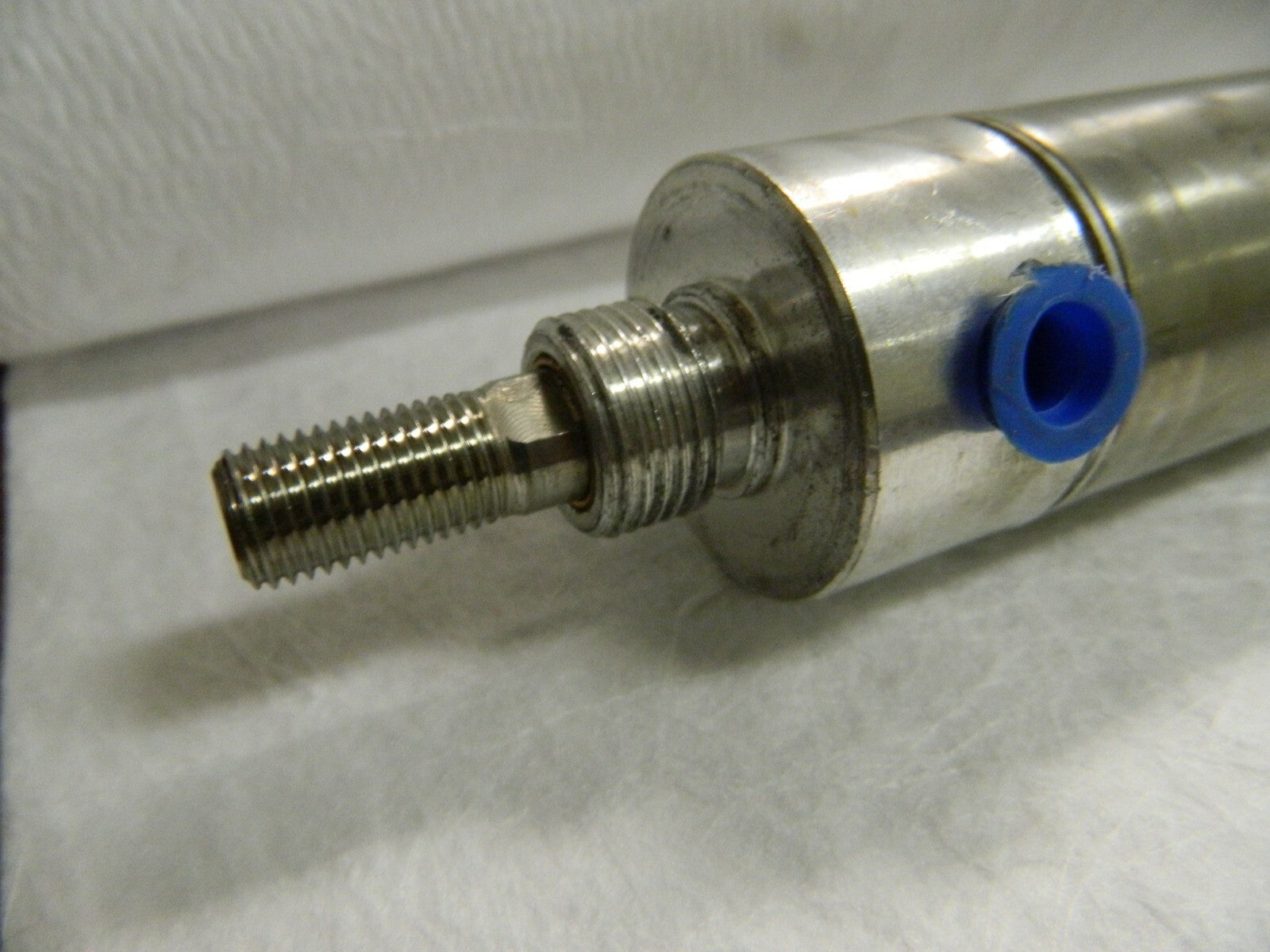

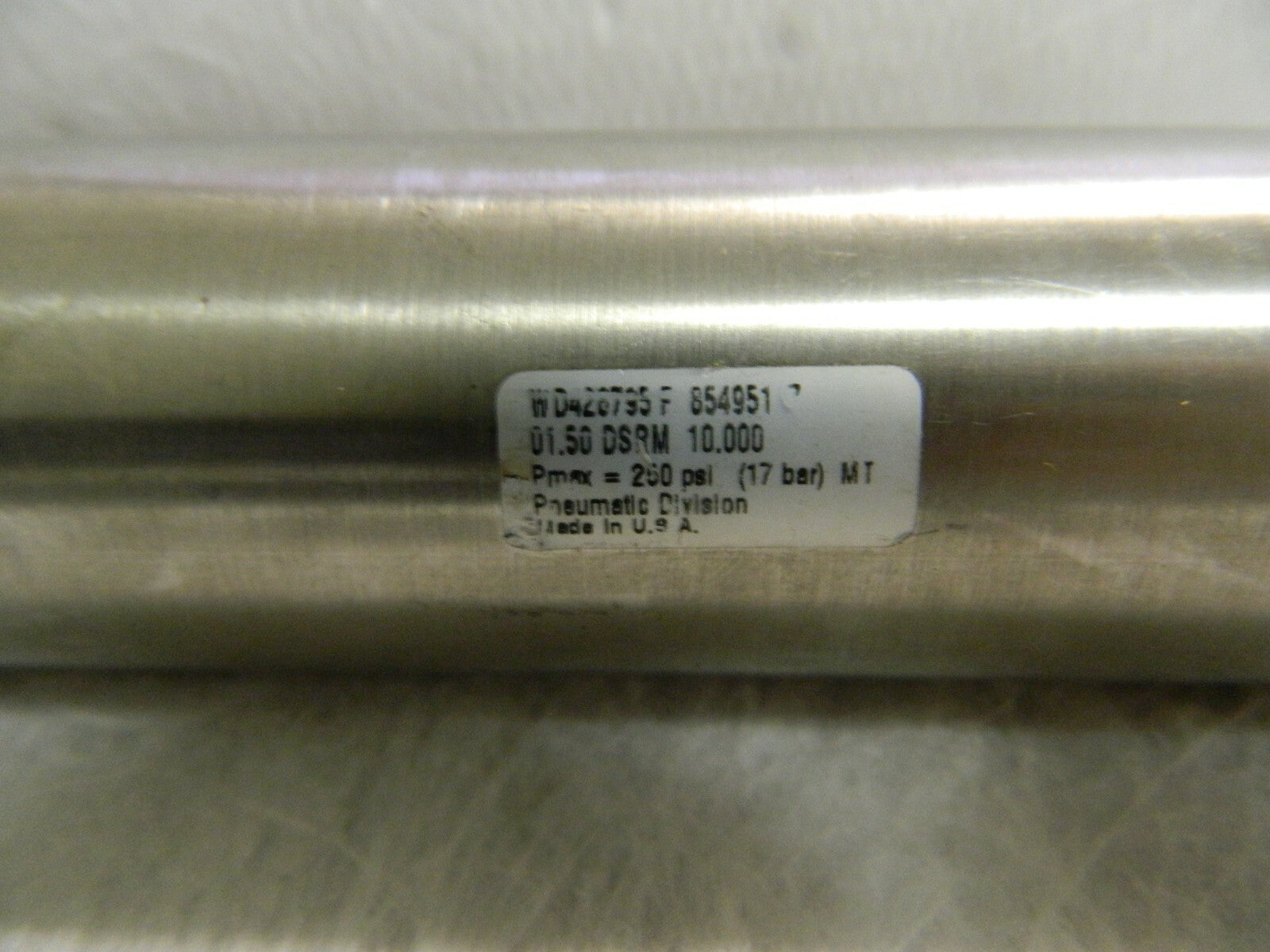

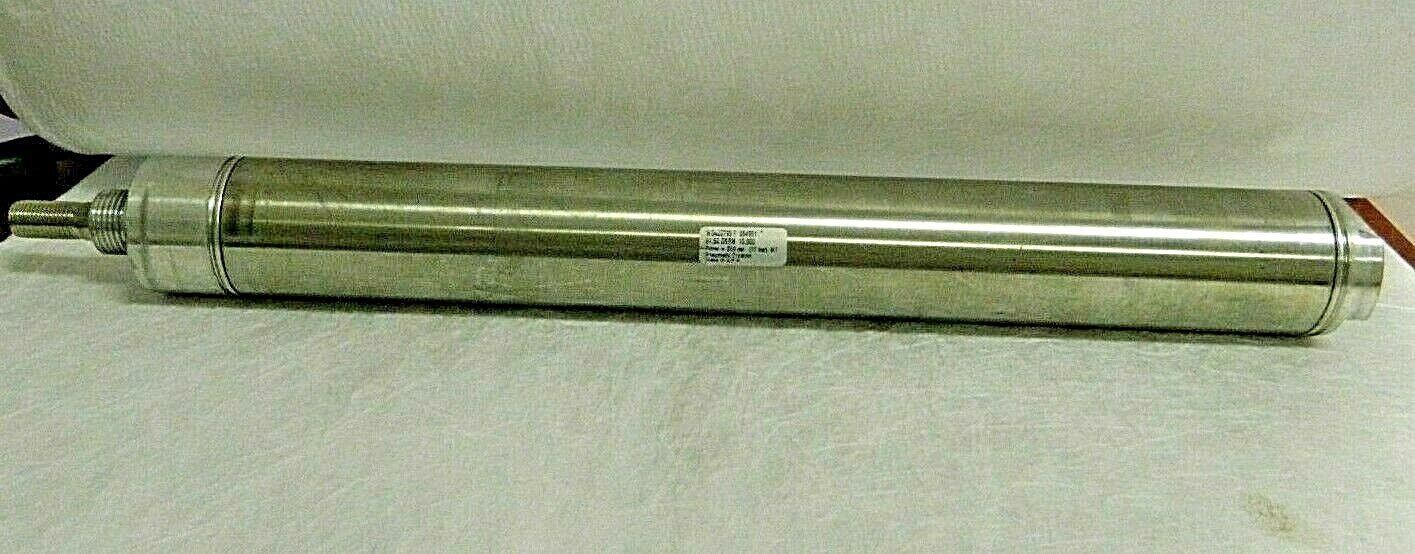

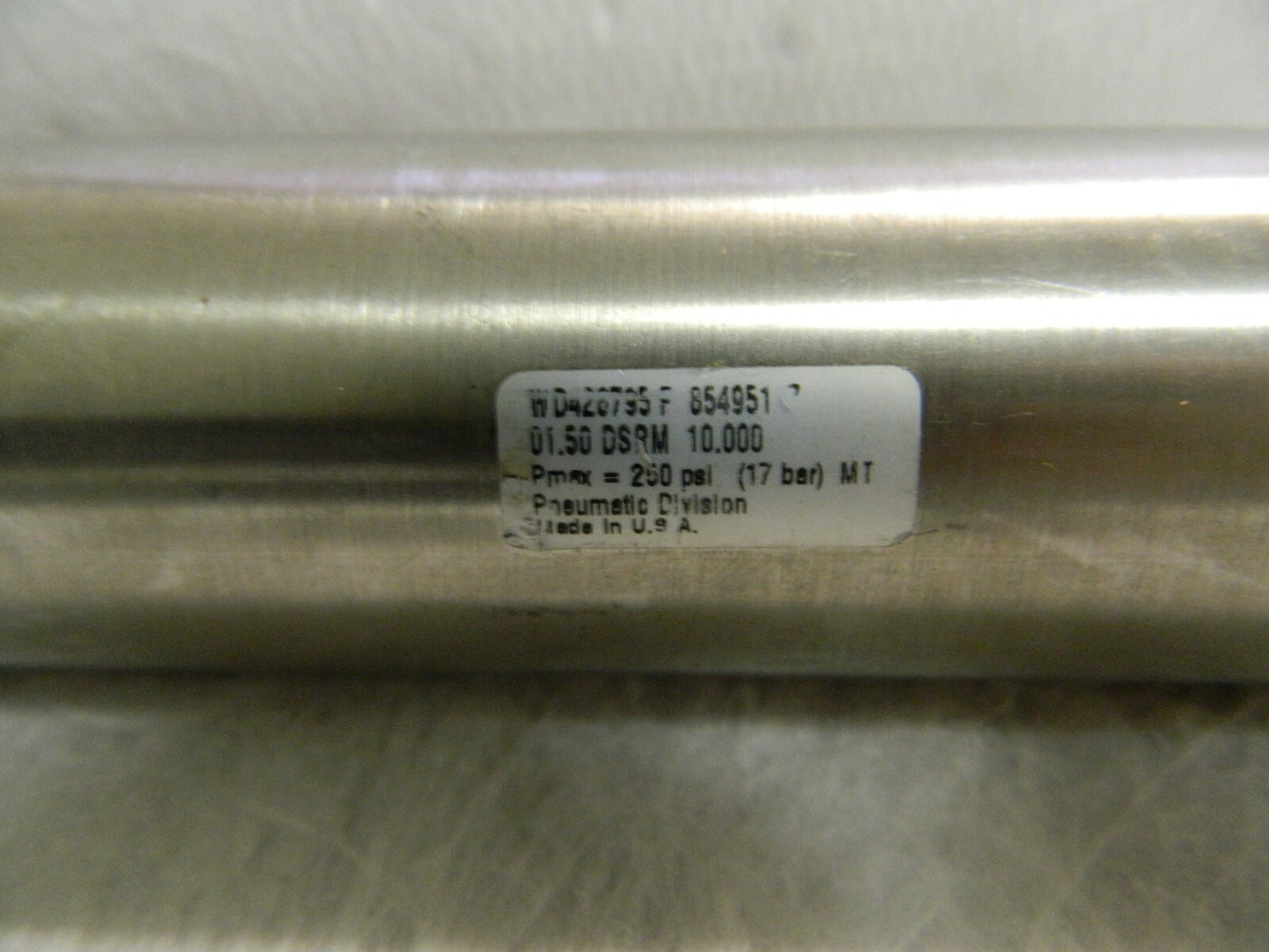

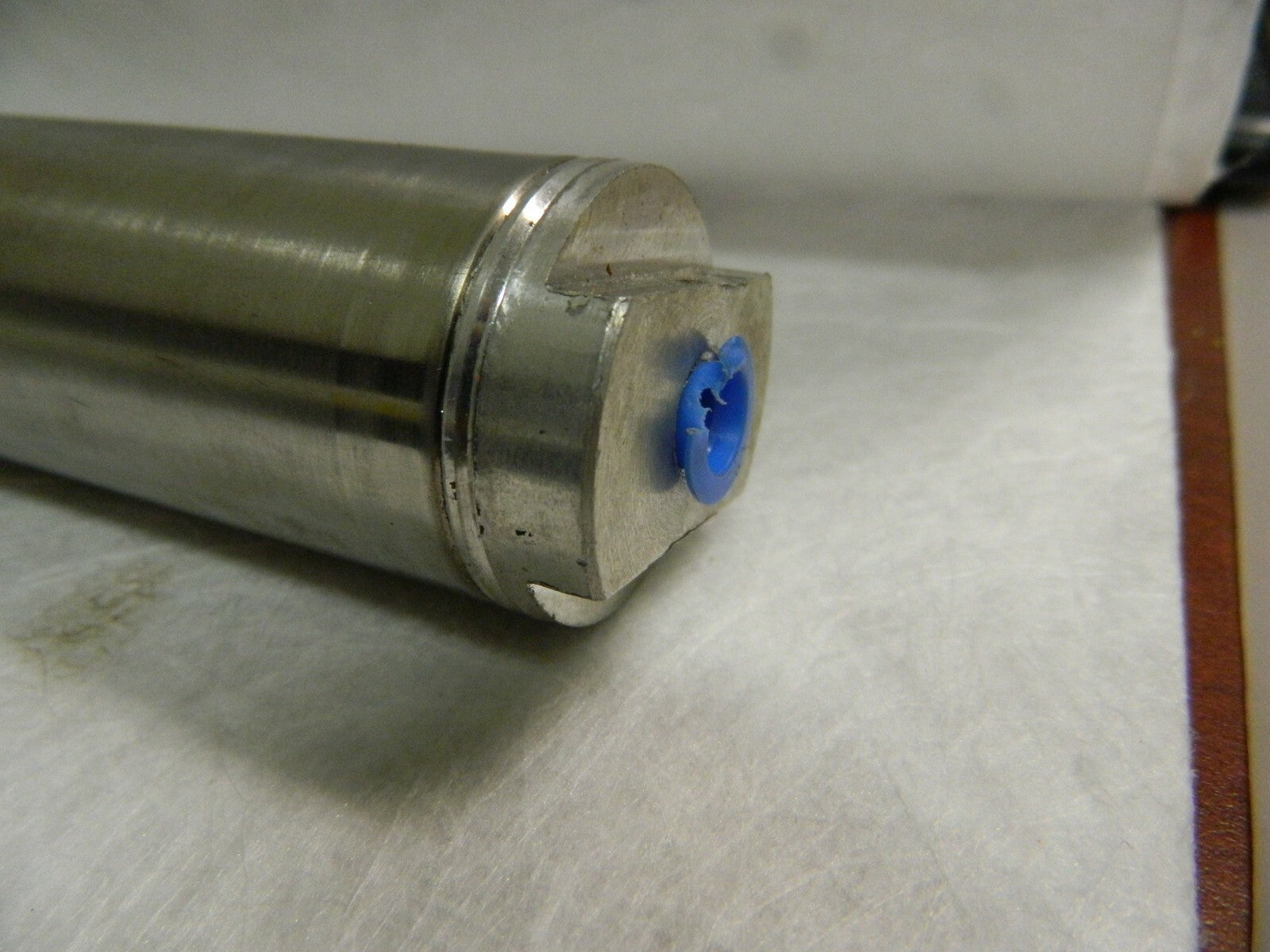

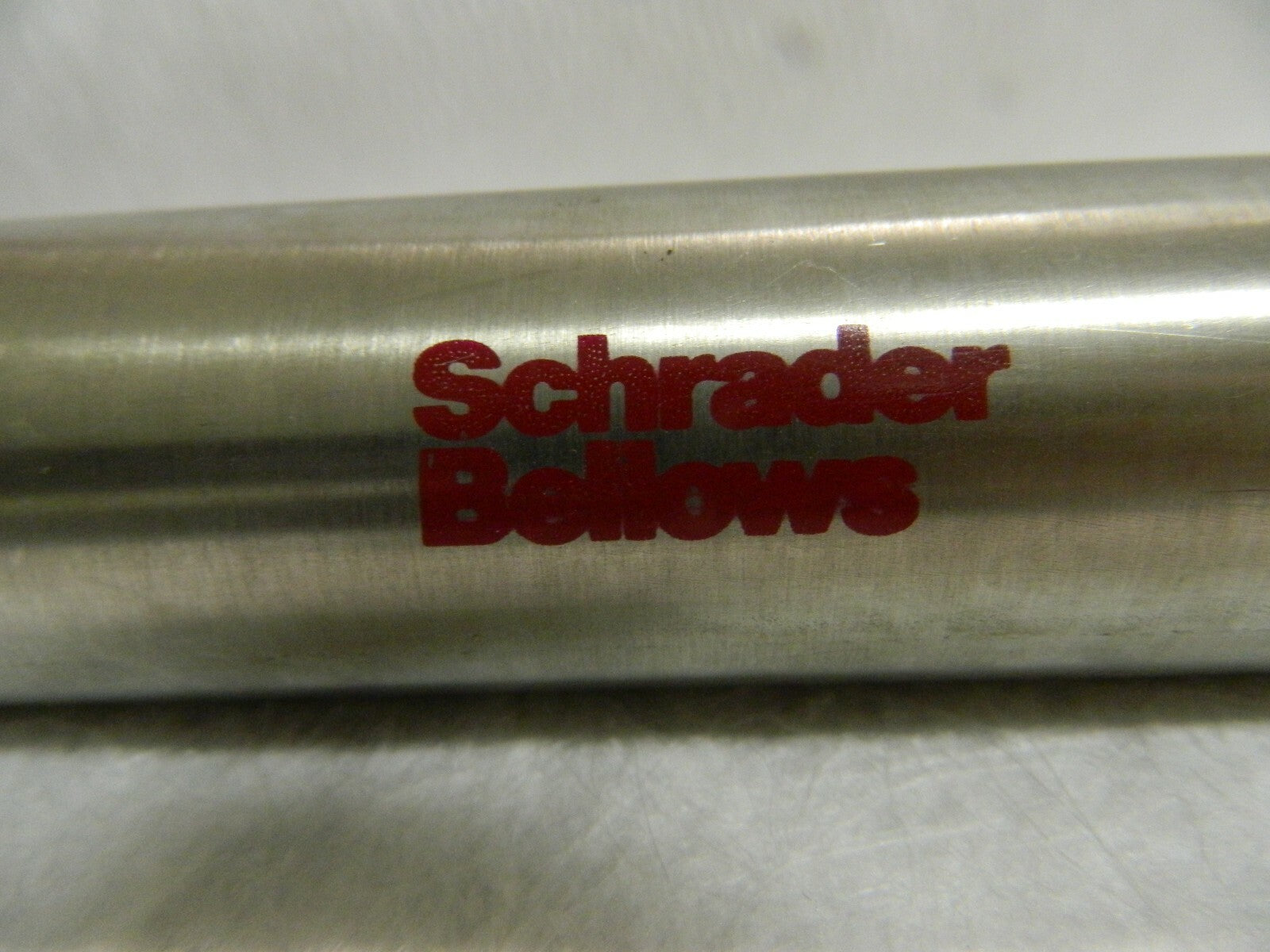

This listing is for One Magnetic Cylinder that is in the picture as well as described. Please ask any questions prior to buying!
