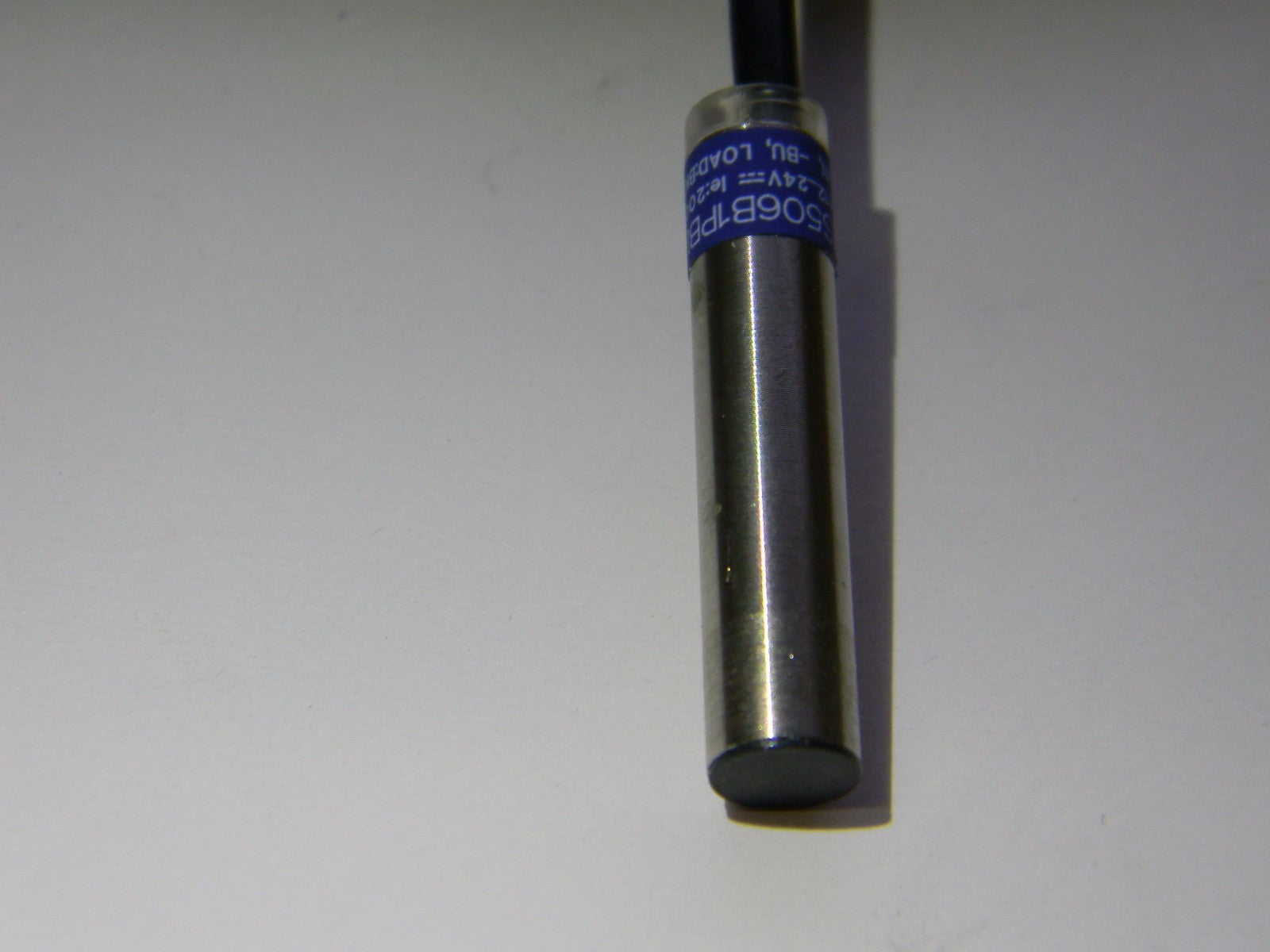

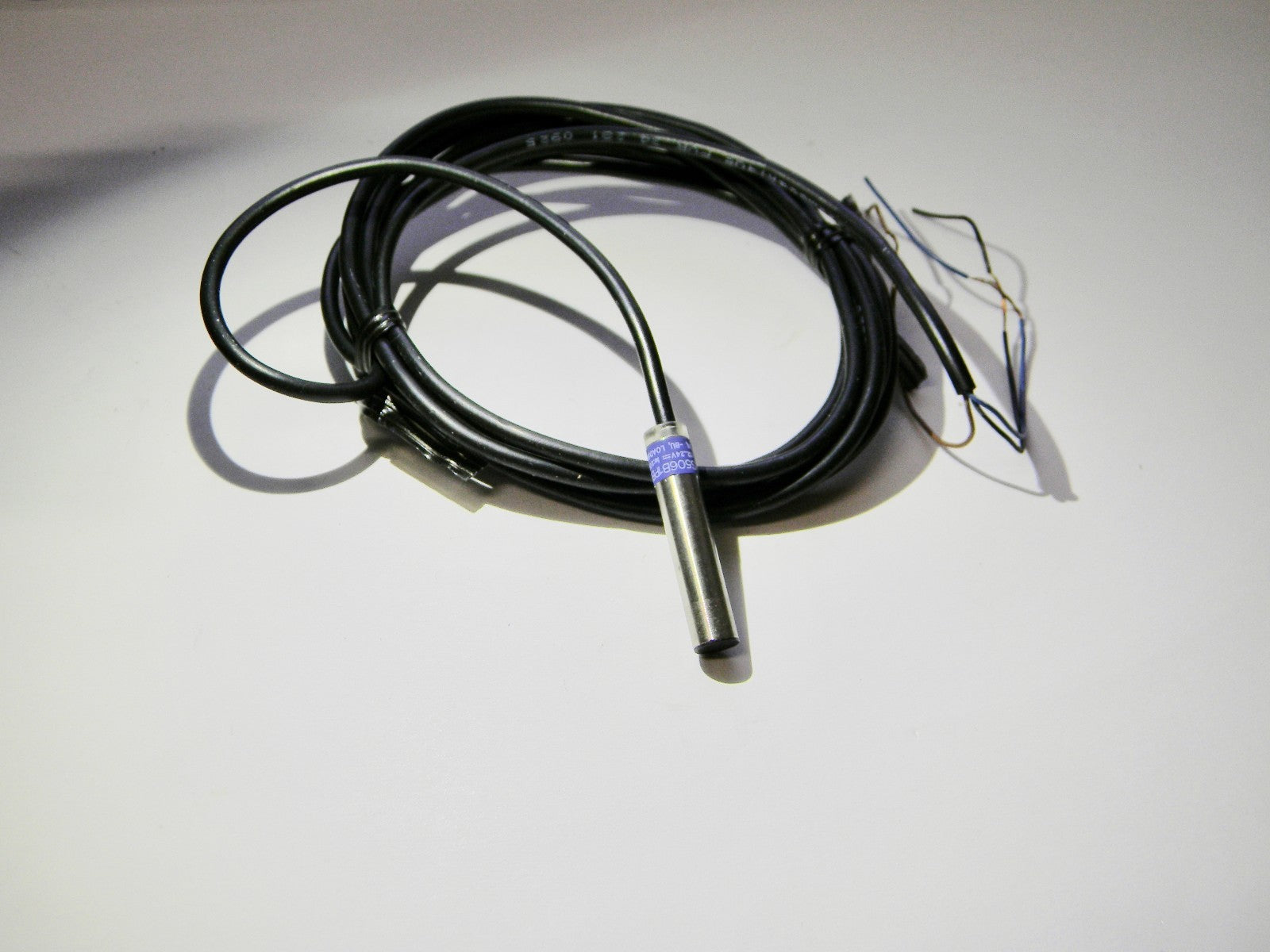

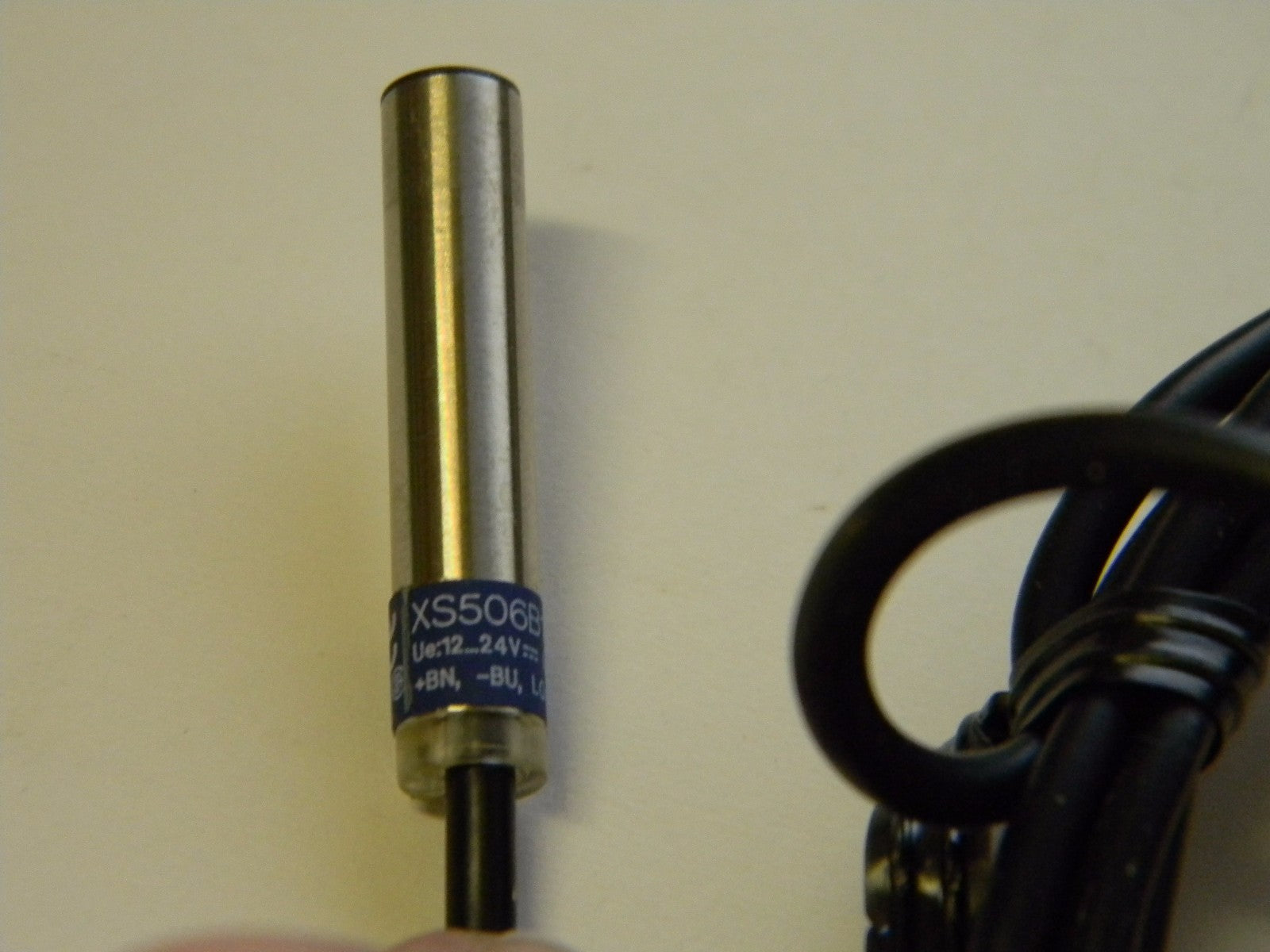

Sensor Type Inductive
Body Shape Cylinder Shielded
Sensor Operation Output Mode NC
Output Type PNP
Connector Type Cable

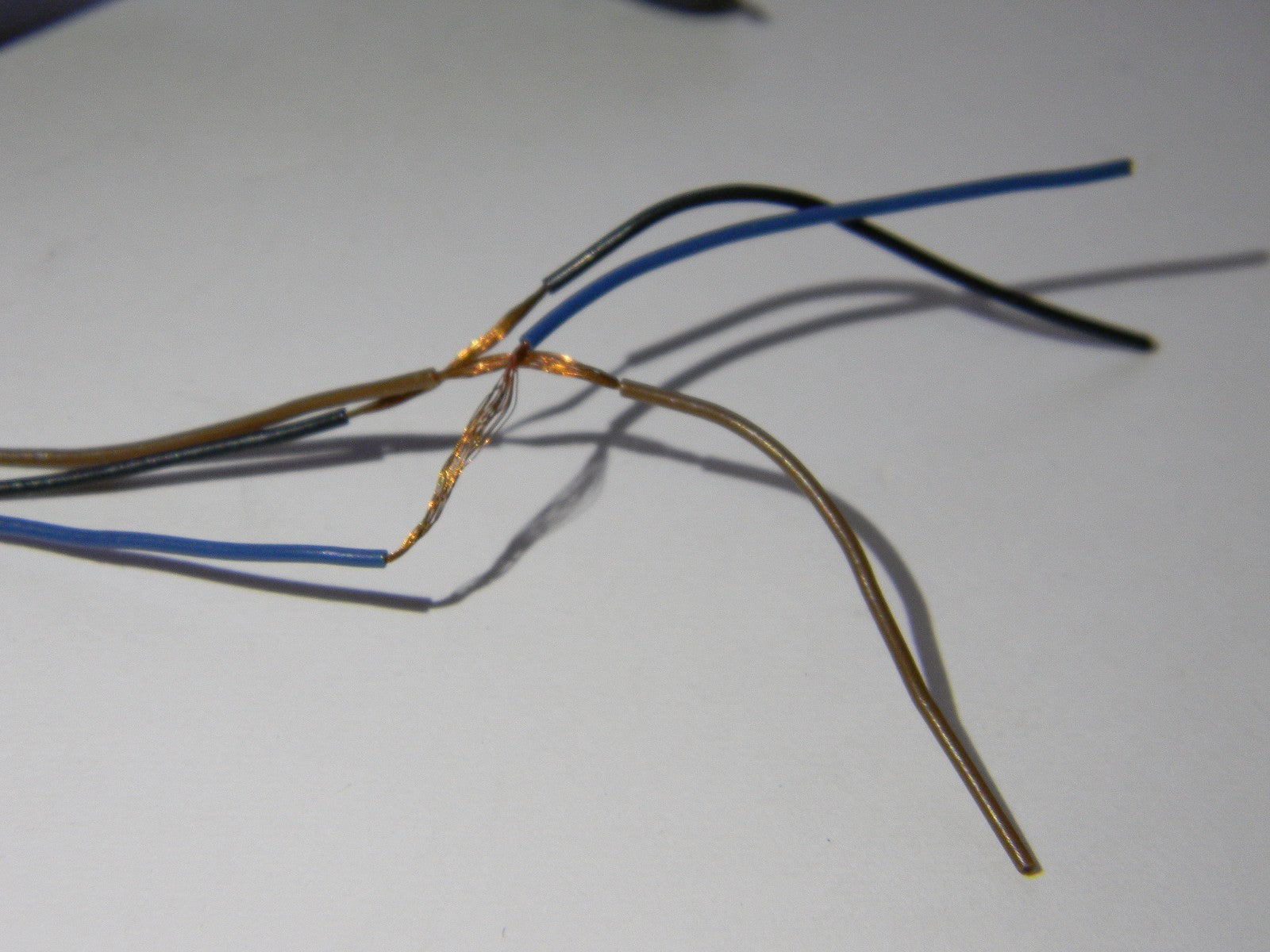

Number of Wires 3
Detection Distance (mm) 1.50
Sensor Head Size M6.5
Maximum Voltage 12-24 VDC
Ingress Protection Rating IP67
Maximum Load Capacity (mA) 200
Response Frequency (Hz) 5000
Thread Size M6x1
Housing Material Stainless Steel
Resistance Features Shock Resistant; Vibration Resistant
Overall Length (mm) 33
Maximum Operating Temperature (F) 158
Minimum Operating Temperature (F) -13
Standards Met CE Listed; CSA Certified; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL Listed
This listing is for One Proximity Sensor that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
