SANDVIKCOROMANT 5pc TurningInsert DNGA432S0835A 7025 Cubic Boron Nitride 6155453

SANDVIKCOROMANT 5pc TurningInsert DNGA432S0835A 7025 Cubic Boron Nitride 6155453

MSRP: $905

• Relief Angle 0
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0315
• Corner Radius (mm) 0.80
• Included Angle 55
• Manufacturer Grade 7025
• Coating/Finish Bright/Uncoated
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness 4.76
• Insert Thickness (Decimal Inch) 0.1874
• Series T-Max P
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (mm) 12.70
• Insert Material Cubic Boron Nitride (CBN)
• Insert Shape Diamond
• Insert Shape Code D
• Hole Diameter (Decimal Inch) 0.2032
• Hole Diameter (Mm) ( - 0 Decimals) 5.16
• Maximum Depth of Cut (mm) 2.10
• Maximum Depth of Cut (Decimal Inch) 0.0827
• Insert Holding Method Pin; Clamp
• Clearance Code N
• Tolerance Code G
• Length Range (Decimal Inch) 0.6000 - 0.6500
• Insert Length (Decimal Inch) 0.6102
• Insert Length (mm) 15.50
• Primary Workpiece Material Code H
• Iso Code DNGA150408S02035A7025
• Manufacturers Catalog Number 6155453
• Chip Breaker A
• Cutting Edge Style Negative Land; ER Treated
• UNSPSC Code 23242105
• Insert Style DNGA
• Insert Size Code 432

(Description).

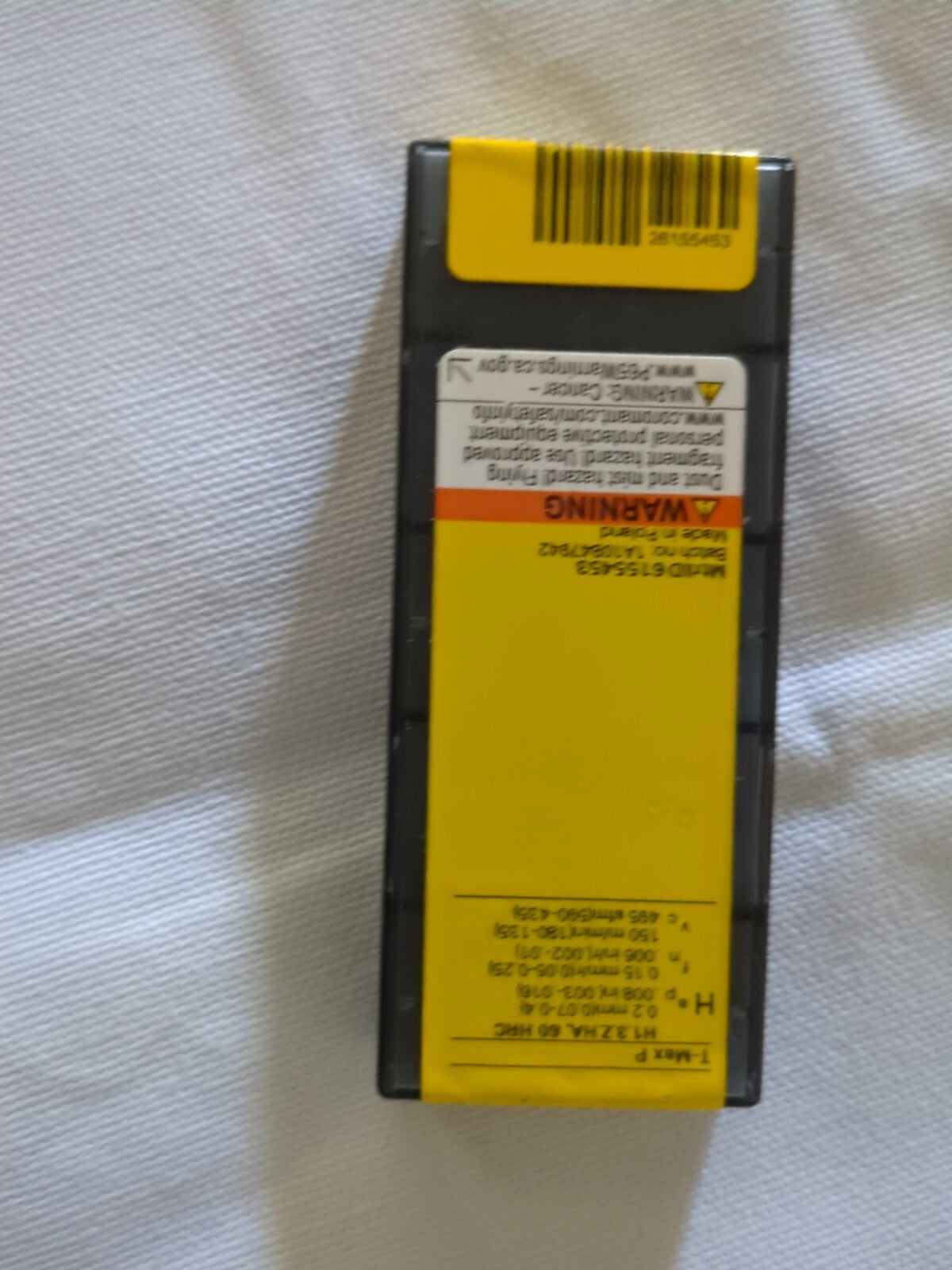

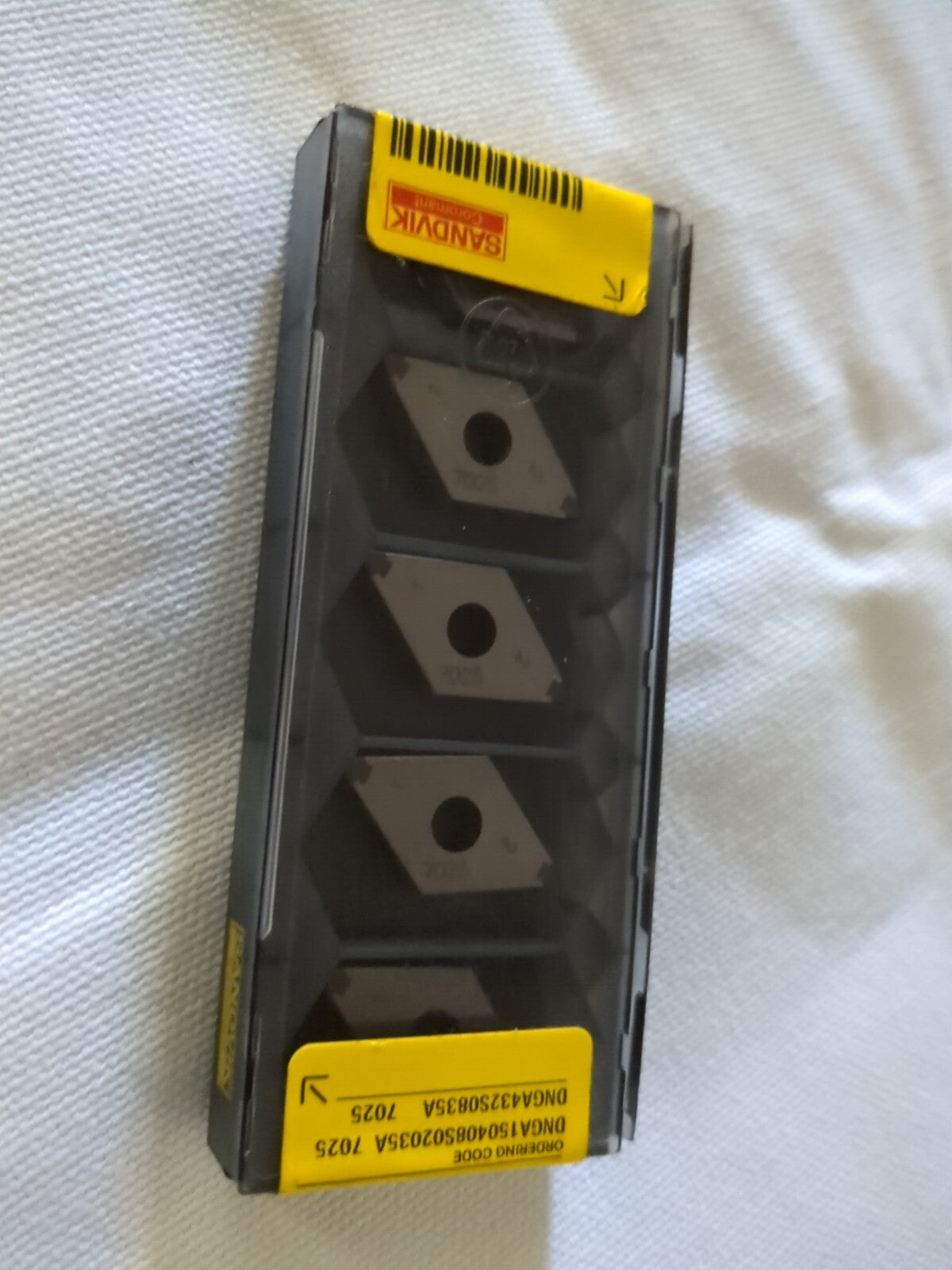

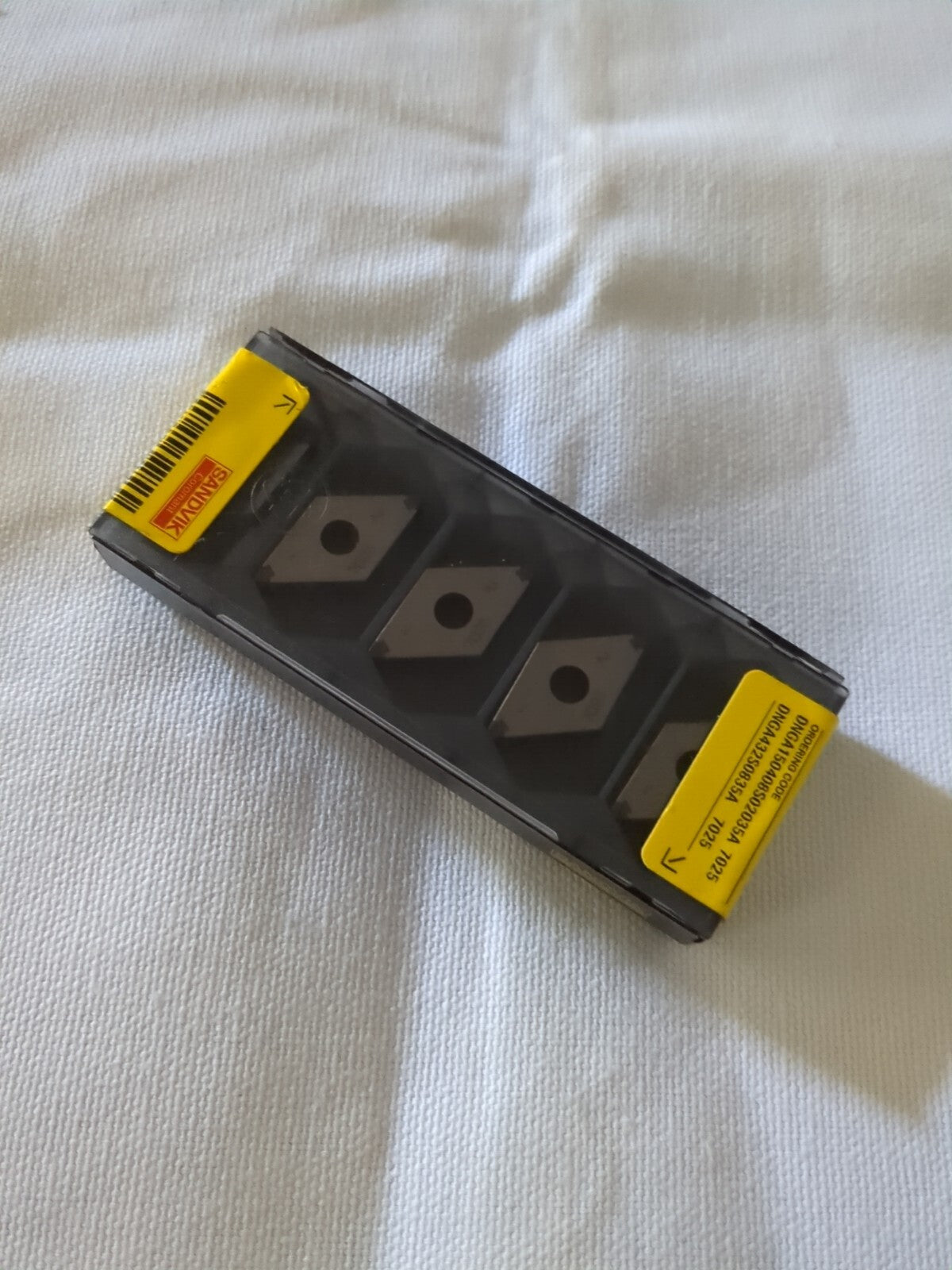

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
