Sandvik Turning Insert: WPMT21.51PF 4315, Carbide Qty 10 6612599

Sandvik
1 Lot of 10 Inserts

MSRP: $125.00

• Country Of Origin Sweden
• Insert Style WPMT
• ANSI Size Code 21.51
• ISO Size Code 040204
• Insert Shape W - Trigon 80-Deg
• Included Angle 80.00
• Inscribed Circle (Decimal Inch) 0.2500
• Inscribed Circle (Inch) 1/4
• Inscribed Circle (mm) 6.35
• Corner Radius (Inch) 1/64
• Corner Radius (mm) 0.40
• Corner Radius (Decimal Inch) 0.0157
• Insert Material Carbide
• Manufacturer Grade 4315
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 11.000
• Insert Thickness (Inch) 3/32
• Insert Thickness (Decimal Inch) 0.0937
• Insert Thickness 2.38
• Insert Hand Neutral
• Series CoroTurn 111
• Grade Characteristics Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance Positive
• Insert Shape Code W
• Hole Diameter (Decimal Inch) 0.1102
• Hole Diameter (mm) 2.80
• Maximum Depth of Cut (mm) 3.94
• Maximum Depth of Cut (Decimal Inch) 0.1551
• ANSI Insert Code WPMT21.51
• ISO Insert Code WPMT040204
• Insert Holding Method Screw
• Clearance Code P
• Tolerance Code M
• Coating Process MTCVD
• Length Range (Decimal Inch) 0.0000 - 0.3000
• Insert Length (Decimal Inch) 0.1709
• Insert Length (mm) 4.34
• Primary Workpiece Material Code P
• Iso Code WPMT040204PF4315
• Manufacturers Catalog Number 6612599
• Chip Breaker T
• UNSPSC Code 23242105
• Insert Size Code 21.51

These items are new and in the original sealed package. SOLD AS IS.

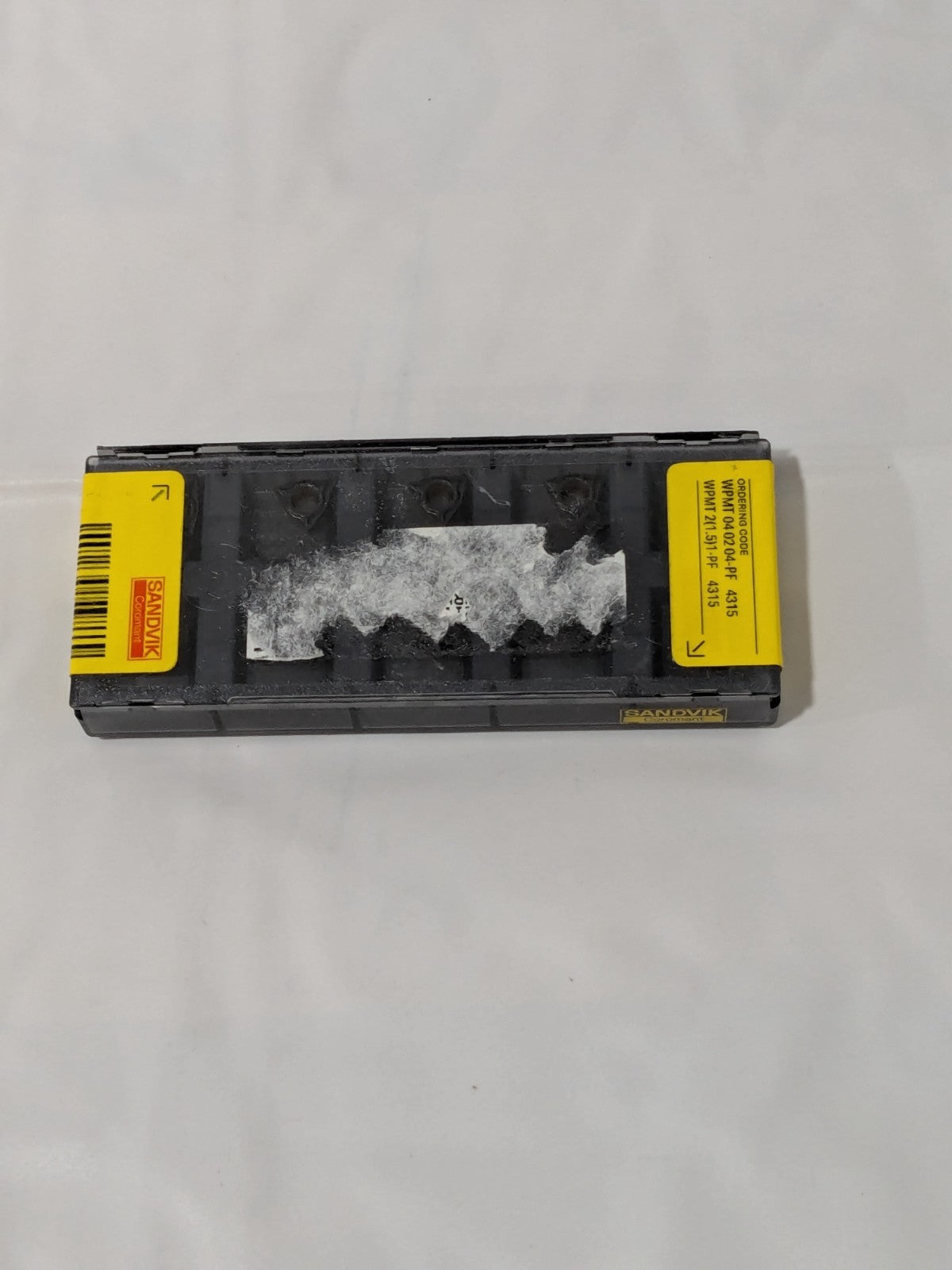

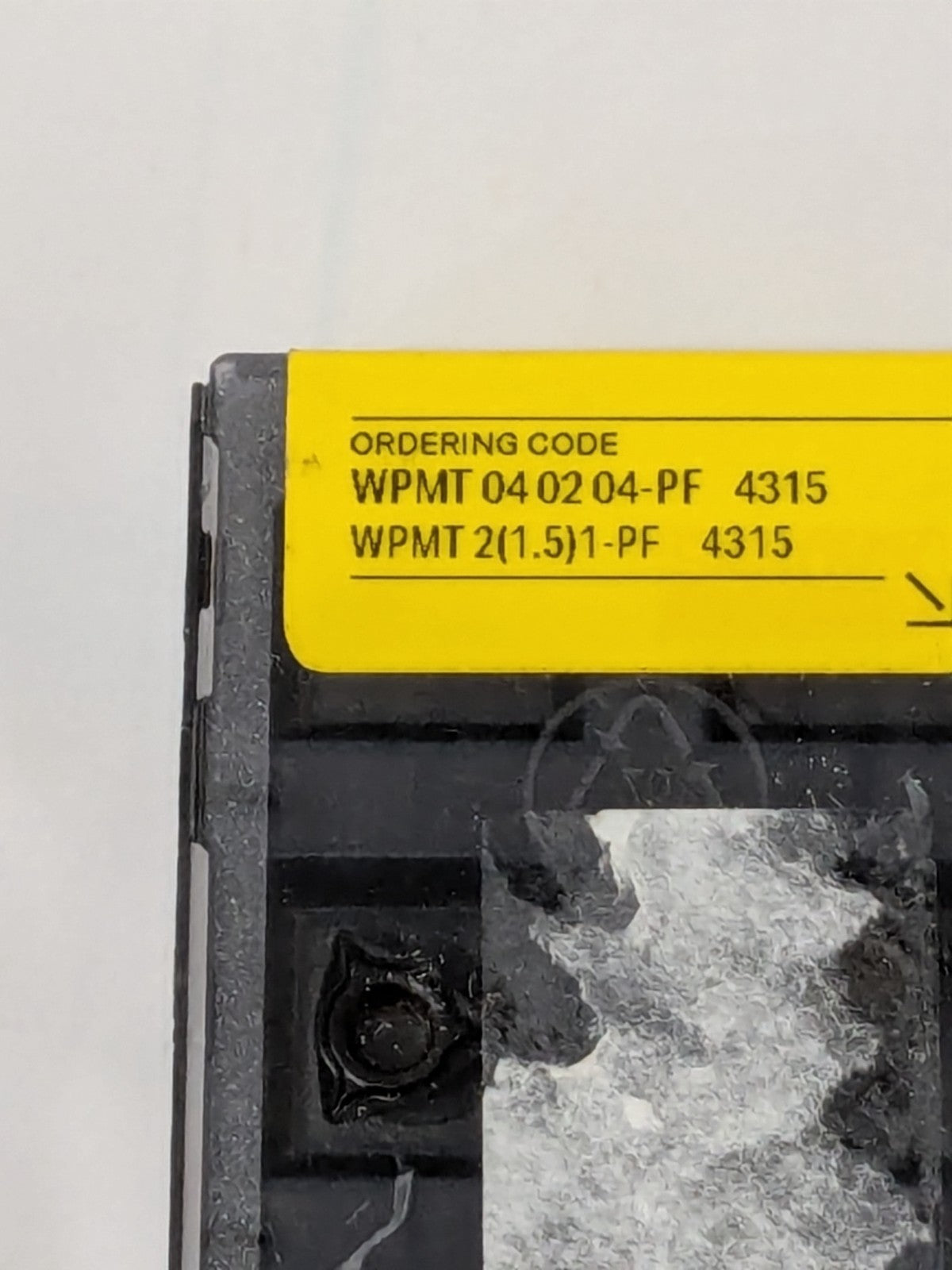

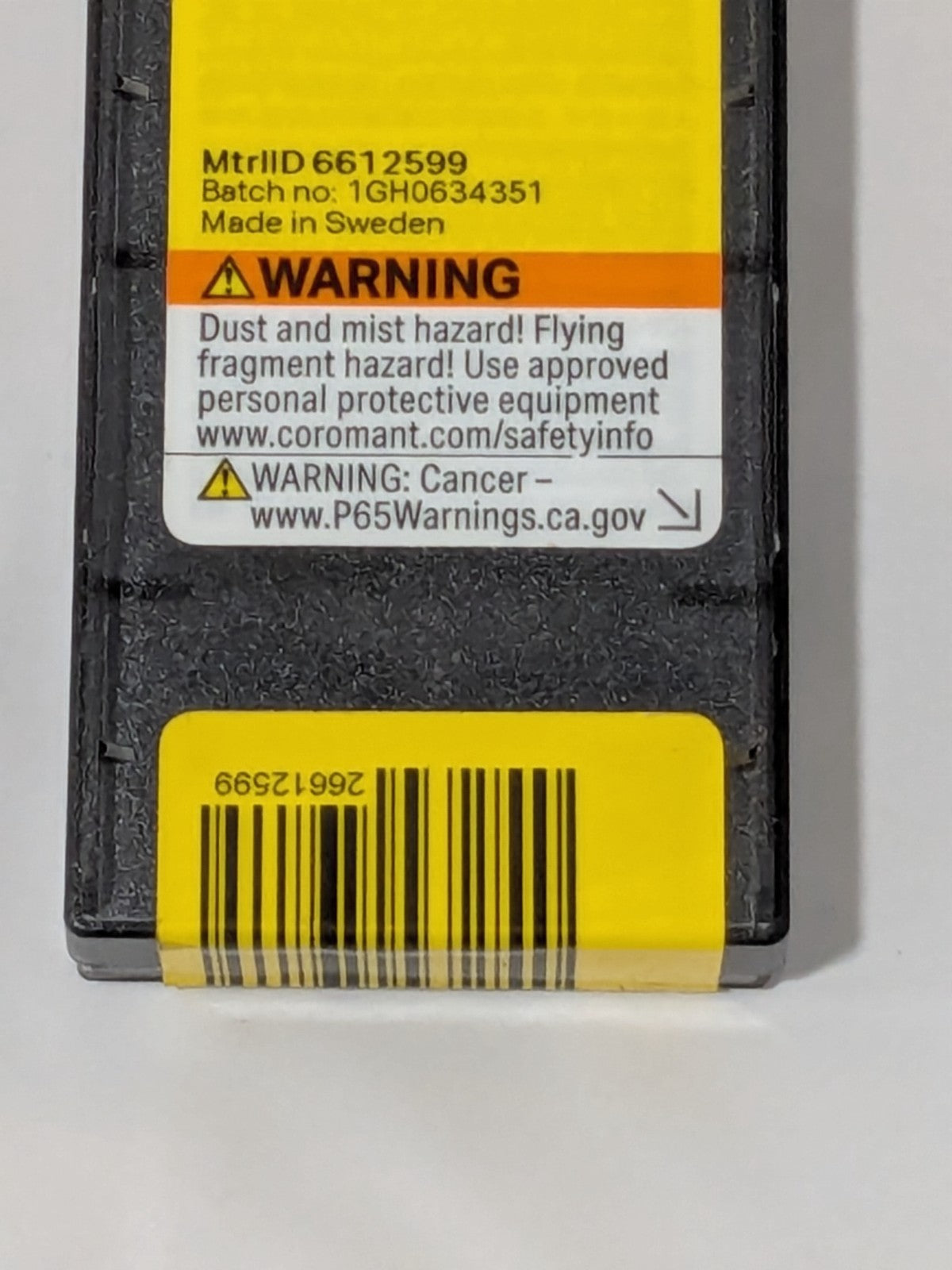

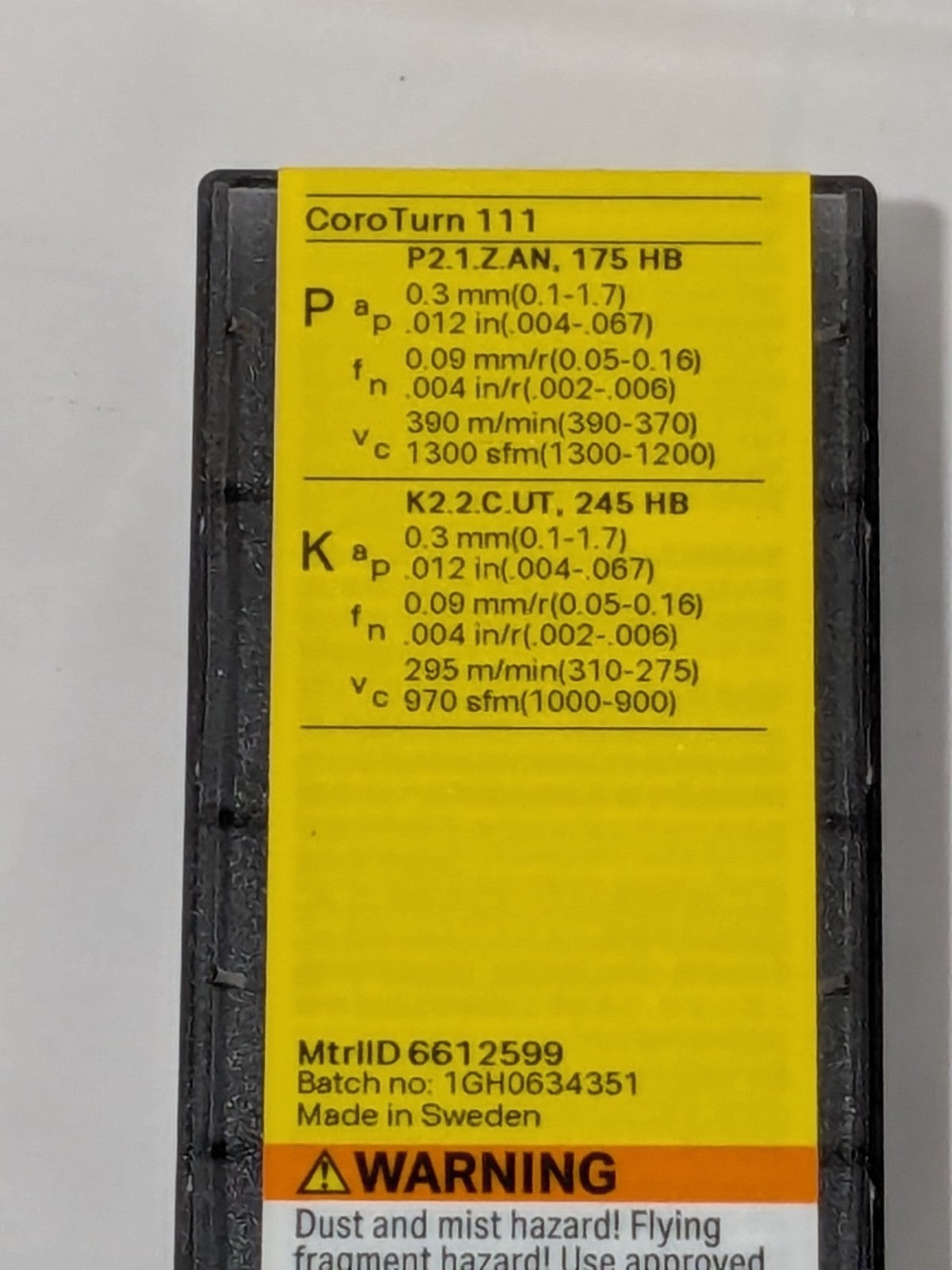

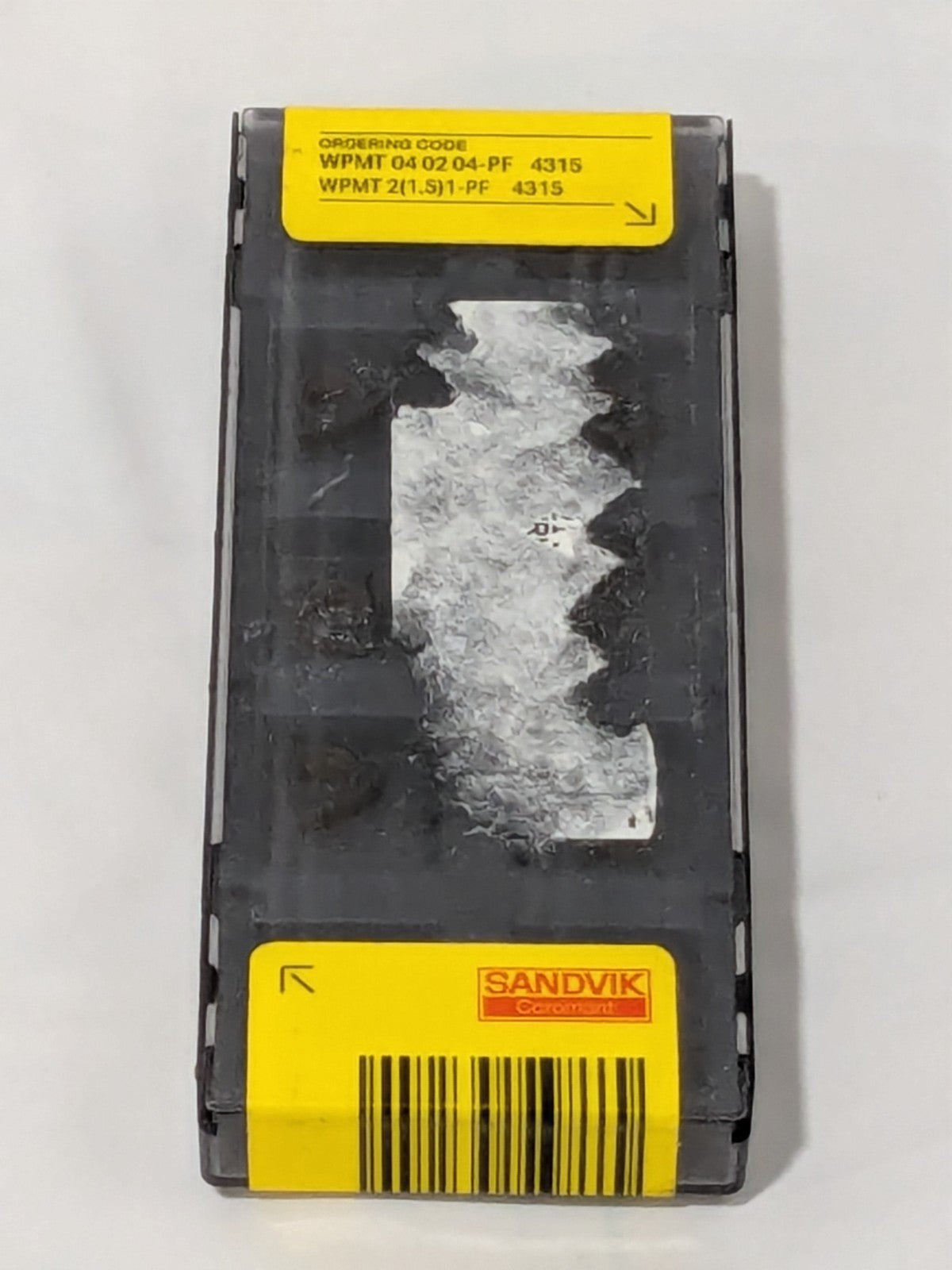

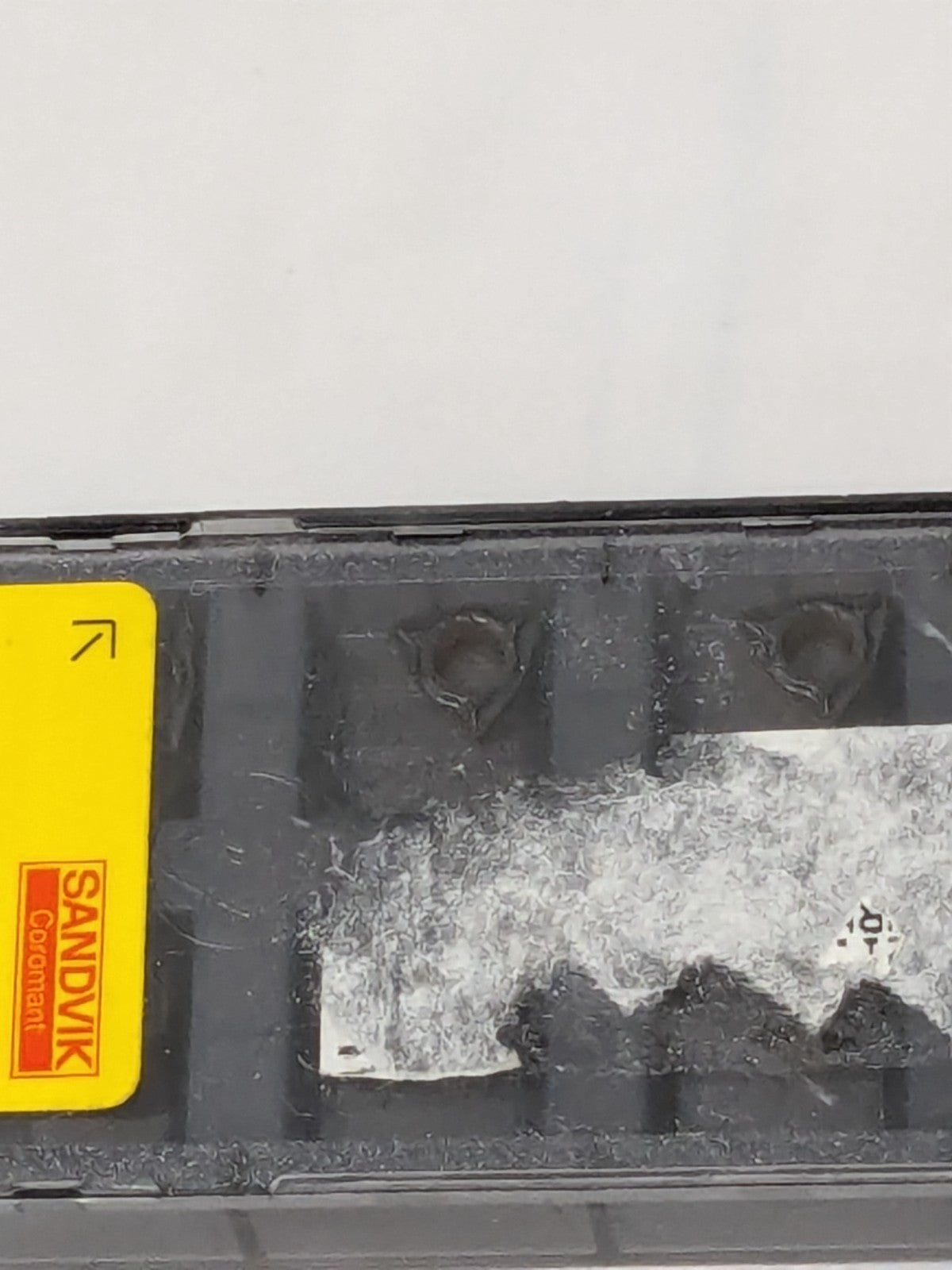

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
