Sandvik Turning Insert: SNMG643-MR 4335, Solid Carbide Qty 3 7080810

Sandvik
1 Lot of 3 Inserts

MSRP: $40.00

• Insert Style SNMG
• Insert Size Code 643
• Insert Shape Square
• Included Angle 90
• Inscribed Circle (Decimal Inch) 0.7500
• Corner Radius (Decimal Inch) 0.0469
• Corner Radius (mm) 1.19
• Insert Material Carbide
• Manufacturer Grade 4335
• Coating/Finish TiCN; TiN; AI2O3
• Relief Angle 0
• Wiper Edge No
• Insert Thickness 6.35
• Insert Thickness (Decimal Inch) 0.2500
• Insert Hand Neutral
• Number Of Cutting Edges 8
• Insert Shape Code S
• Corner Radius (Inch) 3/64
• Hole Diameter (Mm) ( - 0 Decimals) 7.93
• Hole Diameter (Decimal Inch) 0.3120
• Inscribed Circle (Inch) 3/4
• Inscribed Circle (mm) 19.05
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 1/4
• Clearance Code N
• Tolerance Code M
• Series T-Max P
• Coating Process CVD
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P

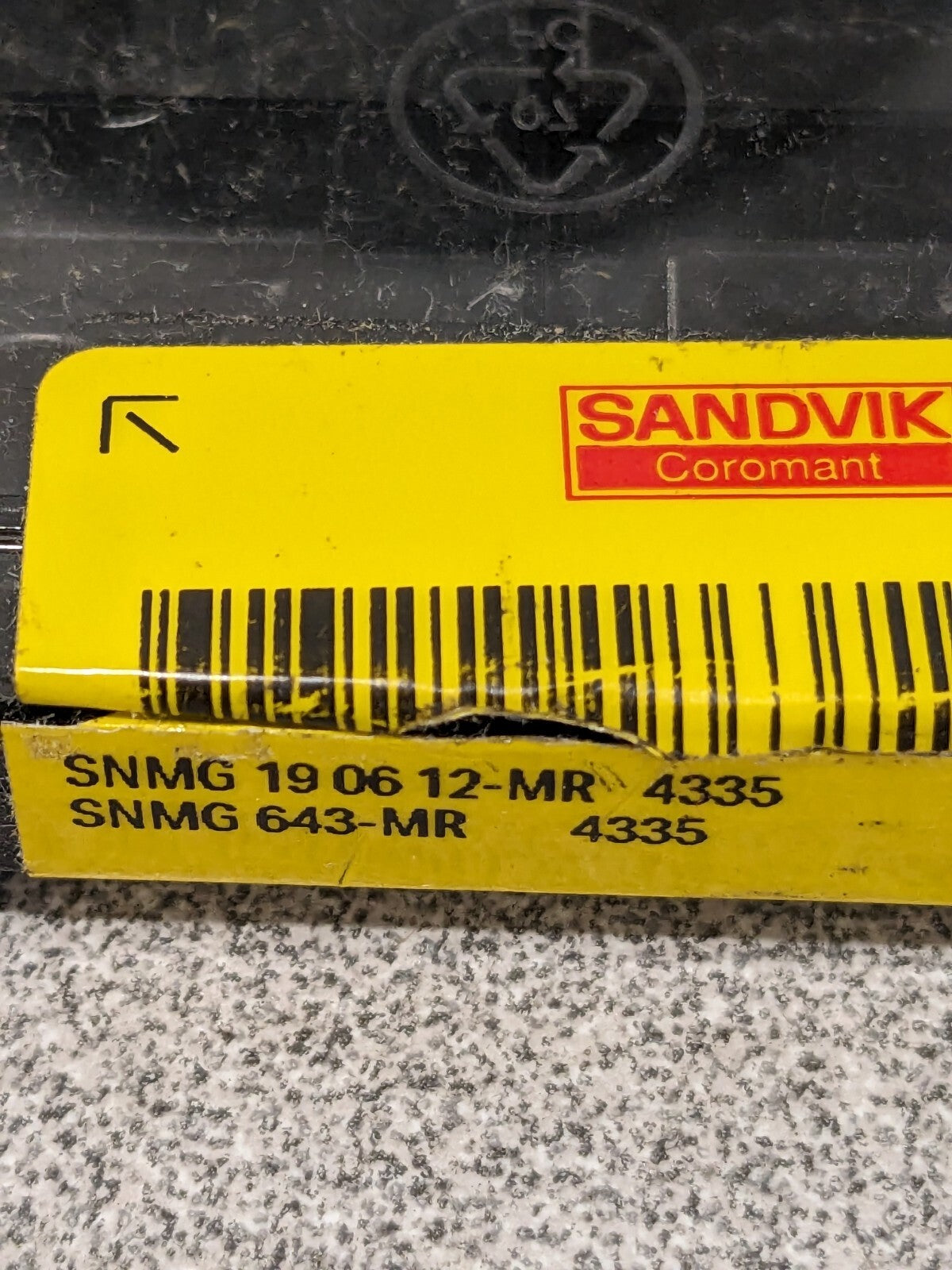

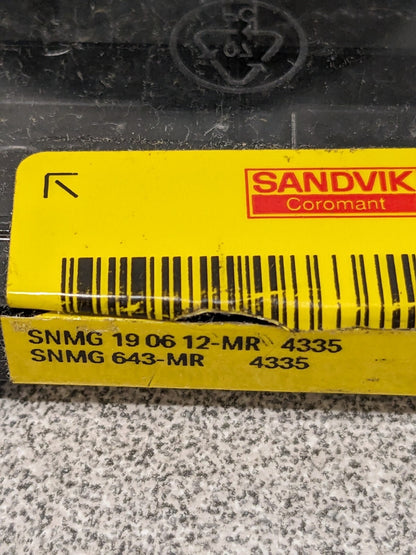

• Iso Code SNMG 19 06 12-MR 4335
• UNSPSC Code 23242105
• Chip Breaker MR

These items appear to be new and in good condition. SOLD AS IS.

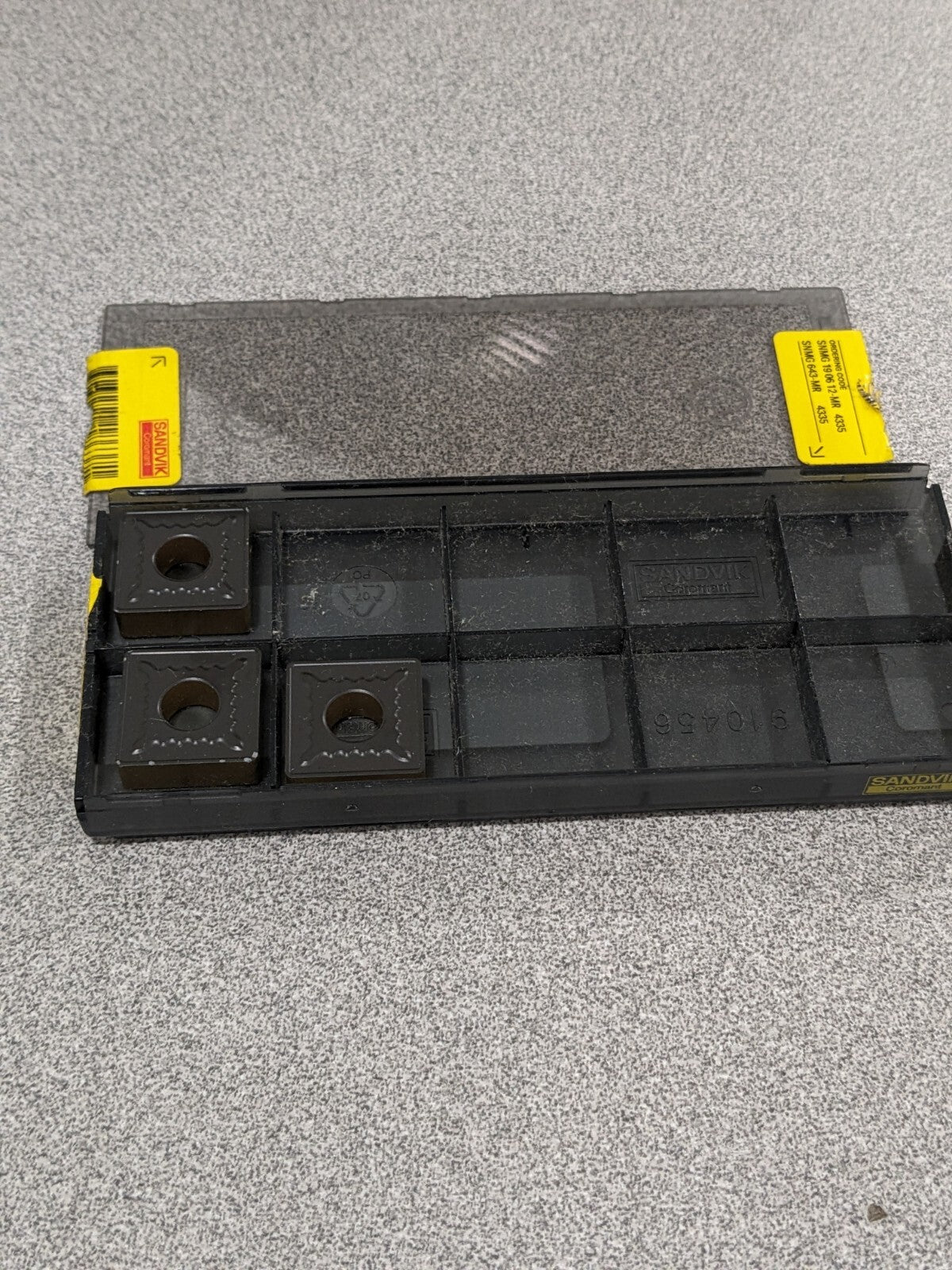

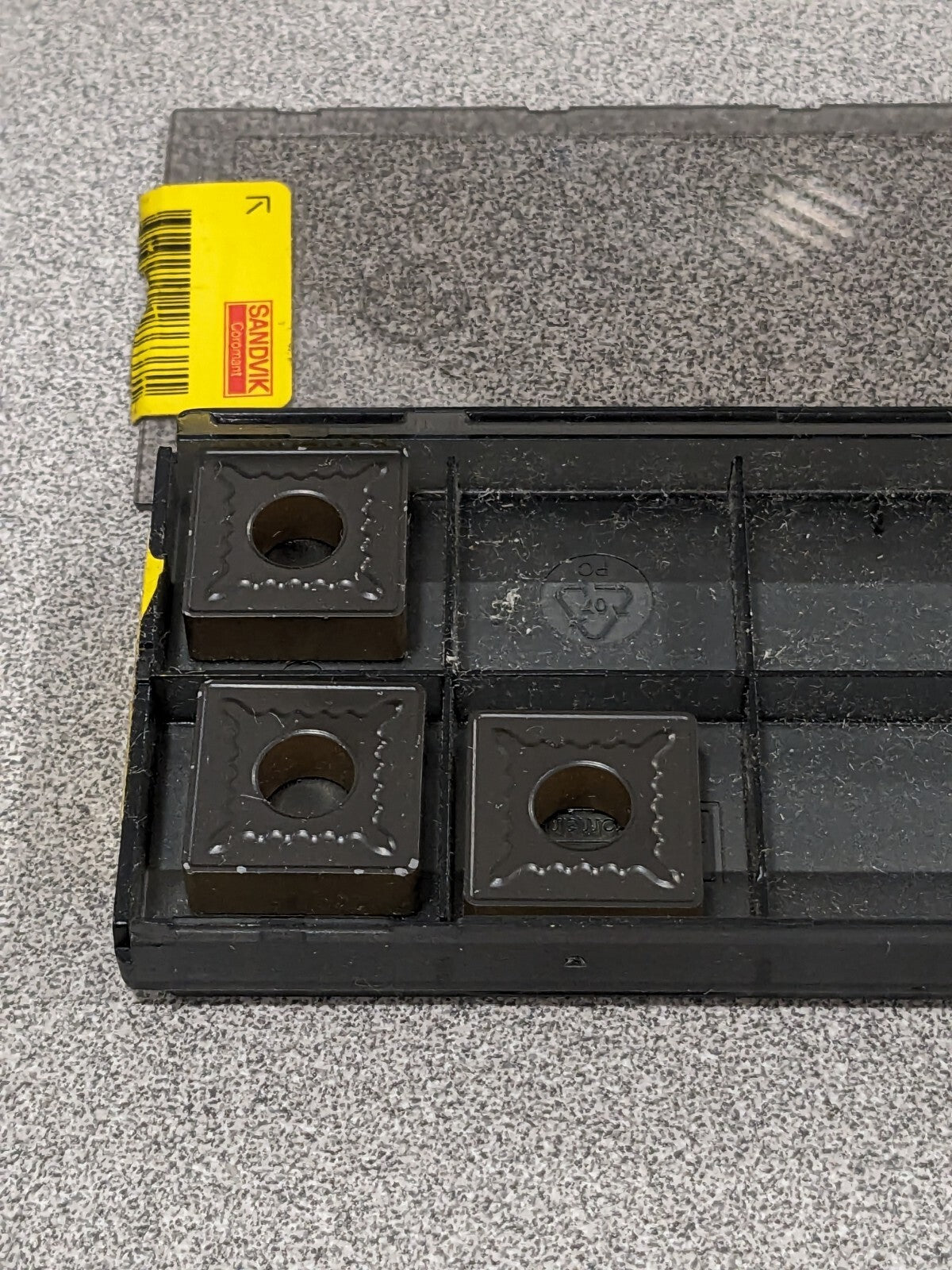

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
