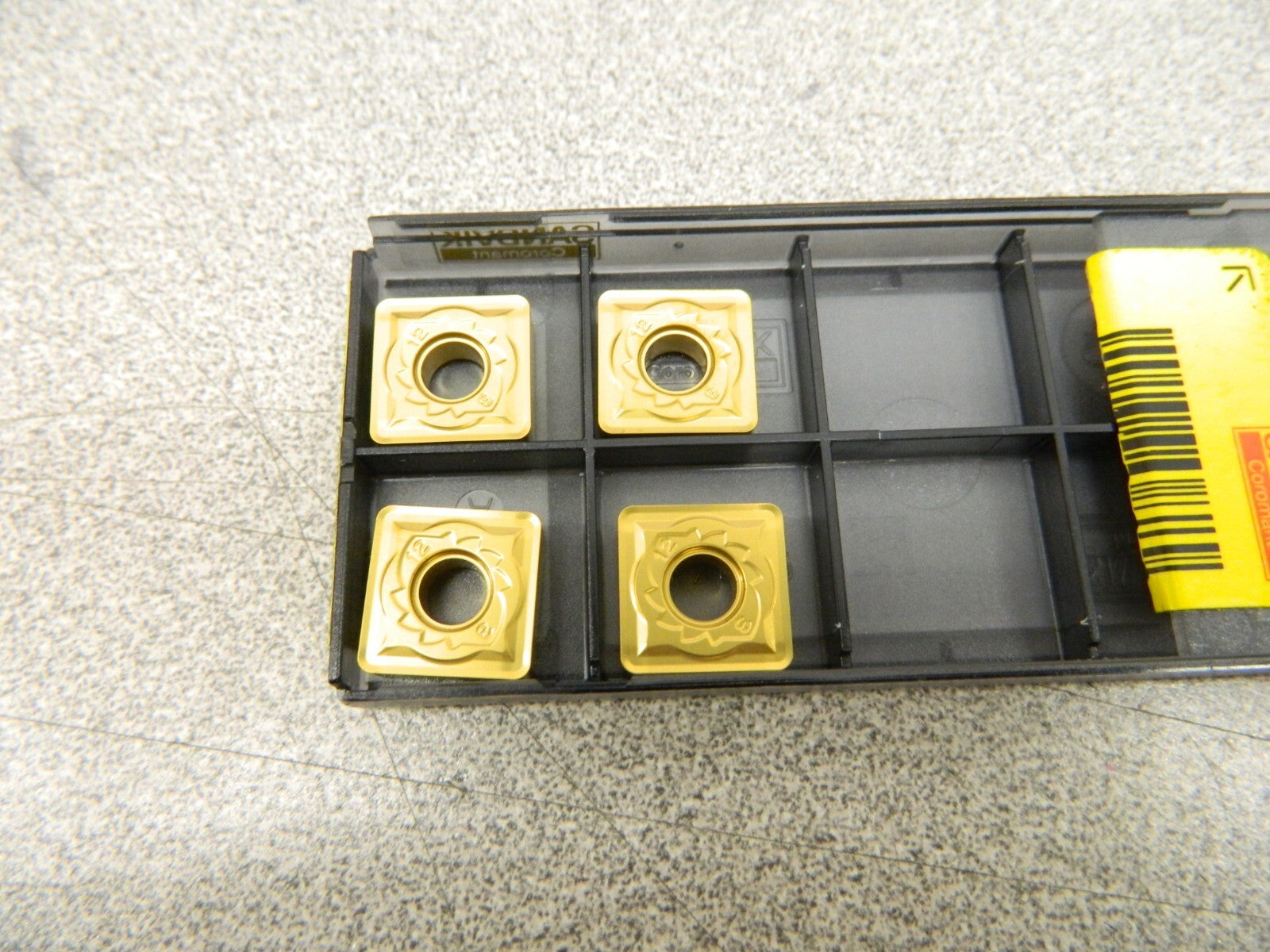

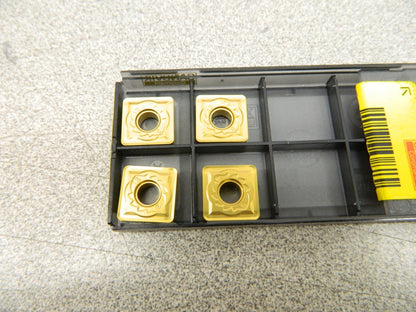

Sandvik Turning Insert: SNMG433-SMR S05F, Solid Carbide Qty 4 5909062

Sandvik
1 Lot of 4 Inserts

MSRP: $60.00

• Insert Style SNMG
• Insert Shape Code S
• Insert Size Code 433
• Insert Shape Square
• Manufacturer Grade S05F
• Corner Radius (Inch) 3/64
• Corner Radius (mm) 1.19
• Corner Radius (Decimal Inch) 0.0469
• Insert Material Solid Carbide
• Hole Diameter (Mm) ( - 0 Decimals) 5.16
• Hole Diameter (Decimal Inch) 0.2030
• Maximum Depth of Cut (mm) 8.50
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (mm) 12.70
• Inscribed Circle (Decimal Inch) 0.5000
• Insert Holding Method Pin; Clamp
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness 4.76
• Insert Thickness (Decimal Inch) 0.1875
• Clearance Code N
• Tolerance Code M
• Included Angle 90.0
• Relief Angle 0
• Series T-Max P
• Coating Process CVD
• Iso Code SNMG120412-SMR S05F
• Cutting Direction Neutral
• Chip Breaker G
• Cutting Edge Style Rounded

These items are new and in great condition. SOLD AS IS.

Please review photos, comes as shown.
