Sandvik Turning Insert: DCMT21.51UF 4315, Carbide Qty 10 6612387

Sandvik
Pack of 10 Inserts

MSRP: $150.00

• Country Of Origin Japan
• Insert Style DCMT
• ANSI Size Code 21.51
• ISO Size Code 070204
• Insert Shape D - Diamond (Rhombic) 55-Deg
• Included Angle 55.00
• Inscribed Circle (Decimal Inch) 0.2500
• Inscribed Circle (Inch) 1/4
• Inscribed Circle (mm) 6.35
• Corner Radius (Inch) 1/64
• Corner Radius (mm) 0.40
• Corner Radius (Decimal Inch) 0.0157
• Insert Material Carbide
• Manufacturer Grade 4315
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 7.000
• Insert Thickness (Inch) 3/32
• Insert Thickness (Decimal Inch) 0.0937
• Insert Thickness 2.38
• Insert Hand Neutral
• Series CoroTurn 107
• Grade Characteristics Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance Positive
• Insert Shape Code D
• Hole Diameter (Decimal Inch) 0.1102
• Hole Diameter (mm) 2.80
• Maximum Depth of Cut (mm) 7.35
• Maximum Depth of Cut (Decimal Inch) 0.2894
• ANSI Insert Code DCMT21.51
• ISO Insert Code DCMT070204
• Insert Holding Method Screw
• Clearance Code C
• Tolerance Code M
• Coating Process MTCVD
• Length Range (Decimal Inch) 0.3000 - 0.4000
• Insert Length (Decimal Inch) 0.3051
• Insert Length (mm) 7.75
• Primary Workpiece Material Code P
• Iso Code DCMT070204UF4315
• Manufacturers Catalog Number 6612387
• Chip Breaker T
• UNSPSC Code 23242105
• Insert Size Code 21.51

These items are new and in the original sealed package. SOLD AS IS.

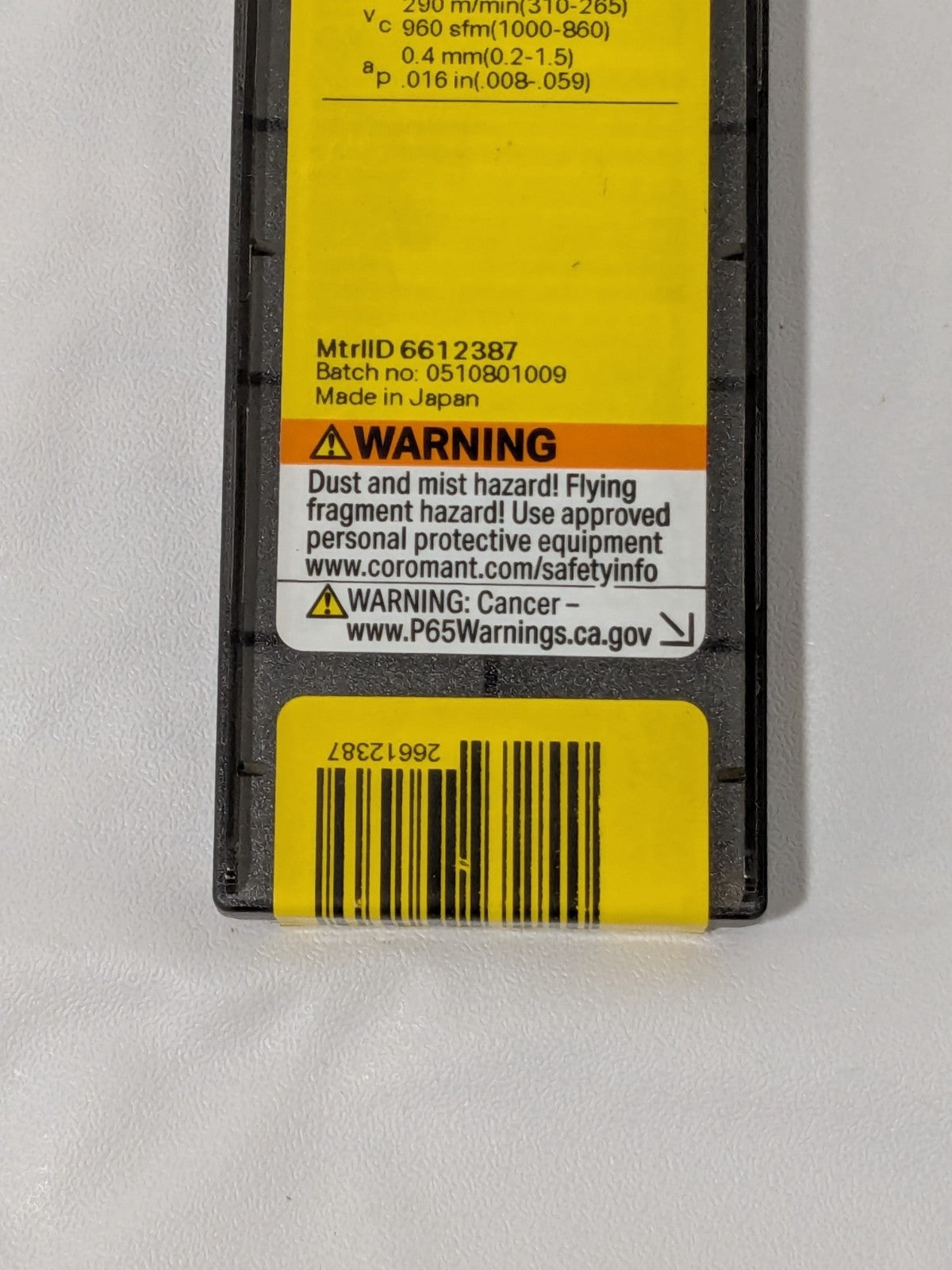

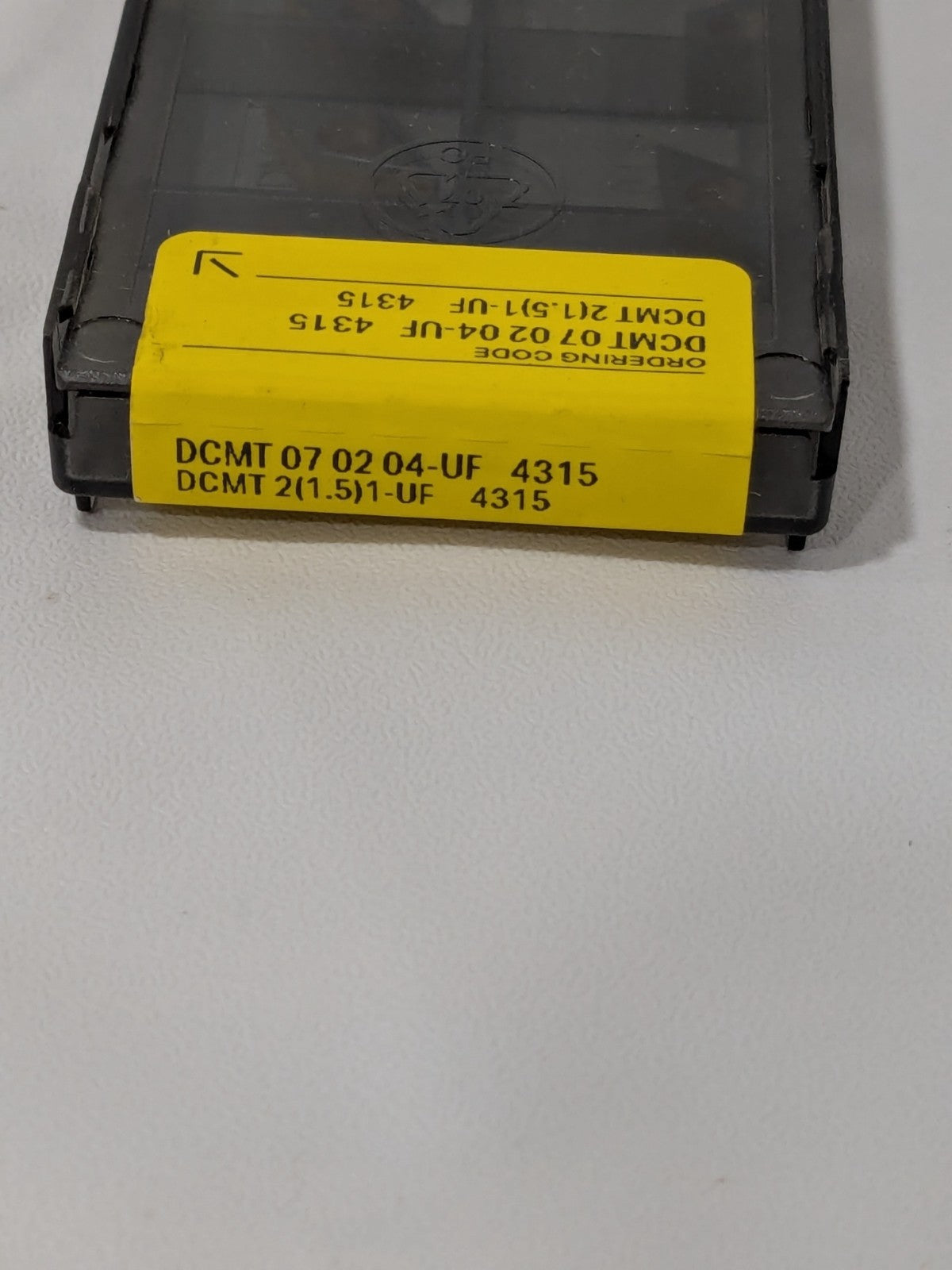

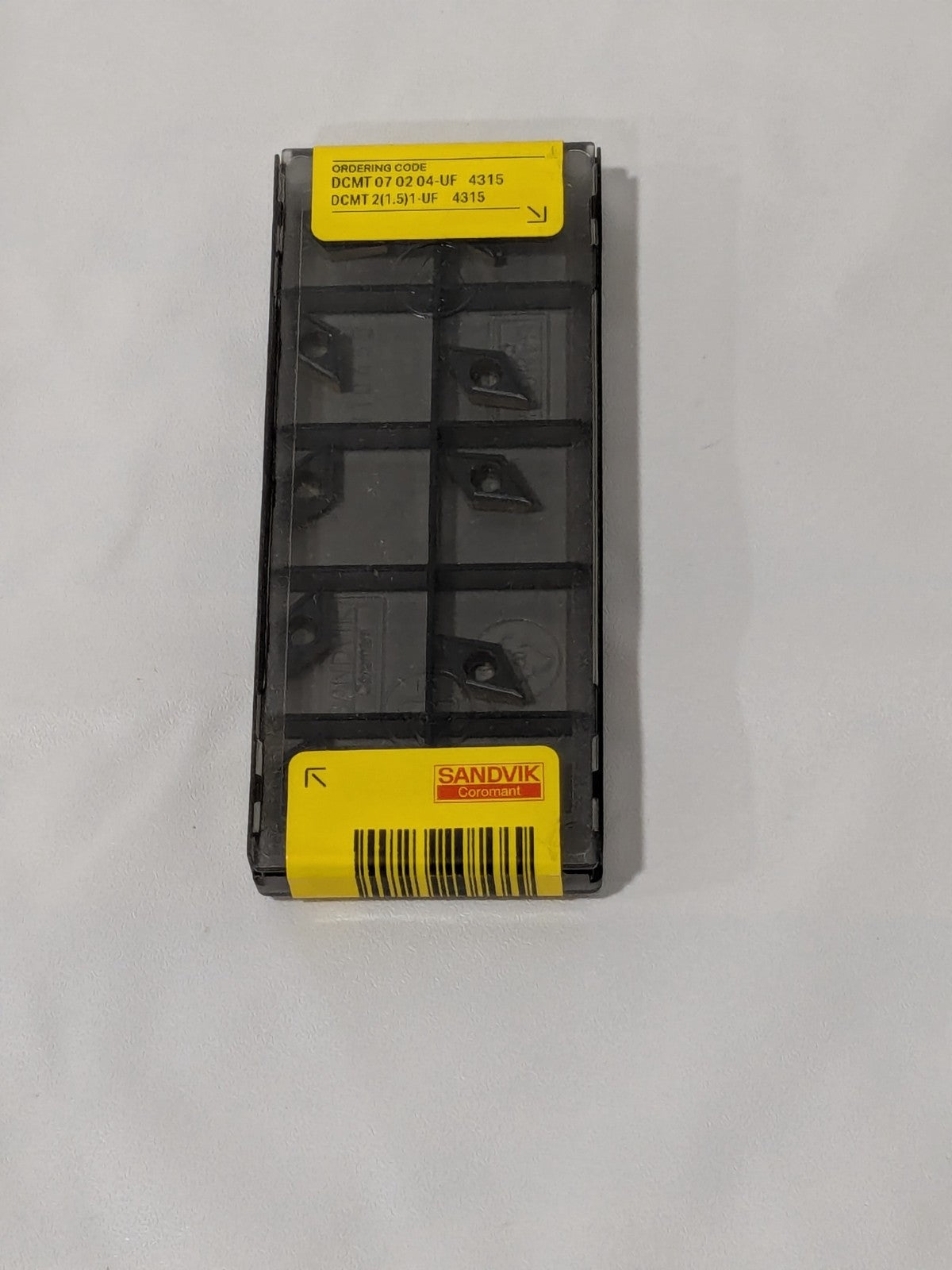

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
