Sandvik Turning Insert: CNMG544-XMR 4315, Carbide Qty 10 6863527

Sandvik
1 Pack of 10 Inserts

MSRP: $250.00

• Country Of Origin Sweden
• Insert Style CNMG
• ANSI Size Code 544
• ISO Size Code 160616
• Insert Shape C - Diamond (Rhombic) 80-Deg
• Included Angle 80.00
• Inscribed Circle (Decimal Inch) 0.6250
• Inscribed Circle (Inch) 5/8
• Inscribed Circle (mm) 15.88
• Corner Radius (Inch) 1/16
• Corner Radius (mm) 1.59
• Corner Radius (Decimal Inch) 0.0625
• Insert Material Carbide
• Manufacturer Grade 4315
• Coating/Finish TiCN; TiN; AI2O3
• Relief Angle 0.000
• Insert Thickness (Inch) 1/4
• Insert Thickness (Decimal Inch) 0.2500
• Insert Thickness 6.35
• Insert Hand Neutral
• Series T-Max P
• Grade Characteristics Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance Negative
• Insert Shape Code C
• Hole Diameter (Decimal Inch) 0.2500
• Hole Diameter (mm) 6.35
• Maximum Depth of Cut (mm) 14.52
• ANSI Insert Code CNMG544
• ISO Insert Code CNMG160616
• Insert Holding Method Pin; Clamp
• Clearance Code N
• Tolerance Code M
• Coating Process CVD

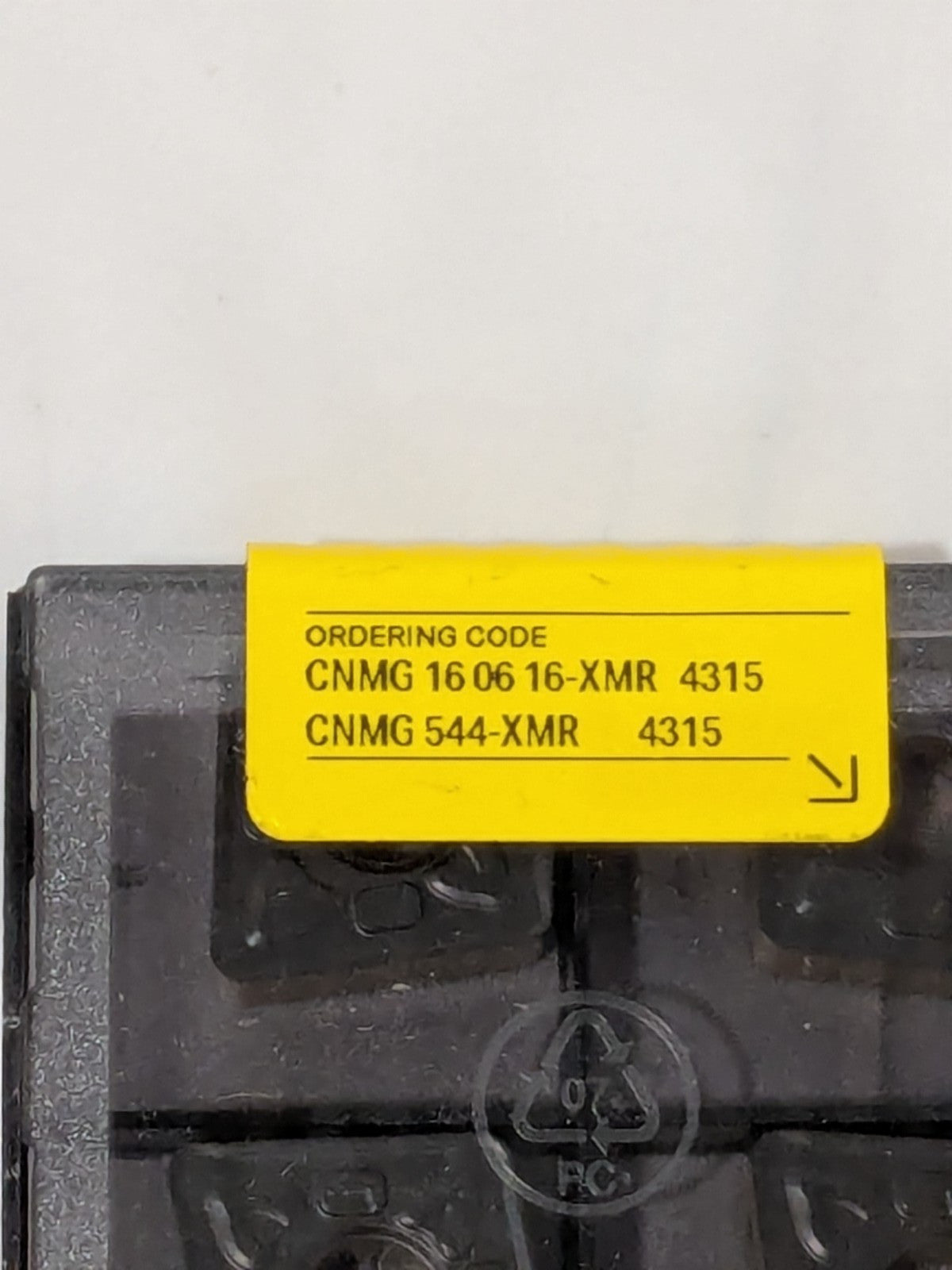

• Iso Code CNMG 16 06 16-XMR 4315
• Chip Breaker G
• Cutting Edge Style Rounded
• UNSPSC Code 23242105
• Insert Size Code 544

These items are new and in the original sealed package. SOLD AS IS.

Please review photos, comes as shown.
