Sandvik Solid Carbide Screw Machine Drill Bit 6.80 mm Dia 6241255

Sandvik
Solid Carbide Screw Machine Drill Bit

MSRP: $130.00

• Drill Bit Size (mm) 6.80
• Drill Bit Size (Decimal Inch) 0.2677
• Tool Material Solid Carbide
• Cutting Direction Right Hand
• Coating/Finish TiAlN
• Number Of Flutes 2
• Spiral Type Regular
• Flute Type Regular Spiral
• Flute Length (Decimal Inch) 1.3386
• Drill Point Angle 140
• Coolant Through Yes
• Shank Type Straight
• Point Type Split Point
• Shank Diameter (Decimal Inch) 0.3150
• Drill Tip Finish/Coating TiAlN
• Overall Length (Decimal Inch) 3.1102
• Shank Diameter (mm) 8.00
• Series CoroDrill 460 462.1
• Proprietary Coating/Finish TiAlN
• Drill Length Type Screw Machine
• Maximum Drilling Depth (Decimal Inch) 0.8425
• Maximum Drilling Depth (mm) 21.40
• Shank Length (Decimal Inch) 1.4173
• Drill Point Length (mm) 1.00
• Drill Point Length (Decimal Inch) 0.0394
• Drill Bit Grade High Performance
• Drill Bit Size Range (Decimal Inch) 0.2500 to 0.3000
• Drill Bit Size Range (mm) 6.50 - 8.00
• Specification Designation ISO; DIN; ANSI
• UNSPSC Code 23241635

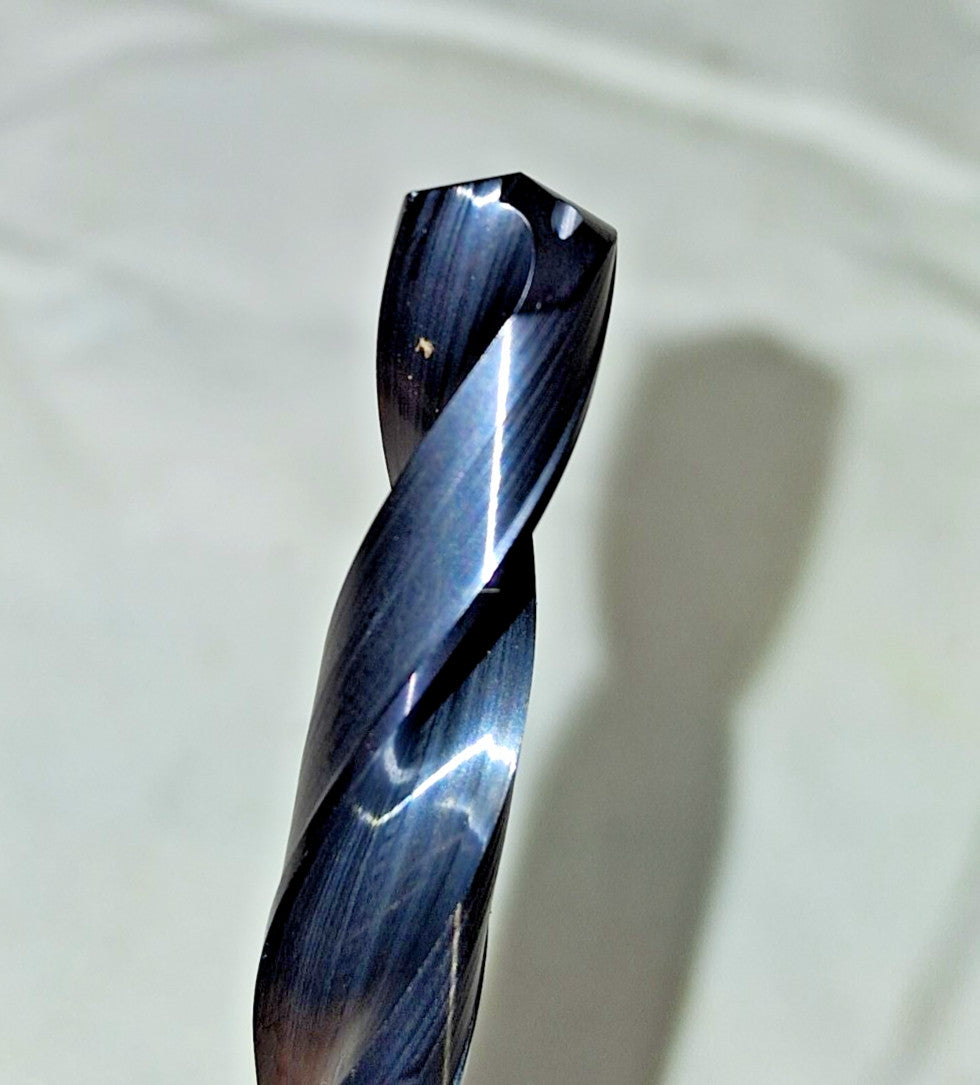

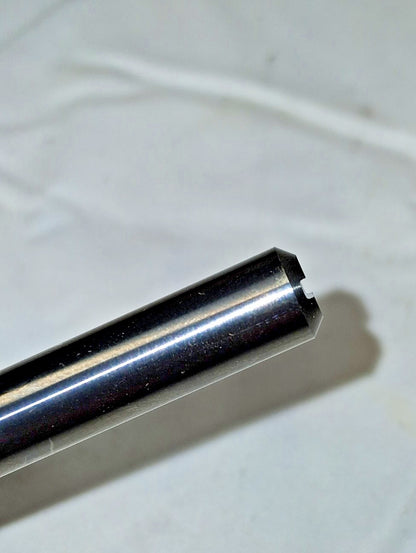

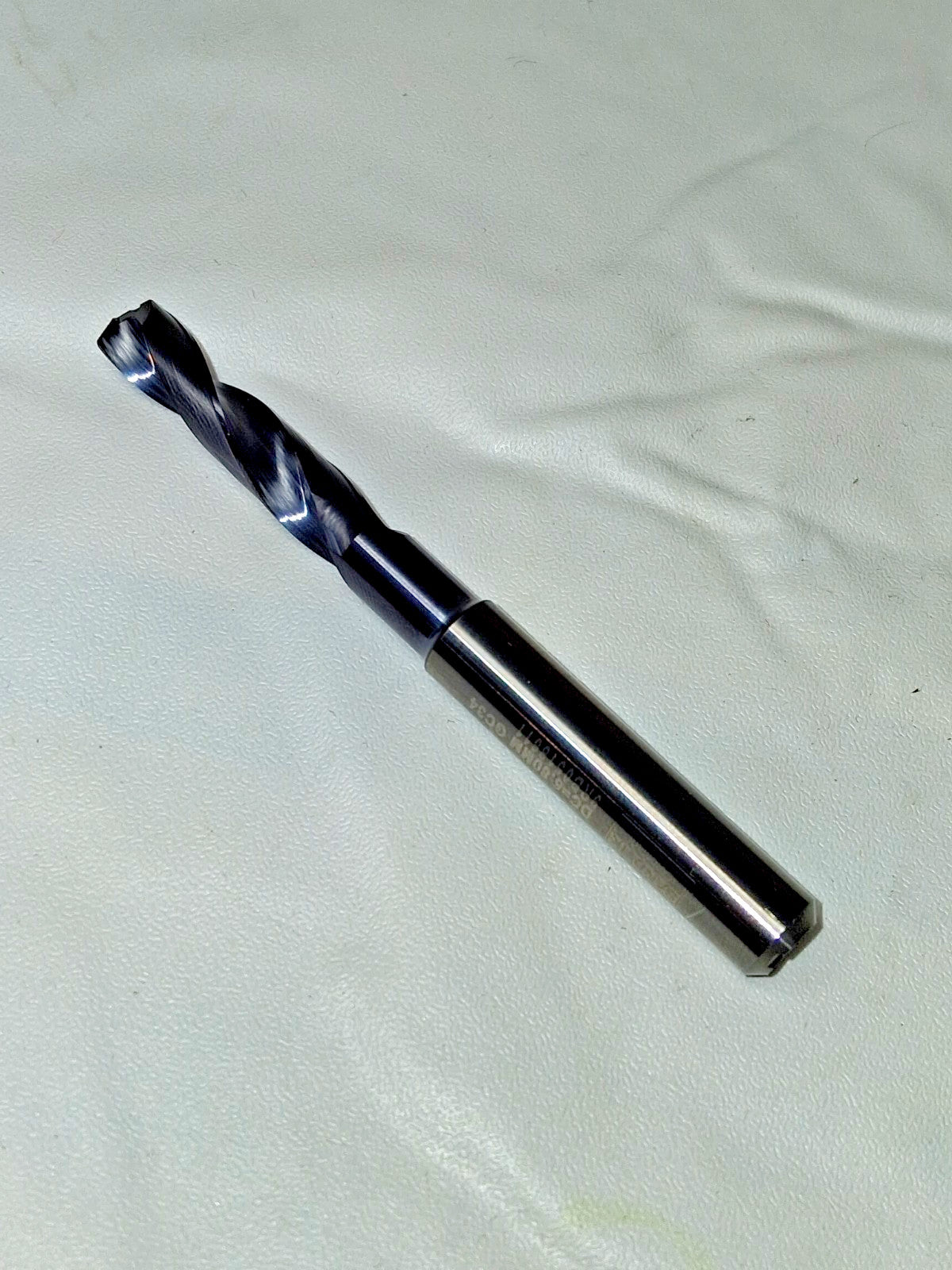

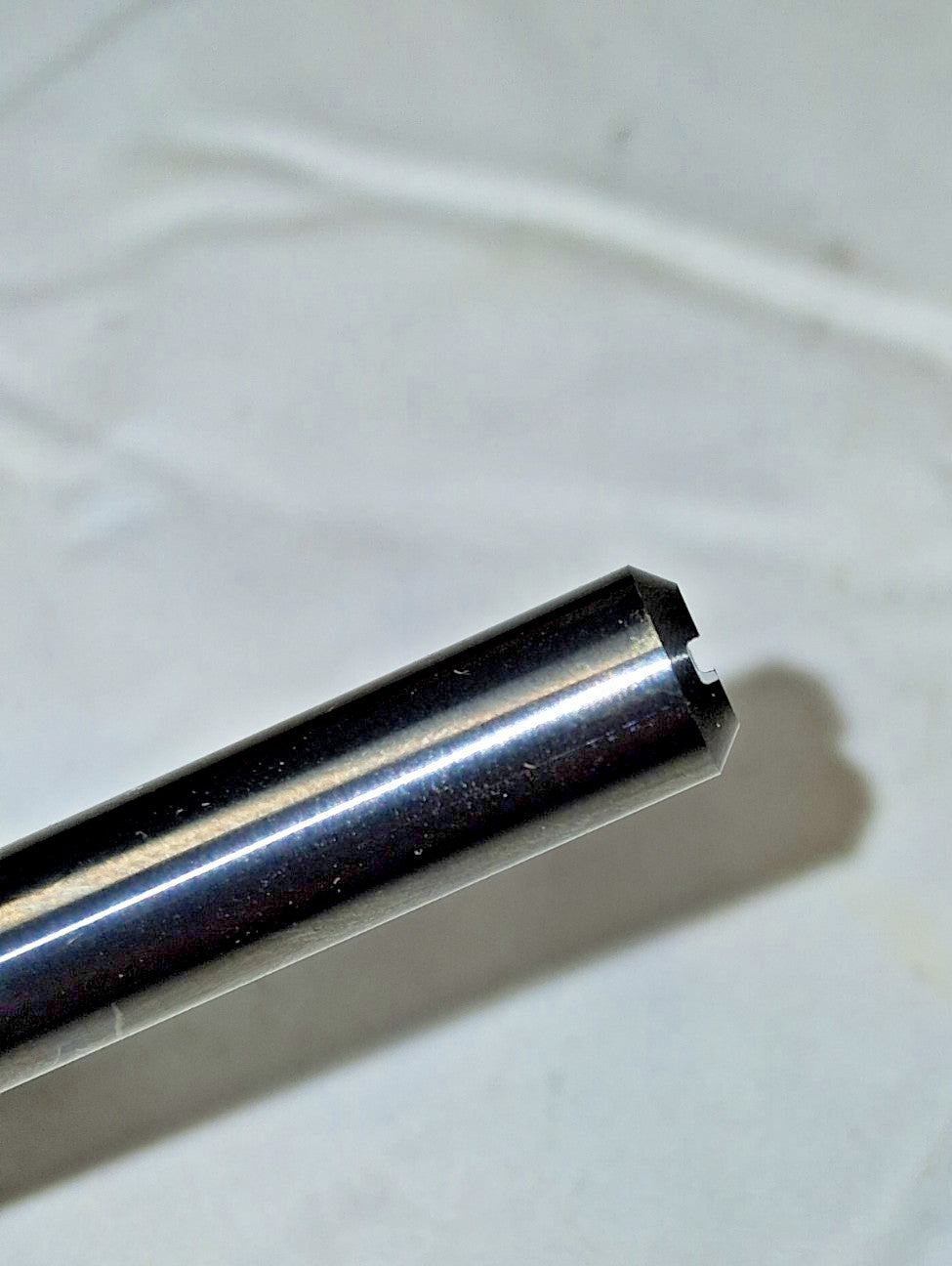

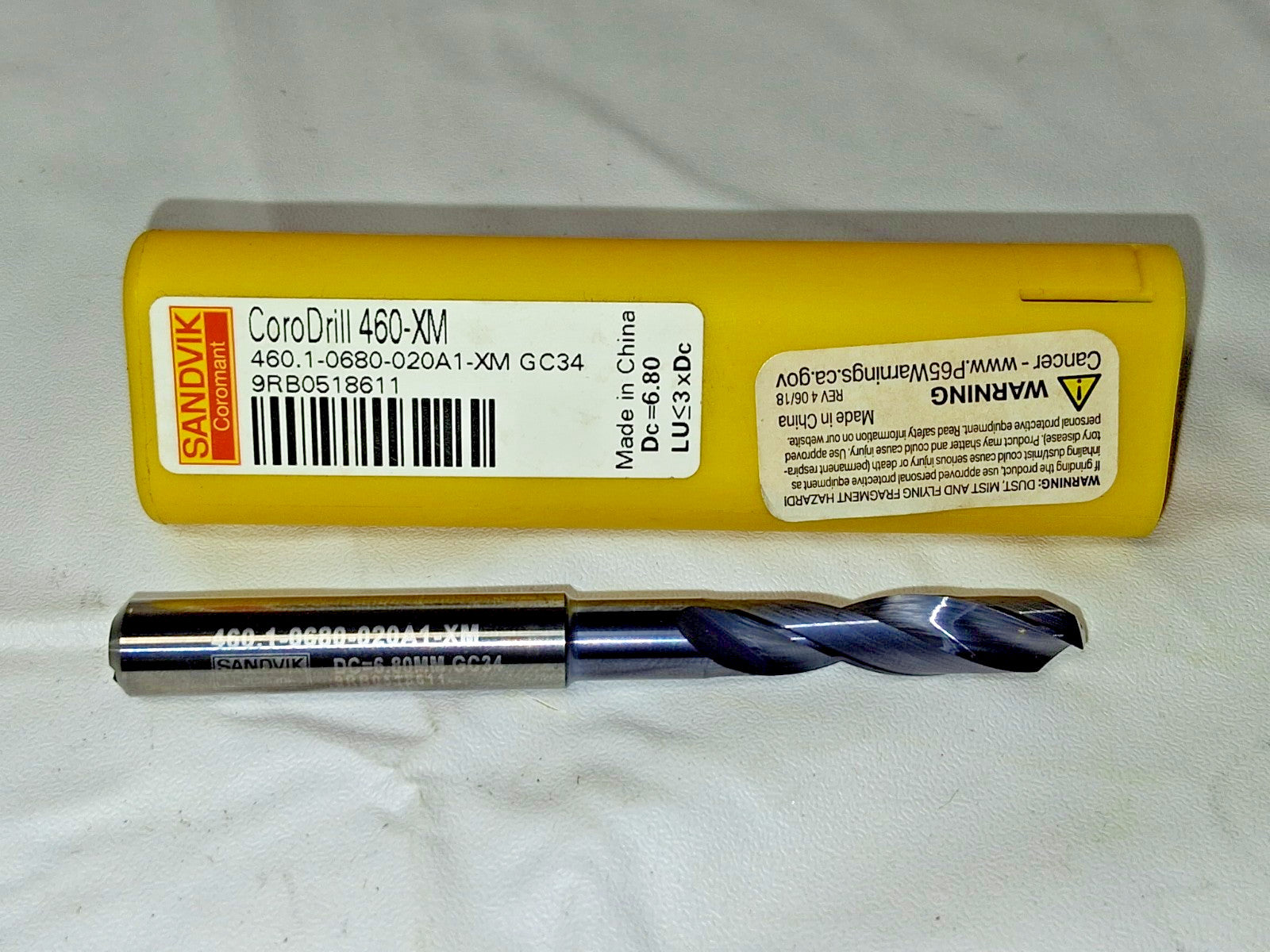

Please review photos, comes as shown.
