Sandvik
Solid Carbide Extra Length Drill Bit

• Drill Bit Size (mm) 3.00
• Drill Bit Size (Decimal Inch) 0.1181
• Drill Point Angle 140
• Drill Bit Material Solid Carbide
• Drill Bit Finish/Coating TiAlN
• Overall Length (Decimal Inch) 3.7795
• Through Coolant Coolant Through
• Shank Diameter (Decimal Inch) 0.2362
• Shank Diameter (mm) 6.00
• Flute Length (Decimal Inch) 2.1260
• Cutting Direction Right Hand
• Flute Length x Diameter Ratio 15xD
• Flute Type Spiral
• Number of Flutes 2
• Point Type Standard
• Shank Type Straight
• Spiral Type Regular Spiral
• Maximum Drilling Depth (Decimal Inch) 1.7717
• Specification Designation ANSI; ISO
• Shank Length (Decimal Inch) 1.4173
• Shank Length (Inch) 1.4173
• Threaded Shank No
• Drill Point Length (mm) 0.50
• Drill Point Length (Decimal Inch) 0.0197
• Drill Bit Diameter Tolerance (mm) m7
• Drill Bit Diameter Tolerance (mm) m7
• Series/List CoroDrill 861

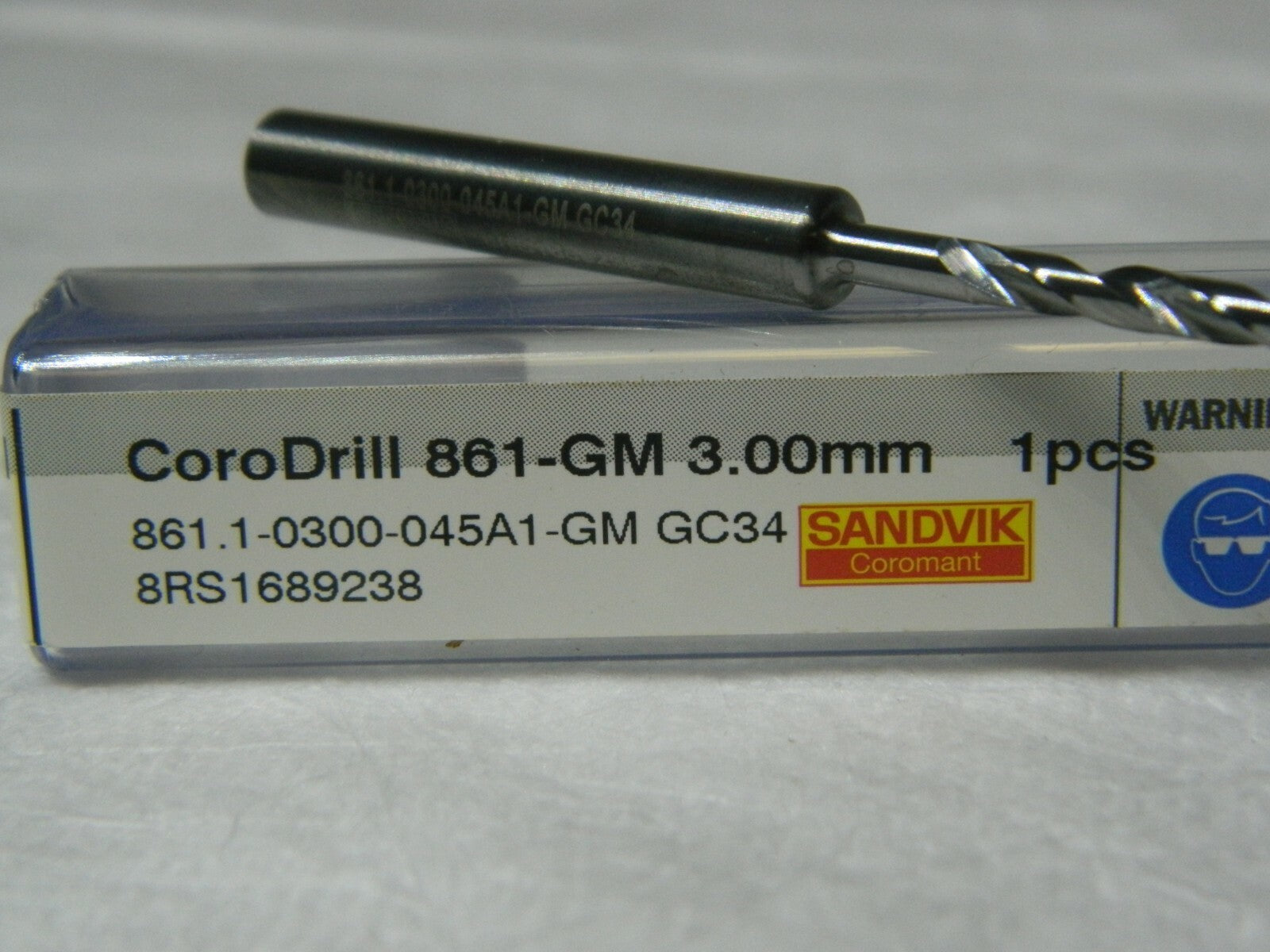

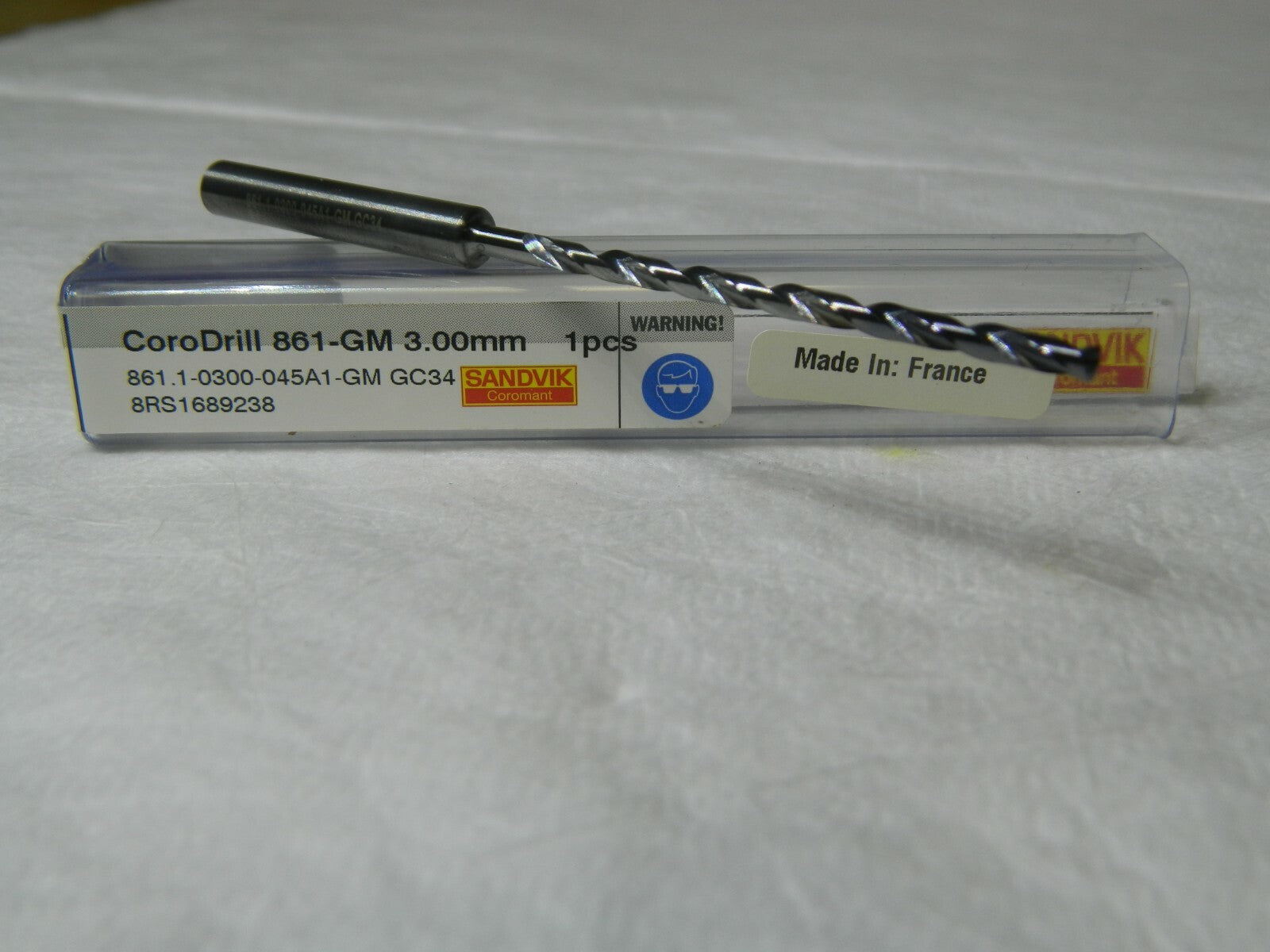

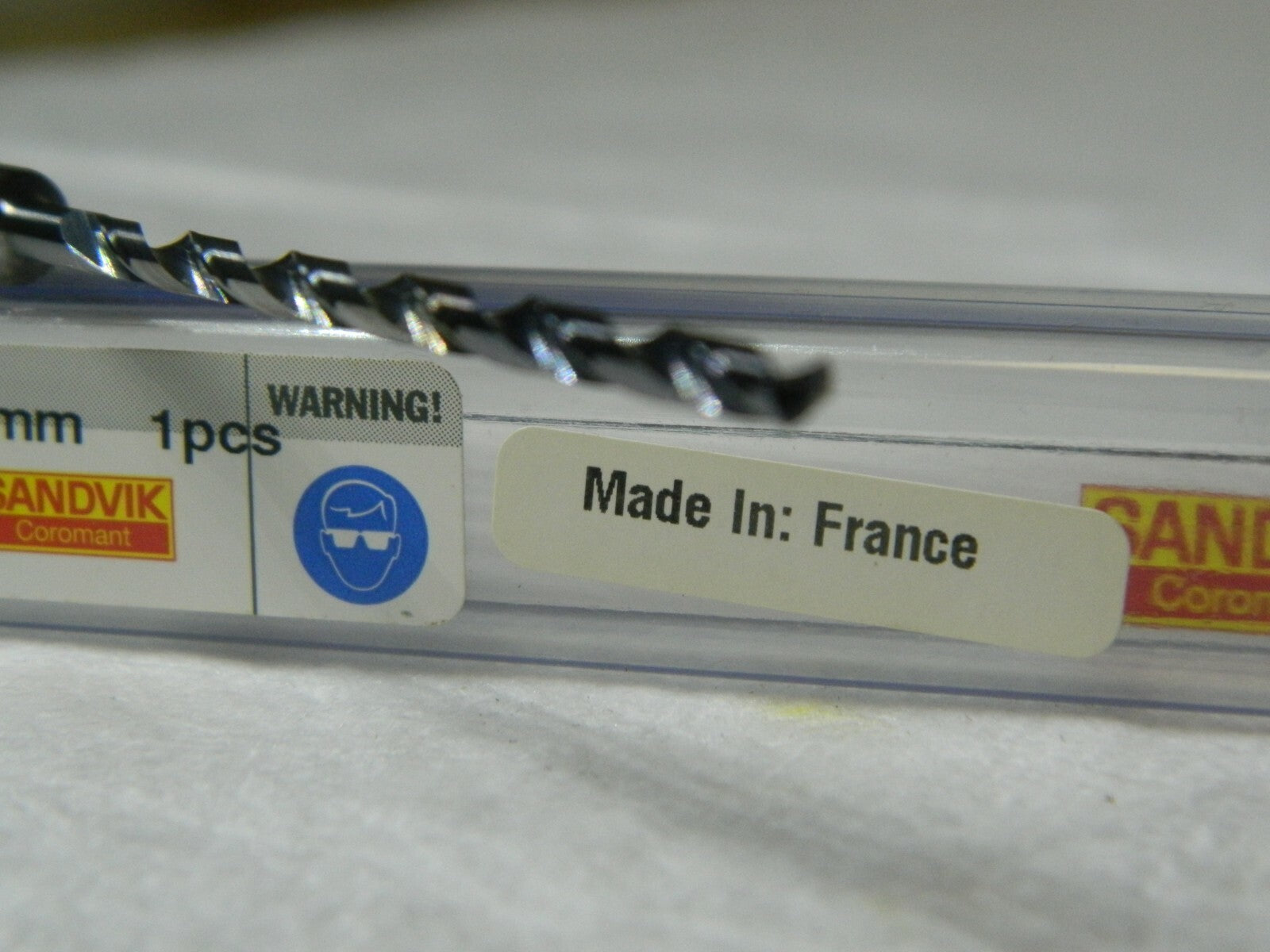

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
