Sandvik R840-0280-50-A0B 1020 Delta-C solid carbide drill 5746834

Sandvik

R840-0280-50-A0B 1020 Delta-C solid carbide drill 5746834
MSRP: $75

• Cutting diameter(DC)
• 2.8 mm
• Achievable hole tolerance(TCHA)
• H9
• Usable length(LU)
• 11.7 mm
• Usable length diameter ratio(ULDR)
• 4.179
• Adaptive interface machine direction(ADINTMS)
• Cylindrical shank without clamping features -metric: 2.80
• Connection diameter tolerance(TCDCON)
• h6
• Grade(GRADE)
• 1020
• Substrate(SUBSTRATE)
• HC
• Coating(COATING)
• PVD TiCN+TiN
• Basic standard group(BSG)
• COROMANT
• Coolant entry style code(CNSC)
• 0: without coolant
• Connection diameter(DCON)
• 2.8 mm
• Point angle(SIG)
• 140 deg
• Point length(PL)
• 0.5 mm
• Overall length(OAL)
• 46 mm
• Functional length(LF)
• 45.5 mm
• Chip flute length(LCF)
• 16 mm
• Maximum regrinds(NORGMX)
• 0
• Rotational speed maximum(RPMX)
• 28,421 1/min

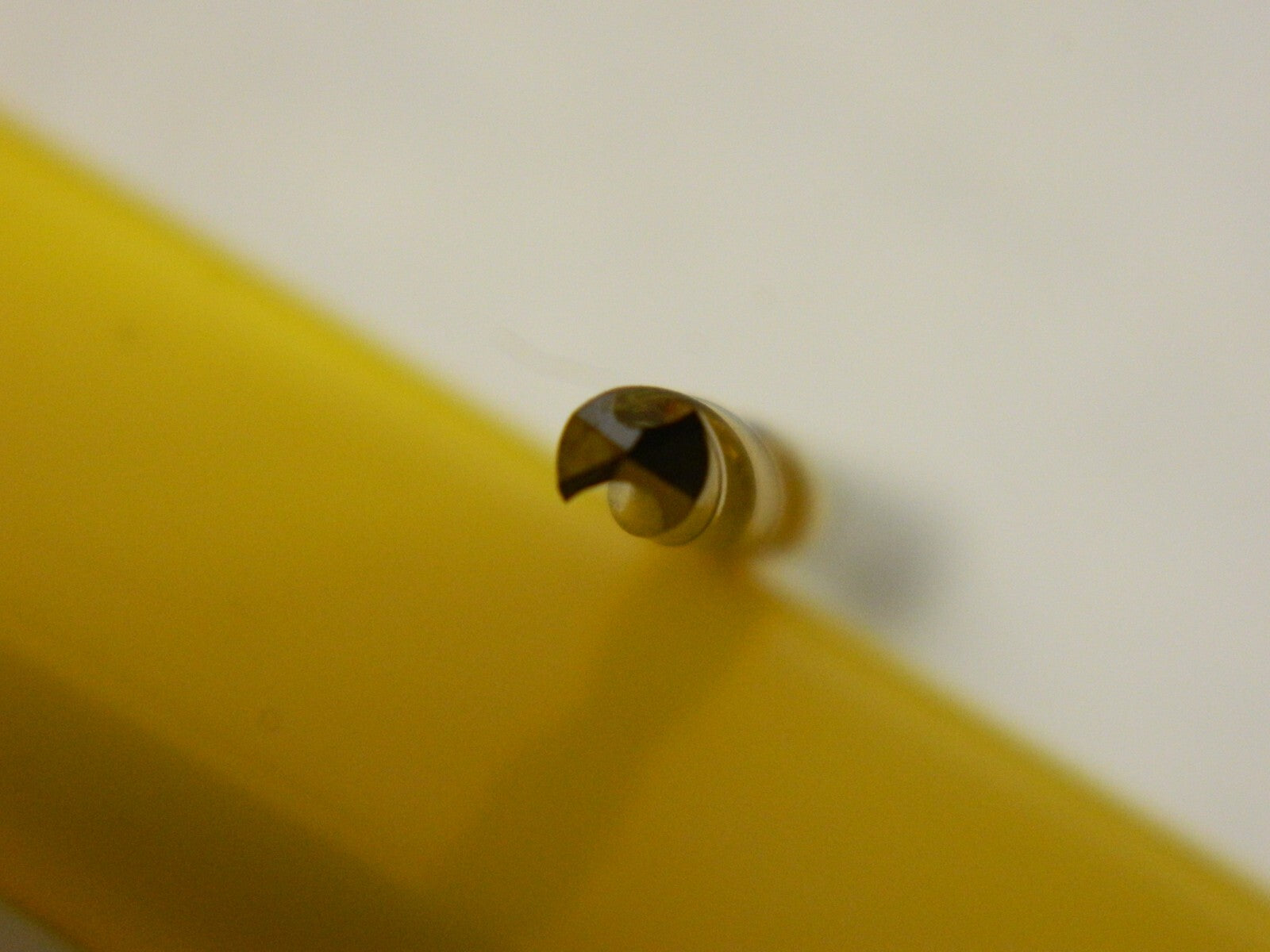

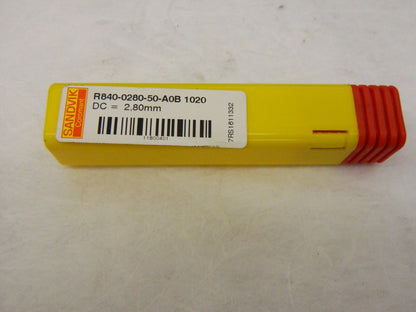

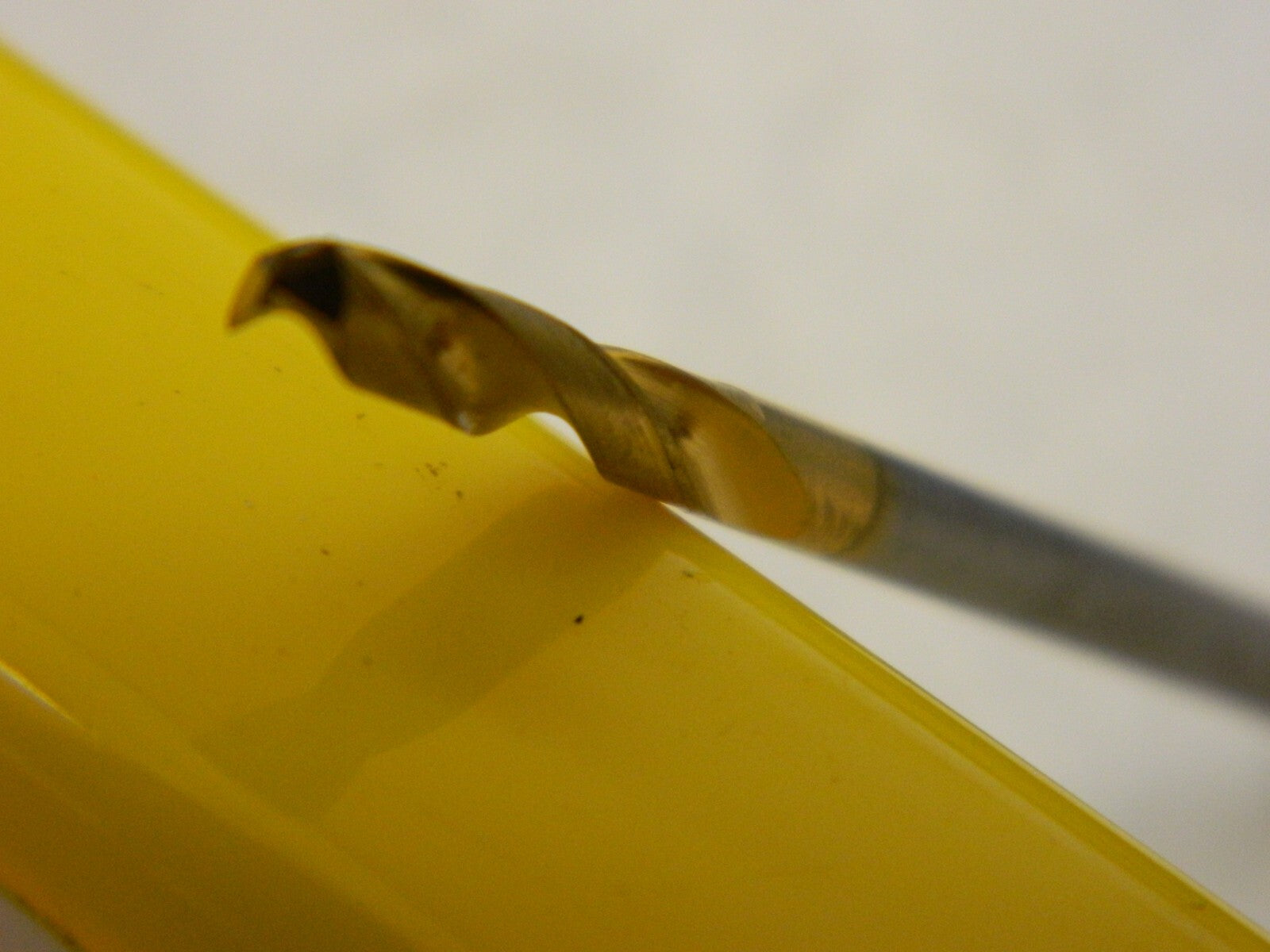

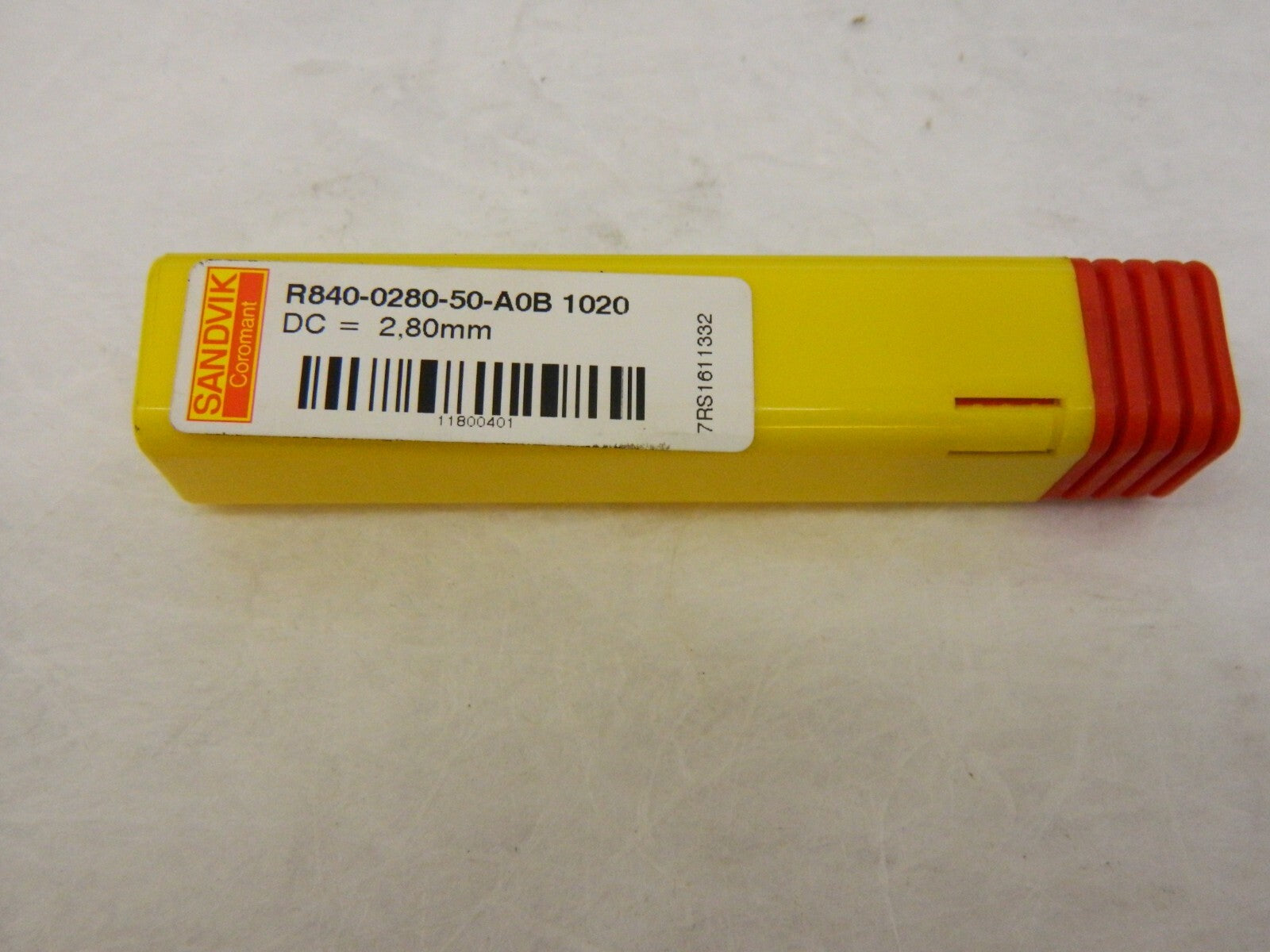

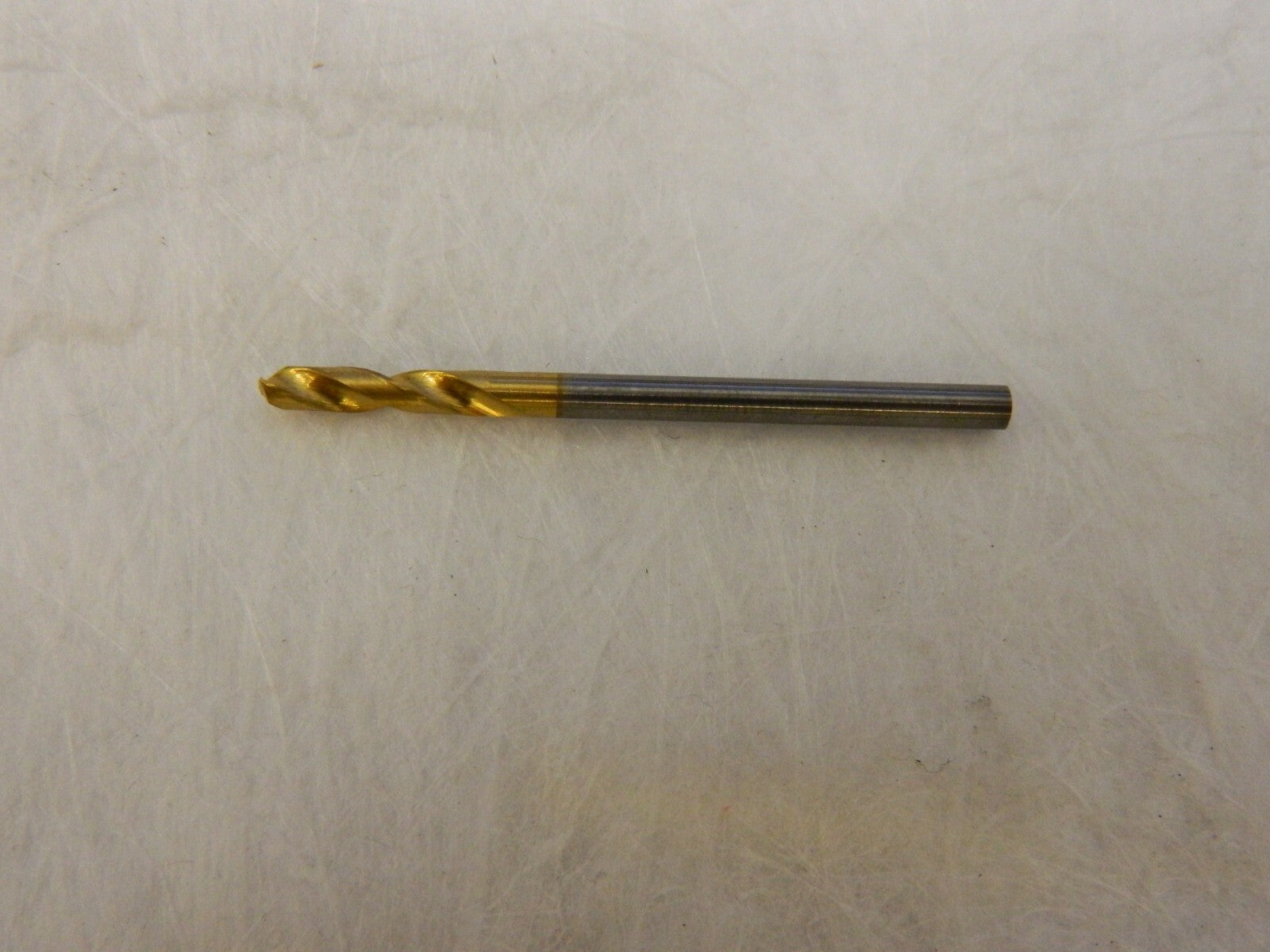

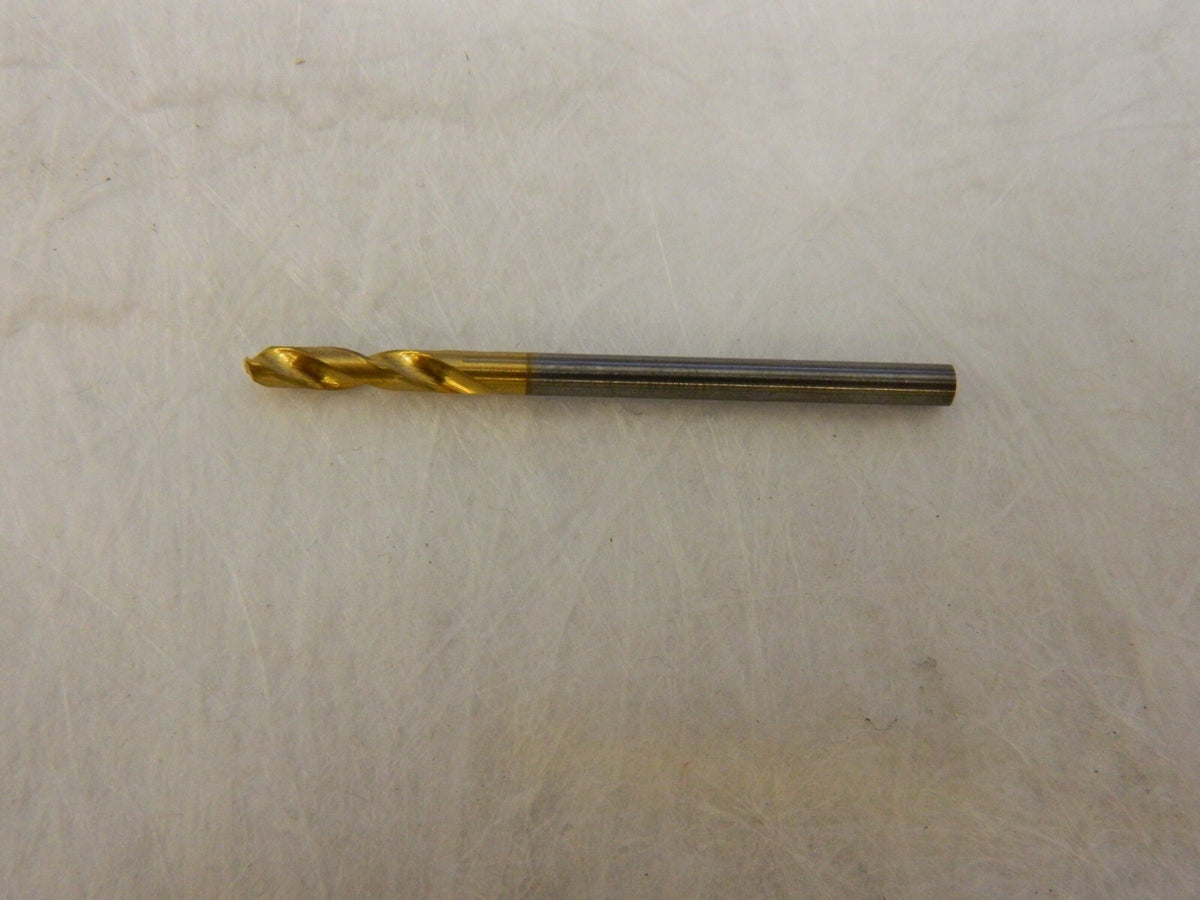

 Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
