Sandvik Milling Insert 690-140664M-E-SL S30T, S30T, Solid Carbide Qty 10 5853408

Sandvik
1 Lot of 10 Inserts

MSRP: $175.00

• Insert Style 690
• Insert Size 140664
• Insert Material Solid Carbide
• Manufacturer Grade S30T
• Inscribed Circle (Decimal Inch) 0.5512
• Inscribed Circle (mm) 14.00
• Thickness Range (Decimal Inch) 0.2500 to 0.3500
• Corner Radius (Decimal Inch) 0.2520
• Corner Radius (mm) 6.40
• Inscribed Circle Range (Decimal Inch) 0.5100 to 0.6000
• Insert Hand Right Hand
• Relief Angle 11.00
• Coating Process PVD
• Hole Diameter (Mm) ( - 0 Decimals) 5.50
• Hole Diameter (Decimal Inch) 0.2165

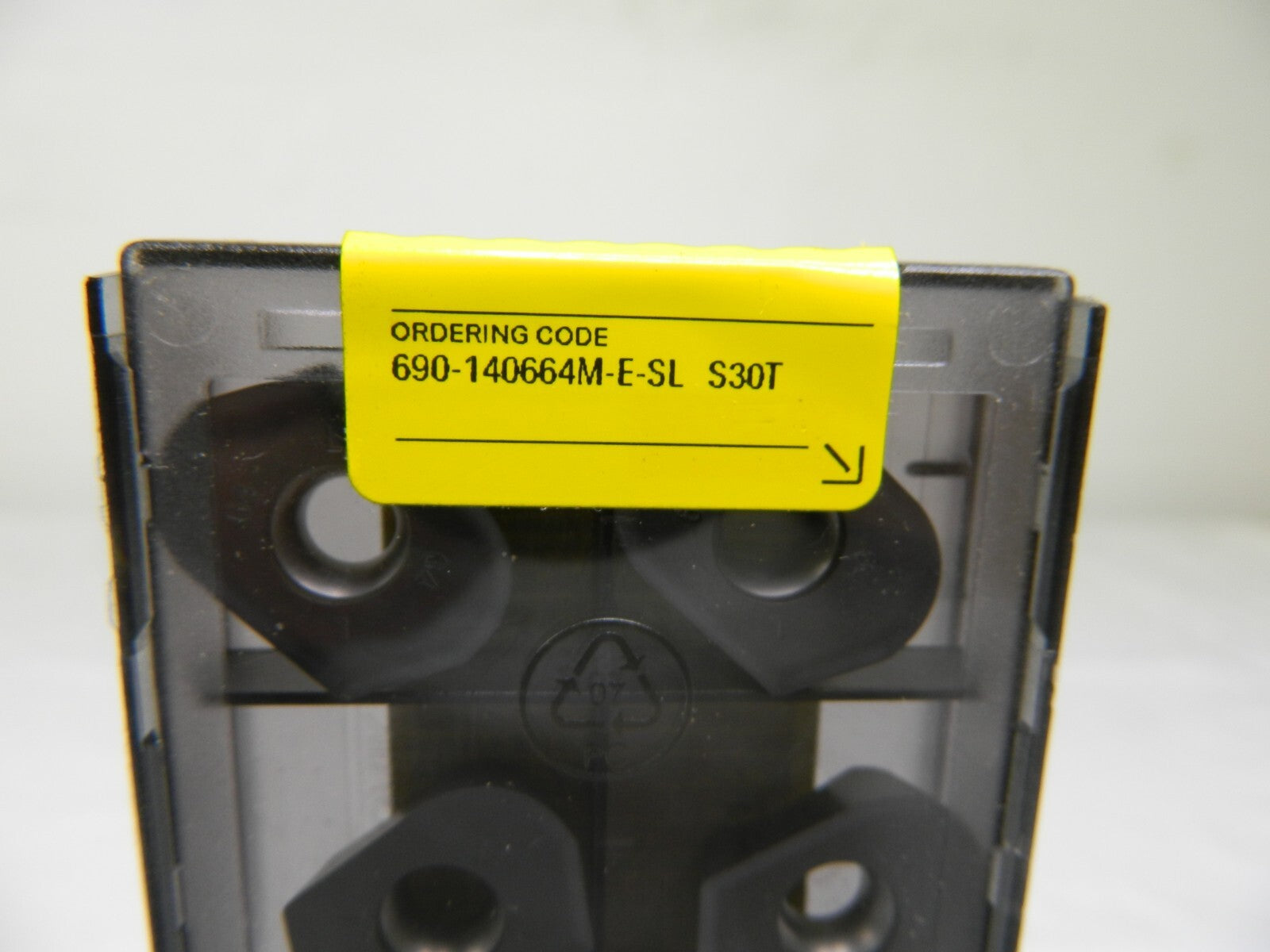

• Iso Code 690-140664M-E-SL S30T
• Cutting Edge Style ER Treated
• Manufacturers Catalog Number 5853408
• Chip Breaker SL
• Shape Parallelogram
• Thickness (mm) 6.35
• Coating/Finish TiAlN2
• Width (Decimal Inch - 4 Decimals) 0.5709
• Width (Mm - 2 Decimals) 14.50
• Thickness (Decimal Inch - 4 Decimals) 0.2500

These items are new and in the original sealed package. SOLD AS IS.

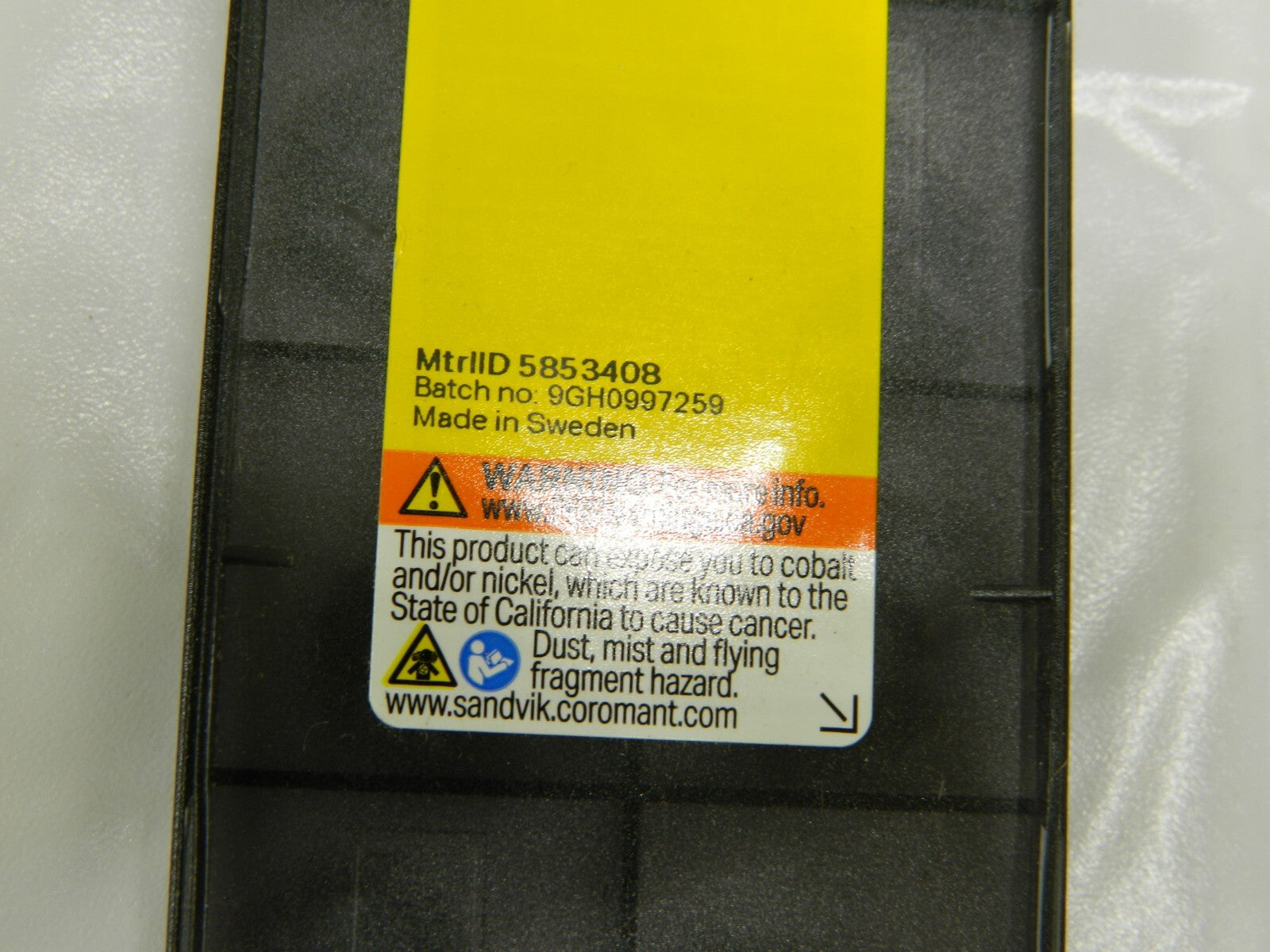

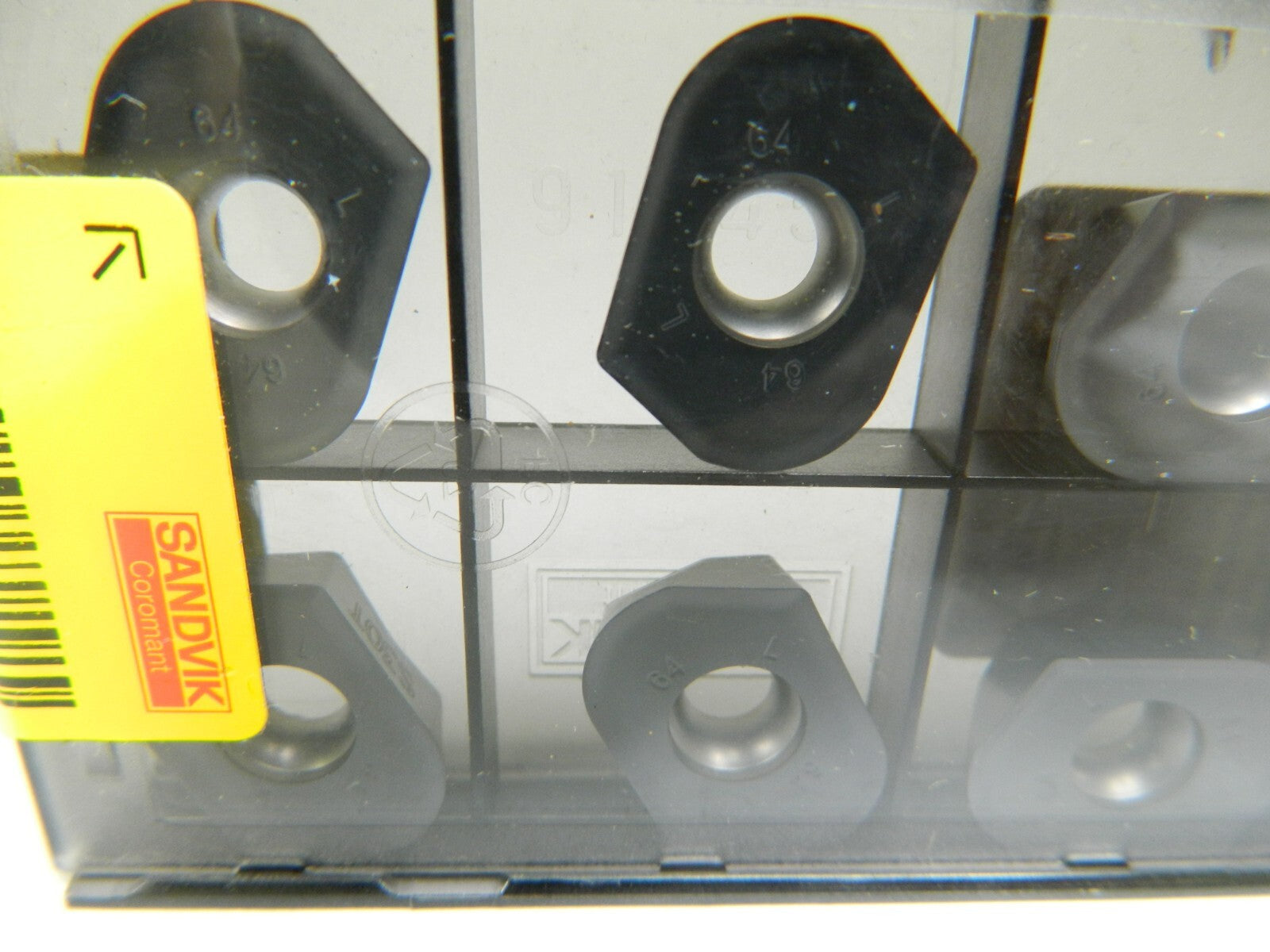

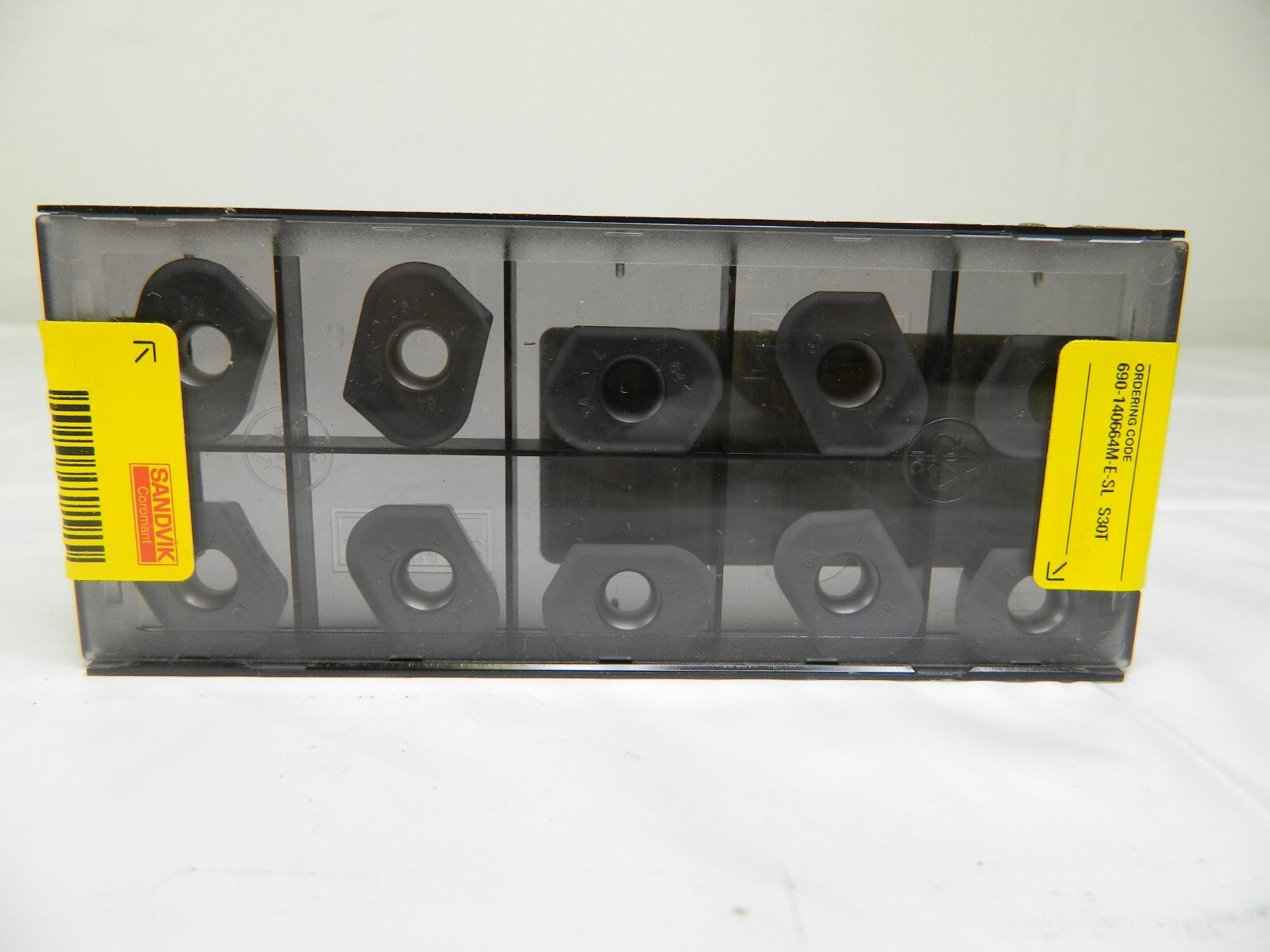

Please review photos, comes as shown.
