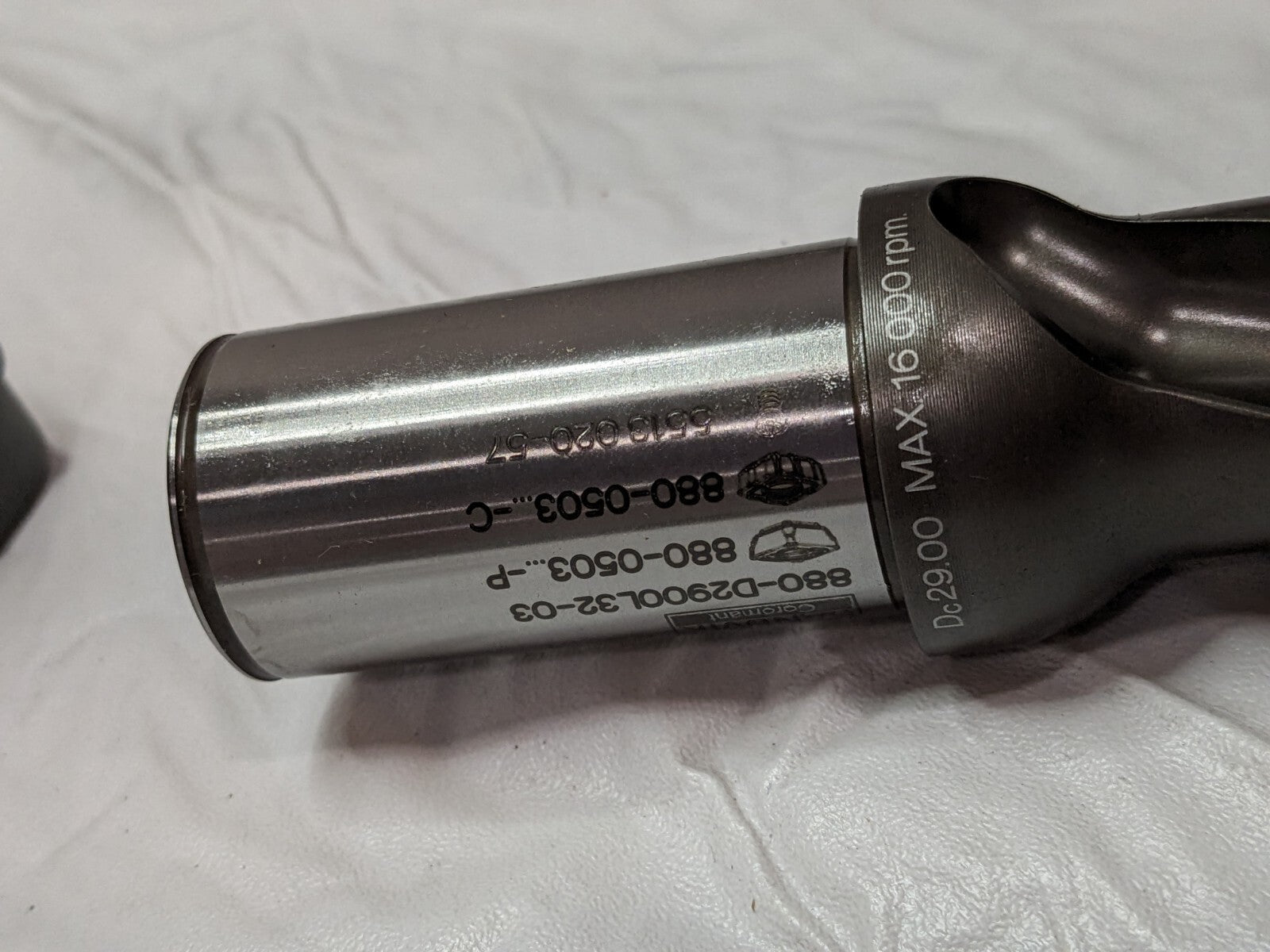

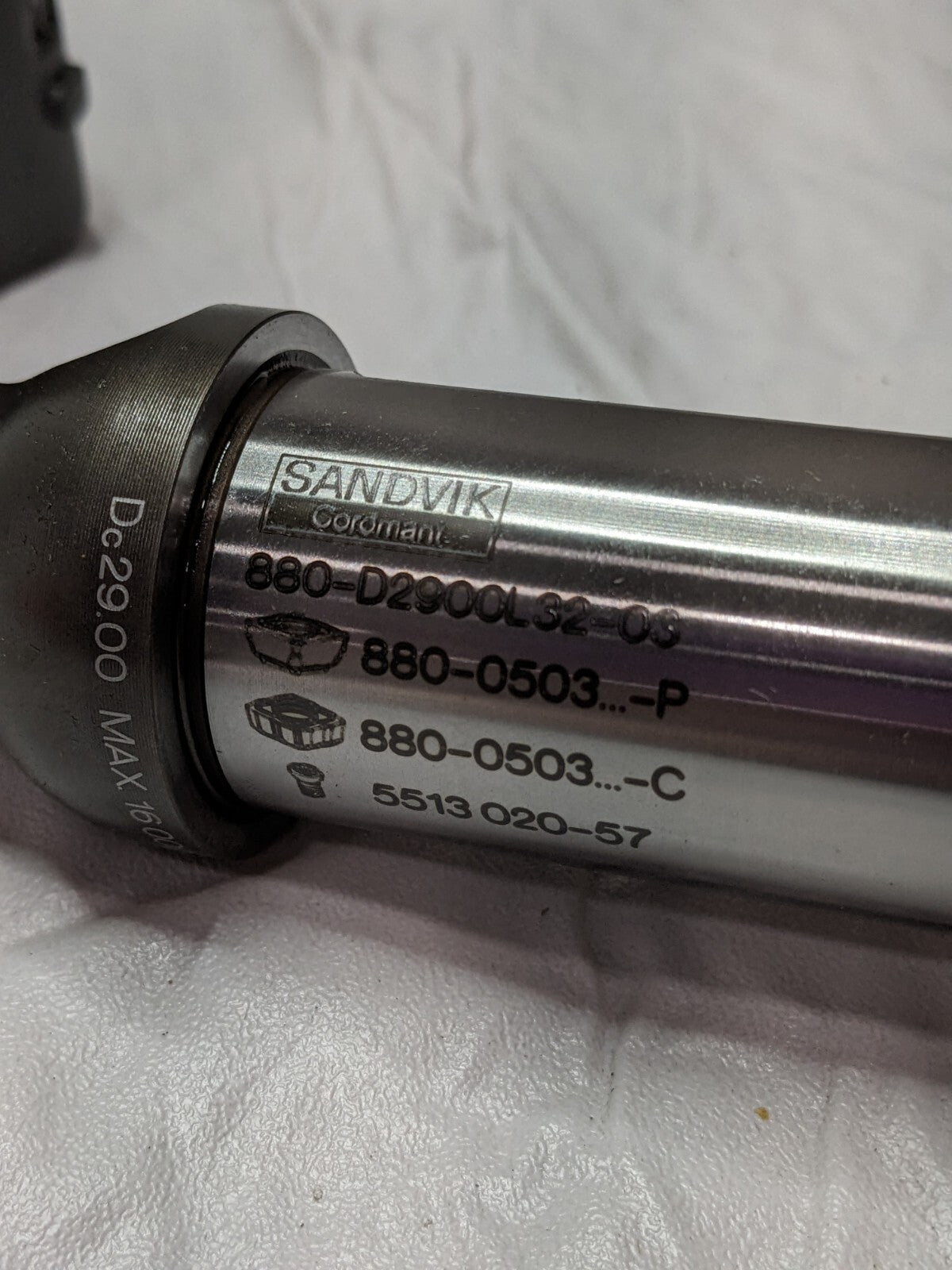

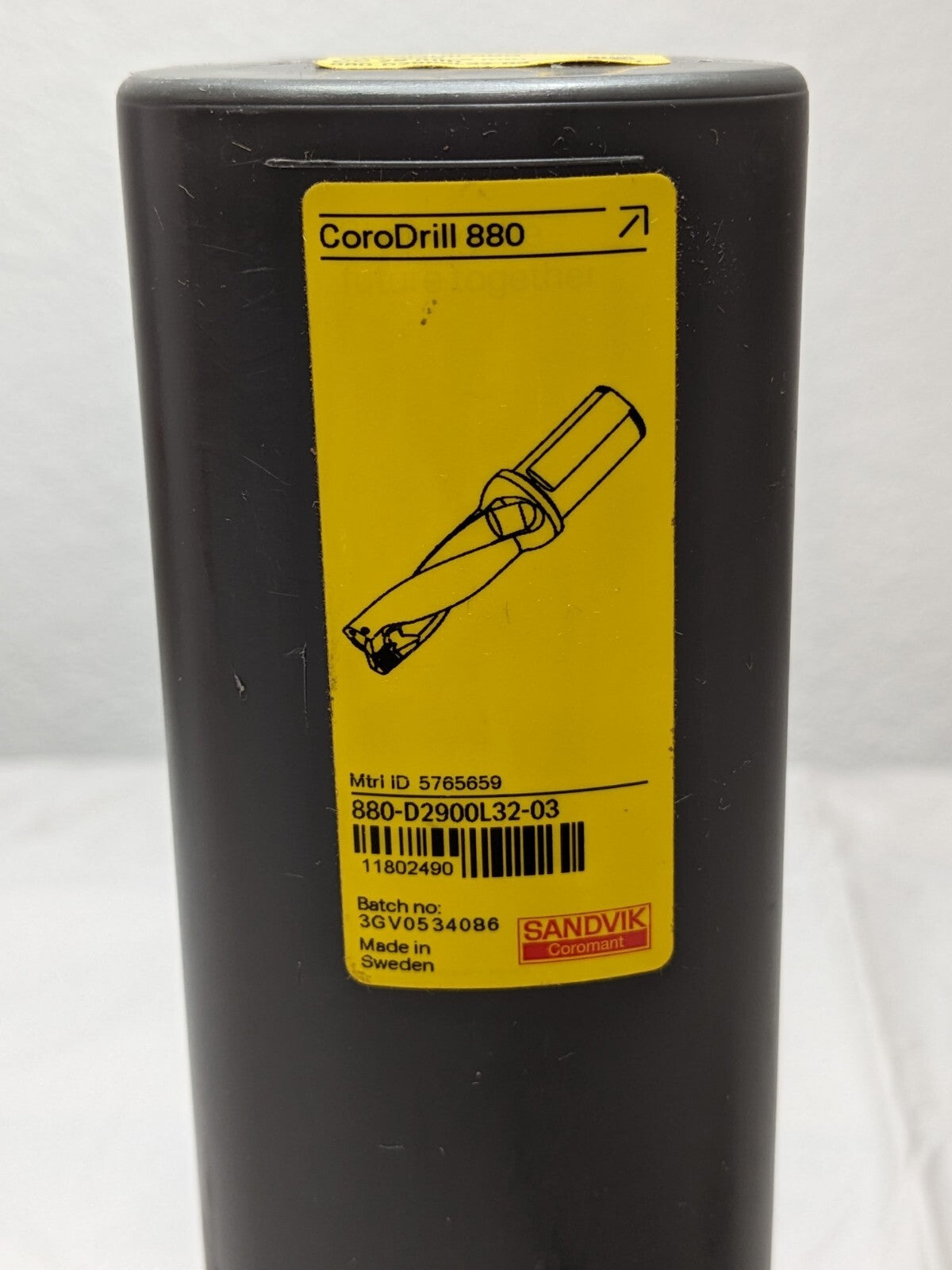

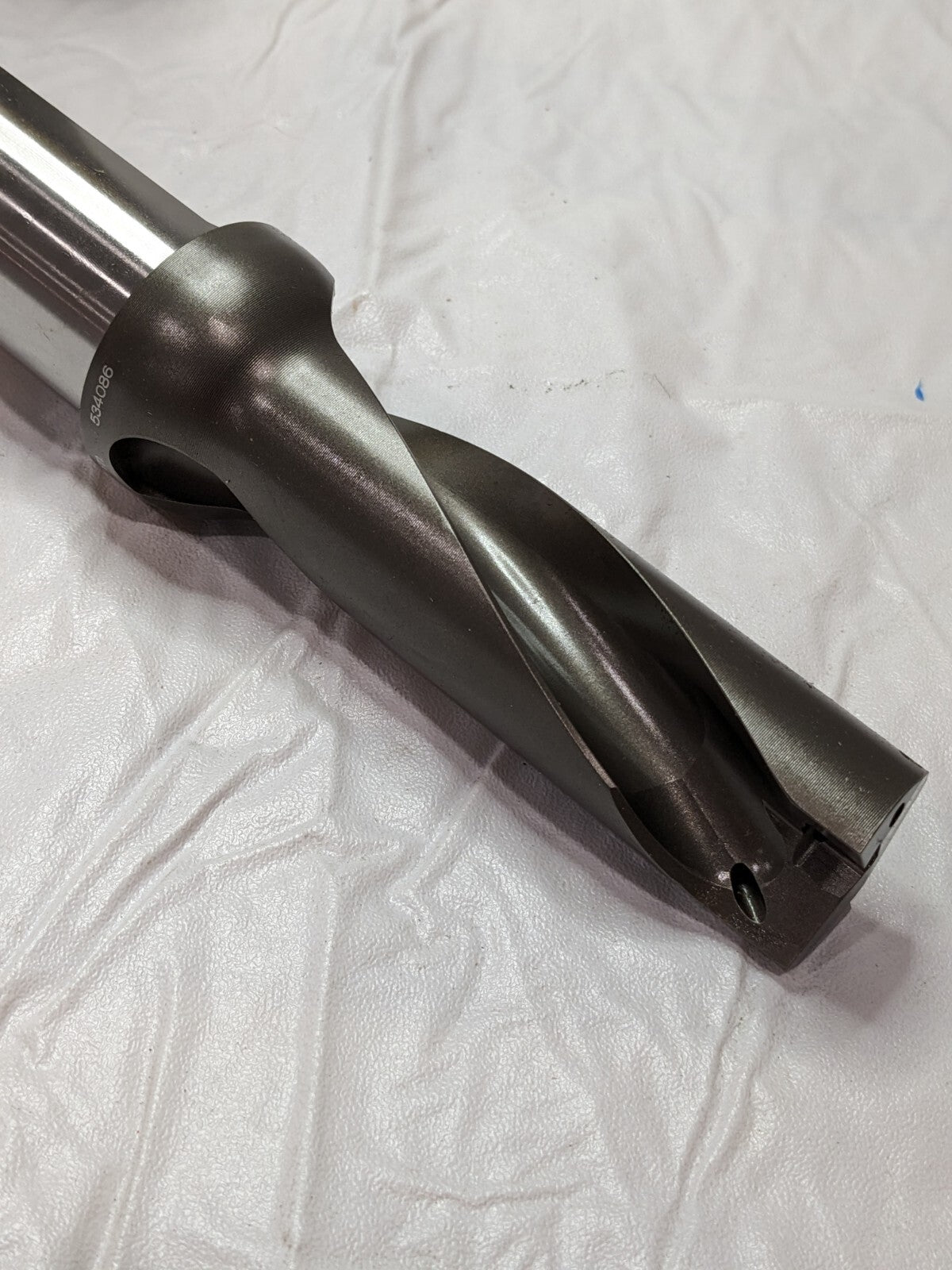

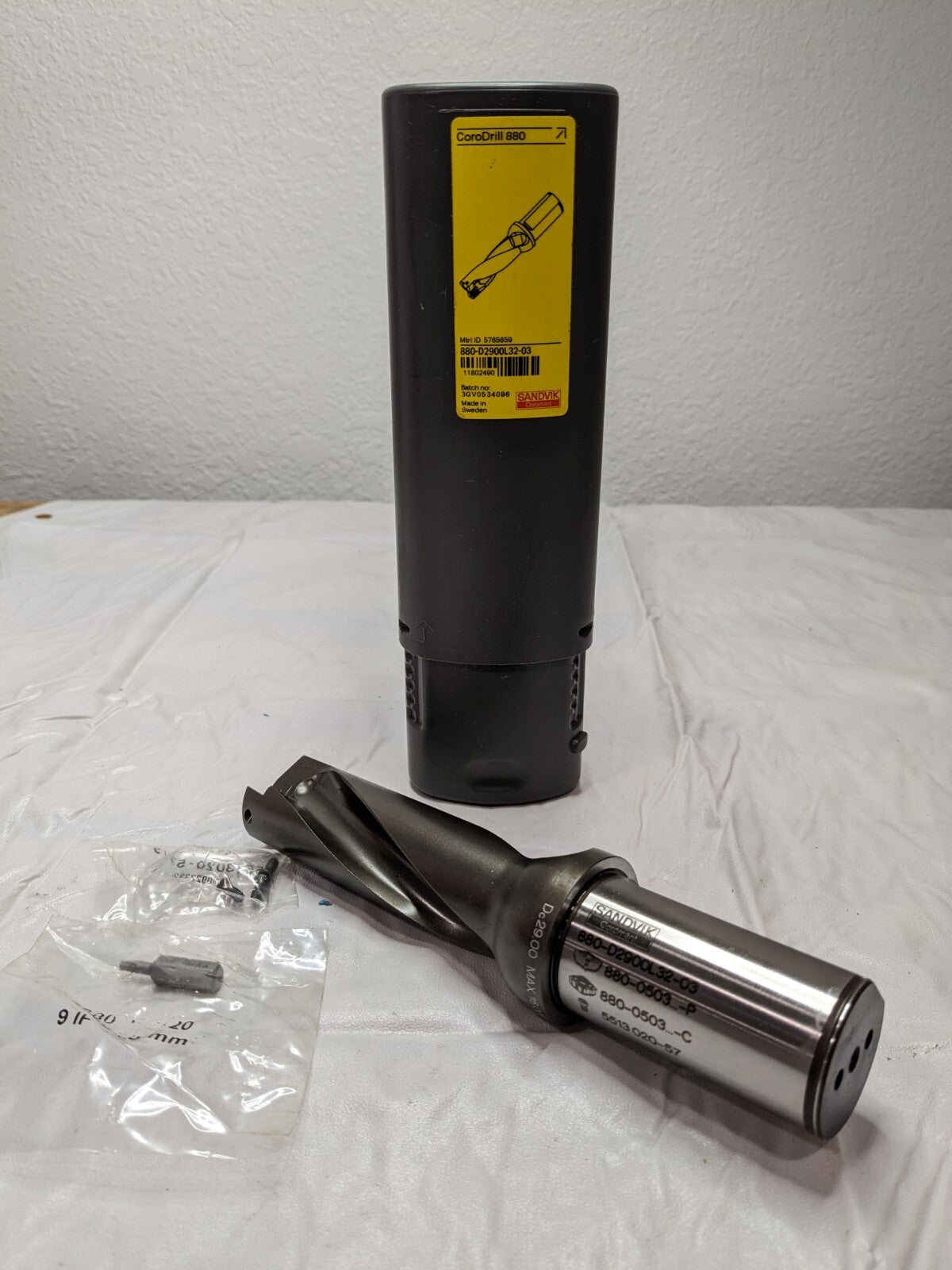

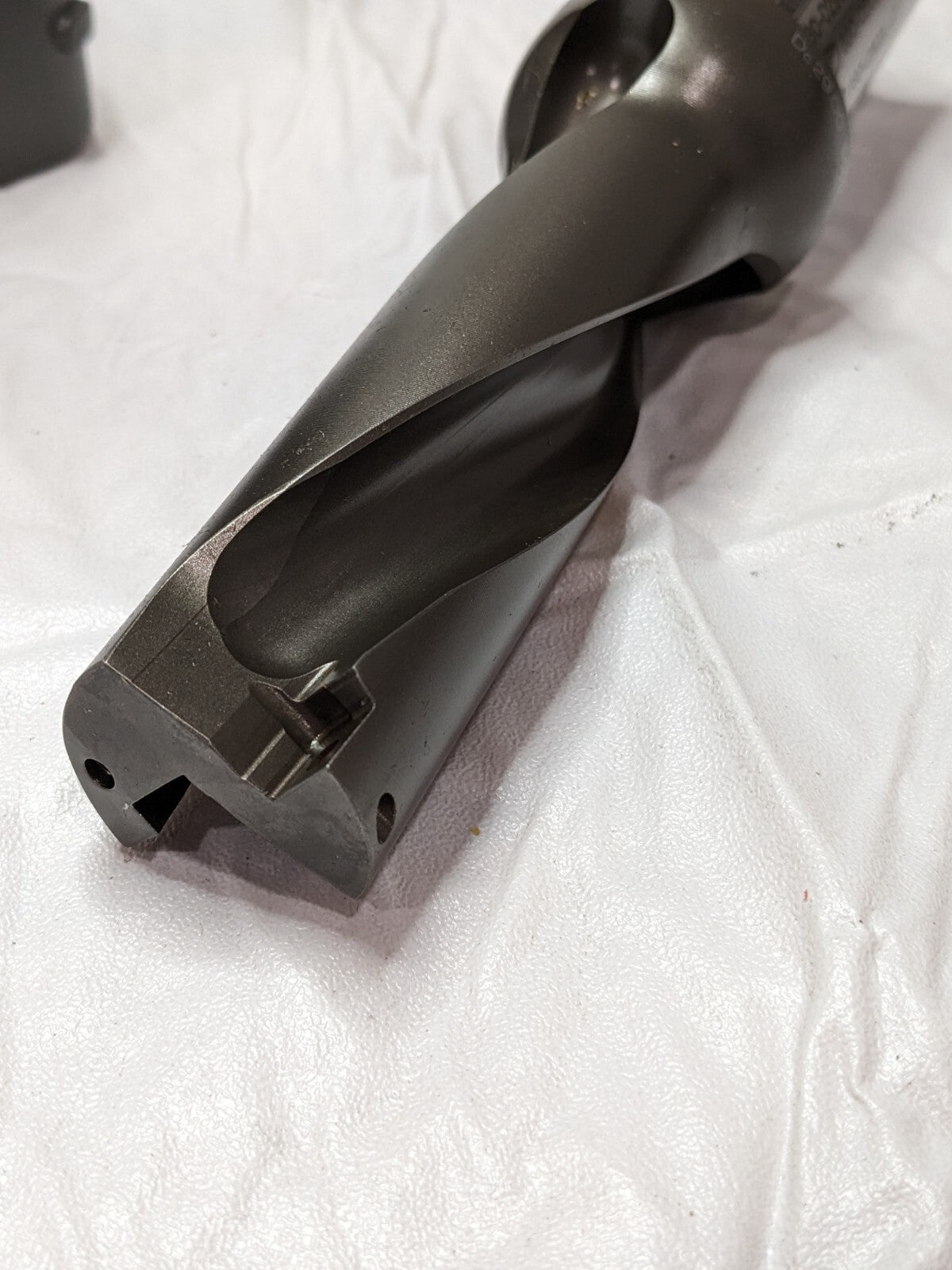

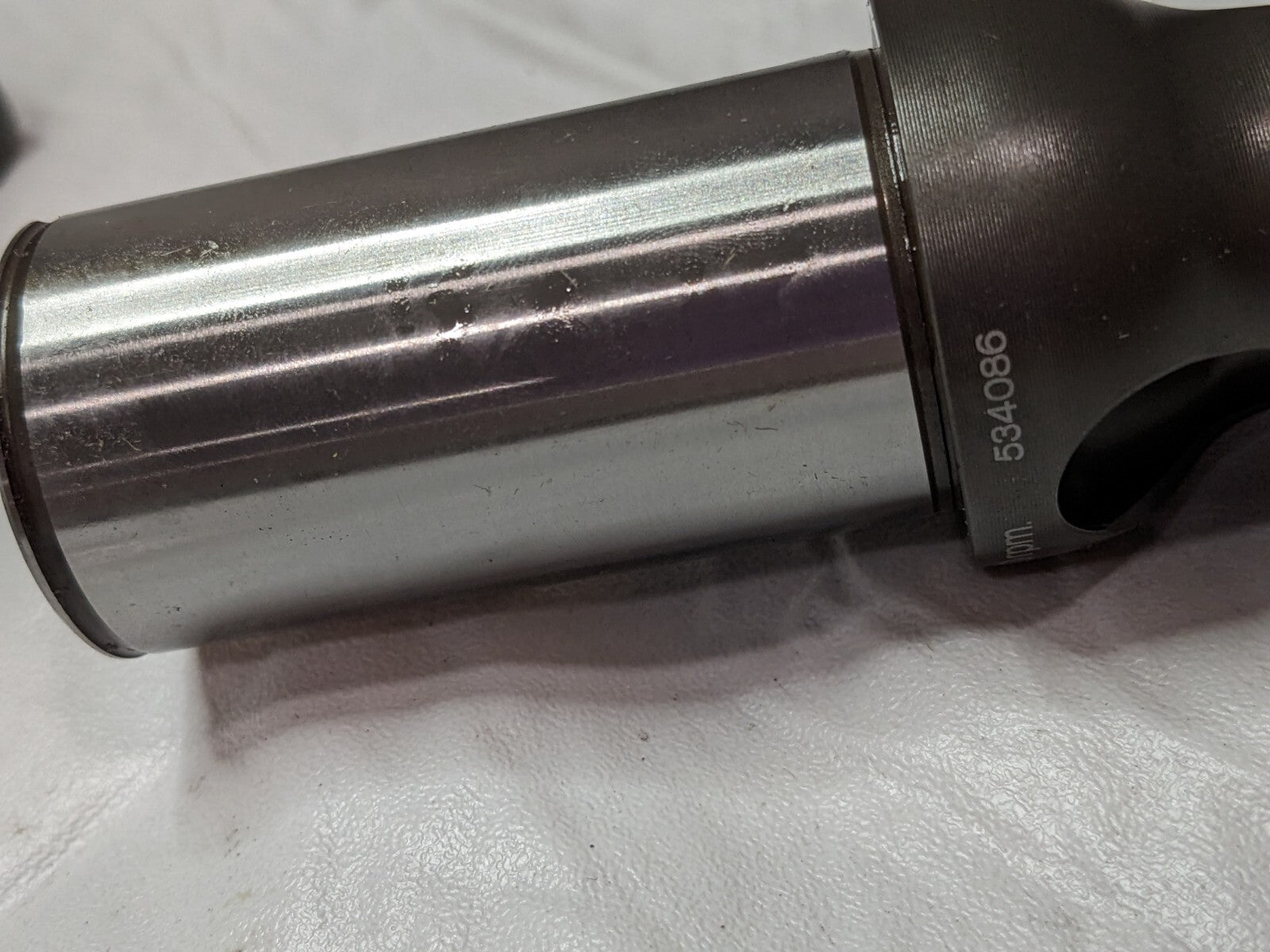

Sandvik Indexable Insert Drill 90mm Max Drill Depth, 3xD, 29mm Diam 5765659

Sandvik
Indexable Insert Drill

MSRP: $500.00

• Compatible Drill Style 880
• Maximum Drill Diameter (mm) 30.00
• Maximum Drill Diameter (Decimal Inch) 1.2598
• Maximum Drill Depth (Decimal Inch) 3.5433
• Maximum Drill Depth (mm) 90.00
• Shank Type Flange
• Shank Diameter (Decimal Inch) 1.2598
• Shank Diameter (mm) 32.00
• Number of Drill Inserts 2
• Cutting Direction Right Hand
• Maximum Drill Depth Range (Decimal Inch) 3.0000 to 4.0000
• Maximum Drill Depth Range (mm) 75.00 to 100.00
• Tool Material Steel
• Drill Depth by Diameter Ratio 3xD
• Series CoroDrill 880
• Flute Length (Decimal Inch) 3.4252
• Flute Length (mm) 87.00
• Body Length 111.45
• Body Length (Decimal Inch) 4.3878
• Shank Length (Decimal Inch) 2.3622
• Shank Length (mm) 60.00
• UNSPSC Code 23291503
• Insert Compatibility 880-050305H-C-GM; 880-0503W05H-P-GM
• Coolant Through Yes

This item appears to be new and in good condition. SOLD AS IS.

Please review photos, comes as shown.
