BRAND Sandvik
Item SANDVIK COROMANT

Turning Insert: TCMT32.51-PF 4415, Solid Carbide

Al2O3, TiN & TiCN Coated, Neutral, 3/8? Inscribed Circle, 0.4 mm Corner Radius, 60 ° Triangle, Series CoroTurn 107

• specs
• Insert Style TCMT
• Insert Shape Code T
• Insert Size Code 16T3
• Insert Shape Triangle
• Coating/Finish Al2O3/TiN/TiCN
• Manufacturer Grade 4415
• Corner Radius (mm) 0.40
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Solid Carbide
• Hole Diameter (Mm) ( - 0 Decimals) 4.40
• Hole Diameter (Decimal Inch) 0.1732
• Inscribed Circle (Inch) 3/8
• Inscribed Circle (Decimal Inch) 0.3750
• Insert Holding Method Screw; Clamp
• Insert Hand Neutral
• Insert Thickness (Inch) 5/32
• Insert Thickness (Decimal Inch) 0.1563
• Clearance Code C
• Tolerance Code M
• Included Angle 60.0
• Relief Angle 7
• Series CoroTurn 107
• Coating Process CVD
• Wiper Edge No
• Number Of Cutting Edges 3
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Secondary Workpiece Material Cast Iron
• Secondary Workpiece Material Code K
• Ansi Code TCMT3251PF4415
• Iso Code TCMT 16 T3 04-PF 4415
• Manufacturers Catalog Number TCMT 3(2.5)1-PF
• Cutting Direction Neutral
• Chip Breaker PF
• Industry Standard Number TCMT 16 T3 04-PF 4415

Appears to be new and in good condition.  Package has been opened.  Sold as is.

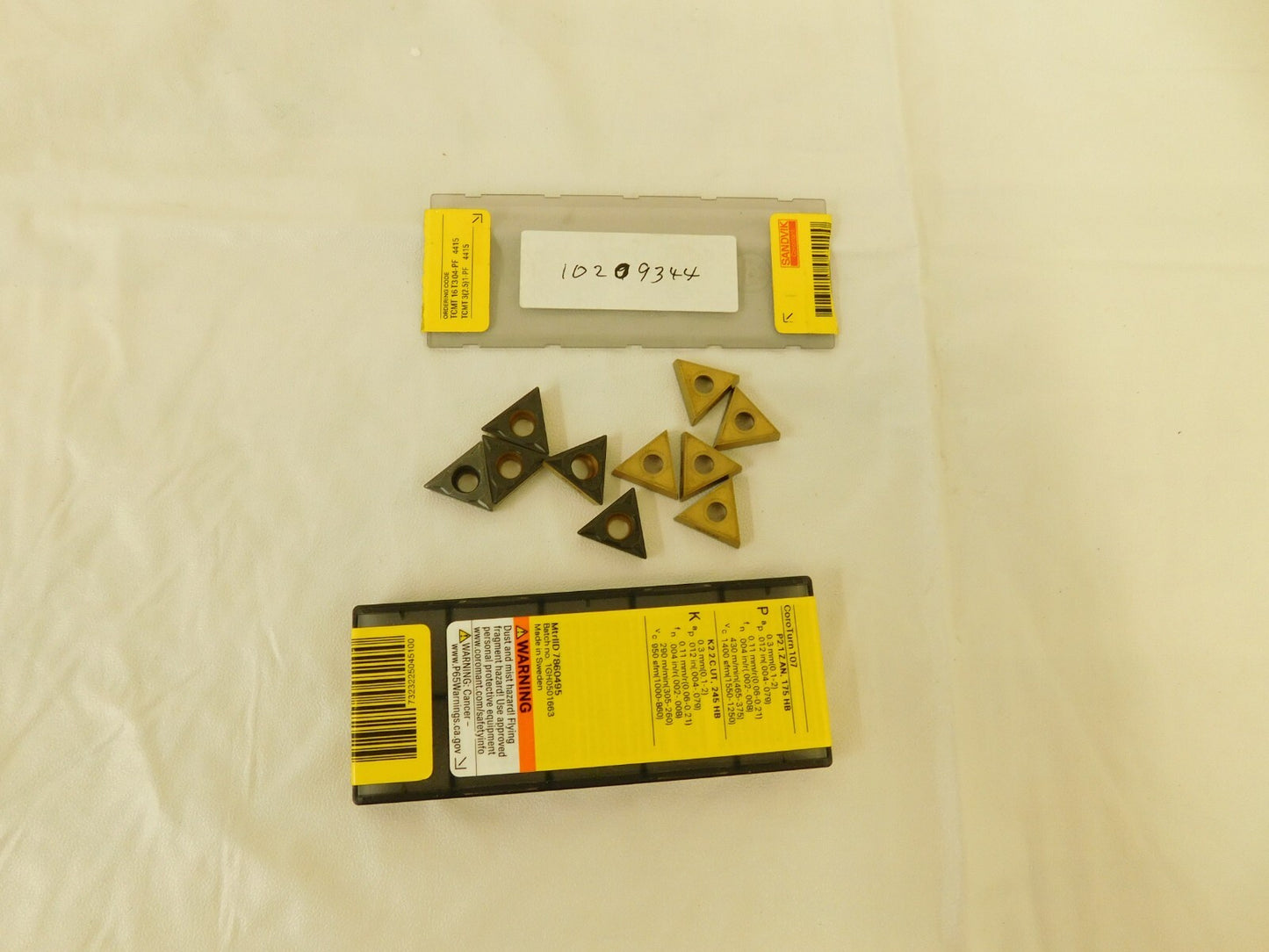

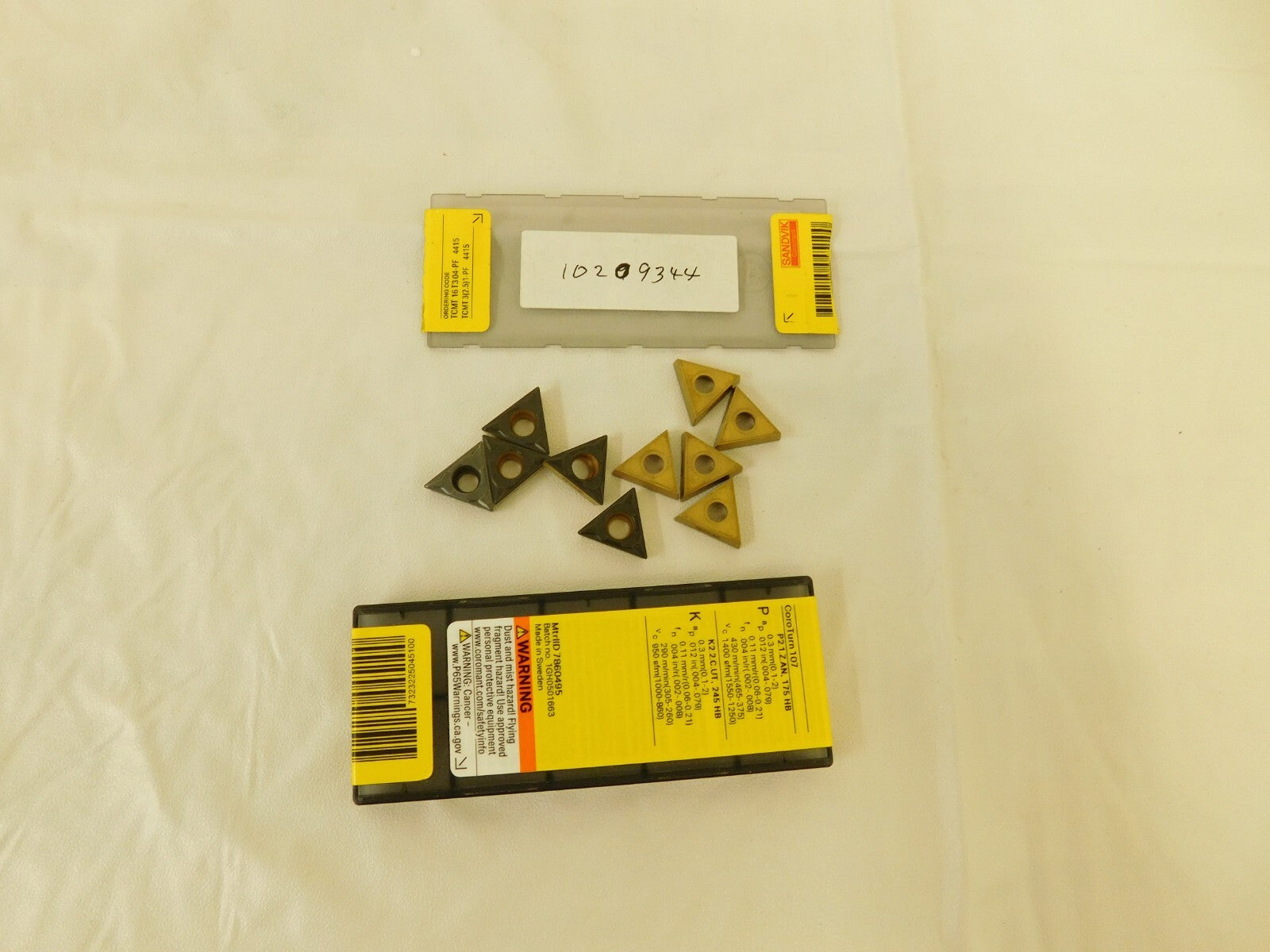

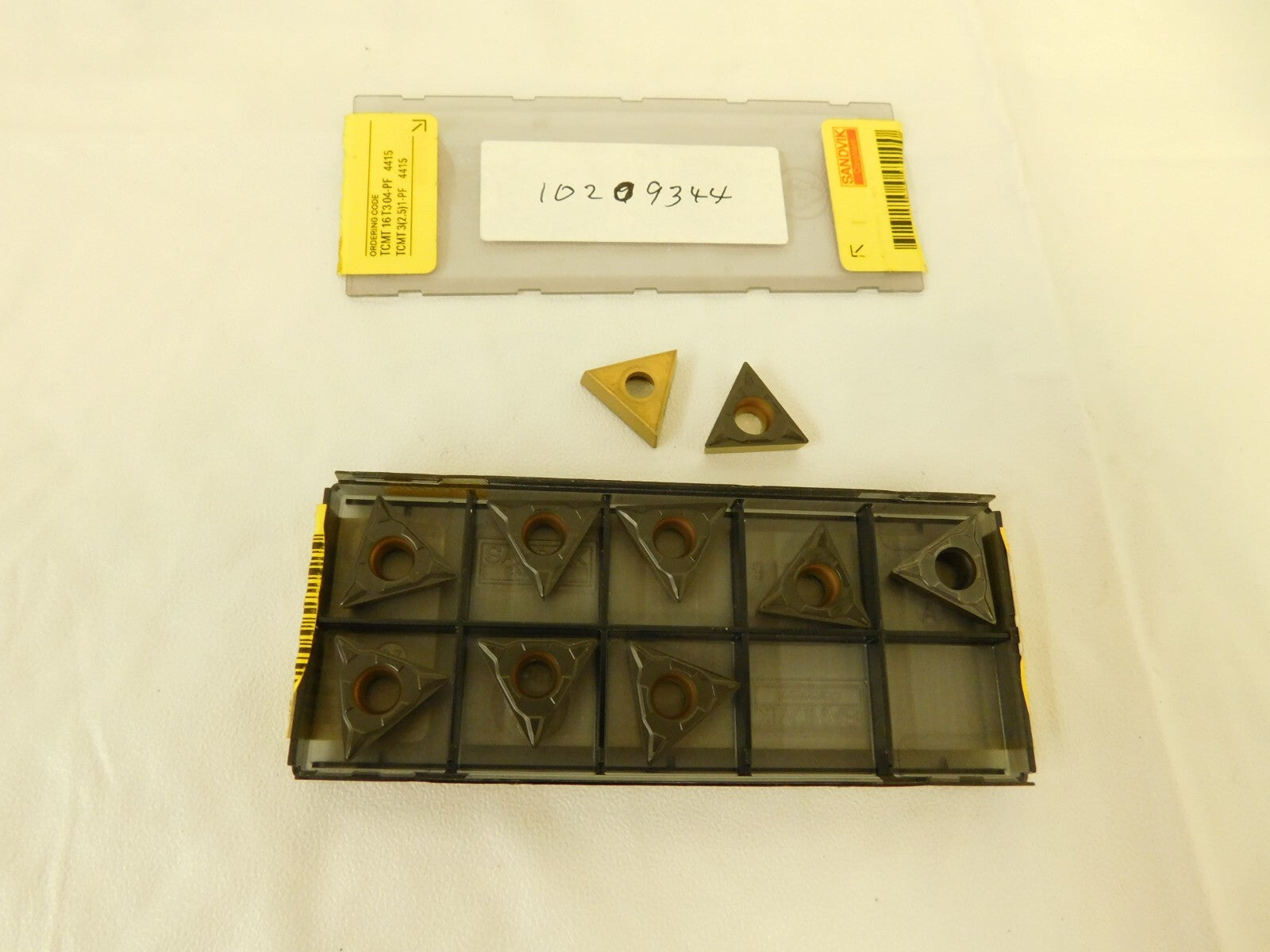

Please review photos, comes as shown.
