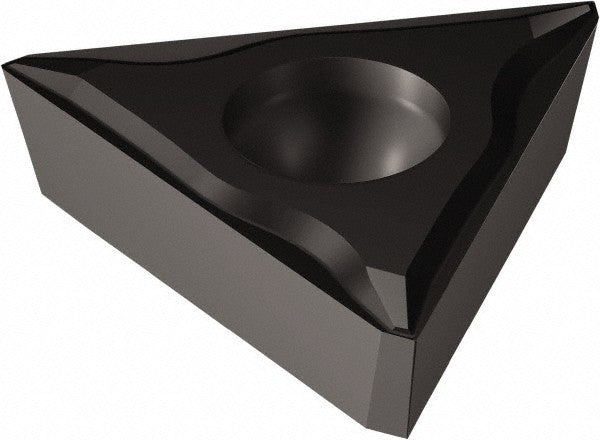

Sandvik Coromant Turning Insert: TCEX2203L-F 1105, Carbide 10 pack
Sandvik Coromant Turning Insert: TCEX2203L-F 1105, Carbide 10 pack
Regular price
$195.00 USD
Regular price
$390.00 USD
Sale price
$195.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND Sandvik
Item 10 pack
MSRP: $390.00
- specs

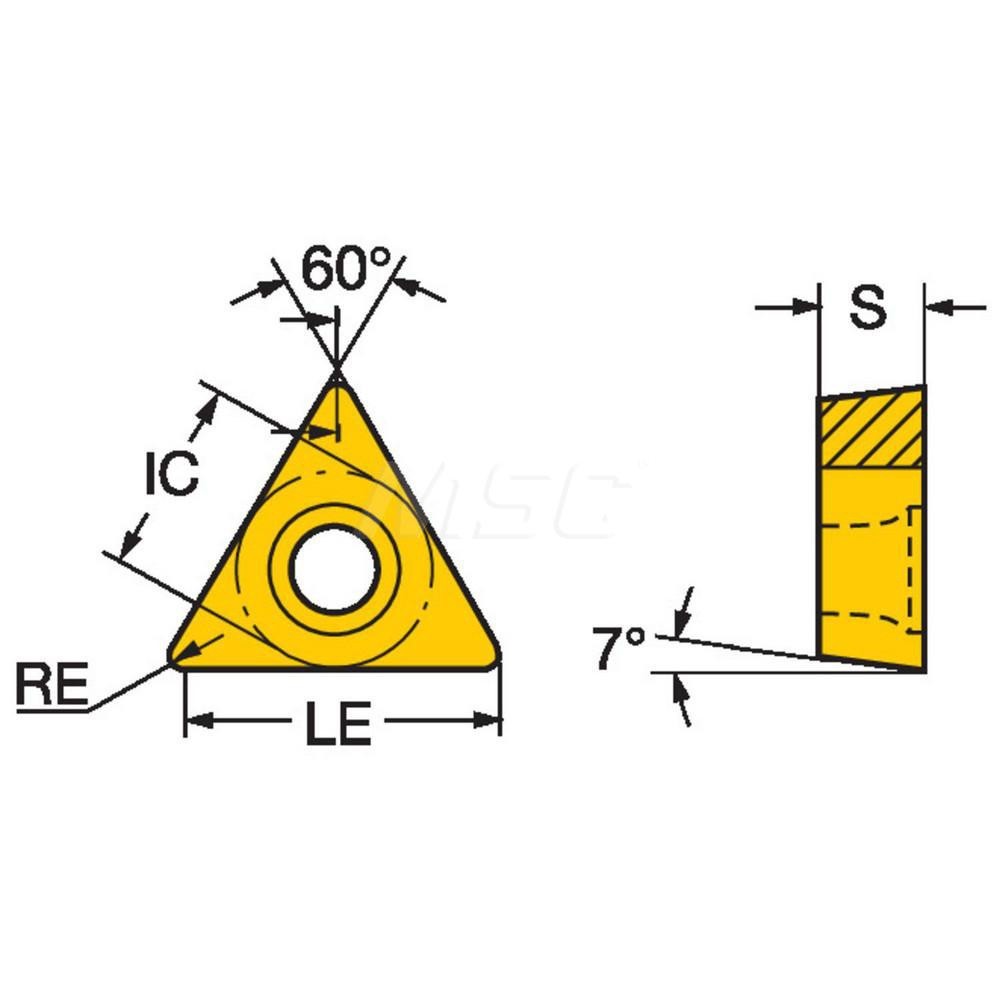

| Insert Style: TCEX | ANSI Size Code: 2203 |
| ISO Size Code: 110301 | Insert Shape: T - Triangle |
| Included Angle: 60.00 | Inscribed Circle (Decimal Inch): 0.2500 |
| Inscribed Circle (Inch): 1/4 | Inscribed Circle (mm): 6.35 |
| Corner Radius (mm): 0.10 | Corner Radius (Decimal Inch): 0.0039 |
| Insert Material: Carbide | Manufacturer Grade: 1105 |
| Relief Angle: 7.000 | Wiper Edge: No |
| Insert Thickness (Inch): 1/8 | Insert Thickness (Decimal Inch): 0.1250 |
| Insert Thickness: 3.17 | Insert Hand: Left Hand |
| Series: CoroTurn 107 | Chip Breaker Operation: Finishing |
| Grade Characteristics: Special, Super Alloys (S) - High Wear-Resistance | Side Clearance: Positive |
| Number Of Cutting Edges: 3 | Hole Diameter (Decimal Inch): 0.1102 |
| Hole Diameter (mm): 2.80 | Maximum Depth of Cut (mm): 10.64 |
| ANSI Insert Code: TCEX2203 | ISO Insert Code: TCEX110301 |
| Insert Holding Method: Screw | Clearance Code: C |
| Tolerance Code: E | Coating Process: PVD |
| Primary Workpiece Material: Steel | Primary Workpiece Material Code: S |
| Secondary Workpiece Material: Superalloy; Stainless Steel; Titanium; Steel | Secondary Workpiece Material Code: P; S; M |
| Iso Code: TCEX 11 03 01L-F 1105 | Chip Breaker: F |
| Cutting Edge Style: Sharp | UNSPSC Code: 23242105 |
| Country of Origin: Sweden |
(Description).
Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
