SANDVIK COROMANT

Turning Insert: SPU321 H13A, Solid Carbide qty 5 5751092
MSRP: $30

• Insert Style SPUN
• Insert Shape Code S
• Insert Size Code 321
• Insert Shape Square
• Coating/Finish Bright/Uncoated
• Manufacturer Grade H13A
• Corner Radius (Inch) 1/64
• Corner Radius (mm) 0.40
• Corner Radius (Decimal Inch) 0.0157
• Insert Material Solid Carbide
• Maximum Depth of Cut (mm) 9.13
• Maximum Depth of Cut (Decimal Inch) 0.3594
• Inscribed Circle (Inch) 3/8
• Inscribed Circle (Decimal Inch) 0.3752
• Insert Holding Method Clamp
• Insert Hand Neutral
• Insert Thickness (Inch) 1/8
• Insert Thickness 3.18
• Insert Thickness (Decimal Inch) 0.1252
• Clearance Code P
• Tolerance Code U
• Included Angle 90.0
• Relief Angle 11
• Series T-Max
• Primary Workpiece Material S; K; N
• Iso Code SPUN090304H13A
• Manufacturers Catalog Number 5751092
• Cutting Direction Neutral
• Chip Breaker N

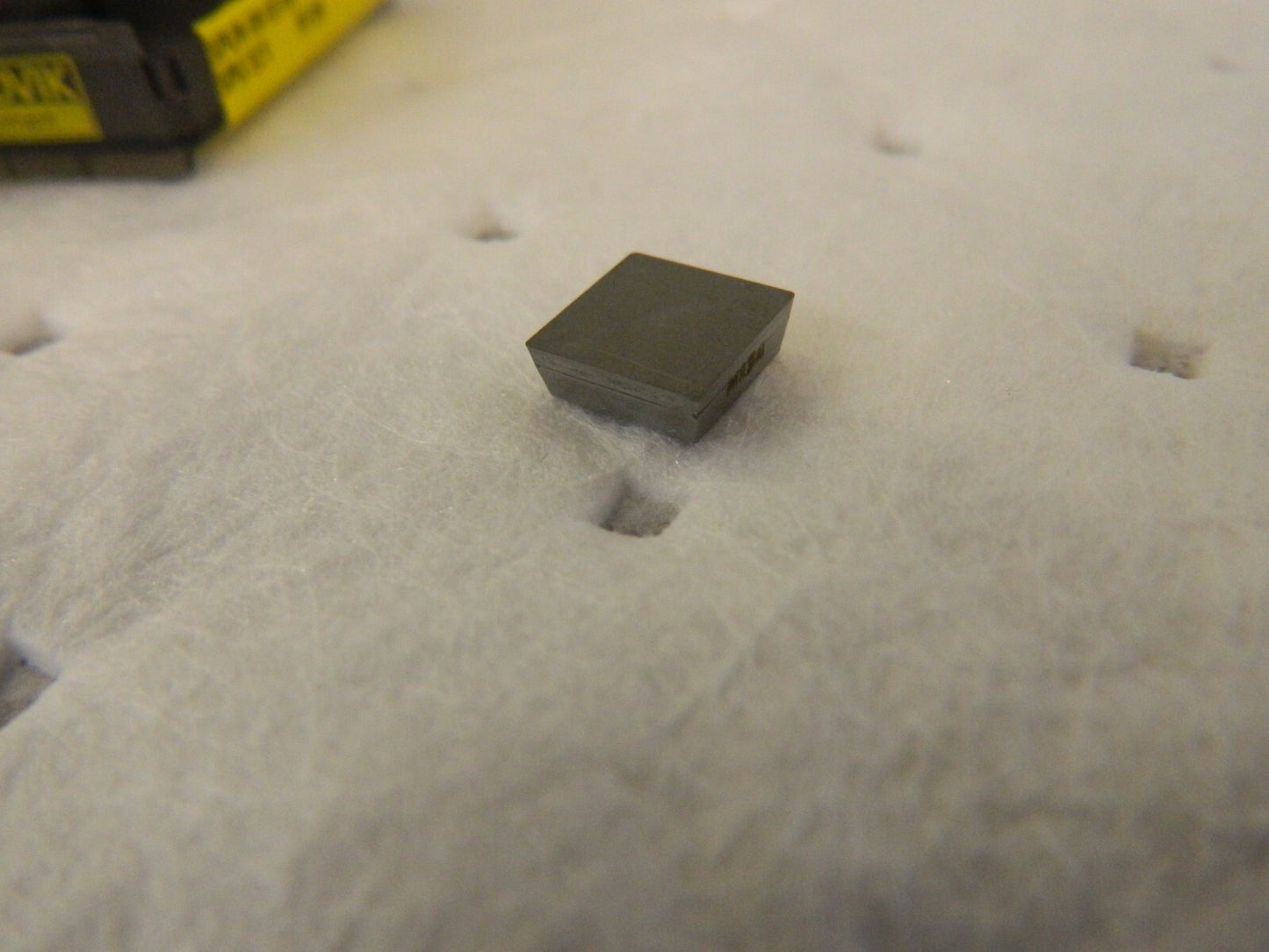

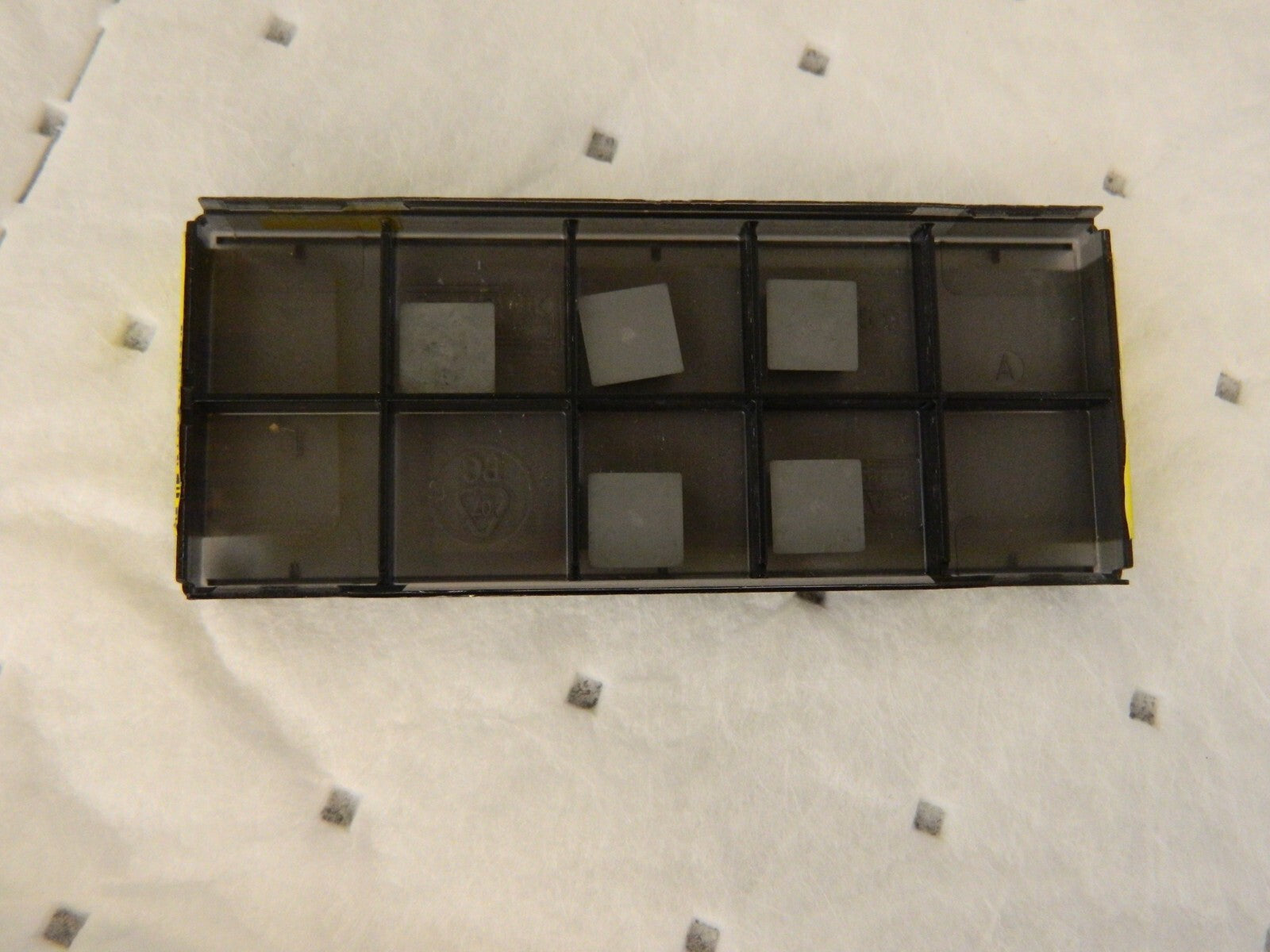

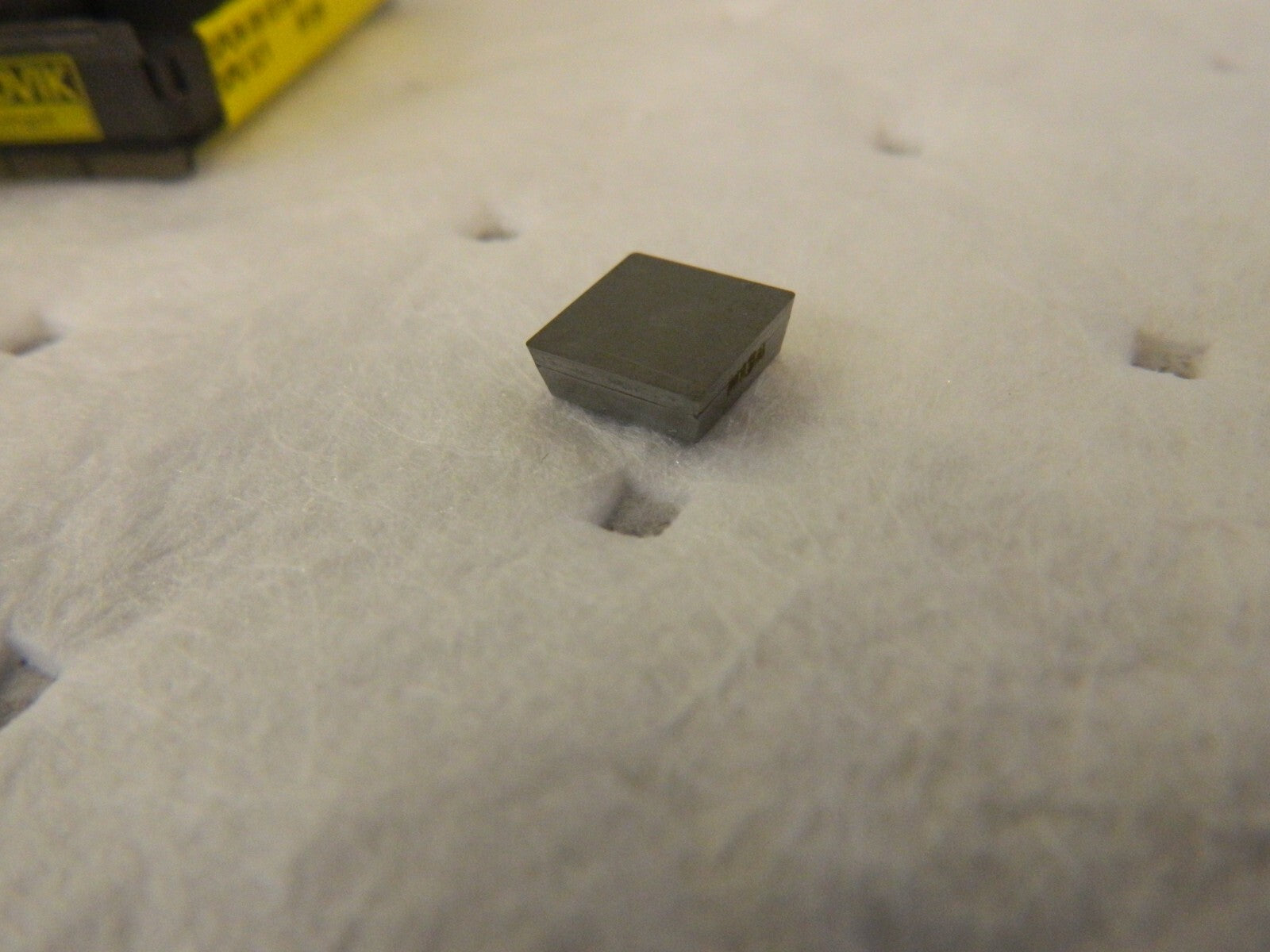

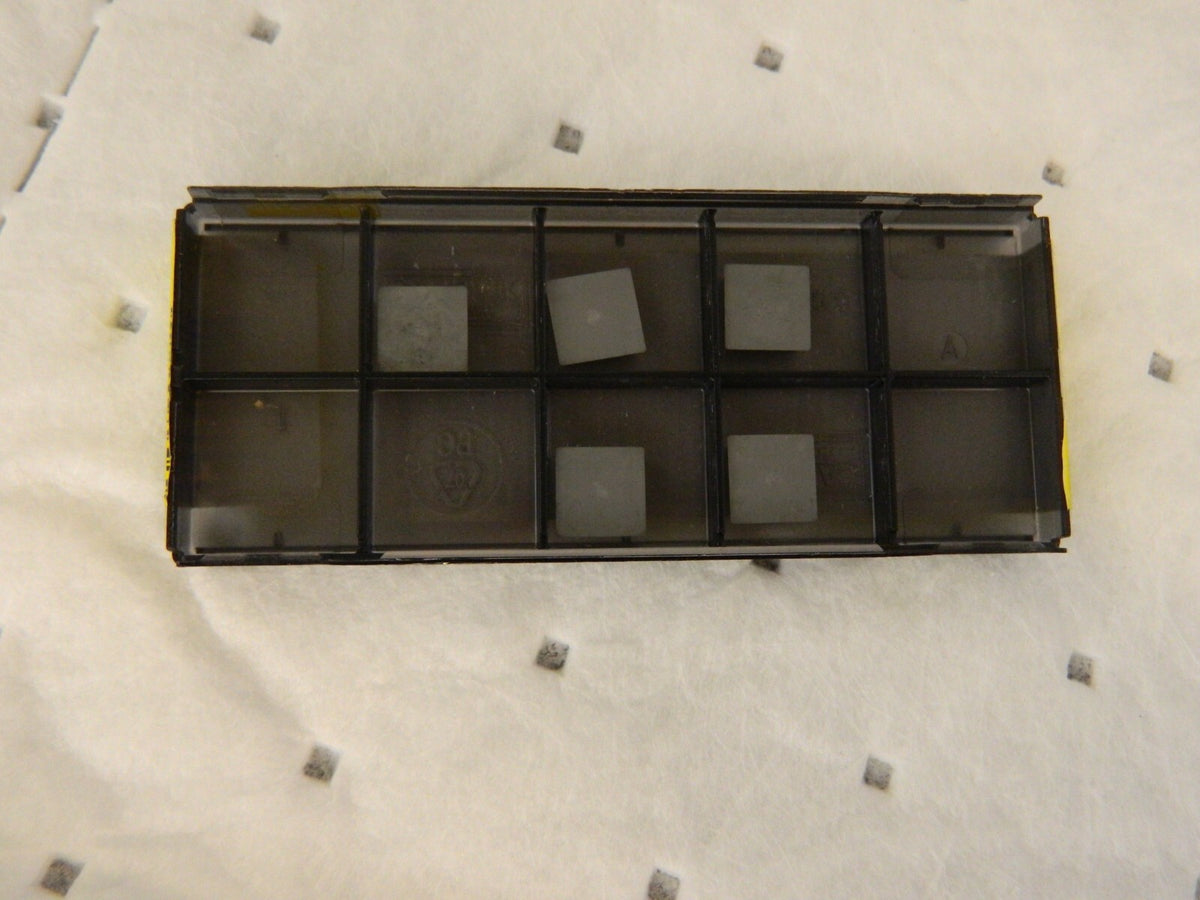

 Please review photos, comes as shown.
