SANDVIK COROMANT Turning Insert: SNMG434-KM 3225 Carbide 5pk 6868533

SANDVIK COROMANT Turning Insert: SNMG434-KM 3225 Carbide 5pk 6868533

MSRP: $60

• Insert Style SNMG
• Insert Size Code 434
• Insert Shape Square
• Included Angle 90
• Inscribed Circle (Decimal Inch) 0.5000
• Corner Radius (Decimal Inch) 0.0625
• Corner Radius (mm) 1.59
• Insert Material Carbide
• Manufacturer Grade 3225
• Coating/Finish TiCN; TiN; AI2O3
• Relief Angle 0
• Insert Thickness 4.76
• Insert Thickness (Decimal Inch) 0.1875
• Insert Hand Neutral
• Insert Shape Code S
• Corner Radius (Inch) 1/16
• Hole Diameter (Mm) ( - 0 Decimals) 5.16
• Hole Diameter (Decimal Inch) 0.2030
• Maximum Depth of Cut (mm) 11.10
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (mm) 12.70
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code M
• Series T-Max P
• Coating Process CVD
• Iso Code SNMG 12 04 16-KM 3225
• UNSPSC Code 23242105
• Chip Breaker G
• Cutting Edge Style Rounded

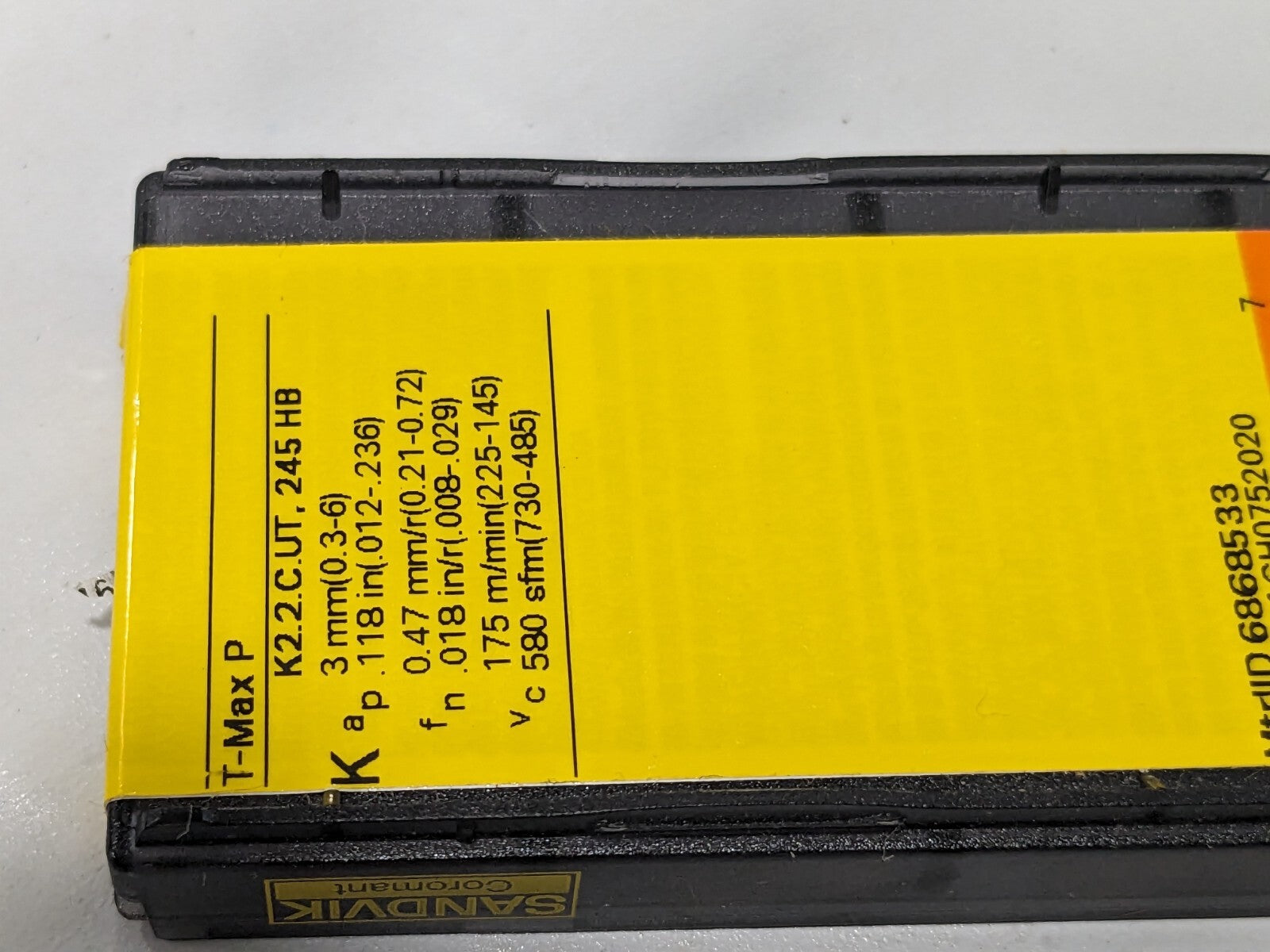

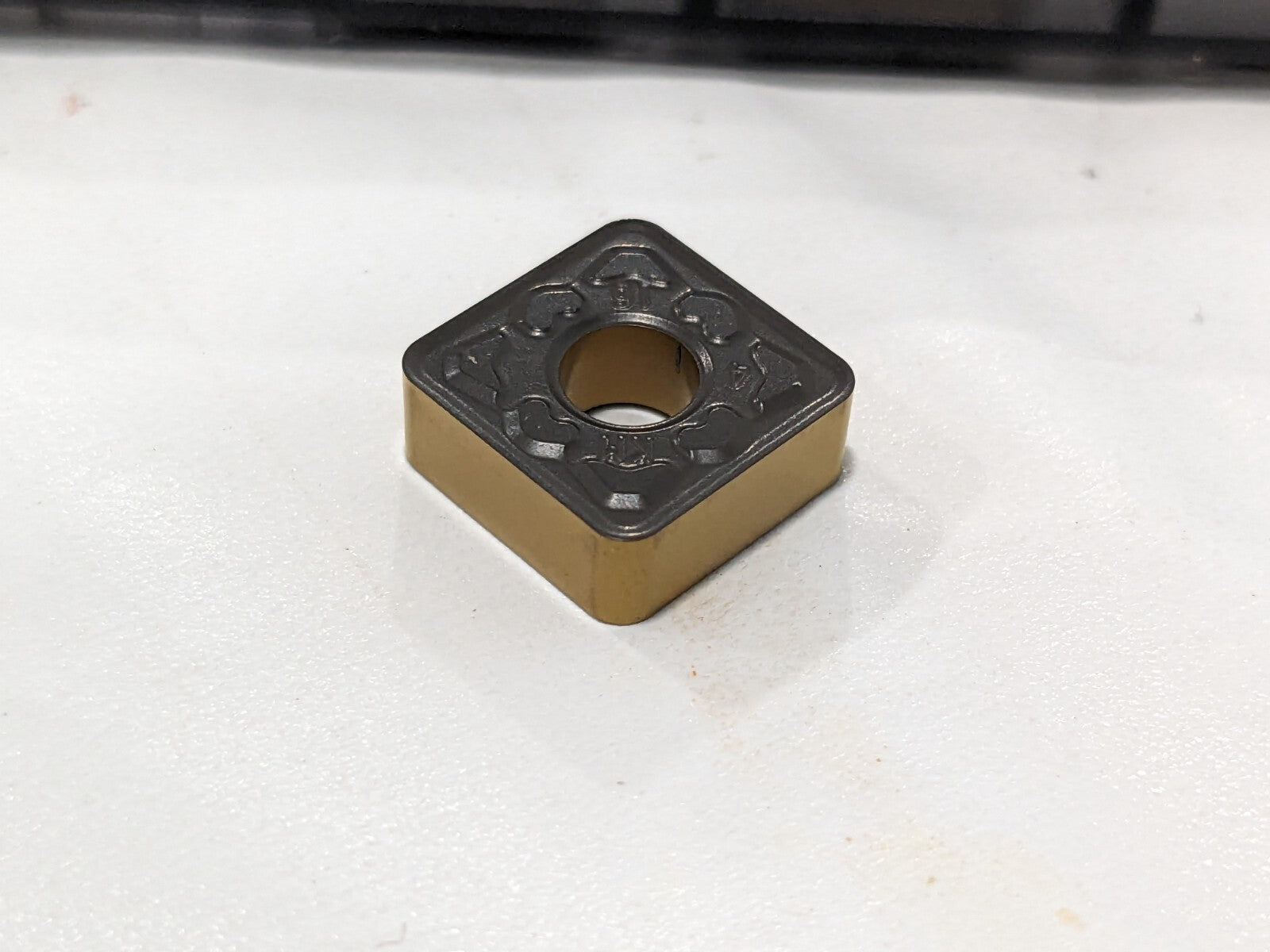

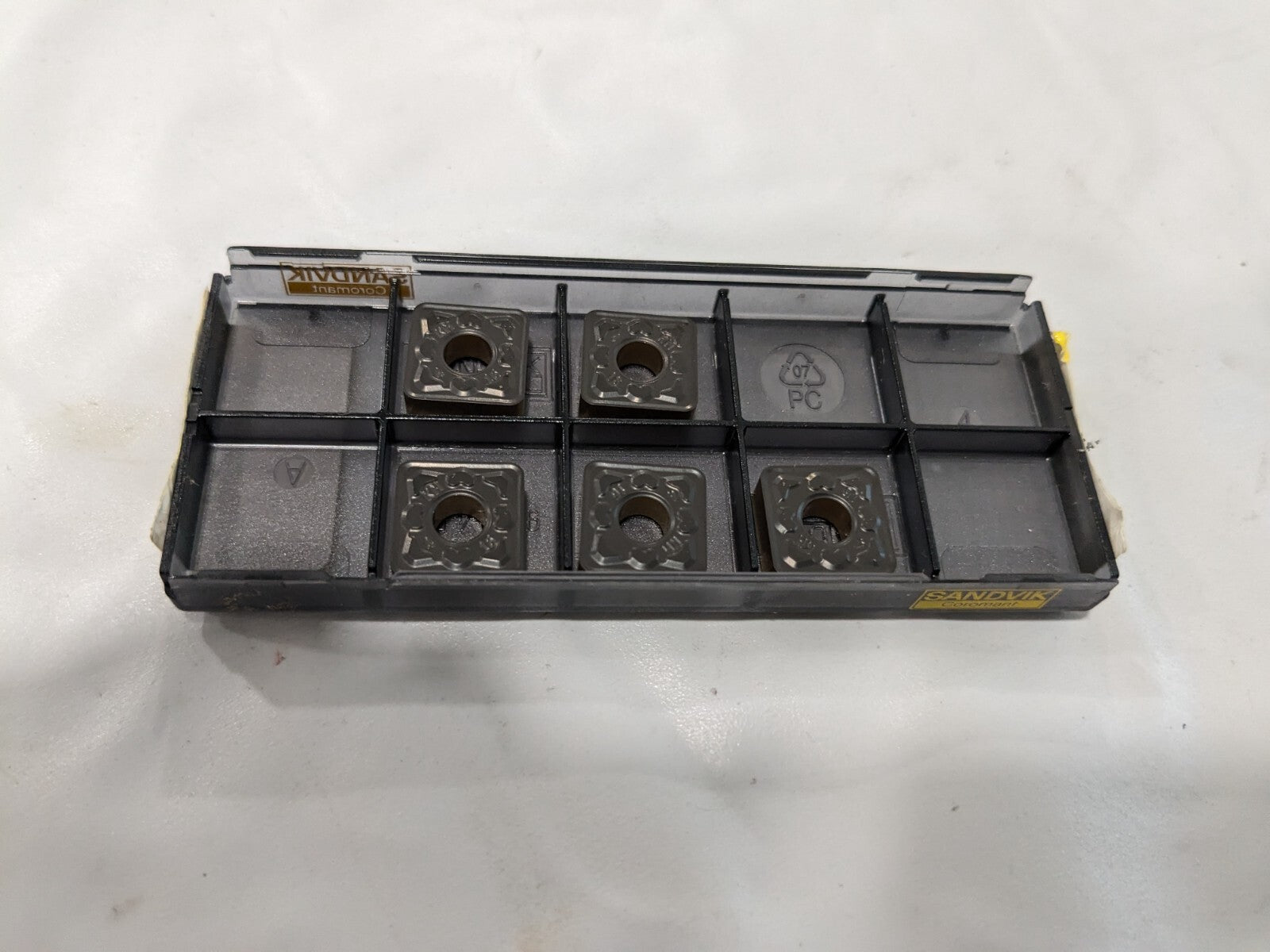

Please review photos, comes as shown.
