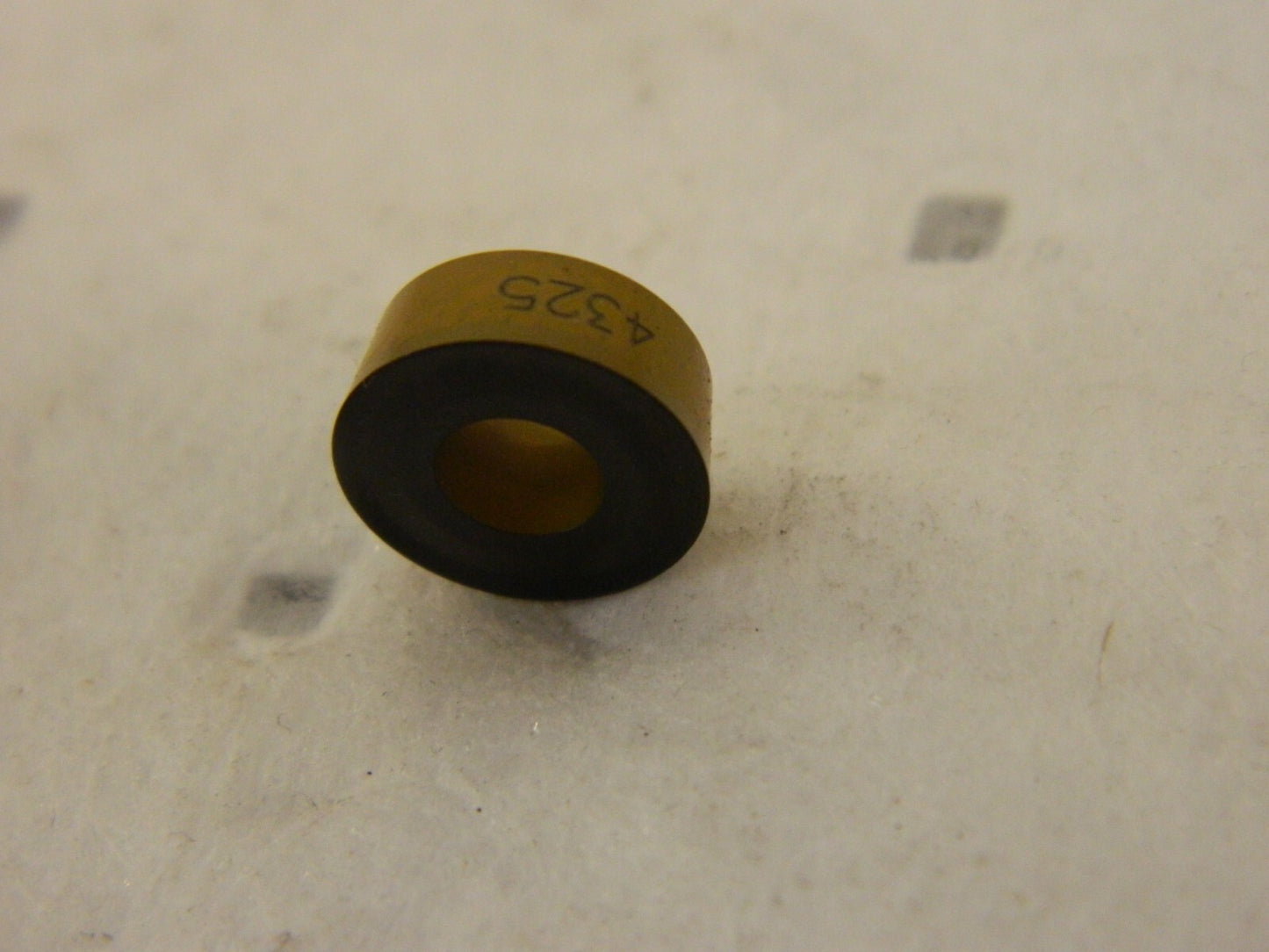

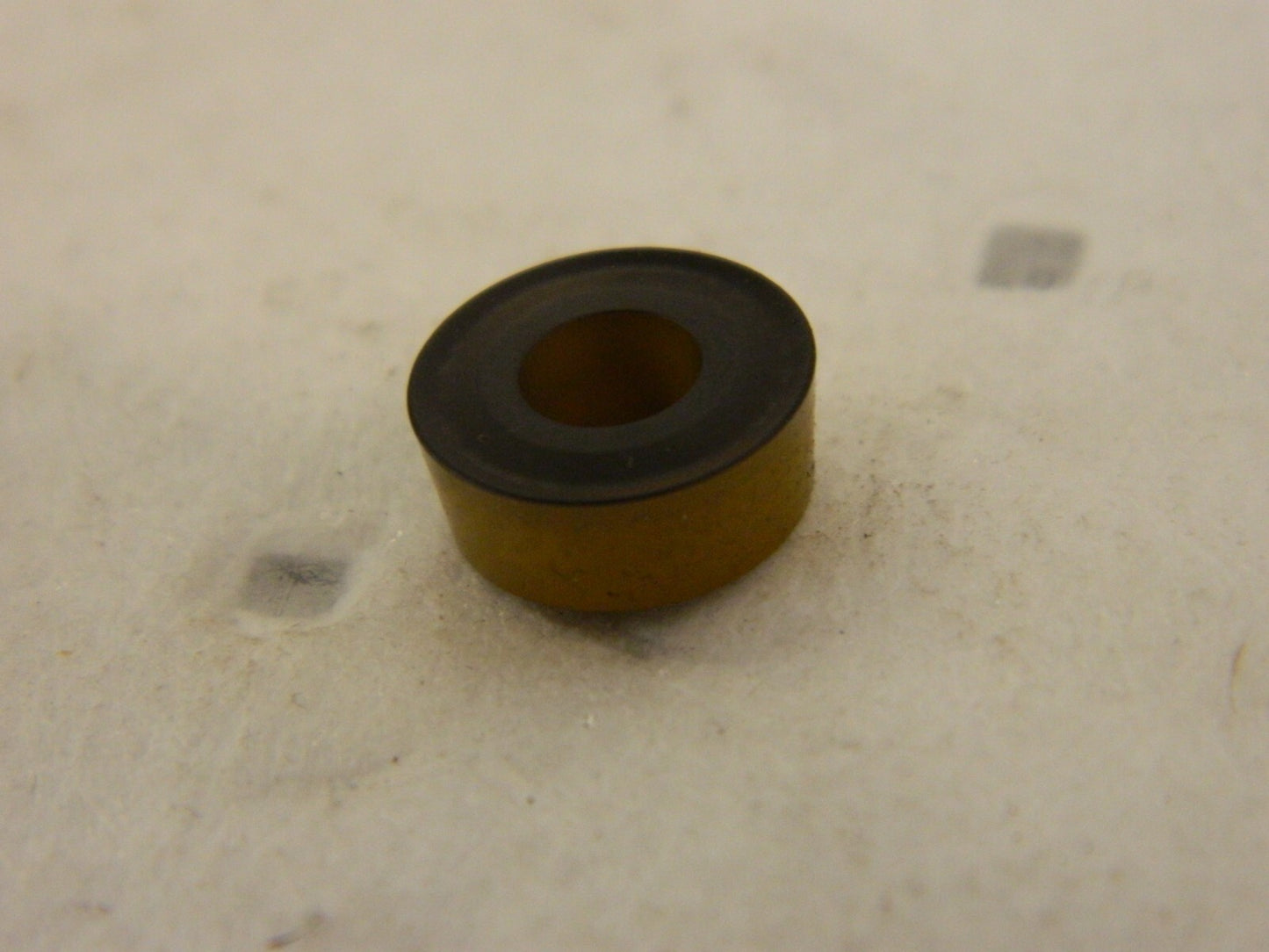

SANDVIK COROMANT Turning Insert: RCMX120400 4325, Solid Carbide qty 10 6532151

SANDVIK COROMANT

Turning Insert: RCMX120400 4325, Solid Carbide qty 10 6532151
MSRP: $130

•

• Insert Style RCMX
• Insert Shape Code R
• Insert Size Code 120400
• Insert Shape Round
• Coating/Finish TiCN/Al2O3/TiN
• Manufacturer Grade 4325
• Insert Material Solid Carbide
• Hole Diameter (Mm) ( - 0 Decimals) 4.20
• Hole Diameter (Decimal Inch) 0.1654
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (mm) 12.70
• Inscribed Circle (Decimal Inch) 0.5000
• Insert Holding Method Screw
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness 4.76
• Insert Thickness (Decimal Inch) 0.1874
• Clearance Code C
• Tolerance Code M
• Relief Angle 7
• Series T-Max P
• Coating Process MTCVD
• Primary Workpiece Material P
• Iso Code RCMX1204004325
• Manufacturers Catalog Number 6532151
• Cutting Direction Neutral
• Chip Breaker X

 Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
