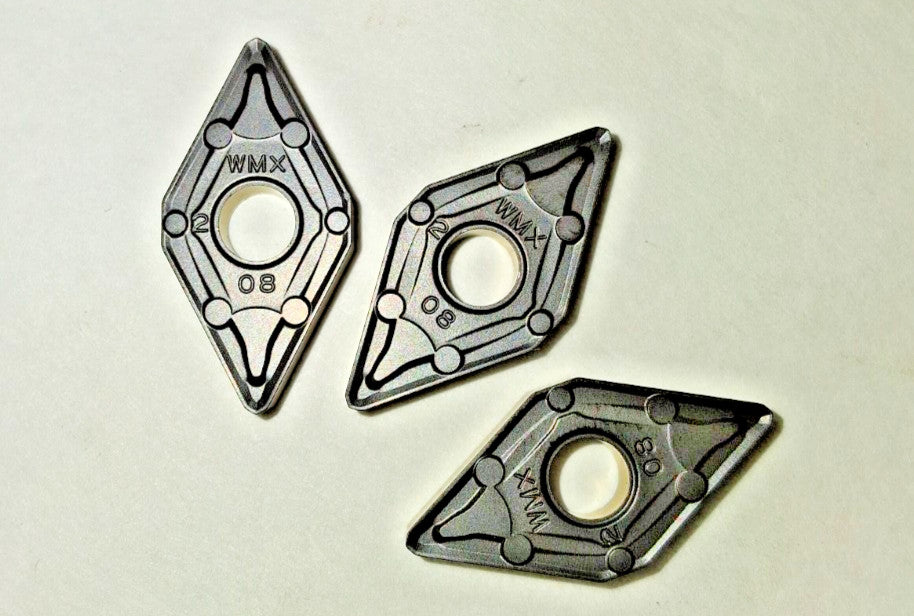

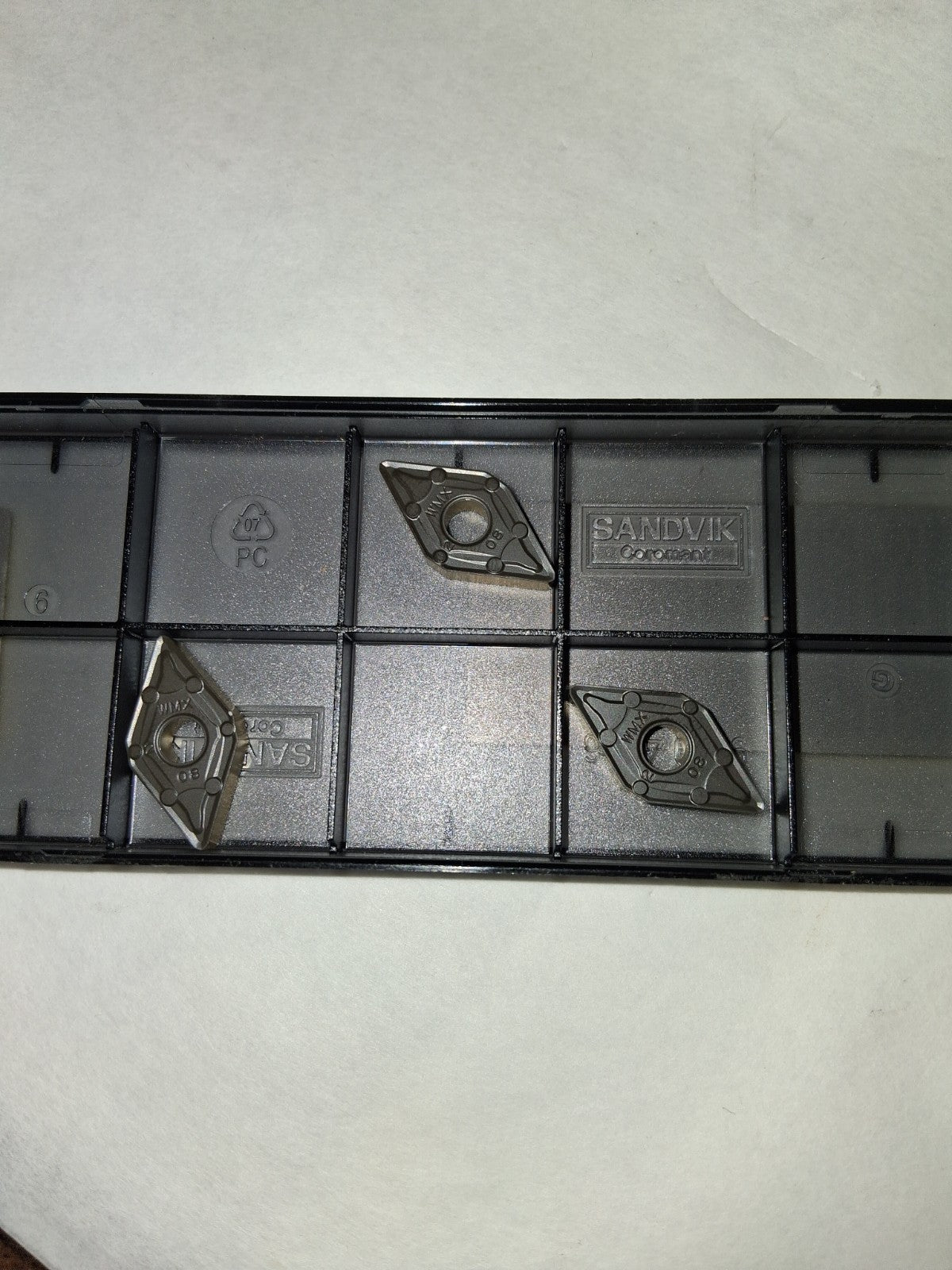

Sandvik Coromant Turning Insert DNMX 432-WMX 4405 Carbide 3 Pcs 8322632

Sandvik Coromant
3 Piece Turning Insert

MSRP: $135.00

• Insert Style: DNMX
• ANSI Size Code: 432
• ISO Size Code: 150408
• Insert Shape: D - Diamond (Rhombic) 55-Deg
• Included Angle: 55.00
• Inscribed Circle (Decimal Inch): 0.5000
• Inscribed Circle (mm): 12.70
• Corner Radius (mm): 0.79
• Corner Radius (Decimal Inch): 0.0313
• Insert Material: Carbide
• Manufacturer Grade: 4405
• Relief Angle: 0.000
• Wiper Edge: Yes
• Insert Thickness (Decimal Inch): 0.1875
• Insert Thickness: 4.76
• Insert Hand: Neutral
• Series: T-Max P
• Chip Breaker Operation: Wiper - Medium Machining
• Grade Characteristics: Steel (P) - High Wear-Resistance
• Side Clearance: Negative
• Number Of Cutting Edges: 4
• Hole Diameter (Decimal Inch): 0.2030
• Hole Diameter (mm): 5.16
• ANSI Insert Code: DNMX432
• ISO Insert Code: DNMX150408
• Insert Holding Method: Screw; Clamp
• Clearance Code: N
• Tolerance Code: M
• Coating Process: CVD
• Primary Workpiece Material: Steel
• Primary Workpiece Material Code: P
• Secondary Workpiece Material: Cast Iron
• Secondary Workpiece Material Code: K

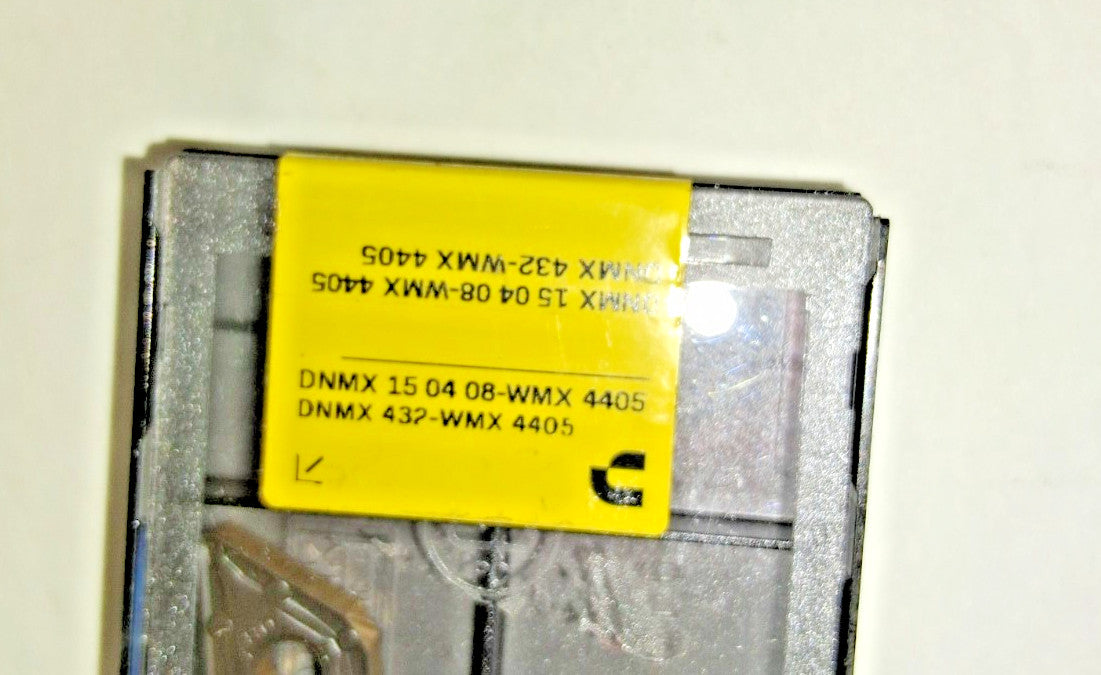

• Iso Code: DNMX 15 04 08-WMX 4405
• Manufacturers Catalog Number: DNMX 432-WMX 4405
• Chip Breaker: WMX
• UNSPSC Code: 23242105

Please review photos, comes as shown.
