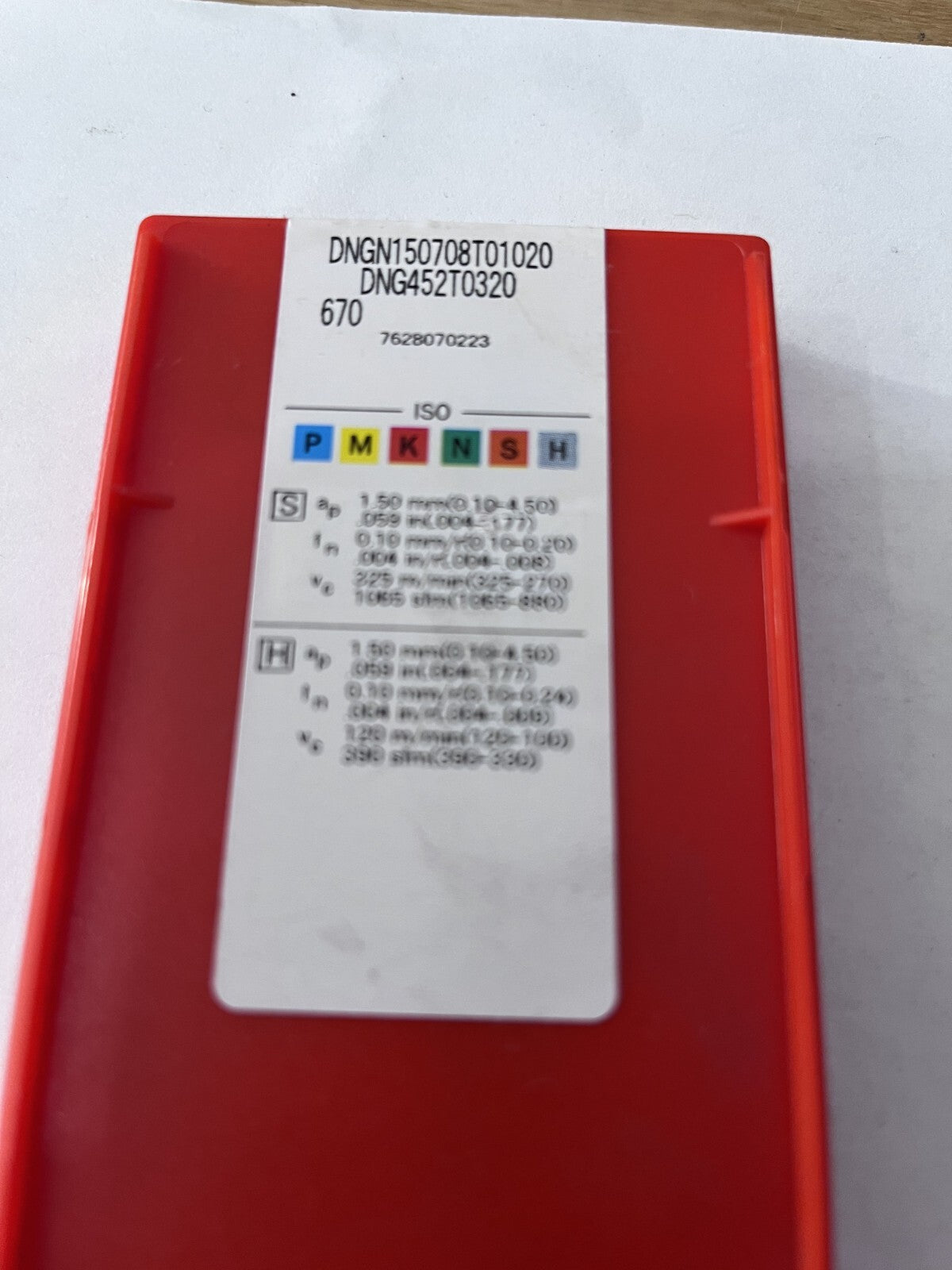

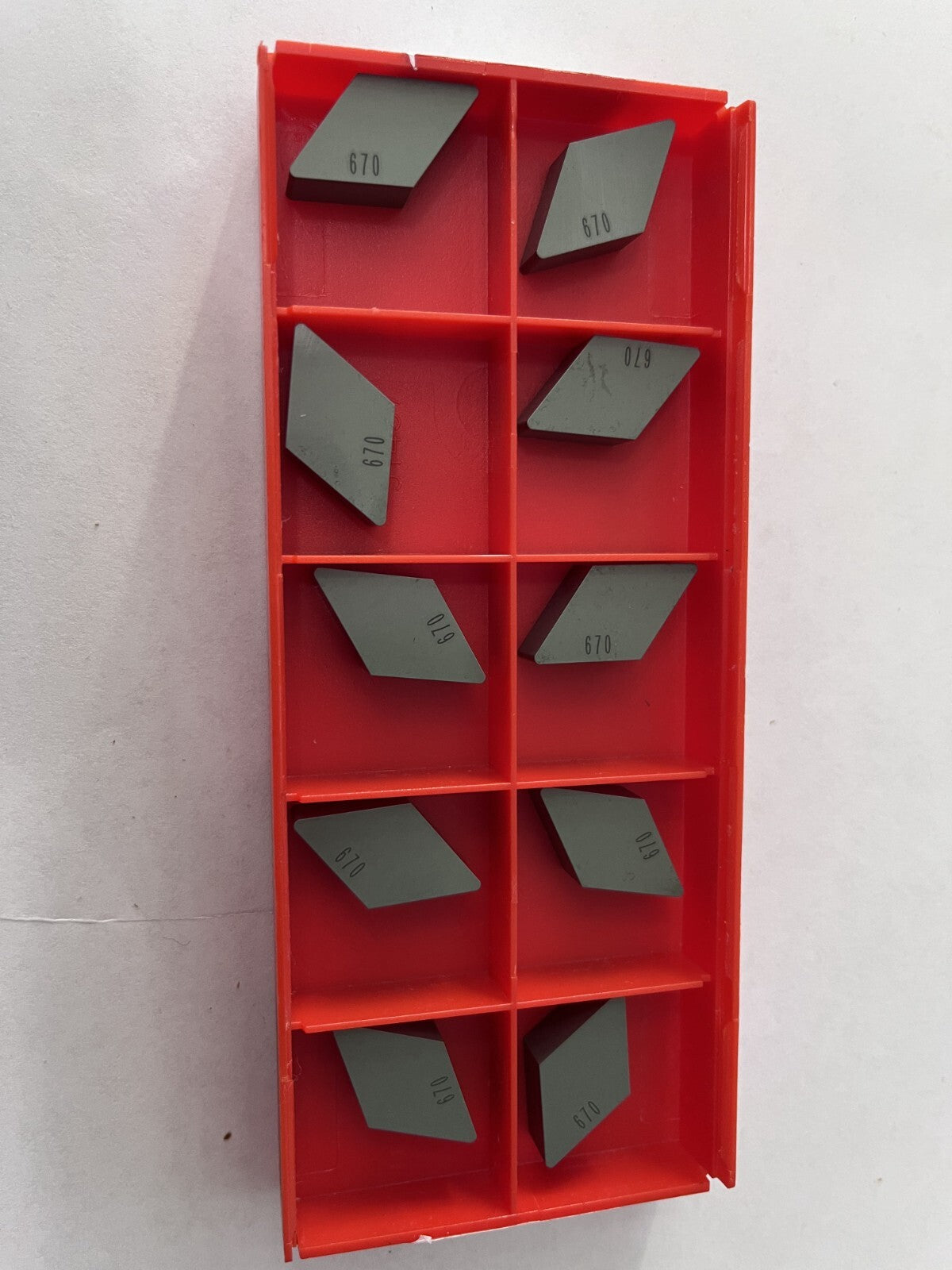

Sandvik Coromant Turning Insert: DNG452T0320 670, Ceramic
Sandvik Coromant Turning Insert: DNG452T0320 670, Ceramic
Regular price
$185.12 USD
Regular price
$400.00 USD
Sale price
$185.12 USD
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND Sandvik
Item
MSRP: $400.00
- specs
| ANSI Insert Code | DNGN452 |
| ISO Insert Code | DNGN150708 |
| Relief Angle | 0 |
| Insert Style | DNGN |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55 |
| Manufacturer Grade | 670 |
| Coating/Finish | Bright/Uncoated |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/16 |
| Insert Thickness | 7.94 |
| Insert Thickness (Decimal Inch) | 0.3126 |
| Series | T-Max |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Ceramic |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Insert Shape Code | D |
| Maximum Depth of Cut (mm) | 14.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5787 |
| Insert Holding Method | Clamp |
| Clearance Code | N |
| Tolerance Code | G |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Insert Length (Decimal Inch) | 0.6102 |
| Insert Length (mm) | 15.50 |
| Primary Workpiece Material Code | S |
| Iso Code | DNGN150708T01020670 |
| Manufacturers Catalog Number | 5731543 |
| Chip Breaker | N |
| Cutting Edge Style | Negative Land |
| ANSI Size Code | 452 |
| ISO Size Code | 150708 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 452 |
| Country of Origin | Japan |
(Description).
Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
