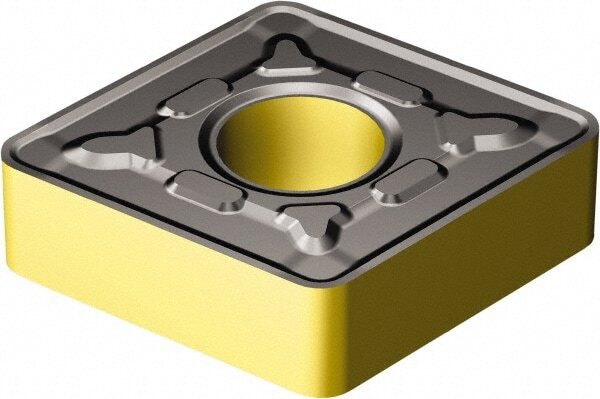

SANDVIK COROMANT Turning Insert 7ct : CNMG544-PR 4325, Carbide 6265926

SANDVIK COROMANT Turning Insert 7ct : CNMG544-PR 4325, Carbide 6265926

MSRP: $220

• ANSI Insert Code CNMG544
• ISO Insert Code CNMG160616
• Relief Angle 0
• Corner Radius (Decimal Inch) 0.0625
• Corner Radius (Inch) 1/16
• Corner Radius (mm) 1.59
• Included Angle 80
• Manufacturer Grade 4325
• Coating/Finish TiCN; TiN; AI2O3
• Insert Thickness (Decimal Inch) 0.2500
• Insert Thickness 6.35
• Insert Thickness (Inch) 1/4
• Inscribed Circle (Inch) 5/8
• Inscribed Circle (Decimal Inch) 0.6250
• Inscribed Circle (mm) 15.88
• Insert Material Carbide
• Insert Shape C - Diamond (Rhombic) 80-Deg
• Grade Characteristics Steel (P) - High Wear-Resistance to High Toughness
• Side Clearance Negative
• Insert Shape Code C
• Hole Diameter (Decimal Inch) 0.2500
• Hole Diameter (Mm) ( - 0 Decimals) 6.35
• Insert Holding Method Pin; Clamp
• Clearance Code N
• Tolerance Code M
• Length Range (Decimal Inch) 0.5000 - 0.6000
• Insert Length (Decimal Inch) 0.5717
• Insert Length (mm) 14.52
• Iso Code CNMG 16 06 16-PR 4325
• Chip Breaker G
• ANSI Size Code 544
• ISO Size Code 160616
• UNSPSC Code 23242105
• Insert Style CNMG
• Insert Size Code 544

(Description).

Please review photos, comes as shown.
