SANDVIK COROMANT Turning Insert 10pk CNMG433-QM 1115 Carbide 5724656

SANDVIK COROMANT Turning Insert 10pk CNMG433-QM 1115 Carbide 5724656

MSRP: $150

• Insert Style CNMG
• Insert Size Code 433
• Insert Shape Diamond
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.5000
• Corner Radius (Decimal Inch) 0.0469
• Corner Radius (mm) 1.19
• Insert Material Carbide
• Manufacturer Grade 1115
• Coating/Finish AlCr2O3; TiAlN
• Relief Angle 0
• Wiper Edge No
• Insert Thickness 4.76
• Insert Thickness (Decimal Inch) 0.1875
• Insert Hand Neutral
• Number Of Cutting Edges 4
• Insert Shape Code C
• Corner Radius (Inch) 3/64
• Hole Diameter (Mm) ( - 0 Decimals) 5.16
• Hole Diameter (Decimal Inch) 0.2030
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (mm) 12.70
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code M
• Series T-Max P
• Coating Process PVD
• Length Range (Decimal Inch) 0.4000 - 0.5000
• Insert Length (Decimal Inch) 0.4605
• Insert Length (mm) 11.70
• Primary Workpiece Material Stainless Steel
• Primary Workpiece Material Code M
• Secondary Workpiece Material Superalloy; Titanium
• Secondary Workpiece Material Code S

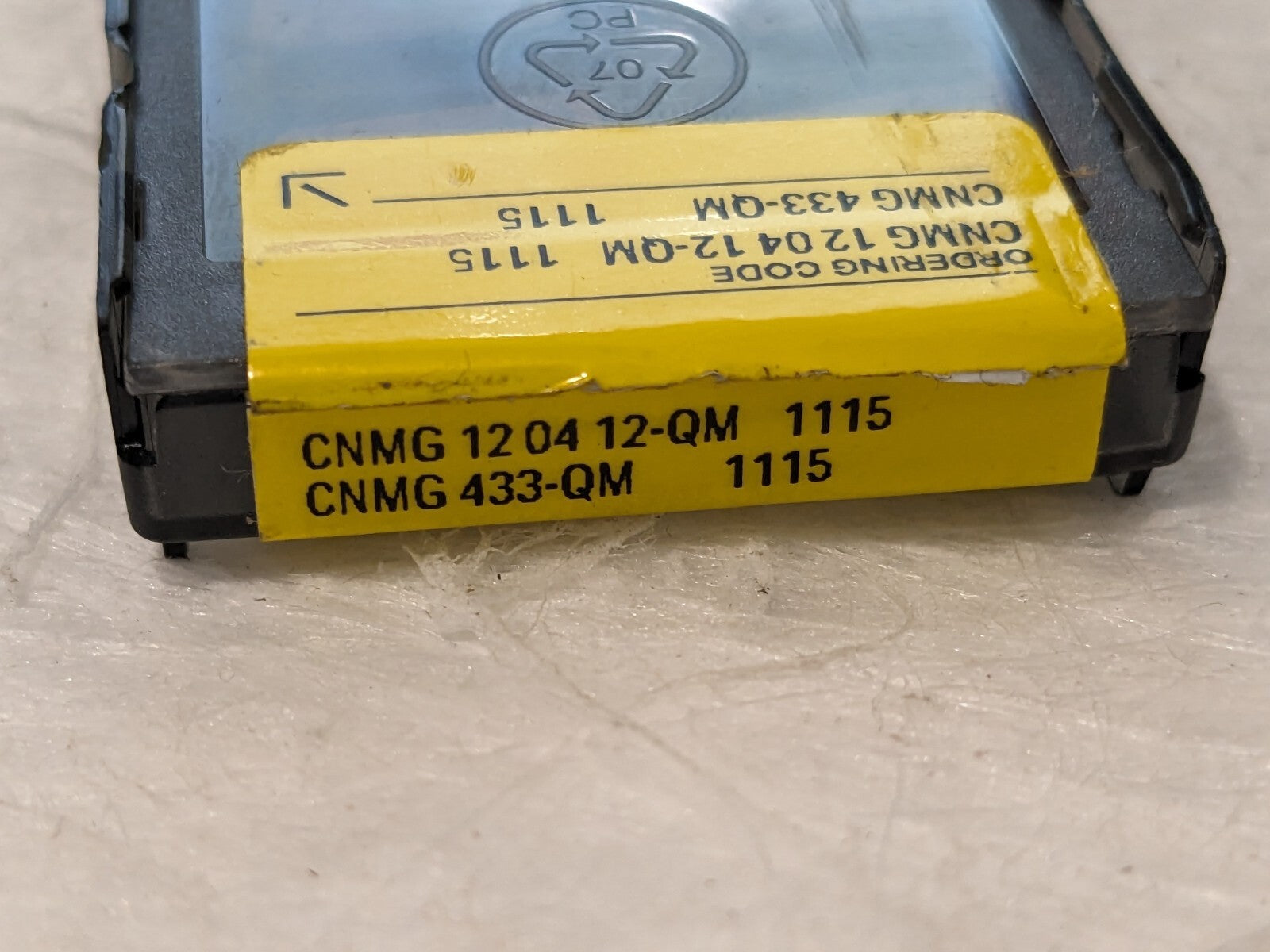

• Iso Code CNMG 12 04 12-QM 1115
• UNSPSC Code 23242105
• Chip Breaker QM

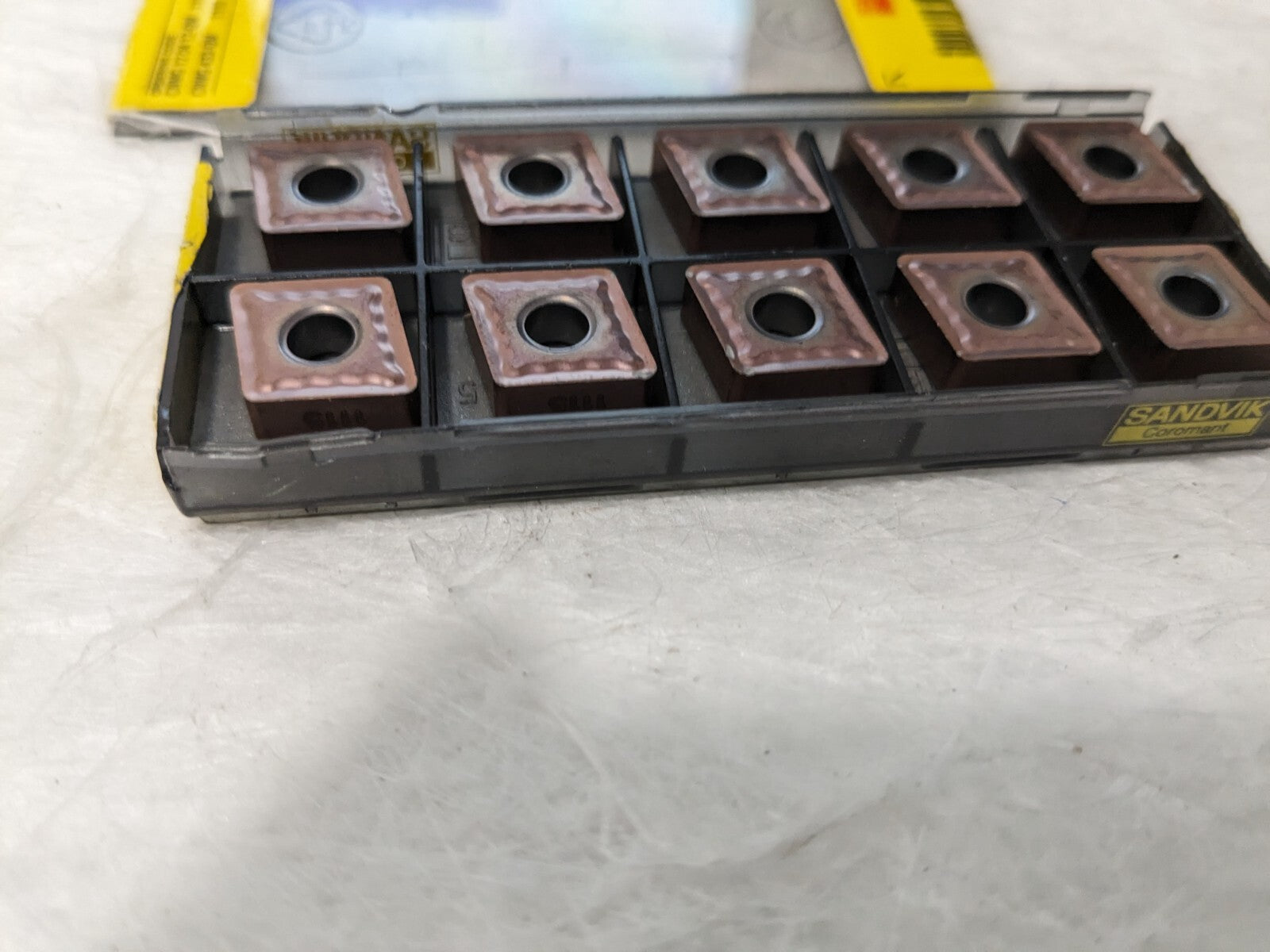

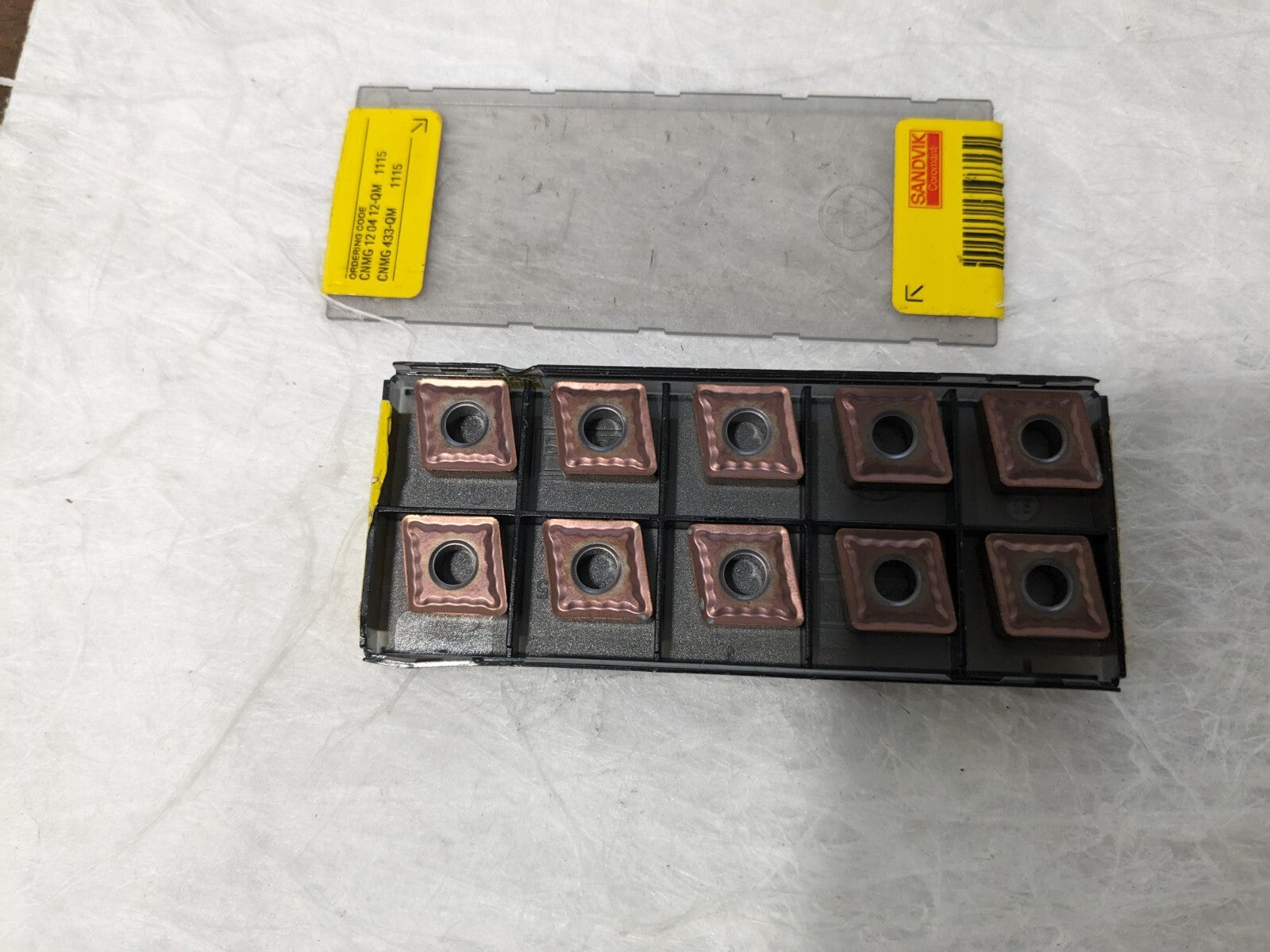

Please review photos, comes as shown.
