SANDVIK COROMANT Turning Insert 10pc: DNMG432-QM 4305, Carbide 6707408

SANDVIK COROMANT Turning Insert 10pc: DNMG432-QM 4305, Carbide 6707408

MSRP: $270

• Relief Angle 0
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0313
• Corner Radius (mm) 0.79
• Included Angle 55
• Manufacturer Grade 4305
• Coating/Finish TiCN; TiN; AI2O3
• Wiper Edge No
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness 4.76
• Insert Thickness (Decimal Inch) 0.1875
• Series T-Max P
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (mm) 12.70
• Insert Material Carbide
• Insert Shape Diamond
• Number Of Cutting Edges 4
• Insert Shape Code D
• Hole Diameter (Decimal Inch) 0.2030
• Hole Diameter (Mm) ( - 0 Decimals) 5.16
• Insert Holding Method Pin; Clamp
• Clearance Code N
• Tolerance Code M
• Coating Process CVD
• Length Range (Decimal Inch) 0.5000 - 0.6000
• Insert Length (Decimal Inch) 0.5789
• Insert Length (mm) 14.70
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Secondary Workpiece Material Cast Iron
• Secondary Workpiece Material Code K
• Iso Code DNMG 15 04 08-QM 4305
• Chip Breaker QM
• UNSPSC Code 23242105
• Insert Style DNMG
• Insert Size Code 432

(Description).

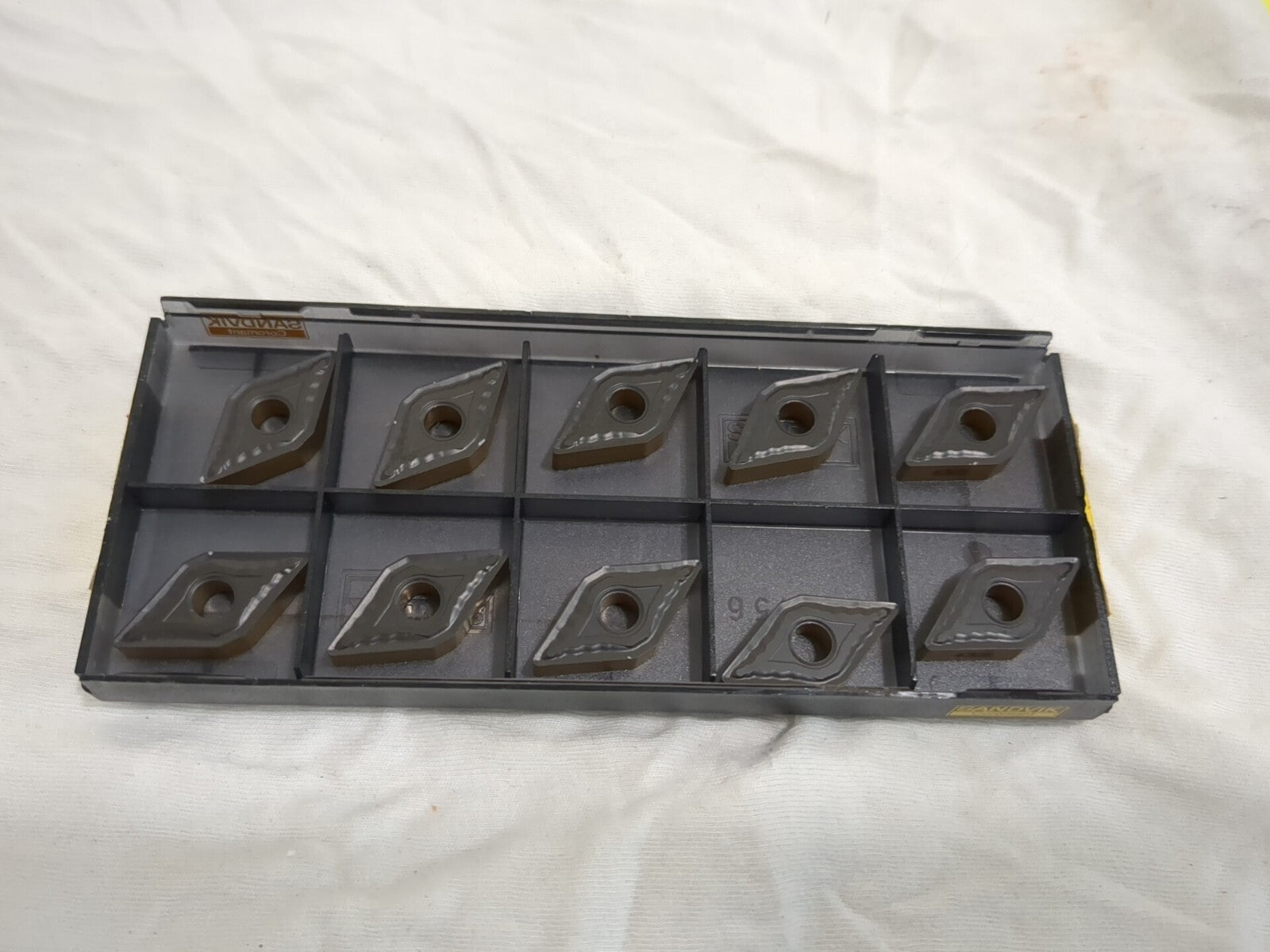

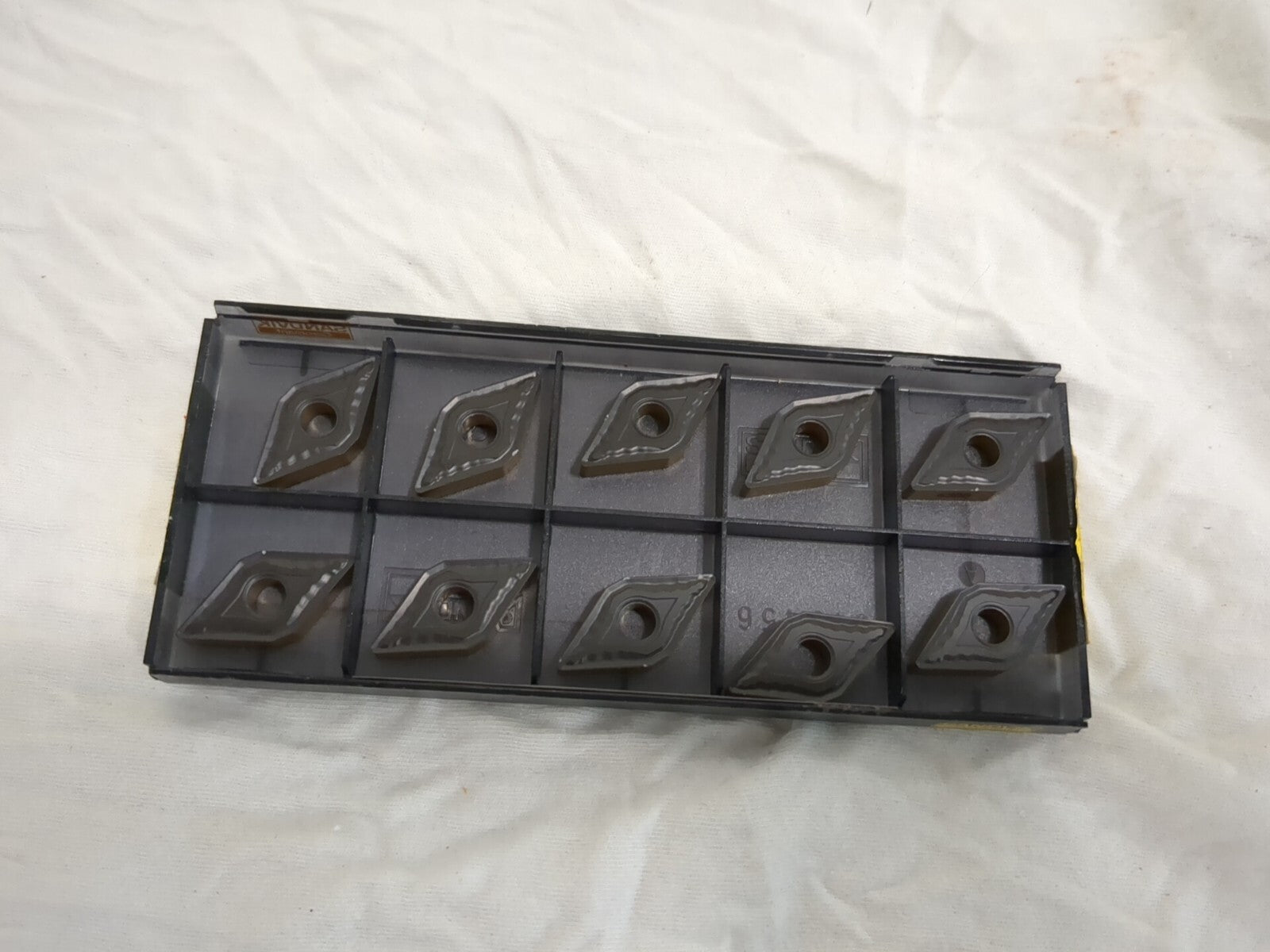

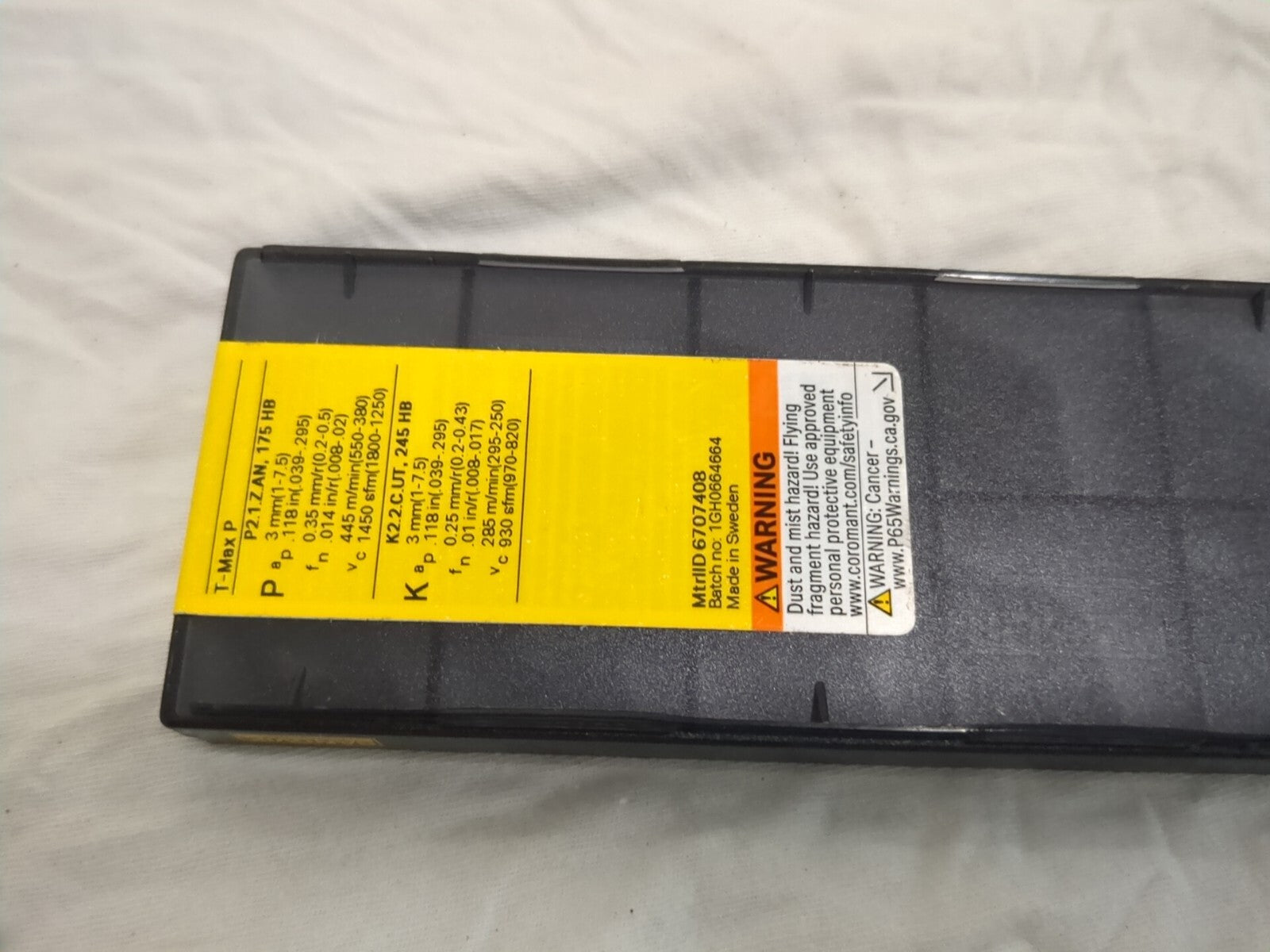

Please review photos, comes as shown.
