SANDVIK COROMANT Turning Insert 10ct CNGG432-SGF 1105, Carbide 5908960

SANDVIK COROMANT Turning Insert 10ct CNGG432-SGF 1105, Carbide 5908960

MSRP: $240

• ANSI Insert Code CNGG432
• ISO Insert Code CNGG120408
• Relief Angle 0
• Insert Style CNGG
• Corner Radius (mm) 0.79
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0313
• Included Angle 80
• Manufacturer Grade 1105
• Coating/Finish TiAlN
• Wiper Edge No
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness 4.76
• Insert Thickness (Decimal Inch) 0.1875
• Series T-Max P
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (mm) 12.70
• Insert Material Carbide
• Insert Shape C - Diamond (Rhombic) 80-Deg
• Chip Breaker Operation Finishing
• Grade Characteristics Special, Super Alloys (S) - High Wear-Resistance
• Side Clearance Negative
• Number Of Cutting Edges 4
• Insert Shape Code C
• Hole Diameter (Decimal Inch) 0.2030
• Hole Diameter (Mm) ( - 0 Decimals) 5.16
• Insert Holding Method Pin; Clamp
• Clearance Code N
• Tolerance Code G
• Coating Process PVD
• Length Range (Decimal Inch) 0.3000 - 0.4000
• Insert Length (Decimal Inch) 0.3346
• Insert Length (mm) 8.50
• Primary Workpiece Material Stainless Steel
• Primary Workpiece Material Code S
• Secondary Workpiece Material Superalloy; Titanium
• Secondary Workpiece Material Code S
• Iso Code CNGG120408-SGF 1105
• Chip Breaker SGF
• ANSI Size Code 432
• ISO Size Code 120408
• UNSPSC Code 23242105
• Insert Size Code 432
• Country of Origin UNITED STATES

(Description).

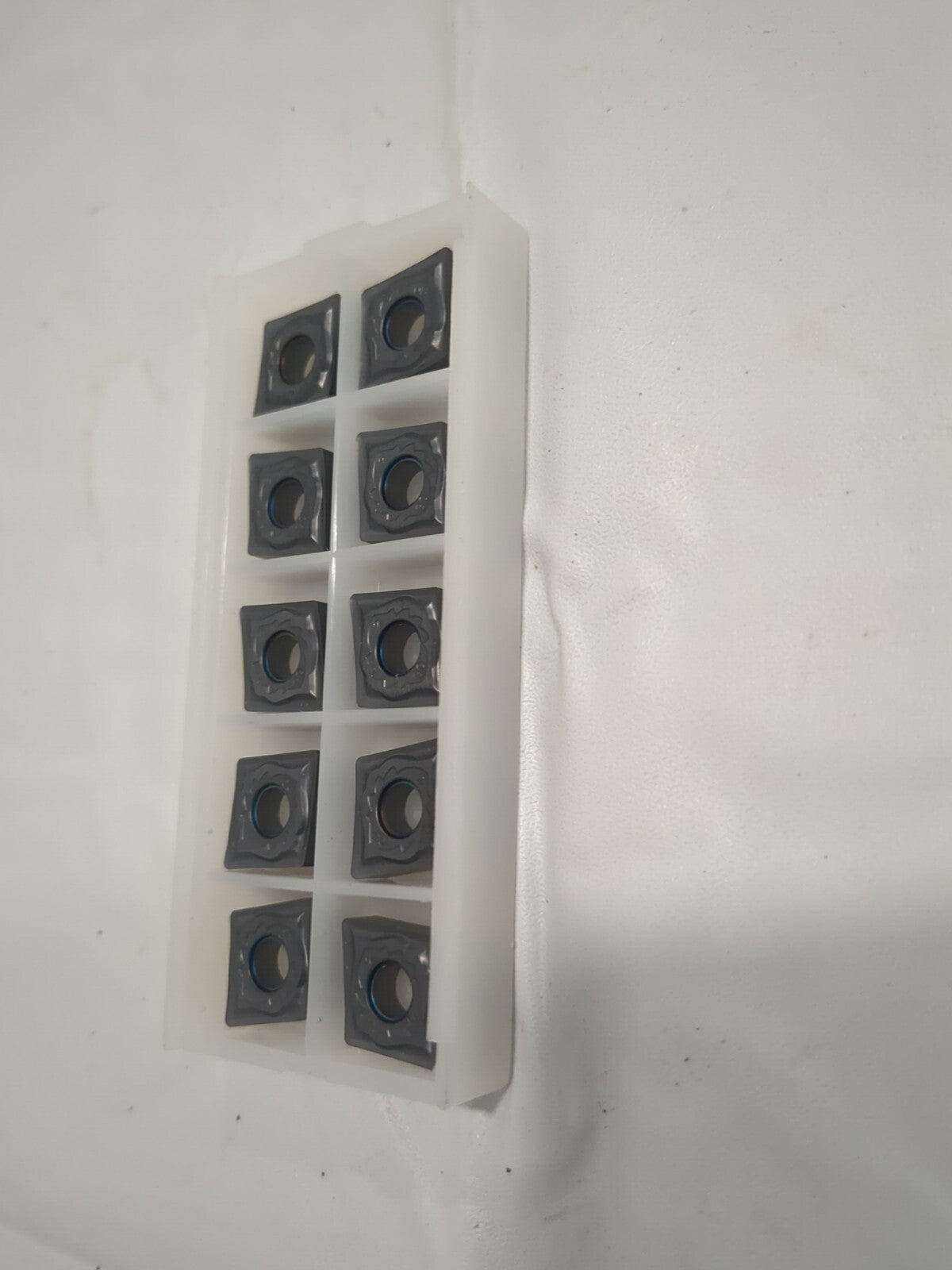

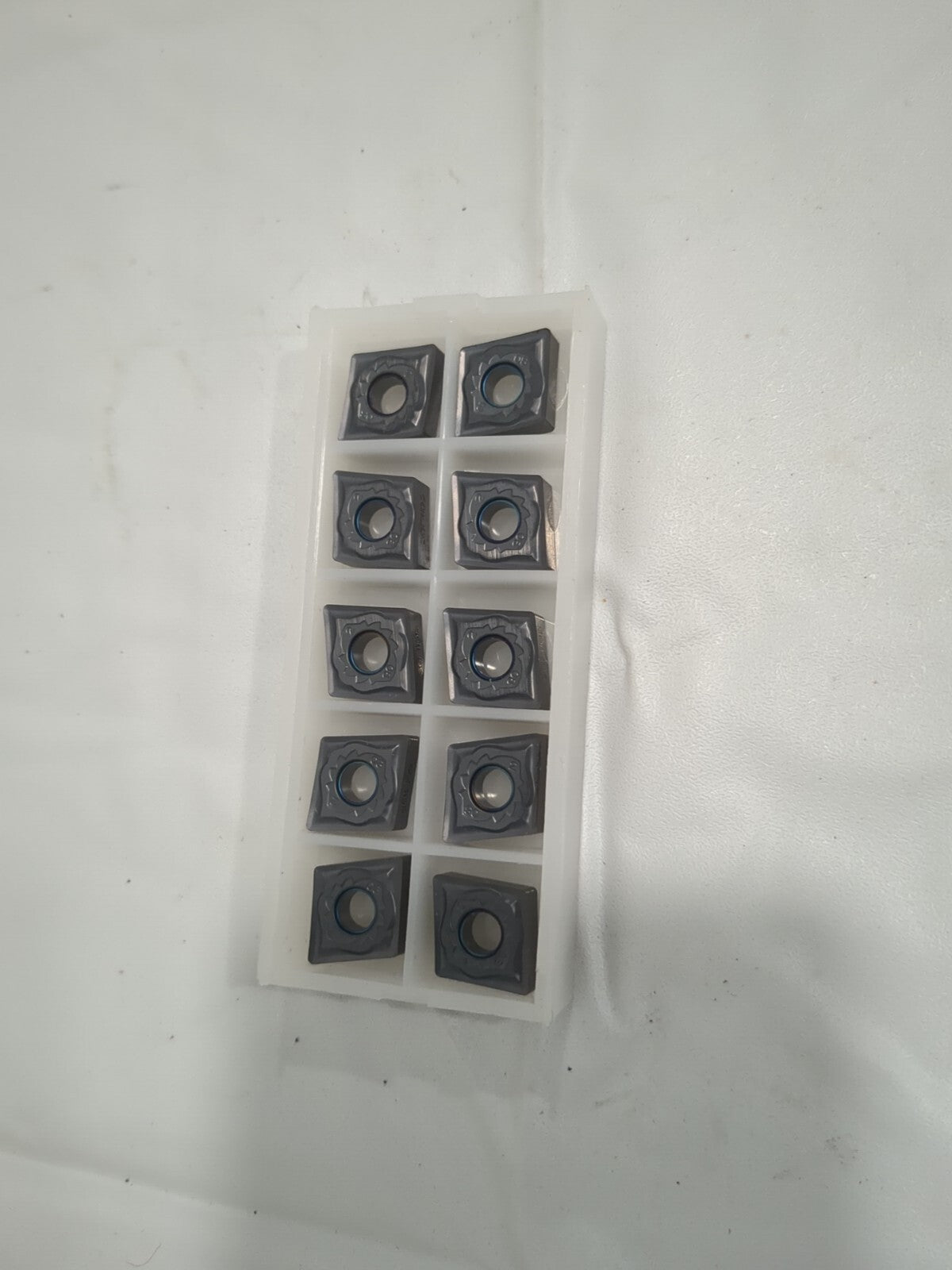

Please review photos, comes as shown.
