SANDVIK COROMANT TR-VB1304-F 1115 Carbide Turning Insert Qty 10
SANDVIK COROMANT TR-VB1304-F 1115 Carbide Turning Insert Qty 10
Regular price
$101.20 USD
Regular price
$220.00 USD
Sale price
$101.20 USD
Shipping calculated at checkout.
Couldn't load pickup availability
SANDVIK COROMANT TR-VB1304-F 1115 Carbide Turning Insert Qty 10
Item Description
BRAND Sandvik
Item
MSRP: $220.00
- specs
Insert Style TRVB
Insert Shape Code T
Insert Size Code 1304
Insert Shape Diamond
Coating/Finish AlCr2O3; TiAlN
Manufacturer Grade 1115
Corner Radius (Inch) 1/64
Corner Radius (mm) 0.40
Corner Radius (Decimal Inch) 0.0157
Insert Material Solid Carbide
Hole Diameter (Mm) ( - 0 Decimals) 3.40
Hole Diameter (Decimal Inch) 0.1339
Maximum Depth of Cut (mm) 12.60
Maximum Depth of Cut (Decimal Inch) 0.4961
Inscribed Circle (mm) 13.00
Inscribed Circle (Decimal Inch) 0.3150
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Inch) 3/16
Insert Thickness 4.76
Included Angle 60.0
Relief Angle 5
Series CoroTurn TR
Coating Process PVD
Length Range (Decimal Inch) 0.5000 - 0.6000
Wiper Edge No
Insert Length (Decimal Inch) 0.5118
Insert Length (mm) 13.00
Number Of Cutting Edges 2
Primary Workpiece Material Stainless Steel
Primary Workpiece Material Code M
Secondary Workpiece Material Super-alloys & Titanium
Secondary Workpiece Material Code S
Ansi Code TRVB1304F1115
Iso Code TRVB1304F1115
Manufacturers Catalog Number 5755421
Cutting Direction Neutral
Chip Breaker F
(Description).

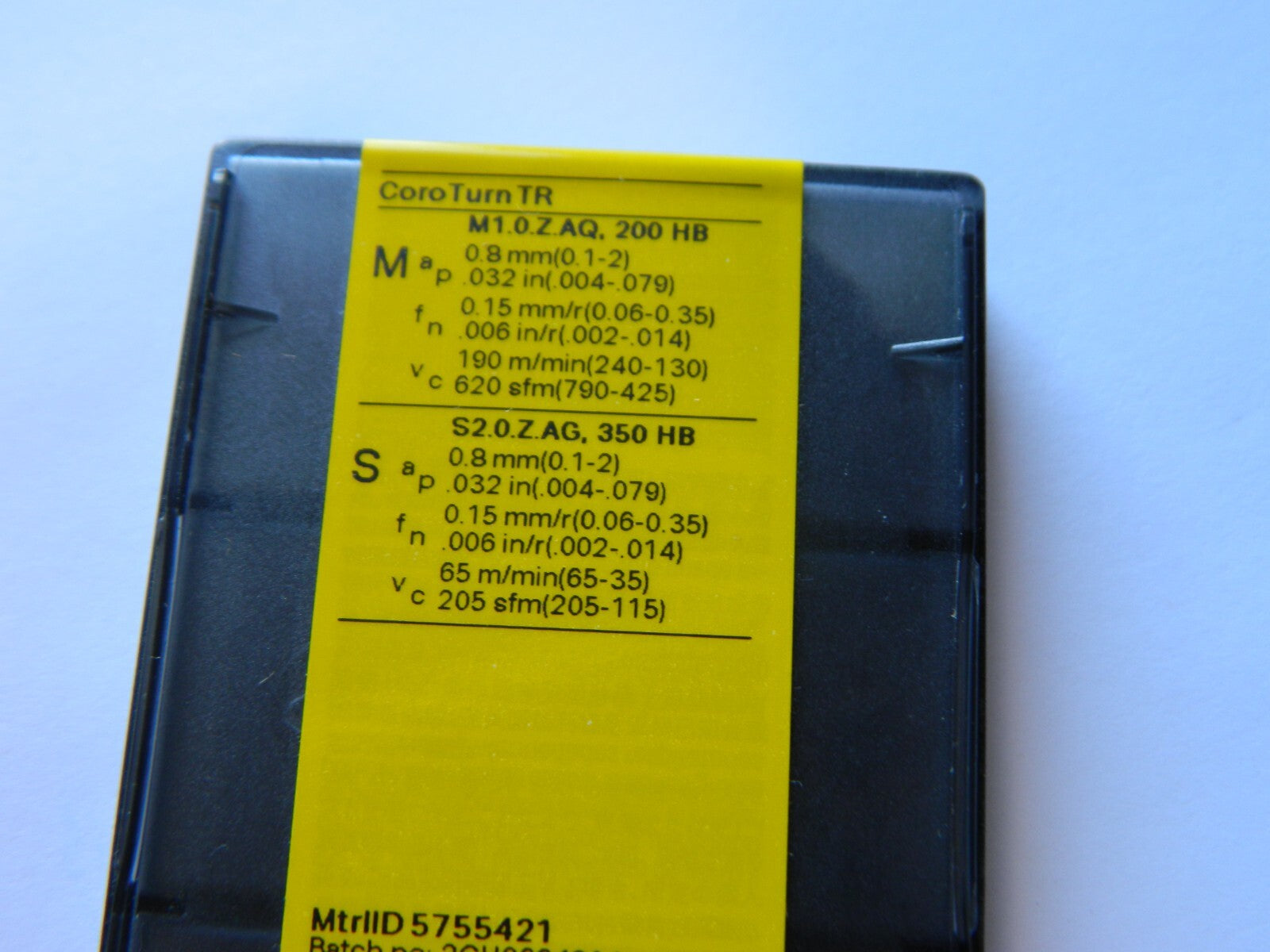

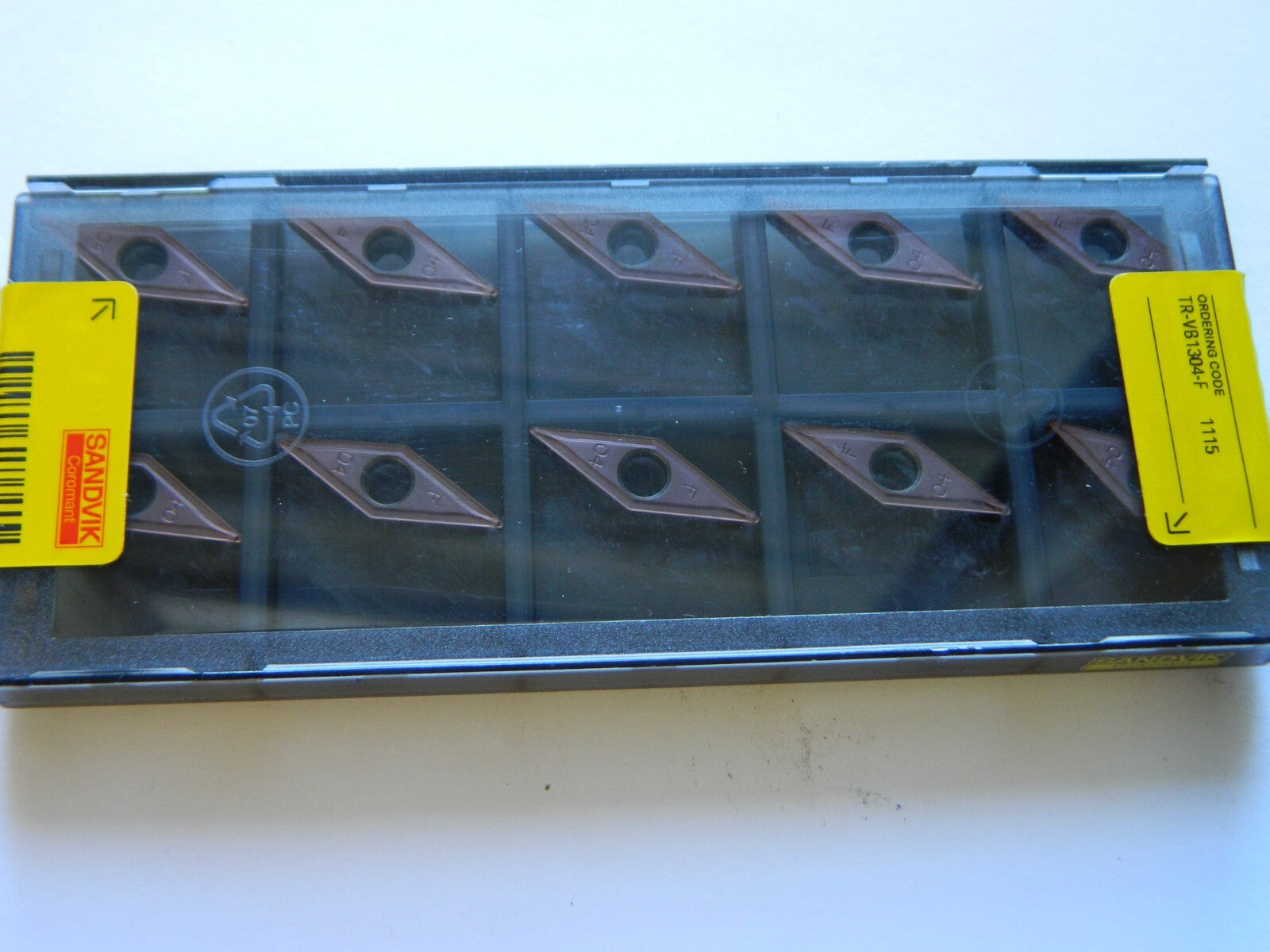

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date feb 2323
Lister#CM 13210
LocMarley 35
