SANDVIK COROMANT TNMX331-WF 1525 Carbide Turning Insert Qty 10 5754692

Sandvik Coromant
1 Lot of 10 Inserts

MSRP: $100.00

• Insert Style TNMX
• Insert Size Code 331
• Insert Shape Code T
• Insert Shape Triangle
• Clearance Code N
• Tolerance Code M
• Hole/Chipbreaker X
• Manufacturer's Grade 1525
• Inscribed Circle (Decimal Inch) 0.3750in; 0.3750
• Insert Material Carbide
• Coated Coated
• Corner Radius (Inch) 1/64
• Corner Radius (Decimal Inch) 0.0156; 0.0156 in; 0.3969 mm; 1/64 in
• Length Range (Decimal Inch) 0.6000 - 0.6500
• Insert Thickness 0.1875in
• Wiper Edge Yes
• Coating Process PVD
• Number Of Cutting Edges 6
• Primary Workpiece Material Code P
• Secondary Workpiece Material Code M
• Ansi Code TNMX 331-WF 1525
• Iso Code TNMX 16 04 04-WF 1525
• Hole Diameter (Decimal Inch) 0.1500
• ISO Number TNMX 16 04 04-WF 1525
• Relief Angle 0
• Primary Workpiece Material Steel
• Secondary Workpiece Material Stainless Steel
• Included Angle 60
• Insert Hand Neutral
• Overall Length (Decimal Inch) 0.6495
• Overall Length (mm) 16.50
• Chipbreaker WF
• Thickness (mm) 0.1875in; 4.76
• Thickness (Decimal Inch) 0.1875; 0.1875in
• Shape Triangle
• Coating TiCN+TiN
• Length (Decimal Inch) 0.6338
• Series T-Max? P
• Insert Holding Method Clamp; Pin

These items are new and still in sealed package. SOLD AS IS.

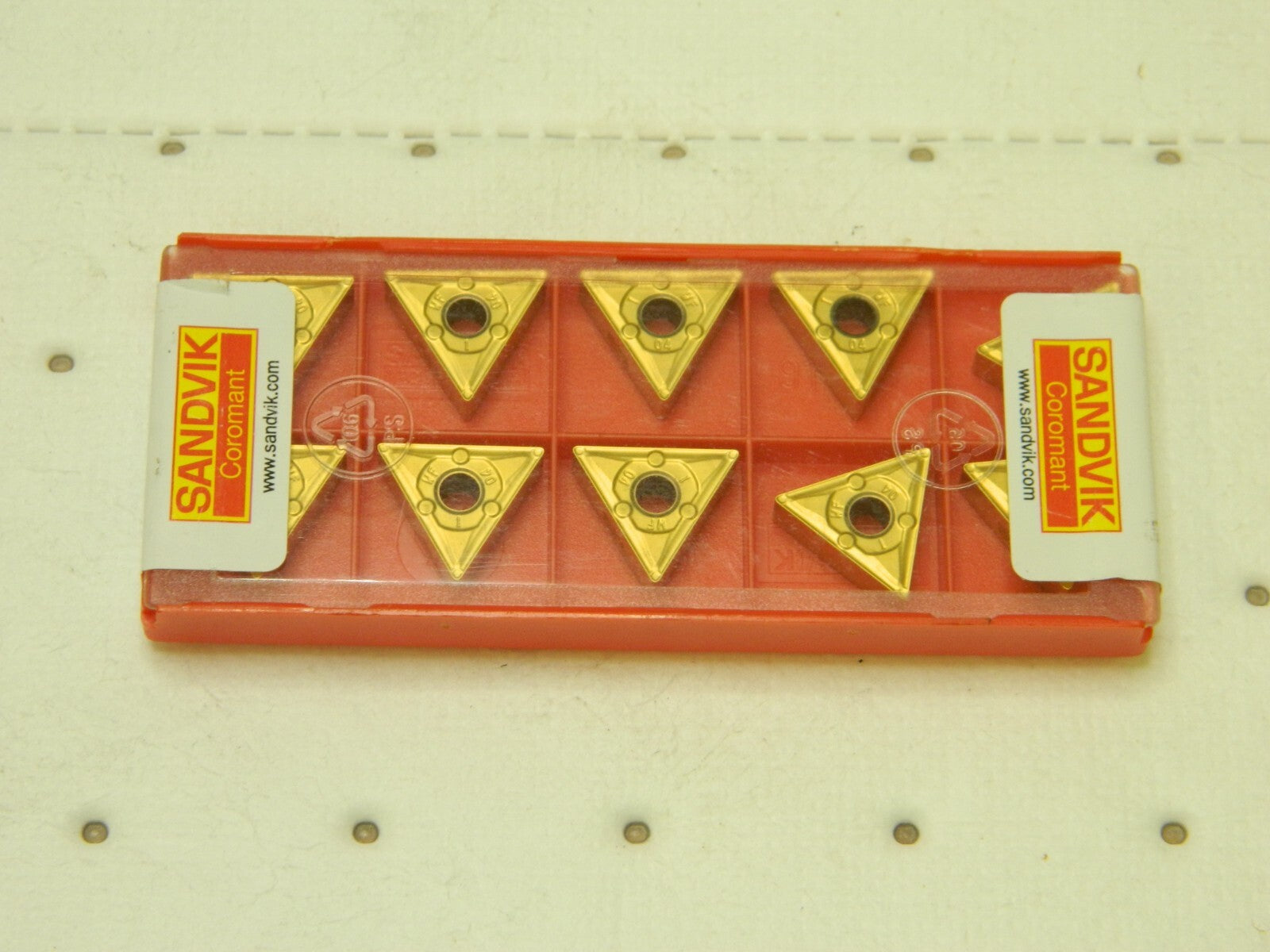

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
