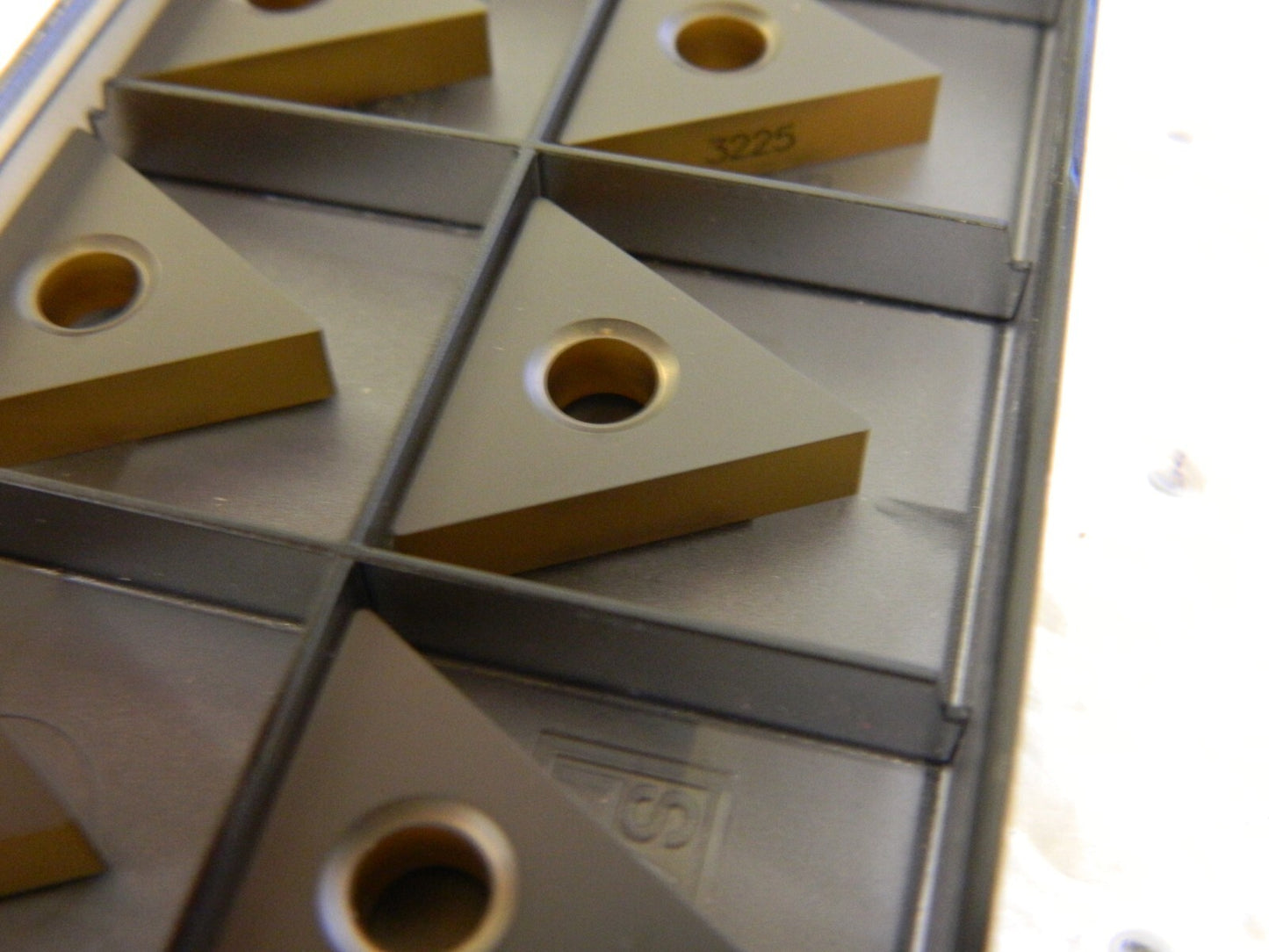

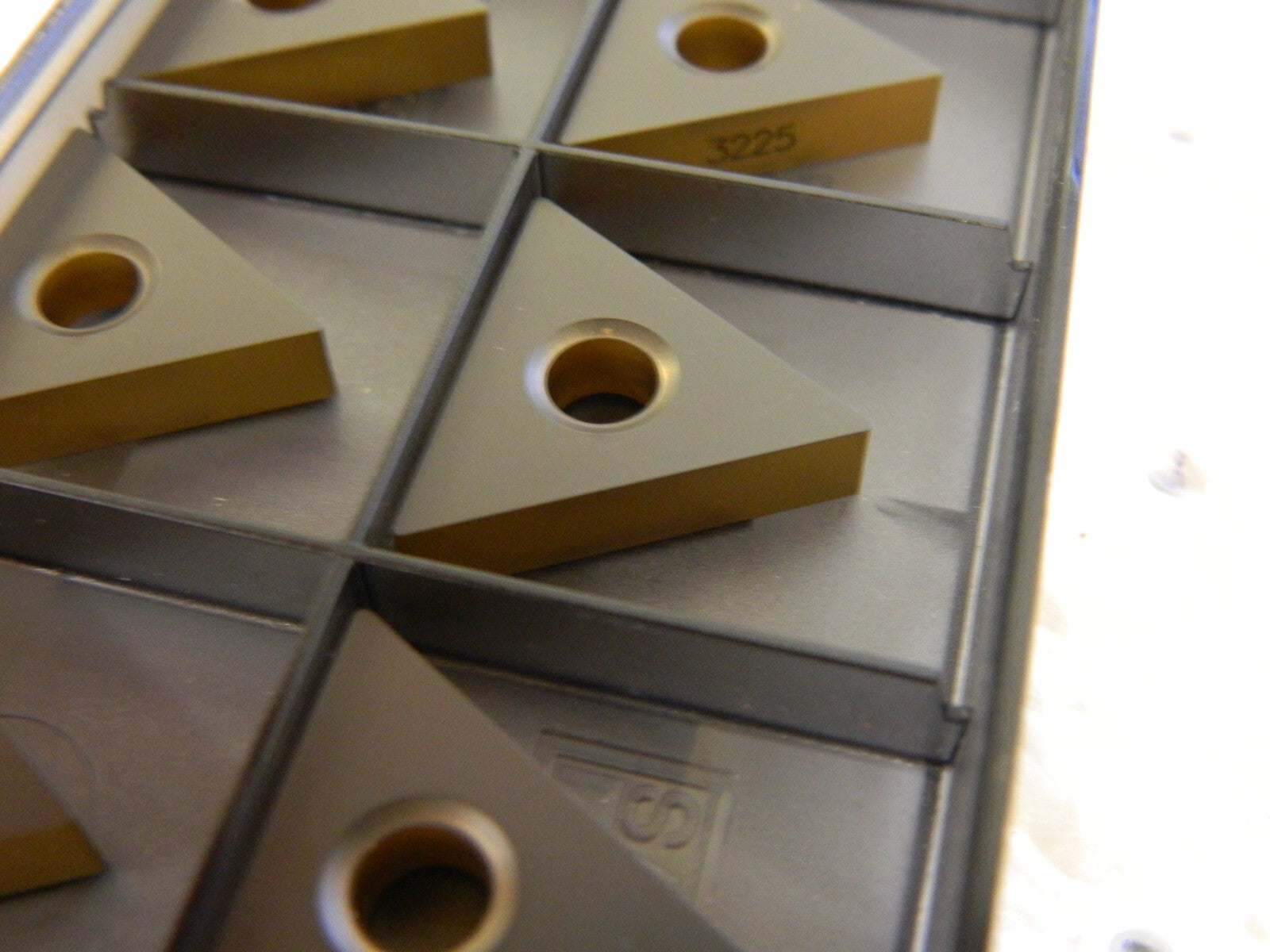

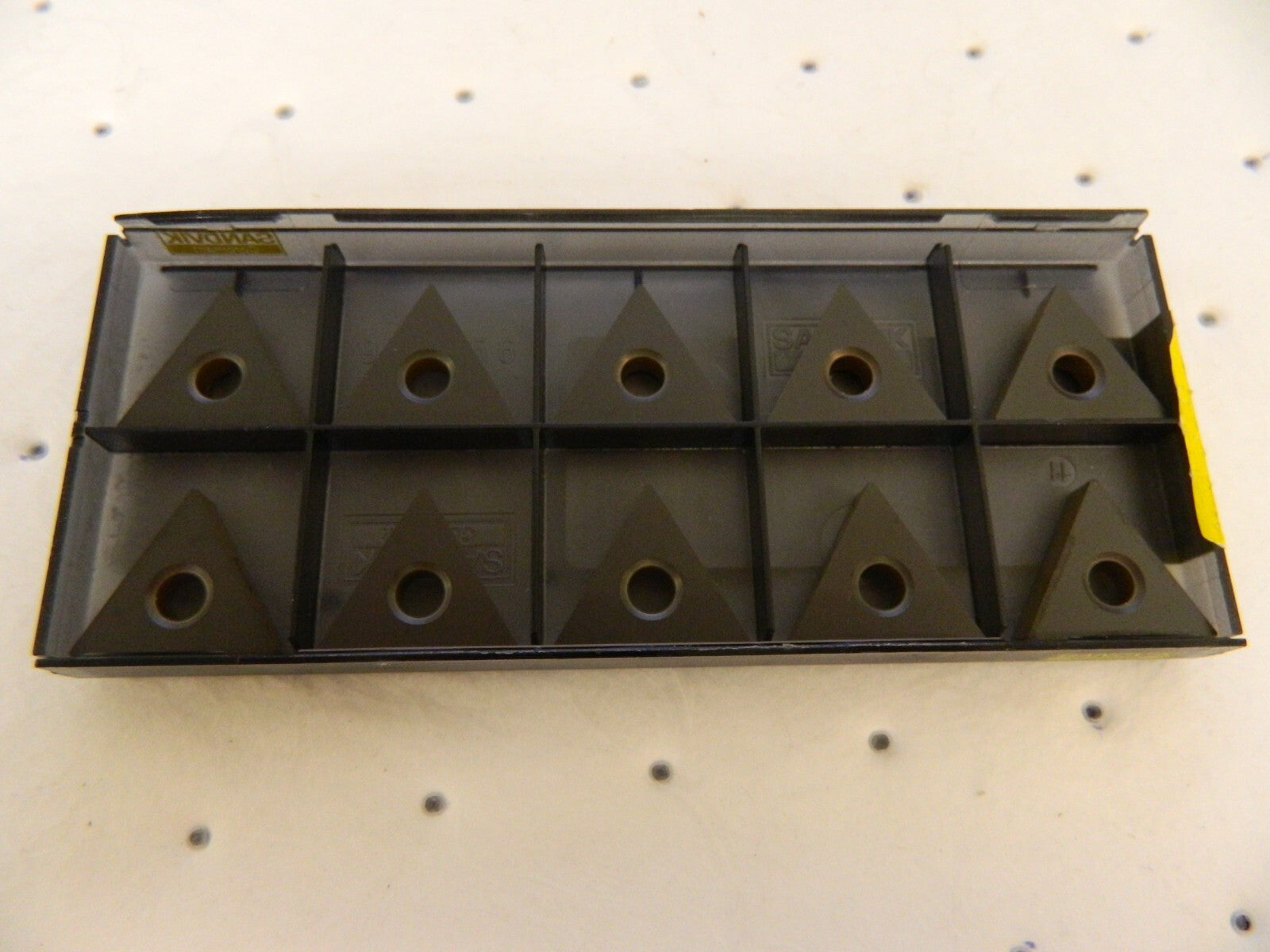

SANDVIK COROMANT TNMA431-KR 3225 Carbide Turning Insert qty 10 6868606

SANDVIK COROMANT

 TNMA431-KR 3225 Carbide Turning Insert qty 10 6868606
MSRP: $148

• Insert Style TNMA
• Insert Shape Code T
• Insert Size Code 431
• Insert Shape Triangle
• Coating/Finish TiCN; TiN; Al2O3
• Manufacturer Grade 3225
• Corner Radius (Inch) 1/64
• Corner Radius (mm) 0.40
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Solid Carbide
• Hole Diameter (Mm) ( - 0 Decimals) 5.16
• Hole Diameter (Decimal Inch) 0.2030
• Maximum Depth of Cut (mm) 21.60
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (mm) 12.70
• Inscribed Circle (Decimal Inch) 0.5000
• Insert Holding Method Pin; Clamp
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness 4.76
• Insert Thickness (Decimal Inch) 0.1875
• Clearance Code N
• Tolerance Code M
• Included Angle 60.0
• Relief Angle 0
• Series T-Max P
• Coating Process CVD
• Iso Code TNMA 22 04 04-KR 3225
• Cutting Direction Neutral
• Chip Breaker A
• Cutting Edge Style Rounded

 Please review photos, comes as shown.
