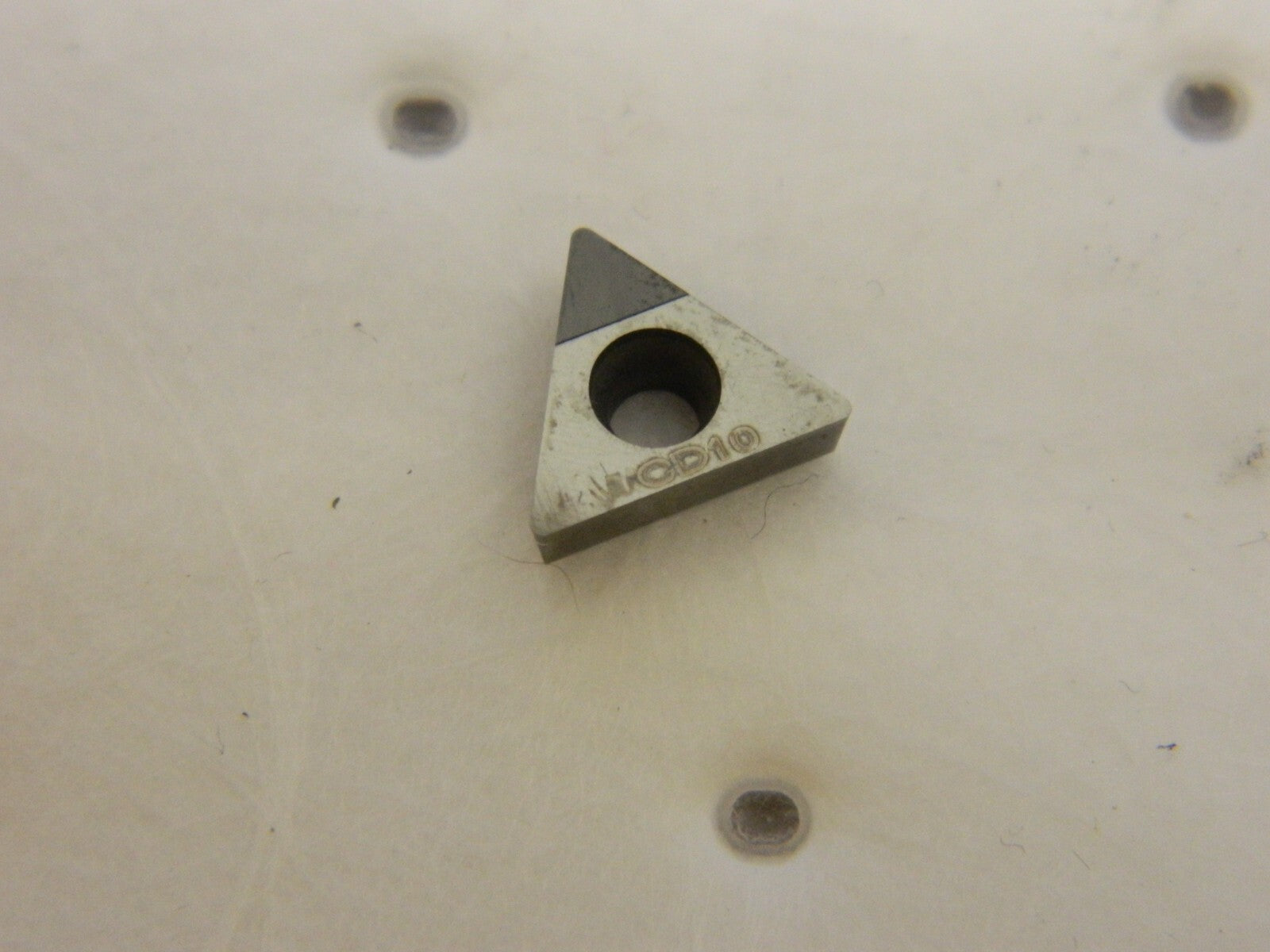

SANDVIK COROMANT TCMW221FP CD10 Carbide Turning Insert qty2 5752857

SANDVIK COROMANT

 TCMW221FP CD10 Carbide Turning Insert qty2 5752857
MSRP: $330

• Insert Style TCMW
• Insert Shape Code T
• Insert Size Code 221
• Insert Shape Triangle
• Coating/Finish Uncoated
• Manufacturer Grade CD10
• Corner Radius (Inch) 1/64
• Corner Radius (mm) 0.40
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Solid Carbide
• Hole Diameter (Mm) ( - 0 Decimals) 2.80
• Hole Diameter (Decimal Inch) 0.1102
• Inscribed Circle (Inch) 1/4
• Inscribed Circle (mm) 6.35
• Inscribed Circle (Decimal Inch) 0.2500
• Insert Holding Method Screw
• Insert Hand Neutral
• Insert Thickness (Inch) 1/8
• Insert Thickness 3.17
• Insert Thickness (Decimal Inch) 0.1250
• Clearance Code C
• Tolerance Code M
• Included Angle 60.0
• Relief Angle 7
• Series CoroTurn 107
• Coating Process Uncoated
• Length Range (Decimal Inch) 0.0000 - 0.3000
• Wiper Edge No
• Insert Length (Decimal Inch) 0.1063
• Number Of Cutting Edges 1
• Primary Workpiece Material Non-Ferrous Metal
• Primary Workpiece Material Code N
• Ansi Code TCMW221FPCD10
• Iso Code TCMW110304FP CD10
• Chip Breaker FP

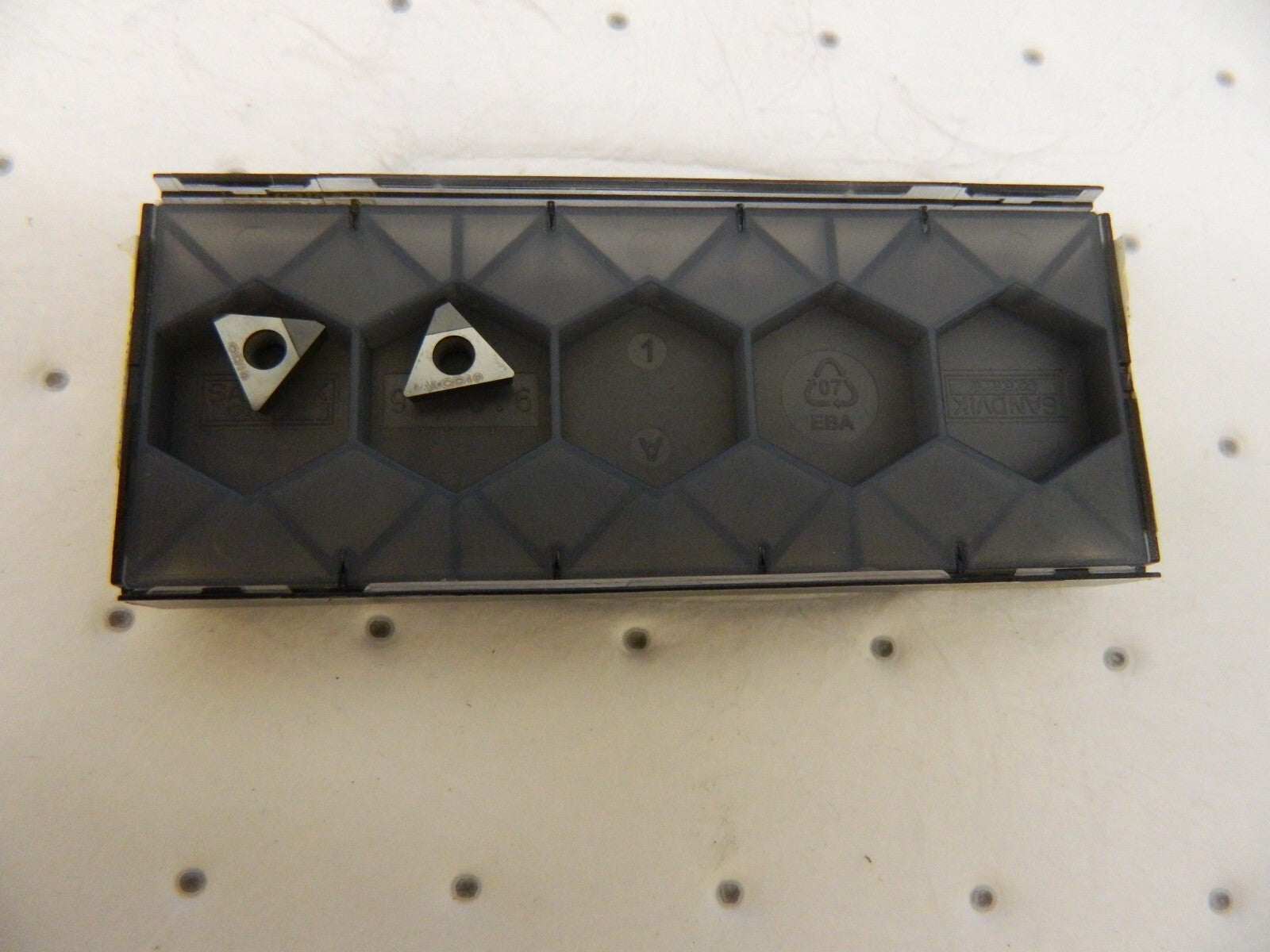

 Please review photos, comes as shown.
